ah! Curved | panoramah!®

Share
  • Use

    Frameless, insulated sliding doors and windows
  • Applications

    Residential, Commercial, Restaurants, Hotels, Corporate
  • Characteristics

    Aluminum structure, self supporting glass, limitless number of rails, ah!60 thermal insulation up to 0.708W/m².K, sound insulation: 44 dB, security RC4, ah!38 thermal insulation up to 0.816W/m².K, sound insulation: 41 dB, security RC2
  • Format

    Curved
  • Sizes

    ah!60 vertical profile: 20mm, maximum leaf dimensions: 3000 x 3000mm, glass thickness: 60mm | ah!38 vertical profile: 20mm, maximum leaf dimensions: 3000 x 3000mm, glass thickness: 38mm
  • Certification

    ISO 9001:2015 Quality Certified

2 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

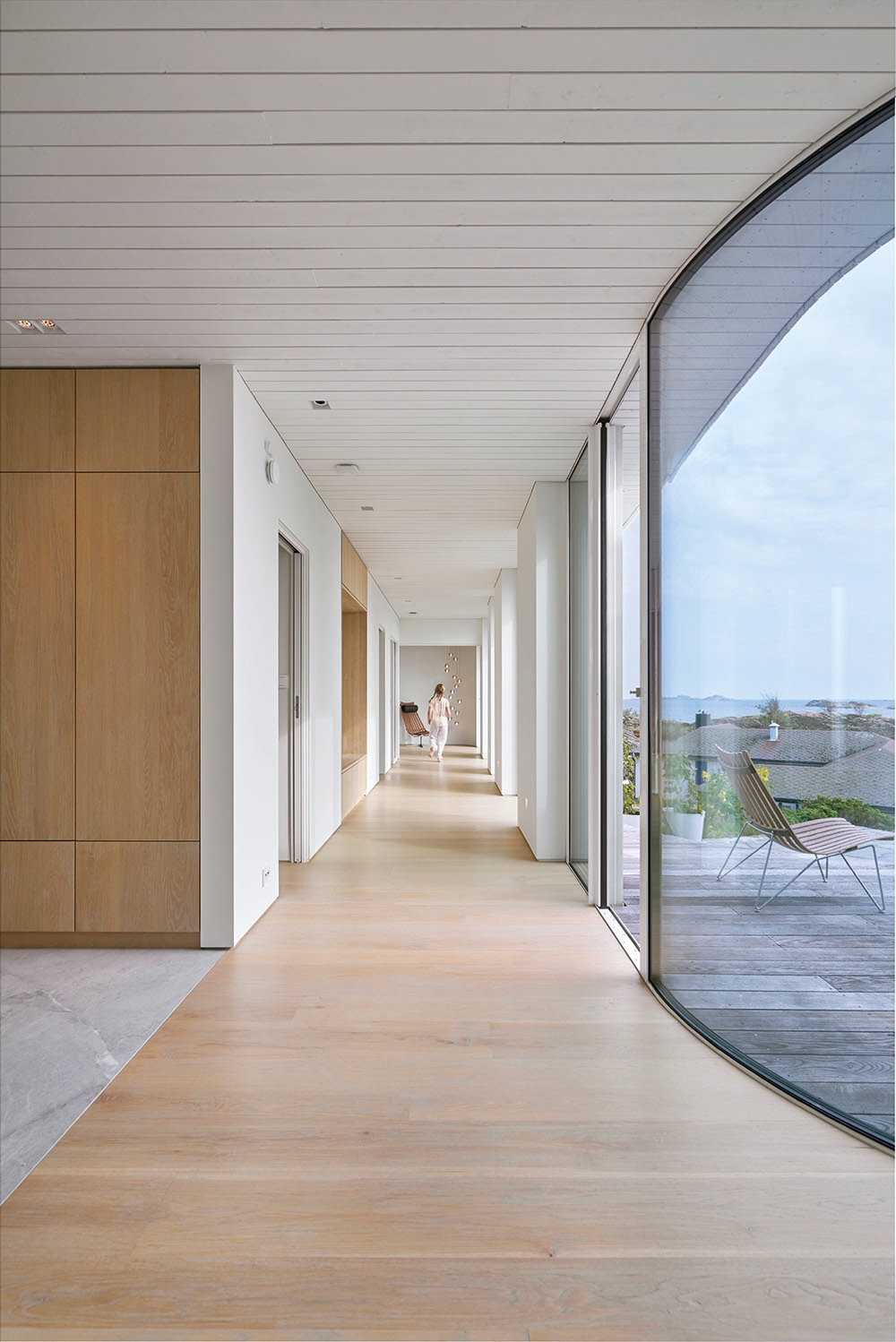

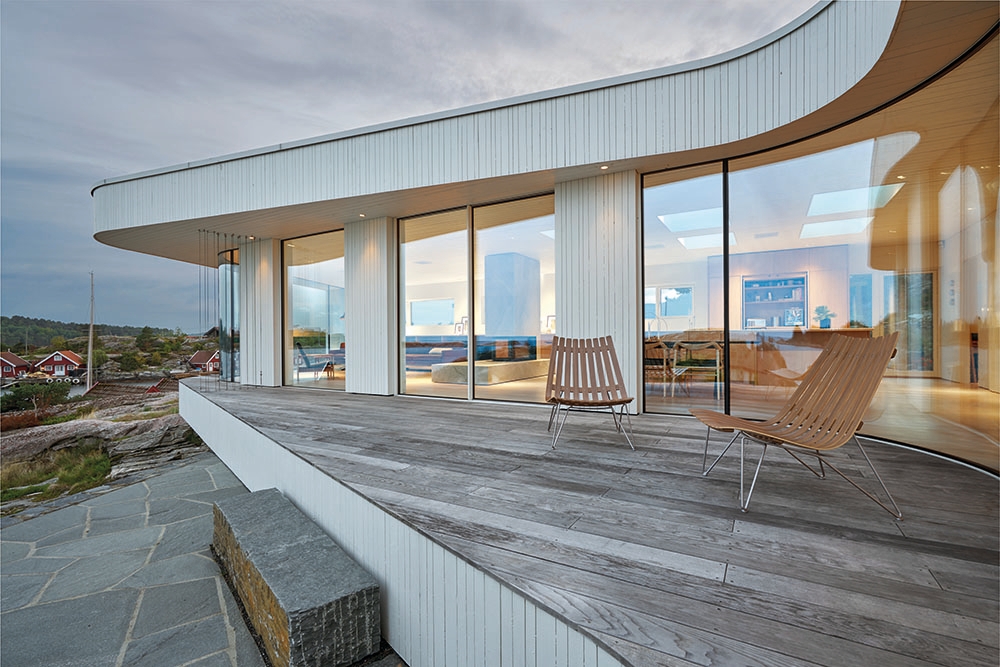

This panoramah!® curved window system allows a radius of 1,5m for sliding and fixed panes. Curved sliding elements offer smooth running performance and can be motorized upon request. Curved glass is always tempered.

Characteristics

  • ah!60 thermal insulation up to 0.8W/m².K, sound insulation: 44 dB, security RC4.
  • ah!38 thermal insulation up to 1.165W/m².K, sound insulation: 41 dB, security RC2.

Sizes

  • ah!60 vertical profile: 20mm, maximum leaf dimensions: 9000mm, maximum glazed area: 29m2 (double glazing) or 19m2 (triple glazing), glass thickness: 60mm.
  • ah!38 vertical profile: 20mm, maximum leaf dimensions: 6000mm, maximum glazed area: 19m2 (double glazing) or 6m2 (triple glazing), glass thickness: 38mm.
