ah!UM - Ultra Minimalist | panoramah!®

Share
  • Use

    Frameless, insulated sliding windows
  • Applications

    Residential, ideal for very cold climates and high demanding security specs
  • Characteristics

    Sliding windows. Aluminum structure. Self supporting vacuum insulated glass. Limitless number of rails. Thermal insulation up to 0.8 W/m².K. Acoustic insulation up to 37 dB
  • Format

    Sliding
  • Sizes

    Vertical profile: 15mm. Maximum leaf height: 2500mm. Maximum leaf width: 1800mm. Maximum vacuum glazed area: 4,5m2 . Glass thickness: 12mm.
  • Certification

    ISO 9001:2015 Quality Certified | Red Dot Design Award 2018
You will be contacted by panoramah!® at:
The product has been saved to the folder: My Downloaded Products

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

This minimalist window system from panoramah!® consists of a sophisticated sliding aluminium casement that explores the structural properties of glass, enabling the execution of large glazed areas with the use of vertical, minimal (slender) aluminium profiles, resulting in great elegance. Unlike traditional casement systems, glass is panoramah!®’s self-supporting, main component, while the aluminium frame takes on the secondary functions of guiding its sliding motion, providing additional structural reinforcement and ensuring the window’s sealing capacity.

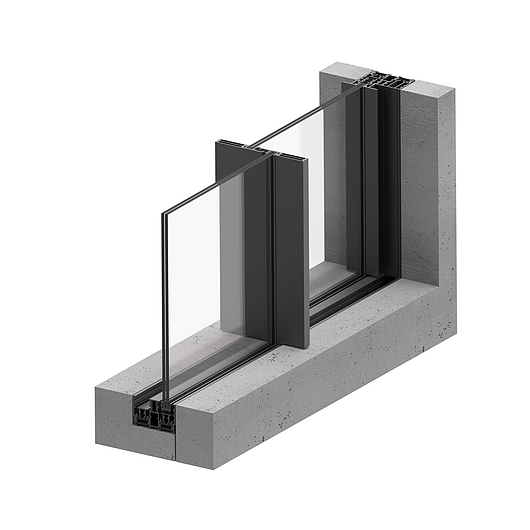

Minimal Frame Window ah!UM ULTRA MINIMALIST

panoramah!® Ultra-Minimalist is based on the revolutionary vacuum insulating glass. This technology allows for 12mm total thickness glass to achieve triple glazing performance and by reducing glass thickness the overall aluminium structure of the window diminishes proportionally, resulting in an extremely slim and minimal system. Also, by using vacuum insulating glass, the vertical sightlines are reduced to an astonishing 15mm, even less than the initial systems based on standard double insulating glass. The system can achieve pane surfaces up to approximately 4m² and allows for the introduction of a wide range of accessories.

System Specifications:

  • Opening solutions: sliding

  • The window frame is built by means of a structural link between anodized aluminum and reinforced polyamides, avoiding thermal bridging in all components

  • Excellent thermal (up to 0.8 W/m².K) and acoustic performance (up to 37 dB)

  • Robust, 1mtr long bearing profiles, very easily maintained or replaced, support loads of up to 1.800 kg/ml, can support an unlimited number of panes made out of up to 60mm double or triple glazed units, vaccum glazed units, which can even be motorized.Panoramah | ah!UM Ultra Minimalist
