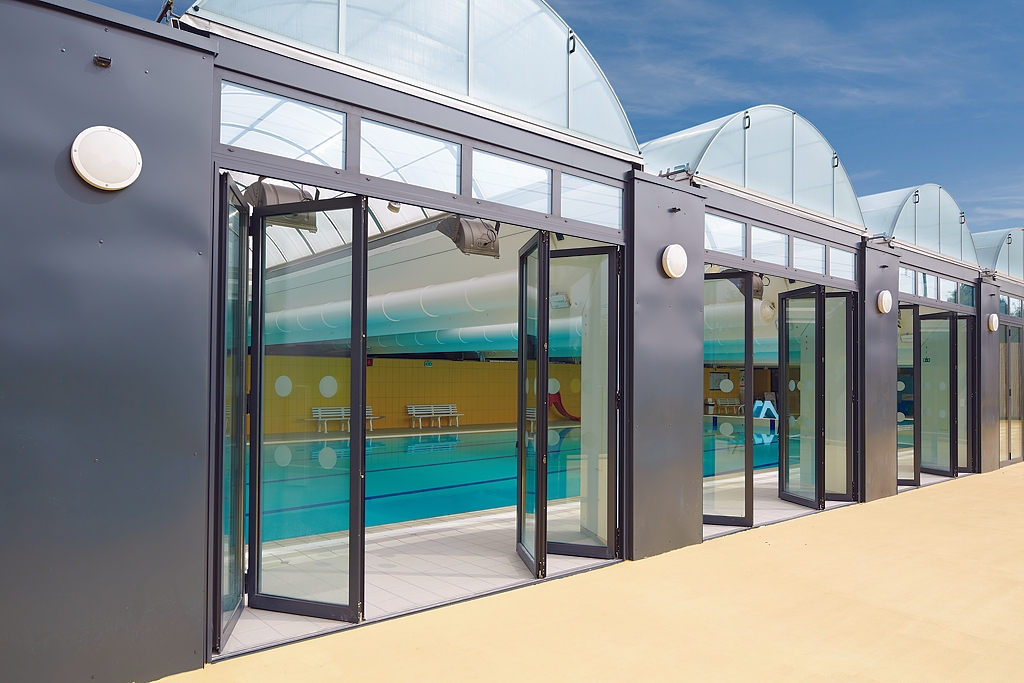

Folding Doors - CF 77 | Reynaers Aluminium

  • Use

    Folding doors
  • Applications

    Door systems for residential, commercial, corporate, hospitality
  • Characteristics

    Air tightness max. test pressure: 4 (600 Pa); Water tightness: 8A (450 Pa); Wind load resistance: C4 (1600 Pa); Acoustic performance: Rw (C; Ctr) = 35 (-2;-4) dB / 40 (0;-2) dB, depending on glazing type dB; Thermal insulation (Uf)1,07 W/m²K

1 Supplementary File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Invite nature into your building

People are continuously looking for ways to maximize their space, visually as well as physically. Reynaers Aluminium Concept Folding® 77 offers them the opportunity to optimize the utilisation of their rooms, drawing the external environment into their homes. Next to the improved space utilisation, this innovative system offers the advantage of lots of daylight coming in, as well as an aesthetical design. Another practical feature of CF 77 is the optional door locking principle which allows to use the first leaf as an entrance door without affecting the folding capacity of the system.

With CF 77, design and user friendliness go hand in hand with technical performance. The standalone solution exists out of new profiles, accessories and insulation technologies that have specifically been designed for folding systems. It ensures good insulation values that meet stringent local legislation requirements as well as market demands. Available in a number of configurations using between 2 and 8 door leaves, you can choose a design where the complete set of vents stacks to the same side, or split the design at any position, possibly integrating a central door solution.


Max. width vent 1200 mm
Overall system depth frame 77 mm
Overall system depth vent 77 mm
Min. Glass thickness 6 mm
Max. Glass thickness 63 mm


Air tightness max. test pressure: 4 (600 Pa)
Water tightness: 6A (250 Pa)
Wind load resistance: B3 (1200 Pa)
Acoustic performance: Rw (C; Ctr) = 34 (-2;-5) / 45 (-1;-5) dB
Thermal insulation (Uf): 2,25 W/m²K

You can find the BIM models for this product here.
