  4. Self-Closing Pivot Hinge - System M

Self-Closing Pivot Hinge - System M | FritsJurgens

Share
  • Use

    Interior/exterior pivot door hinges
  • Applications

    Commercial, residential
  • Characteristics

    Self-closing, three hold positions, closing damping, hydraulic backcheck, loadbearing up to 500 kg, easy installation, no maintenance
You will be contacted by FritsJurgens at:
The product has been saved to the folder: My Downloaded Products

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

FritsJurgens System M is a concealed self-closing pivot hinge system that completely integrates into a pivot door to give complete control over its movement with the lightest touch. The movement of the System M pivot hinge is smooth and effortless with closing as soft as a whisper thanks FritsJurgens patented dampeners that operate in seamless coordination with the System M hinge.

  • Self-closing from -125˚ to + 125˚
  • Hold positions at 0˚, 90˚and -90˚
  • Adjustable closing damping (soft close)
  • Hydraulic backcheck (wall protection)
  • Can be combined with door frames
  • Patented system

Technology, quality & Aesthetics

FritsJurgens self-closing pivot hinge System M creates endless possibilities regarding the design of your pivot door. There are virtually no limits to its size and weight, thanks to the high load bearing capacity of the system. The fluent movement of every pivot door with a FritsJurgens pivot hinge inside is guaranteed up to 350 kg. The height of the door is unlimited.

Smooth movement with System M

The damper control in FritsJurgens’ self-closing pivot hinge System M has two functions. It protects your door from touching the wall and ensures a smooth and elegant closing movement.

The hydraulic backcheck (1) protects the pivot door against touching the wall by slowing the pivot door down strongly when reaching 70°. The closing damping (2) makes the door close elegantly. The damper control is adjustable, allowing you to determine the amount of damping.

Components

  • CEILING PLATE
    A stainless-steel ceiling plate is fitted in the ceiling. The pin of the top pivot fits seamlessly into the hole in the ceiling plate.
  • TOP PIVOT
    The top pivot is integrated into the top of the door and uses a so-called pin/hole connection. The pin is fixed to the top pivot and drops into the hole in the ceiling plate when this is turned.
  • SYSTEM M
    System M pivot hinge is integrated into the lower part of the door. The oval base of the pivot hinge is inserted into the slot in the floor plate.
  • FLOOR PLATE
    A stainless-steel floor plate with an oval recess is fitted to the floor. The base of the pivot hinge fits seamlessly into the recess in the floor plate.

Features

  • No structural elements in floor and ceiling
  • Load-bearing capacity: up to 500 kg
  • Minimum door thickness: 40mm
  • Quick and simple to install
  • Maintenance-free
  • For new and existing situations
  • Easily adjustable with the door in place
  • Suitable for timber, steel, framed glass, and massive clad doors
  • For single and double action doors

For more information please click here.

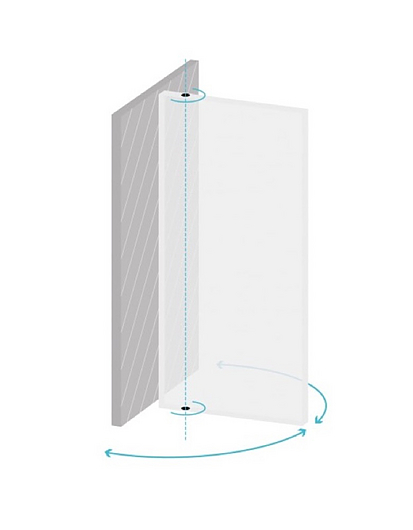

Rotation 180˚

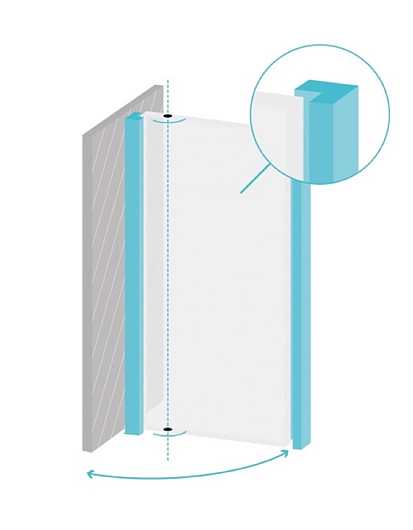

Rotation: 90˚
(in combination with door frames)
