Ceiling Tiles - Microperf Metal | ASI Architectural

Share
  • Use

    Ceilings
  • Applications

    Residential, commercial, corporate
  • Characteristics

    Lightweight, impact resistant, rigid, various finish options, acoustic performance, cost-effective
  • Format

    Tiles
  • Colors

    White, black, optional anodized colors
  • Sizes

    White Tegular – 3/8″ tegular edge, 23-3/4″ x 23-3/4″ | Black Tegular – /8″ tegular edge, 23-3/4″ x 23-3/4″ | Flat panels < 26-3/4″ x 78-3/4″
  • Certification

    NRC rating: 0.80

4 Supplementary Files

The product has been saved to the folder: My Downloaded Products

More about this product

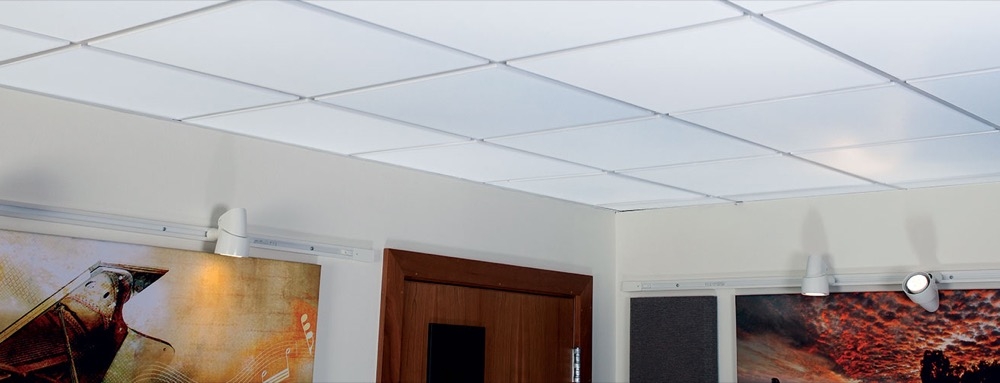

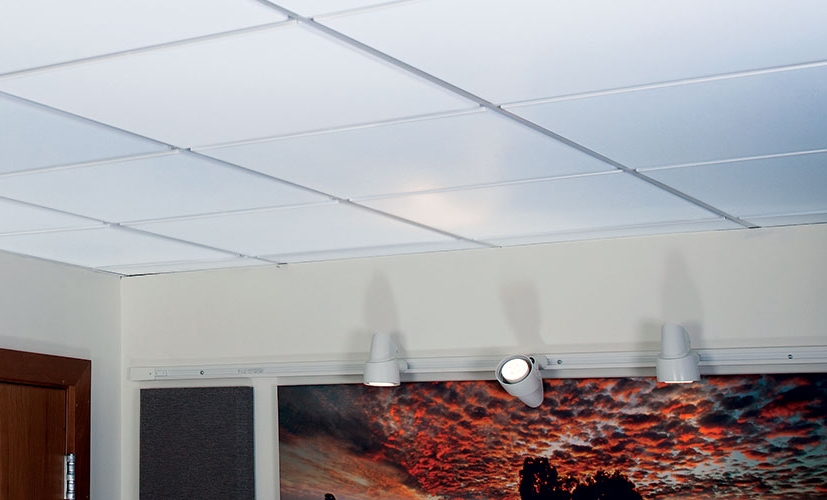

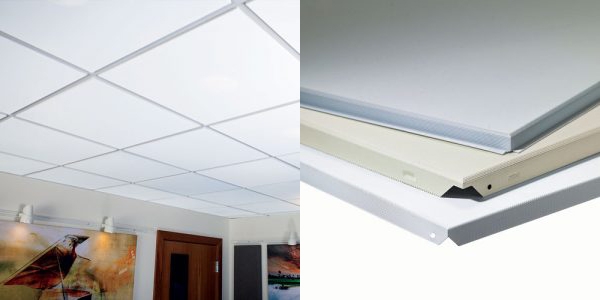

Microperf Metal Ceiling Tiles are micro-perforated aluminum sound absorber panels that reduce echo and sound reflections. They have a smooth appearance, with an excellent NRC Rating of 0.80. Designed by ASI Architectural to resemble smooth, silk-like fabric, the tegular or flat metal tiles install easily into any standard 15/16″ HD T-Bar ceiling grid.

Microperf | ASI Architectural

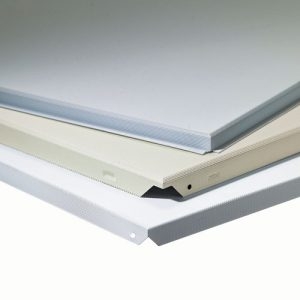

Appearance: Flat (Lay In) or Tegular

Stock Colors & Sizes:

  • 23¾” × 23¾”, White – 3/8” – Tegular Edge
  • 23¾” × 23¾”, Black – 5/8” – Tegular Edge

Features

  • Standard panel sizes can be field cut to fit irregularly shaped installations
  • Lays in to HD 15/16” T-bar grid for 100% accessibility
  • Tegular panels have a 1” reveal
  • Resembles smooth fabric surface in appearance

Acoustical Absorption

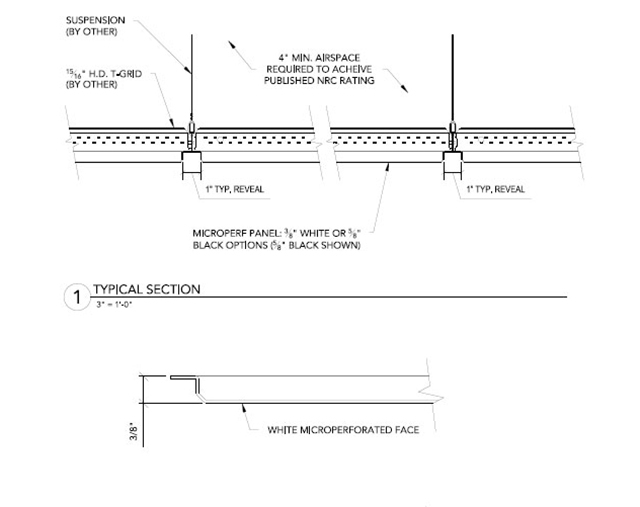

The panels have an excellent NRC Rating of 0.80 NRC (per ASTM C423) with a 4” airspace without having to employ an acoustical backer

125Hz 250Hz 500Hz 1KHz 2KHz 4KHZ NRC
0.86 0.94 0.65 0.77 0.76 0.75 .80

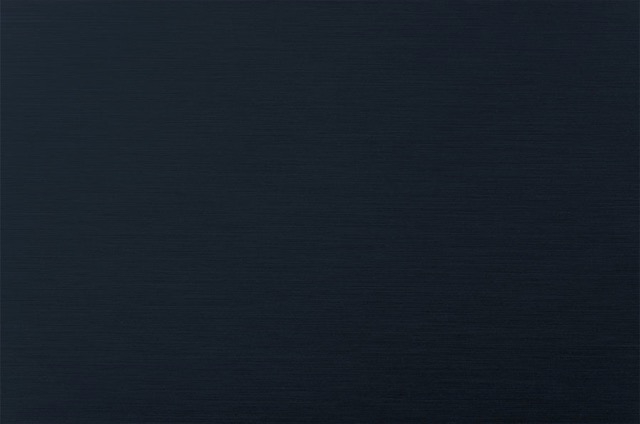

Finishes

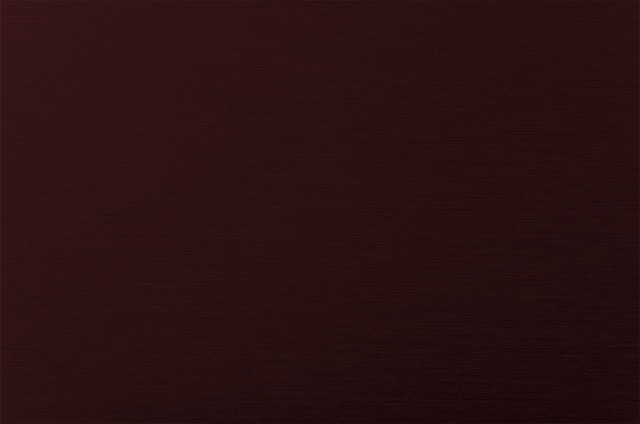

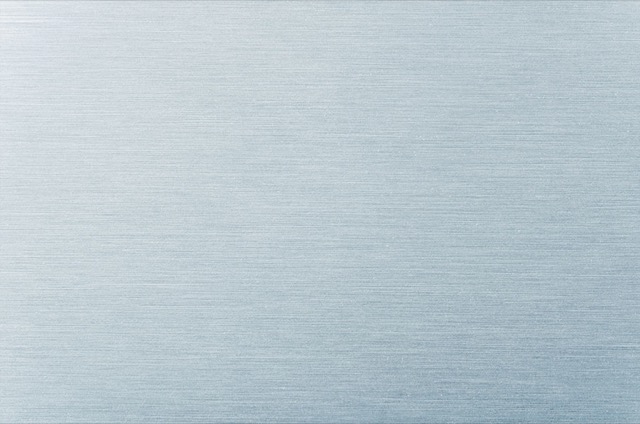

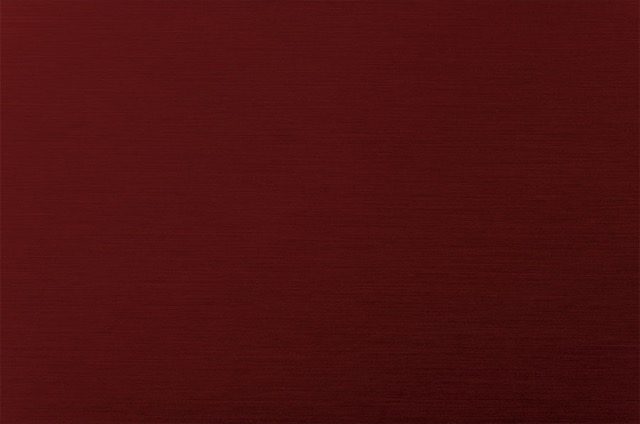

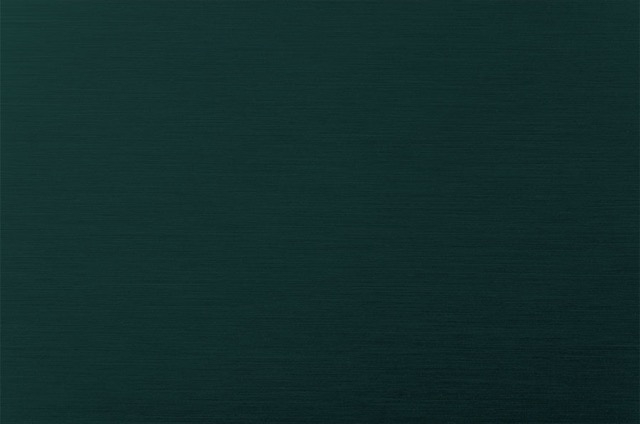

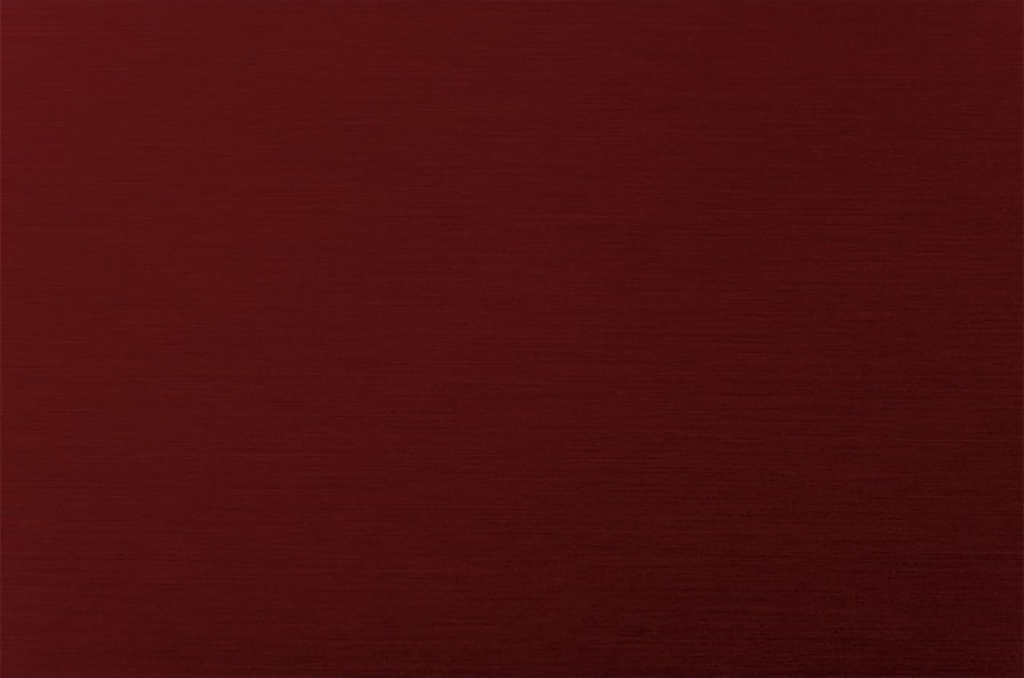

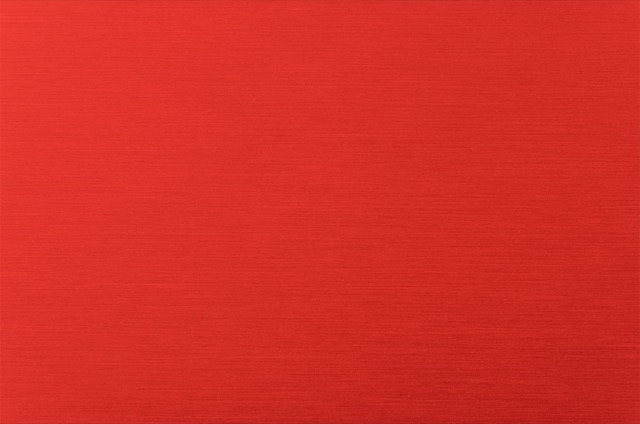

ASI Architectural has a range of anodized aluminum colors available for metal ceiling panels.
