Decorative Ceiling Beam System - Beam

  • Use

    Interior ceilings

  • Applications

    Residential, commercial, corporate

  • Characteristics

    Lightweight, cost-effective, custom sizes, various finish options, easy installation

  • Format

    Beams

  • Sizes

    >4″ width | <18″ height | <10′ length (per section) | Three beam faces not to exceed 48″ total

  • Certification

    Fire Rating: Class A, may contribute to LEED® credits

4 Supplementary Files

ASIArchitectural_Beam

3.8 MB

pdf
Beam_DetailBook

490 KB

pdf
Beam_Installation-Instructions_051118

180 KB

pdf
Beams

26 KB

docx
By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

ASI Architectural’s Beam ceiling system is a simple and cost-effective alternative to solid wood without the associated weight or cost. The ceiling system can be customized based on project requirements, and custom widths, lengths, and heights can be specified. ASI Architectural Ceiling beams can be used alongside other ceiling systems. Veneer and grain matching, as well as end matching, are all available.

Features

  • Custom sizes available
  • Easy install
  • Lightweight and more cost-effective than solid wood
  • Adds structural appearance to décor

Beam | ASI Architectural

Options

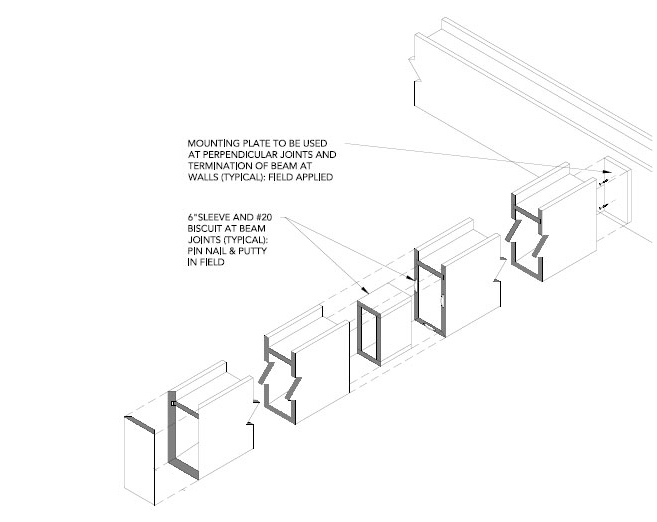

Beam ends:

  • Blocked beam ends
  • Sleeved beam ends
  • Finished beam ends
  • Veneer end matching available

Cores:

  • Class A Fire Rated Particle Board
  • Class A Fire Rated MDF

Mounting:

  • Monolithic suspension system or
  • 15/16″ HD T-Bar ceiling grid

ASI Architectural Wood Finishes

  • Clear lacquer top coat
  • Stained to match

Finishes | ASI Architectural
