Structural Glass Railing | Hollaender

  • Available in

  • Use

    Handrails, guardrails, balconies
  • Applications

    Multifamily residential, industrial, hospitality, educational, institutional, commercial
  • Characteristics

    Structural, stainless steel, choice of finishes, ideal in commercial projects
  • Certification

    Meets IBC and ADA codes, U.S. International Building Code 2009/2012/2015/2018 standards specific to guardrails, handrails and infill panel materials including glass
Hollaender Logo

Contact manufacturer

Hollaender

Hollaender Logo

Contact manufacturer

Hollaender

More from Hollaender

Website Phone

More about this product

Hollaender Manufacturing Company produces a wide array of architectural railing systems. These hand and guard railing systems can be designed to fit individual projects by engineers at Hollaender.

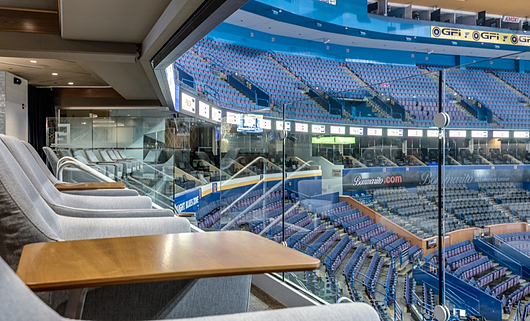

Newman by Hollaender™ (formerly Newman Brothers Railing) Structural Glass railings are an all stainless steel system. The structural glass railing features an extruded aluminum shoe encased with either stainless steel or aluminum cladding. Top caps or rails are available in round and U-channel forms in materials and finishes to match the cladding and the assist rail.

Structural Performance

Uniform load Concentrated load
Top Rails of Guards 50 lb/ft. applied in any direction 200 lb/lf. applied in any direction
Infill Area of Guards Horizontal concentrated load of 200 lb/lf. applied to 1 sq. ft. at any point on glass infill or other elements composing infill area. Load on infill area need not be assumed to act concurrently with loads on top rails.
Handrails 50 lb/ft. applied in any direction 200 lb/lf. applied in any direction
Tempered Glass ASTM C1048, Fully Tempered, Condition A, Type 1 (Transparent Flat Glass), Quality Q3

Materials

Base Shoe 6063-T6 Aluminum, 2 ½” wide x 4 1/8” high to hold monolithic or laminated tempered glass, ½” - 13/16” overall width
Cladding Various available — No. 4 304 SS brushed finish, Aluminum .060 in thick, anodized or powder-coated
Top Cap/Rail Various available – Round 1.5” OD 304 SS No. 4 brushed finish, Aluminum, Wood. U channel: 304 SS brushed finish and anodized or powder-coated aluminum
Assist Rail Various available – 1.5” SS and 1.9” Aluminum
Glass In order to meet IBC codes, ½” to 3/4” (13/16” overall thickness) in tempered monolithic or laminated, clear/Ɵnted/frosted.
