UseHandrails, guardrails, balconies
ApplicationsMultifamily residential, industrial, hospitality, educational, institutional, commercial
CharacteristicsStainless steel, welded/non-welded options, integrated LED option, ideal in commercial projects
SizesHeight of top rail above walking surface: 36 - 38”
CertificationMeets IBC and ADA codes, U.S. International Building Code 2009/2012/2015/New York City standards specific to handrails.

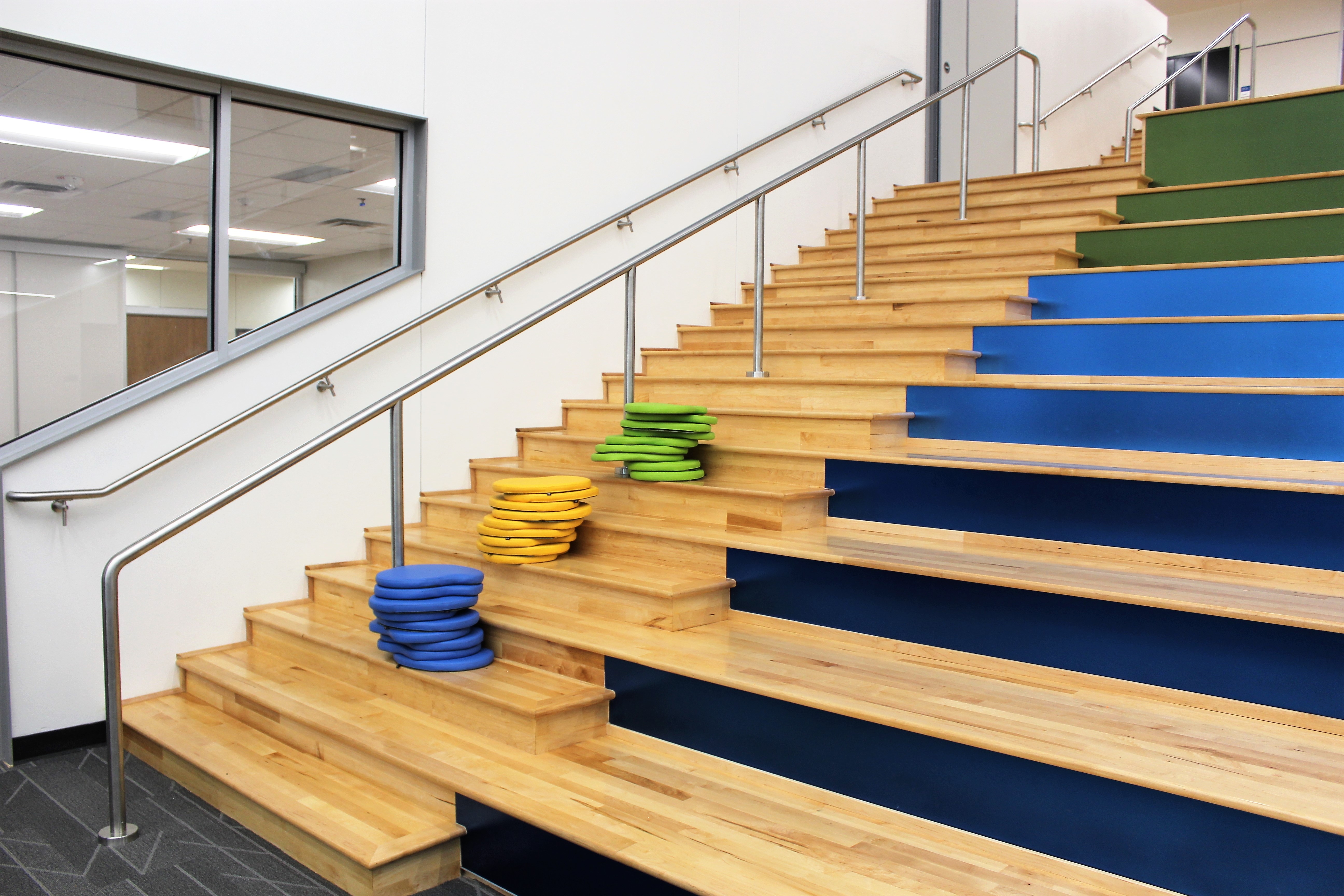

Post and wall mounted handrail comes in either 304 or 316 stainless steel. The stainless steel is available as either a non-welded mechanical tee connection system or a welded system. No. 4 polish is standard, however, other polishes are available.
|Uniform load||Concentrated load|
|Handrails||50 lb/ft. applied in any direction||200 lb/lf. applied in any direction|
*Uniform and concentrated loads need not be assumed to act concurrently.
Illuminated Railing can be provided using LED Pods, typically installed on the underside of the top rail at 2 ft. c-c.
Materials and Finishes
|Posts||304 or 316 SS, 1 ½” IPS (48.2 mm O.D.) .120” Wall|
|Rails||304 or 316 SS, 1 ½” IPS (48.2 mm O.D.) .080” Wall|
|Fittings||Mechanical (non-welded) tees, 655-8 Stainless Steel|
|Base Flanges||Stainless steel|
|Fasteners||Stainless steel 304 alloy|
