Cloud Ceilings | ASI Architectural

Cloud Ceilings Cloud Ceilings Cloud Ceilings Cloud Ceilings Cloud Ceilings Cloud Ceilings
  • Available in

  • Use

    Interior, cloud panel
  • Applications

    Commercial, educational, industrial, corporate, cultural
  • Characteristics

    Acoustical absorption, various designs, sizes and wood types
  • Sizes

    Maximum 60″ x 120″

1 Product File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
ASI Architectural Logo

Contact manufacturer

ASI Architectural

ASI Architectural Logo

Contact manufacturer

ASI Architectural

More from ASI Architectural

Website Phone

More about this product

ASI Architectural offers Cloud Ceiling Panels, flat, convex and concave cloud panels, designed for projects requiring design versatility with the option of sound absorption.

The cloud panels are easy to install and may be used individually or linked together with mending plates in various sizes and shapes to form larger clouds. Mounted on 1″ steel tube frames, clouds can be perforated or not, and be backed with an acoustical backer.

The cloud panels are easy to install, and may be used individually or linked together (with mending plates) in various sizes and shapes to form larger clouds. Mounted on 1″ steel tube frames, clouds can be perforated or not, and be backed with an acoustical backer.

Characteristics

  • Convex: 12′ typical radius / Concave: 12′ typical radius / Flat panels
  • Perforated or slotted with optional acoustical absorption
  • Custom radius and size options are available.
  • High-pressure laminate face optional
  • Perimeter trim available (MDF core only) / FSC available
  • May contribute to LEED® projects
  • Core materials: Class A Fire Rated Particle Board / Class A Fire Rated MDF
  • Optional features for sound control include: acoustical backer available in 1″ and 2″ thicknesses
  • Woods: Ash, Maple, Beech, Walnut, Red Oak, White Oak, Hickory, Cherry, Natural Bamboo, Caramelized Bamboo
  • Finishes: Clear lacquer top coat or stained to match
  • Sizes: Maximum 60″ x 120″ / Curved clouds standard radius 12′ / Custom radius may not be less than 48″

Models

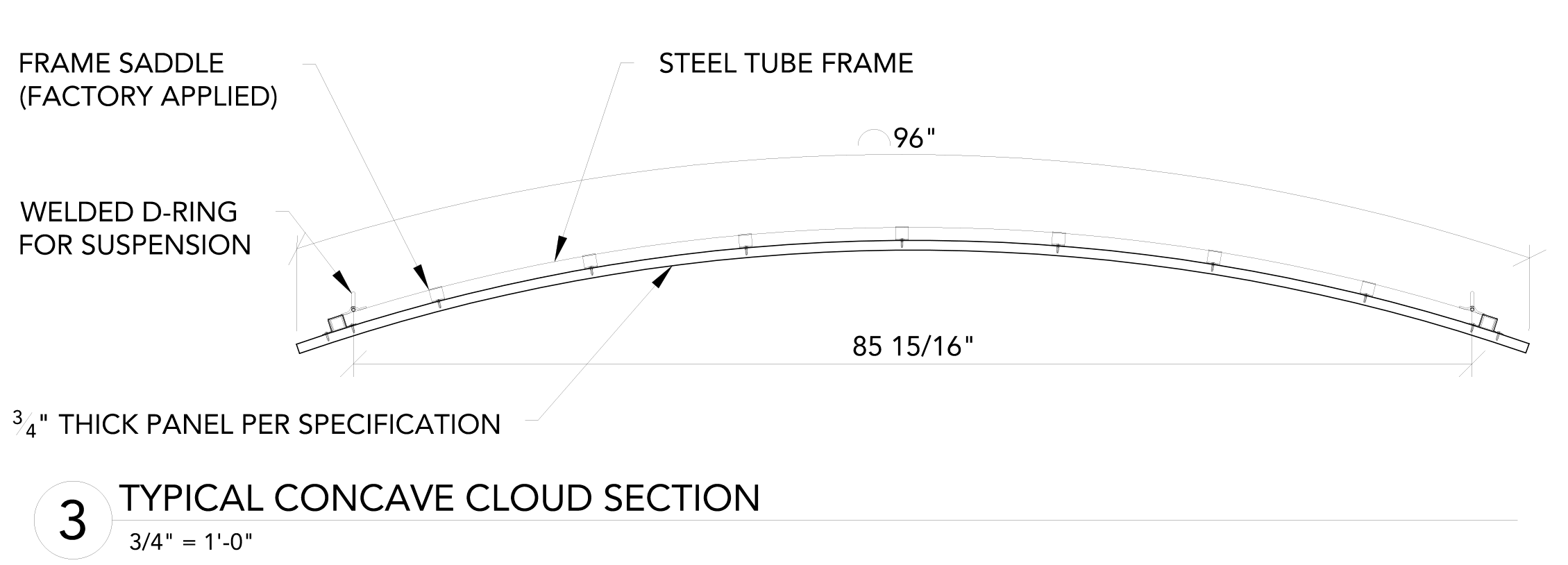

1. Cloud Concave

  • Radius can vary from cloud to cloud in the same installation
  • Custom sizes available to fit irregular installations
  • Can be used in conjunction with Convex and Flat Clouds

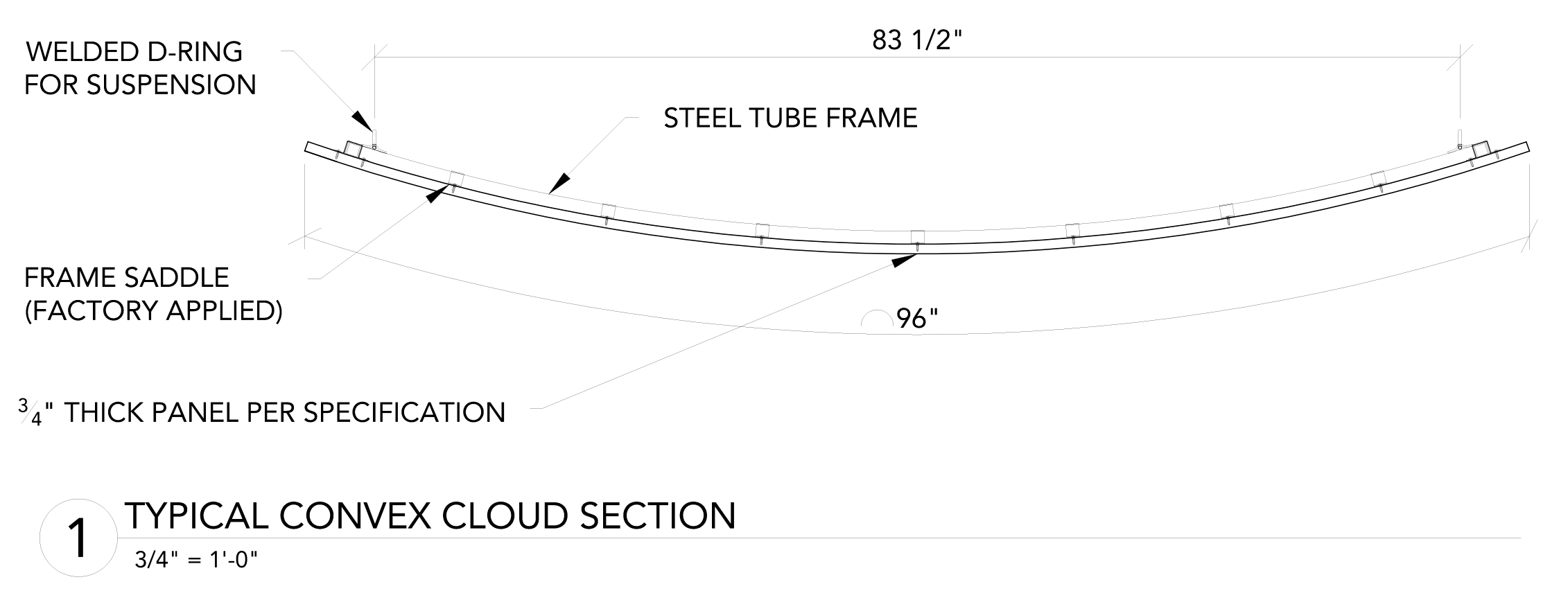

2. Cloud Convex

  • Radius can vary from cloud to cloud in the same installation
  • Custom sizes available to fit irregular installations
  • Can be used in conjunction with Concave and Flat Clouds

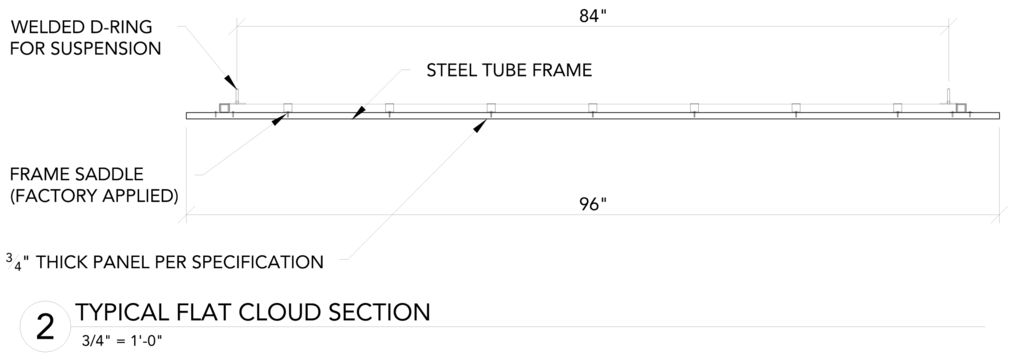

3. Cloud Flat

  • Custom sizes available to fit irregular installations
  • Can be used in conjunction with Convex and Concave Clouds
