StrandTec | ASI Architectural

  • Available in

  • Use

    Interior, acoustical panel
  • Applications

    Commercial, educational, industrial, corporate, cultural
  • Characteristics

    Fire-resistant, natural, eco-friendly, high-performance
  • Sizes

    23-3/4″ x 23-3/4″, 47-3/4″, 95-1/2″ x 1″ | 23-3/4” x 23-3/4″ 47-3/4″, 95-1/2″ x 1-3/8″ | 24″ x 24″, 48″, 96″ x 2″
  • Certification

    Acoustical tests: NRC ratings range from .45 to .90 depending on the panels' thickness and the thickness of the CFAB backers used during installation; SAA ranges from .44 to .94 depending on the panels' thickness and CFAB backer thickness. Fire: Class A Fire Rated. Environmental: Free of VOCs, Highly Resistant to Mold Growth, No Fungal Growth.

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
ASI Architectural Logo

Contact manufacturer

ASI Architectural

ASI Architectural Logo

Contact manufacturer

ASI Architectural

More from ASI Architectural

Website Phone

More about this product

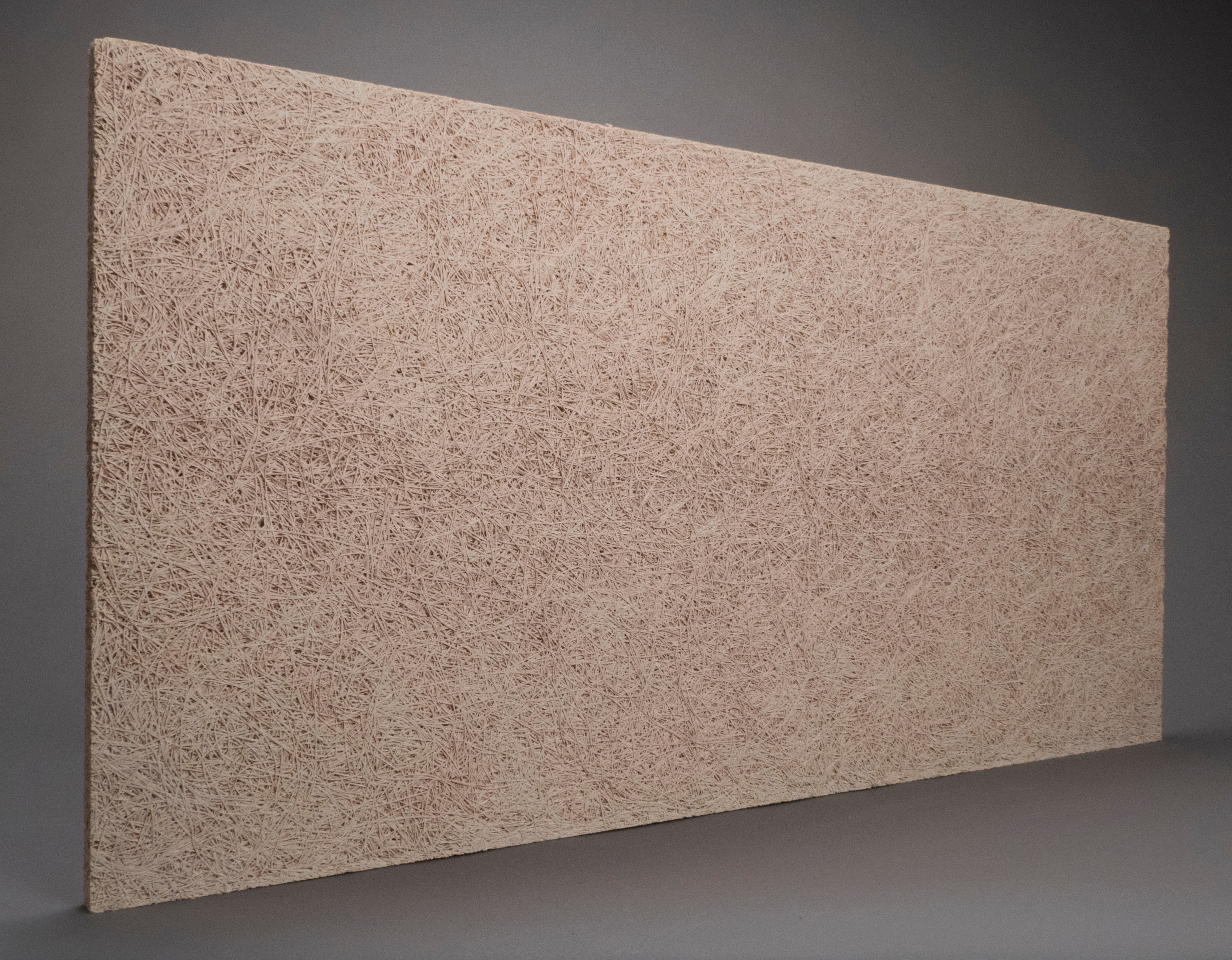

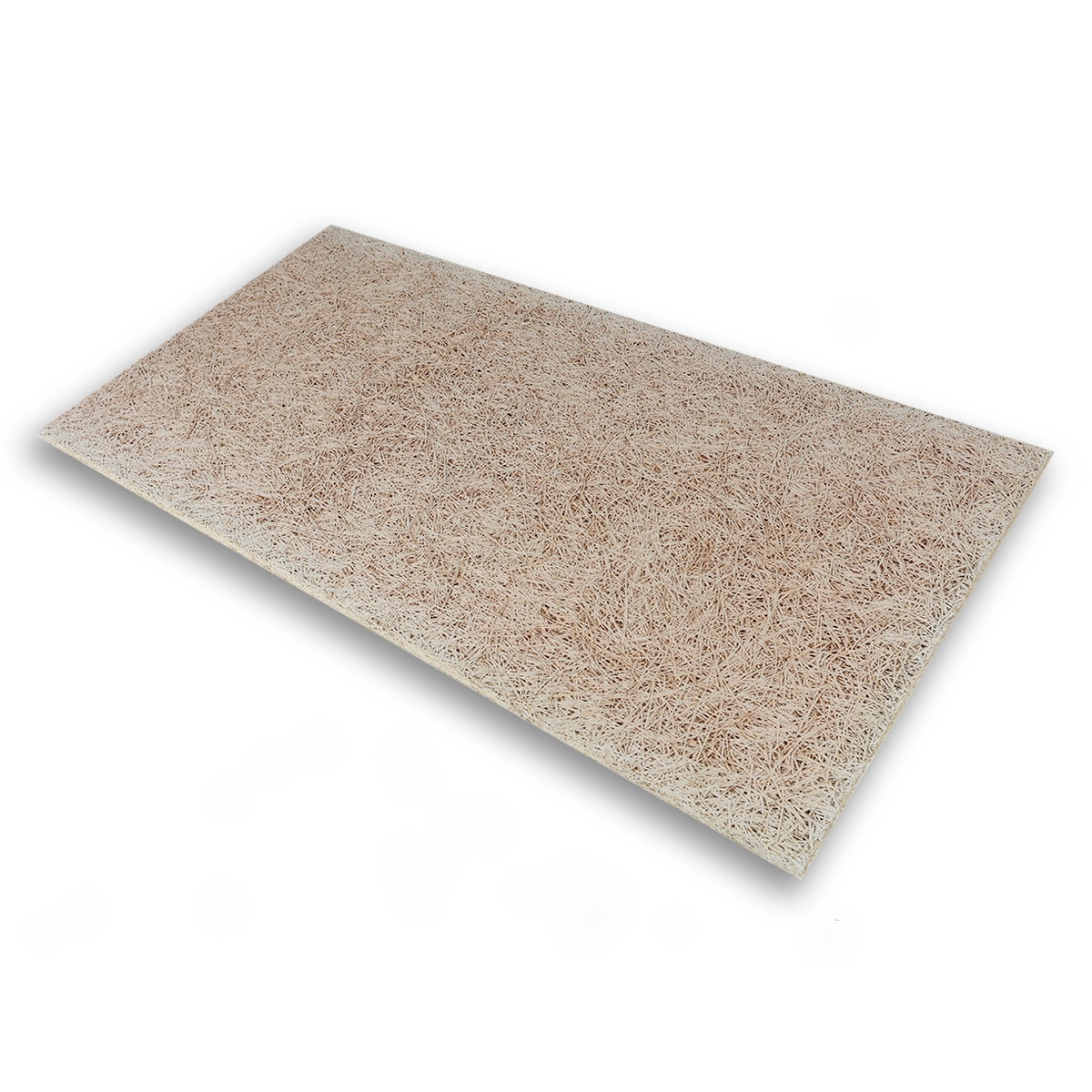

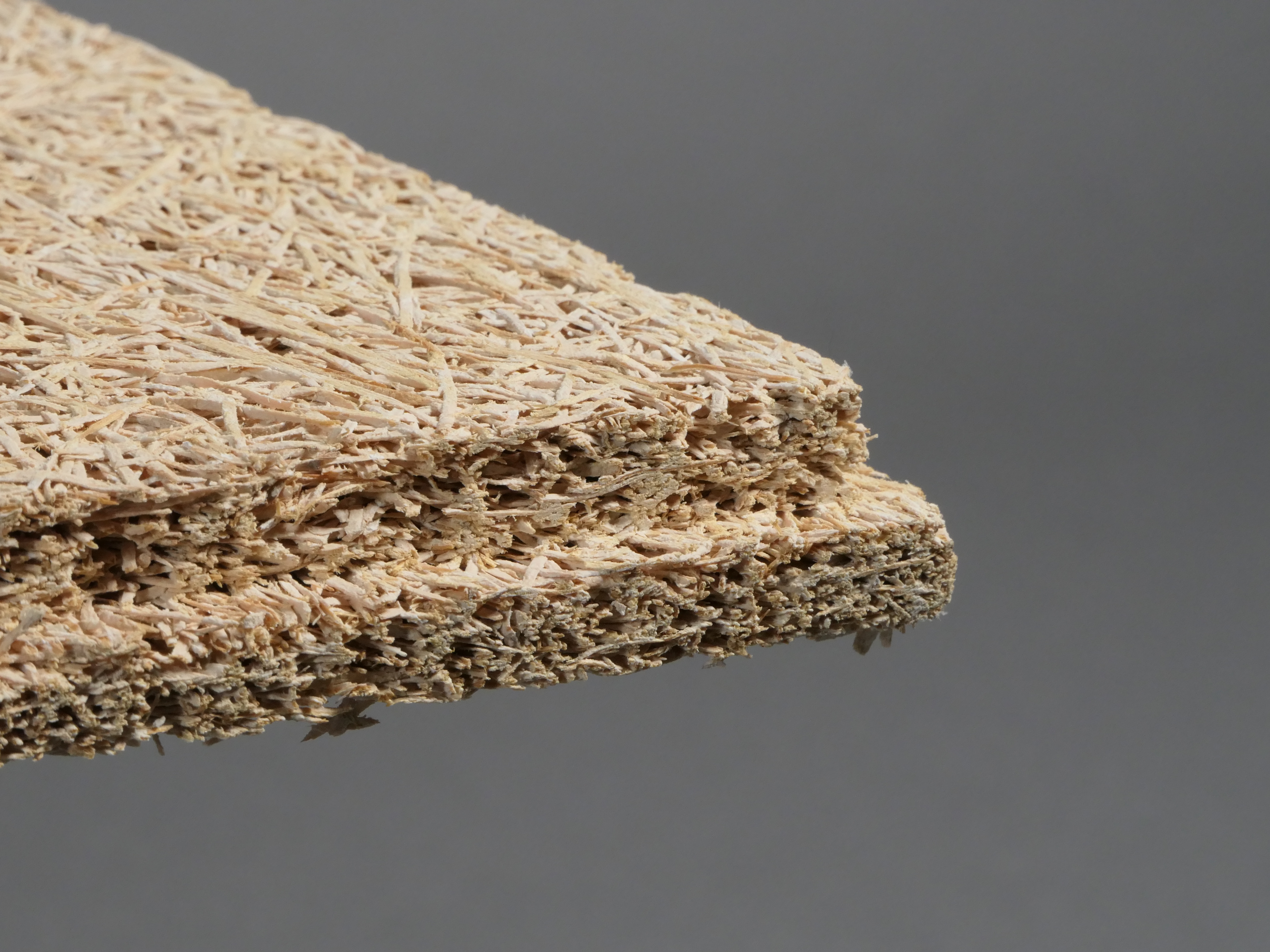

ASI Architectural StrandTec wood fiber panels are an eco-friendly and high-performance acoustical panel made out of natural products. Made from wood fiber, cement and water, the panels are available in many size and color variations that can be customized to fit in with nearly any décor. StrandTec simultaneously absorbs sound and provides thermal insulation.

Light Reflectance Unpainted .60 / White .70
Materials Core made of cementitious wood fiber consists of wood fibers, Portland cement and water
Fire Rating Class A per ASTM E-84
Colors Natural, White, Custom Benjamin Moore

Characteristics

  • Manufactured from natural materials
  • Fire-resistant
  • Mechanical fasteners
  • An economical alternative to fiberglass, foam, polystyrene & rock wool
Thickness Width Lengths Weight Edge Detail Factory Finish
1″ 23-3/4″ 23-3/4″, 47-3/4″, 95-1/2″ 2 lbs./sf Beveled all edges White, Natural, Custom Paint
1-3/8″ 23-3/4” 23-3/4″ 47-3/4″, 95-1/2″ 3 lbs./sf Beveled all edges White, Natural, Custom Paint
2″ 24″ 24″, 48″, 96″ 4 lbs./sf Beveled all edges White, Natural, Custom Paint

Models

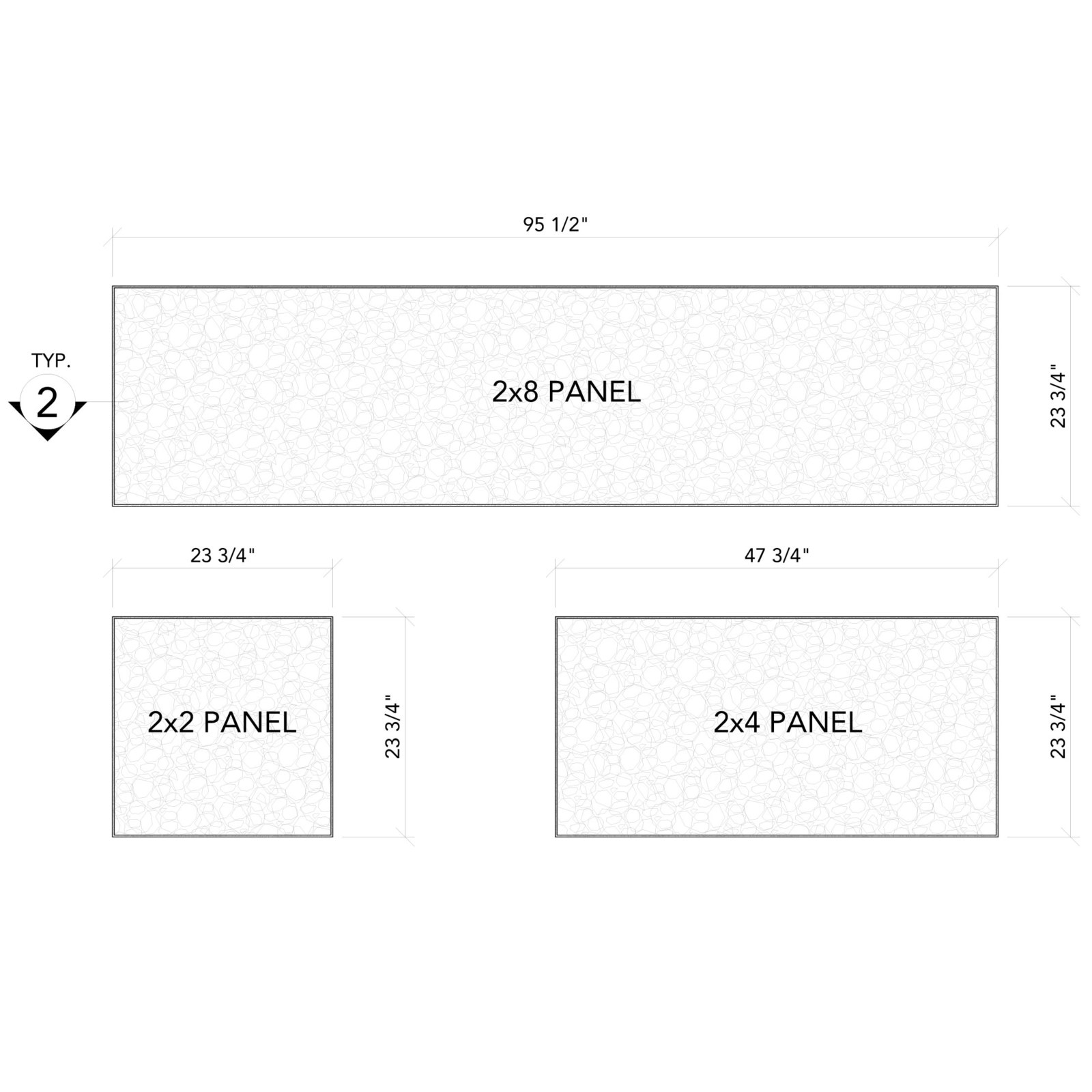

1. StrandTec Direct Attach

  • Panels are face fastened for fast easy installation

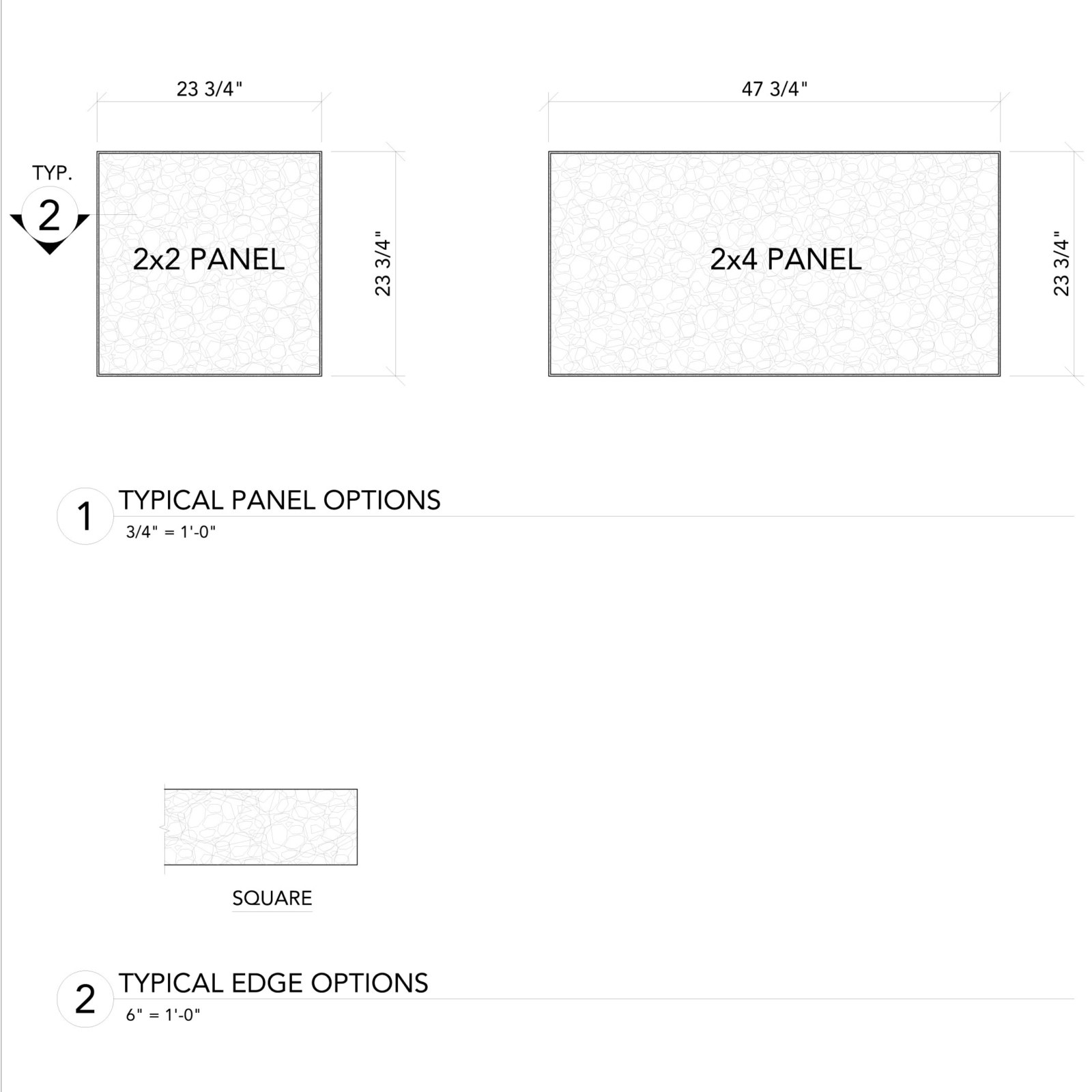

2. StrandTec Lay In

  • Standard panel sizes can be field cut to fit irregular shaped installations
  • Lays in to HD 15/16” T-bar grid for 100% accessibility

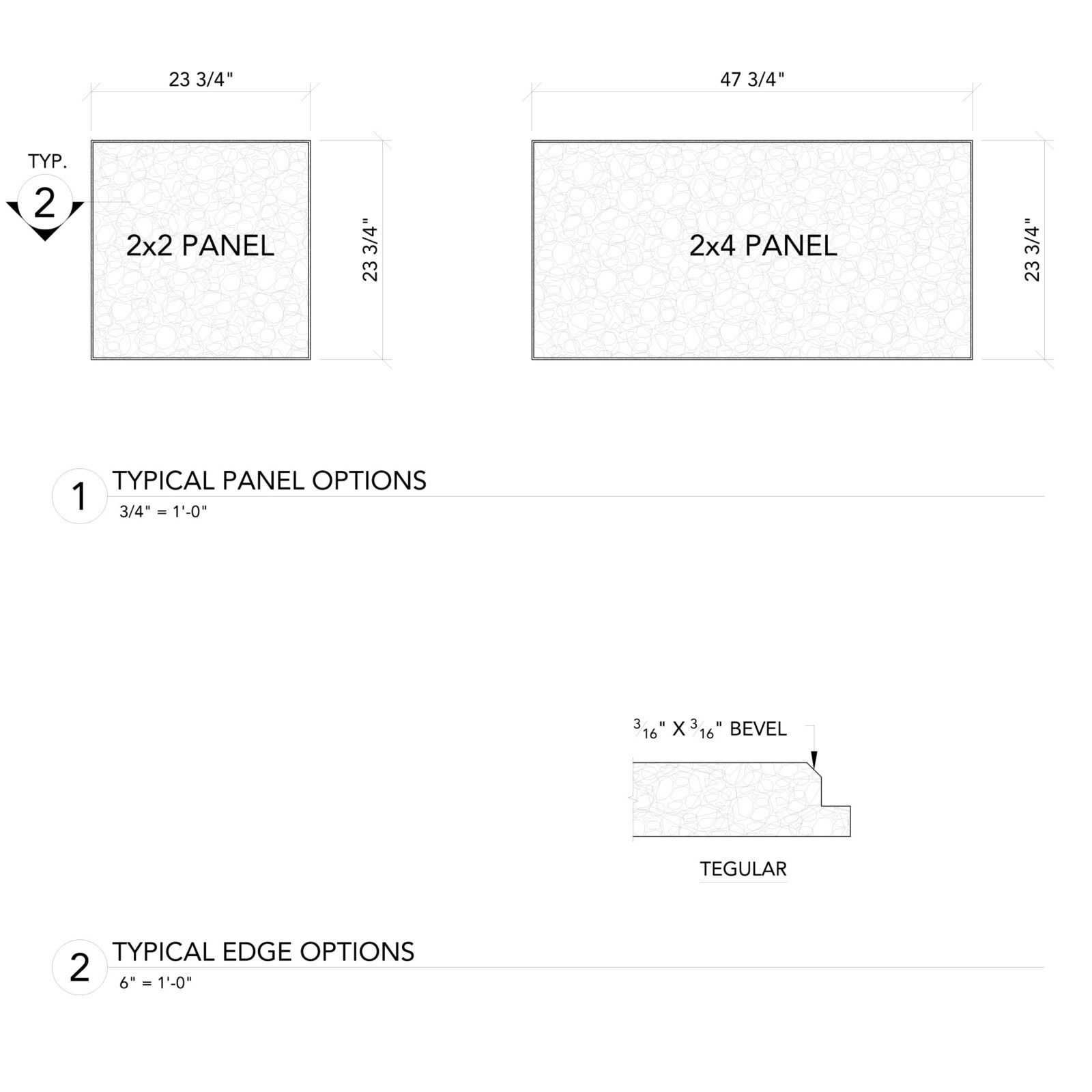

3. StrandTec Tegular

  • Standard panel sizes can be field cut to fit irregular shaped installations
  • Lays in to HD 15/16” T-bar grid for 100% accessibility
  • Tegular panels have a 1” reveal

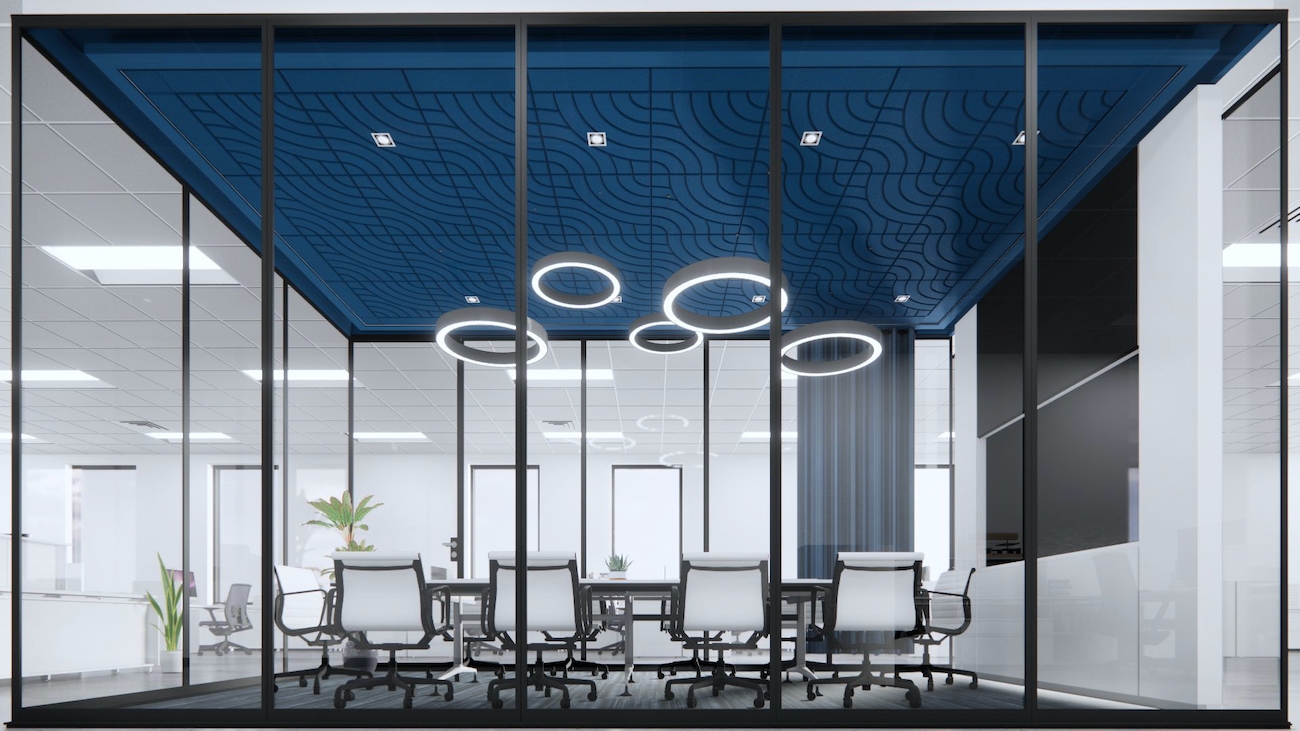

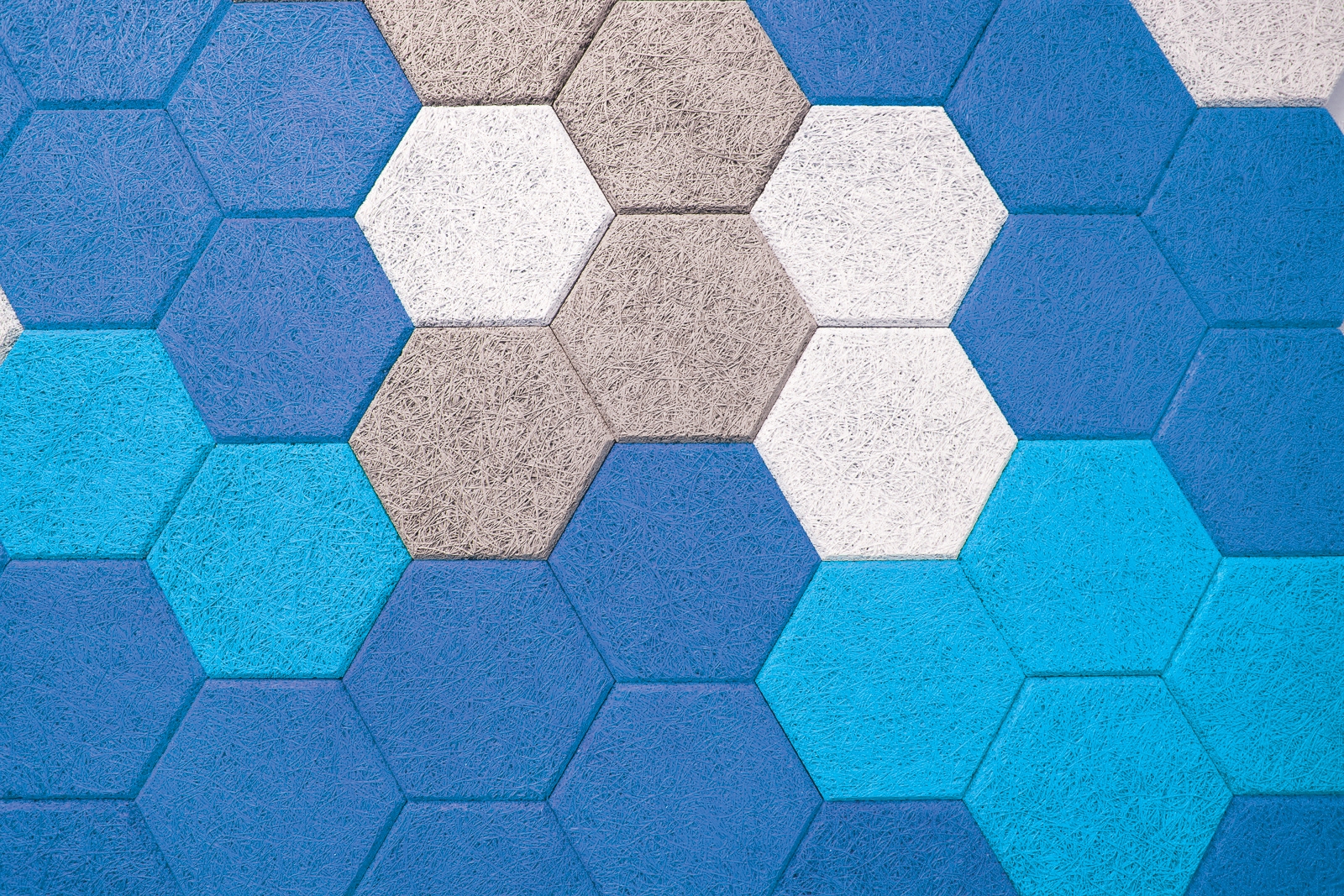

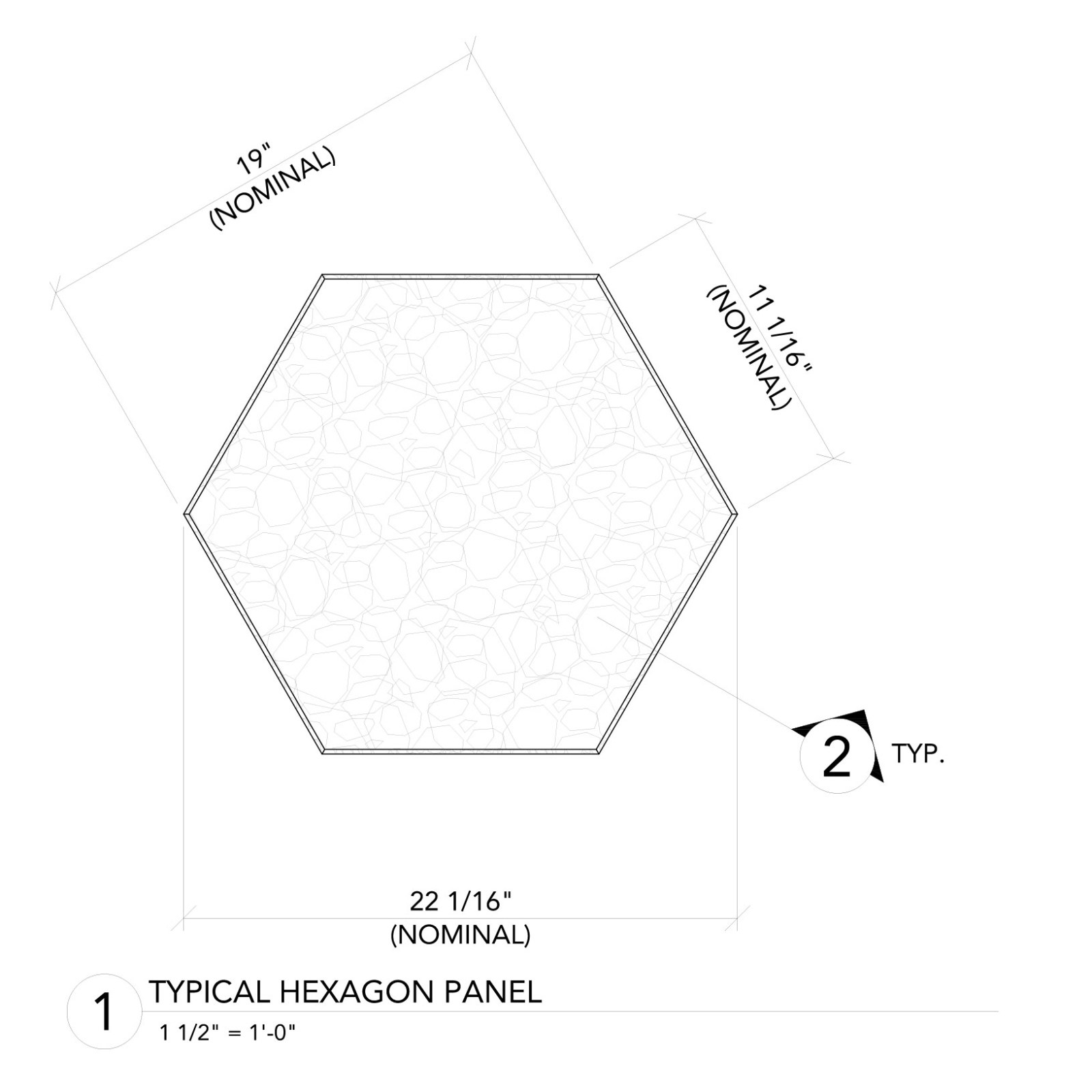

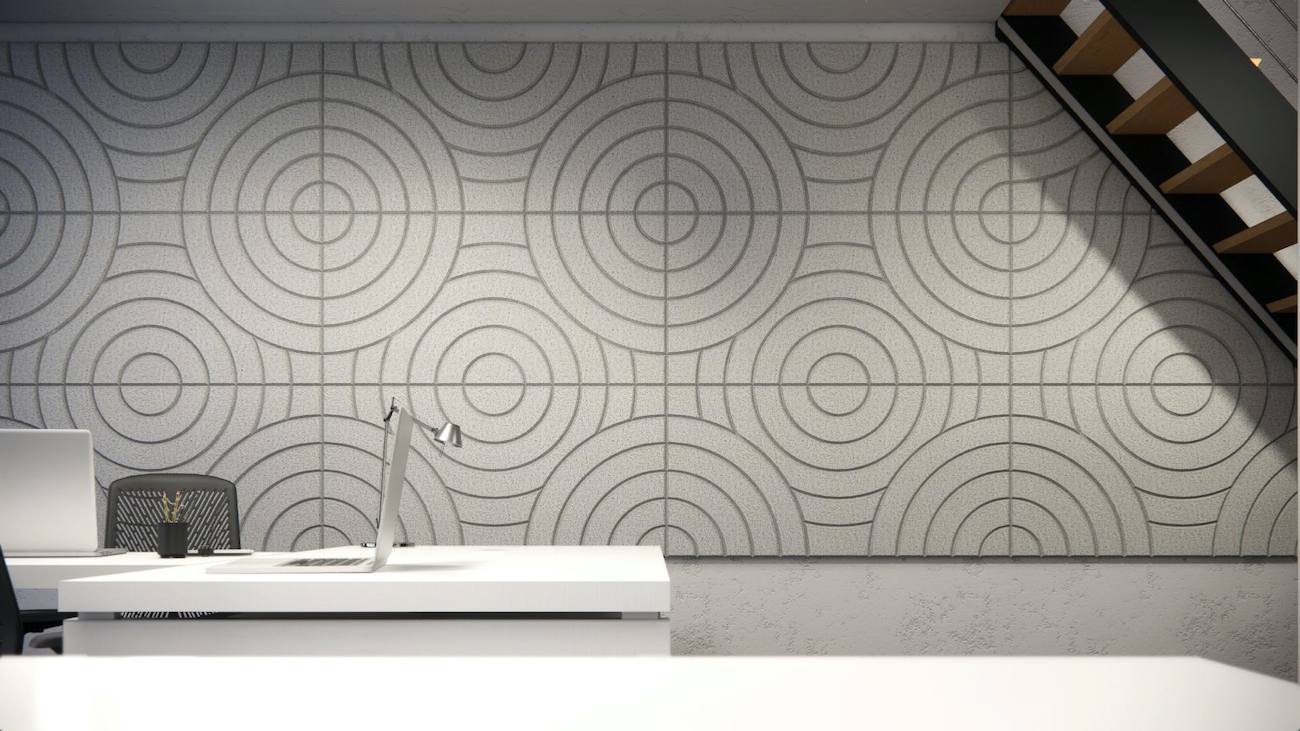

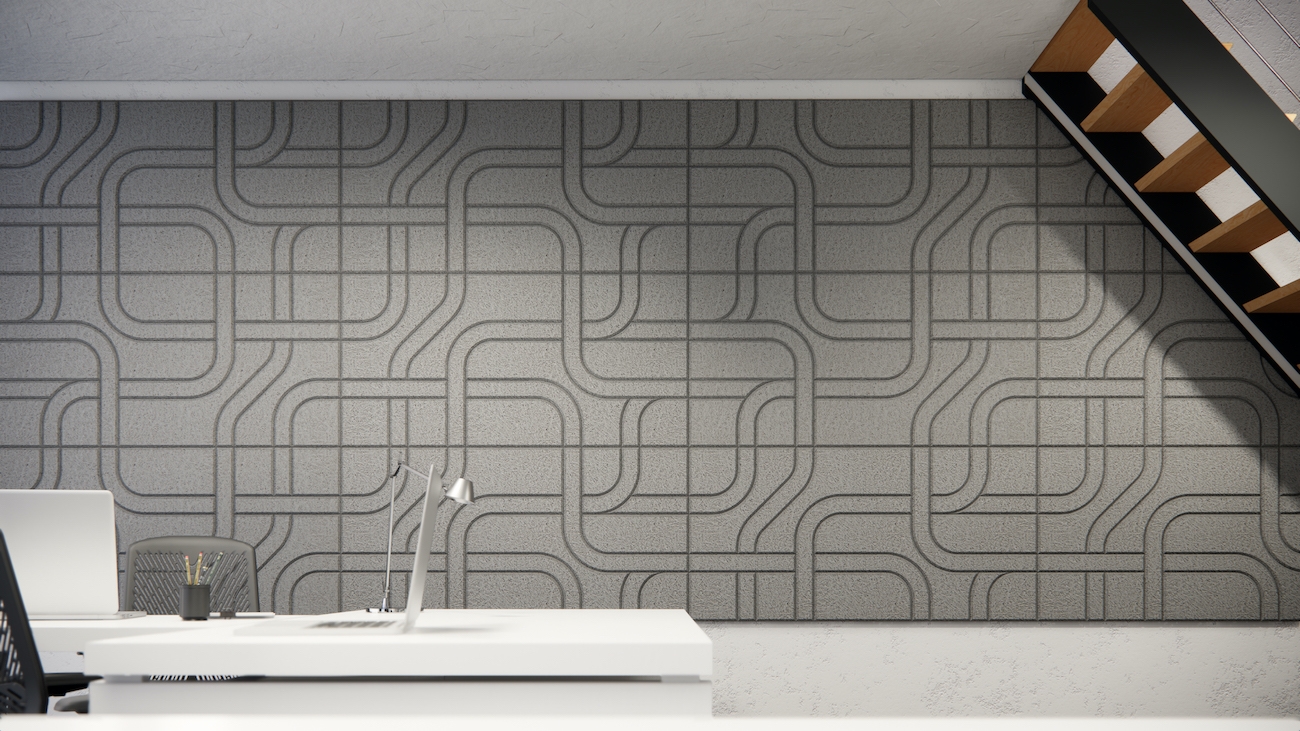

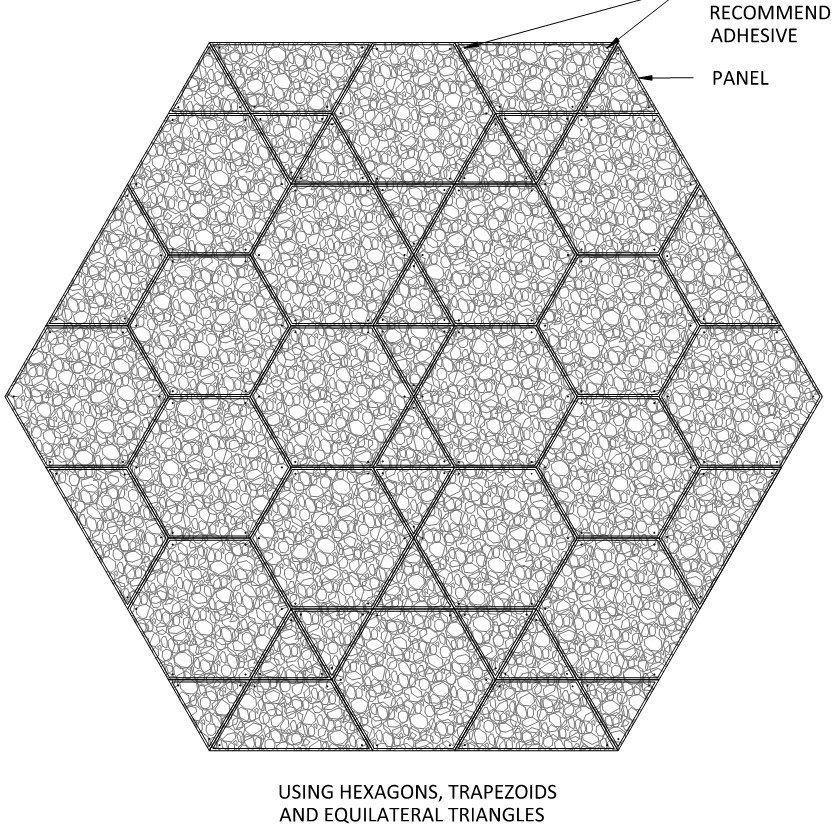

4. StrandTec Design

  • Panels can be mixed and matched for unique installations

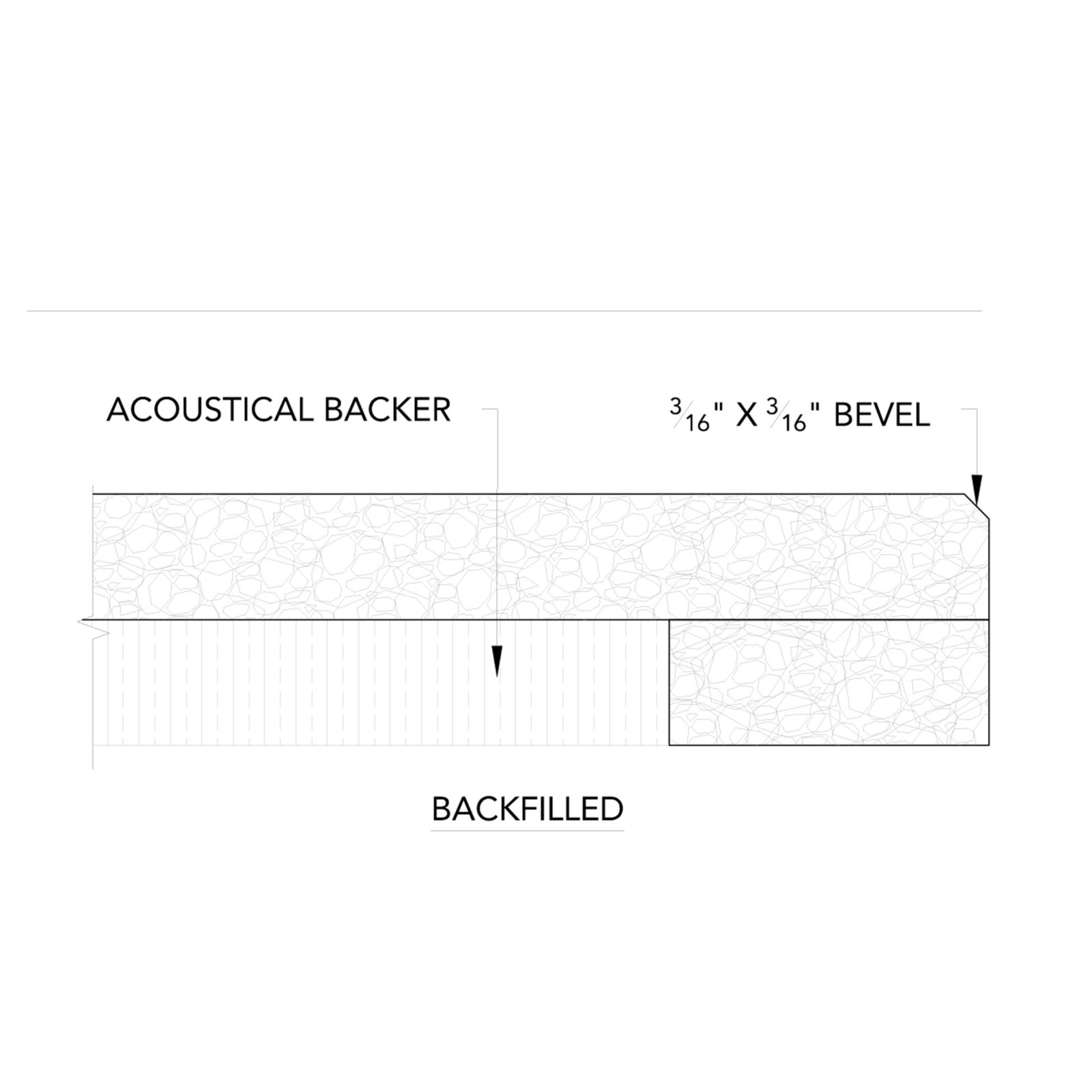

5. StrandTec Backfill

  • Panels are back loaded with an acoustical backer for higher NRC

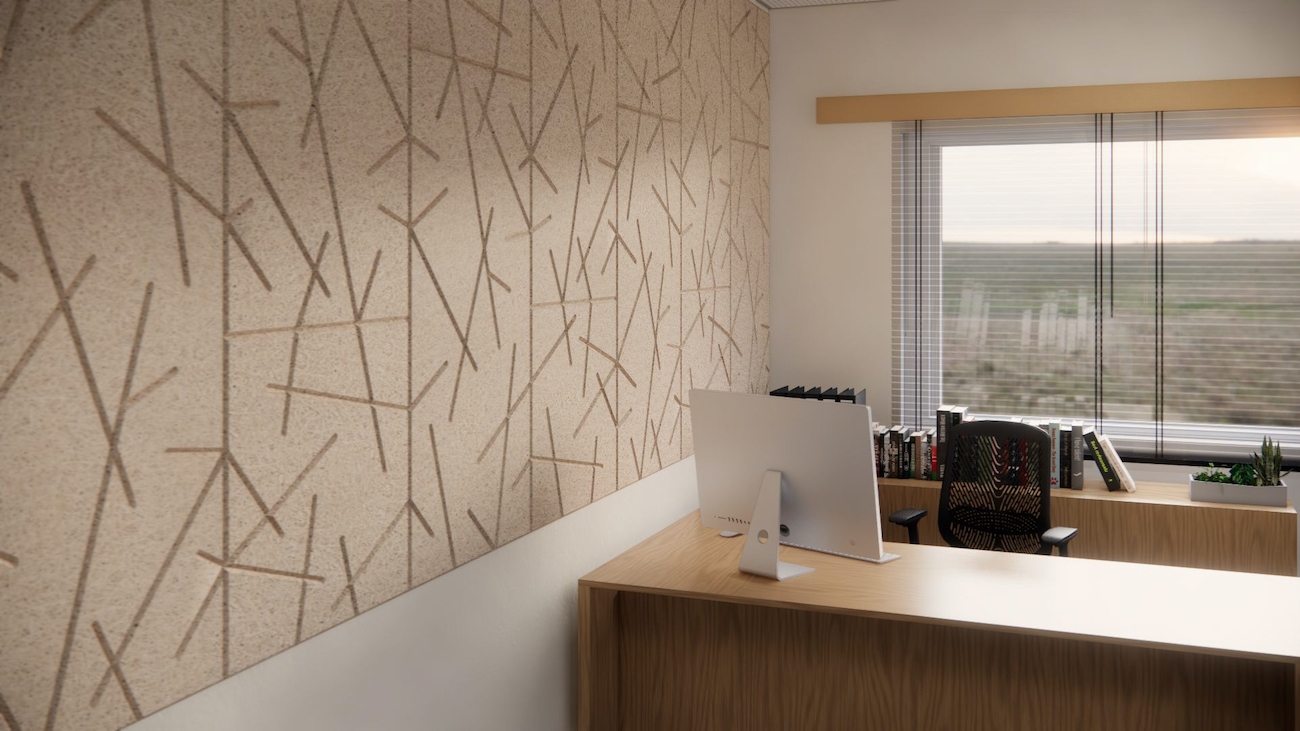

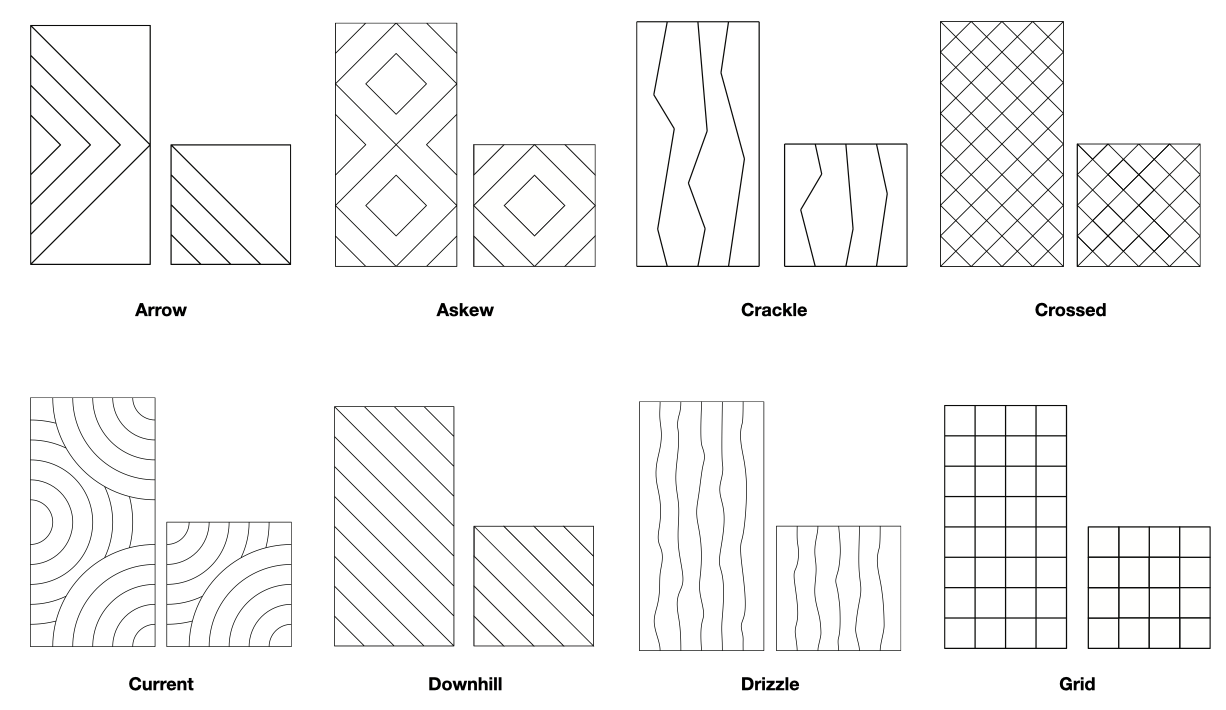

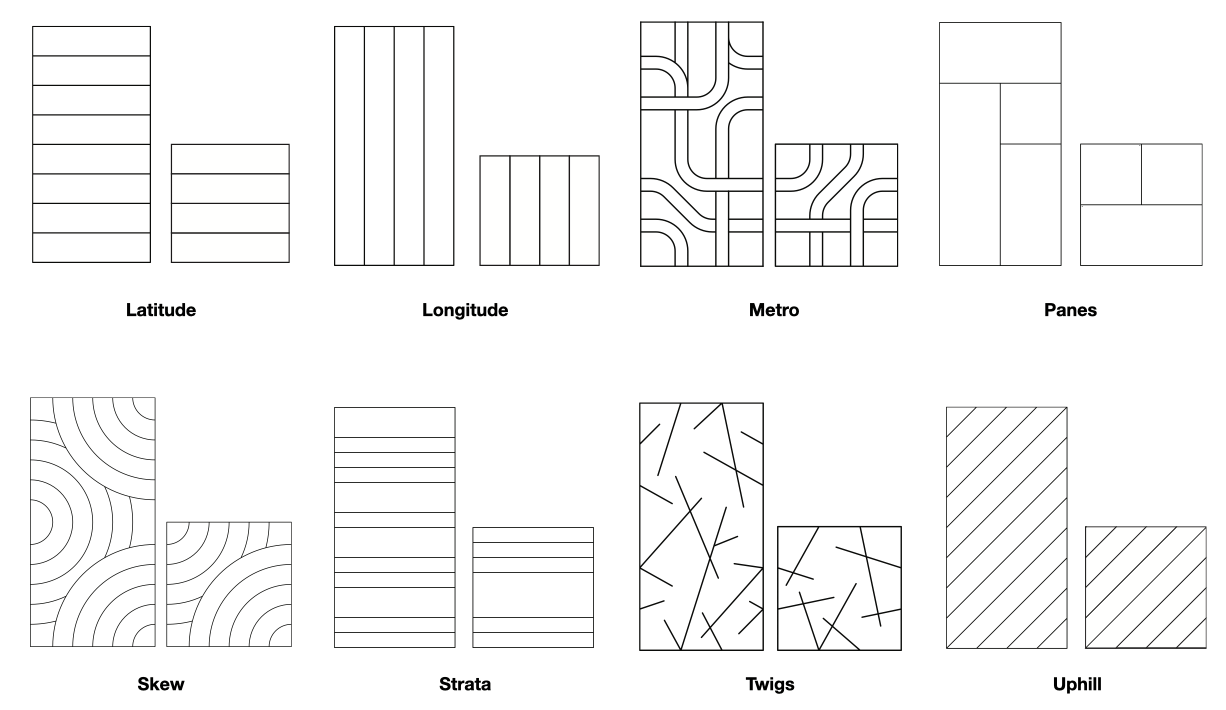

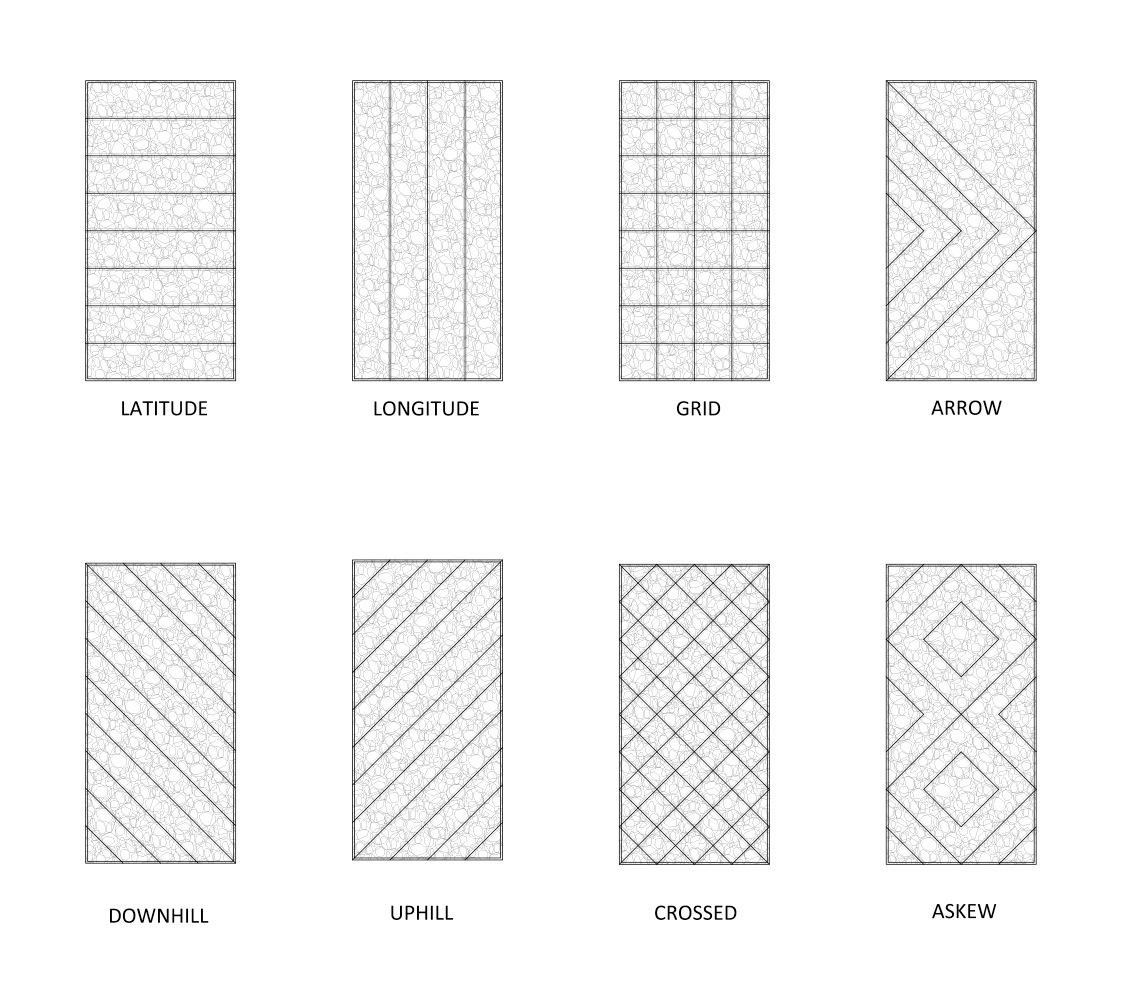

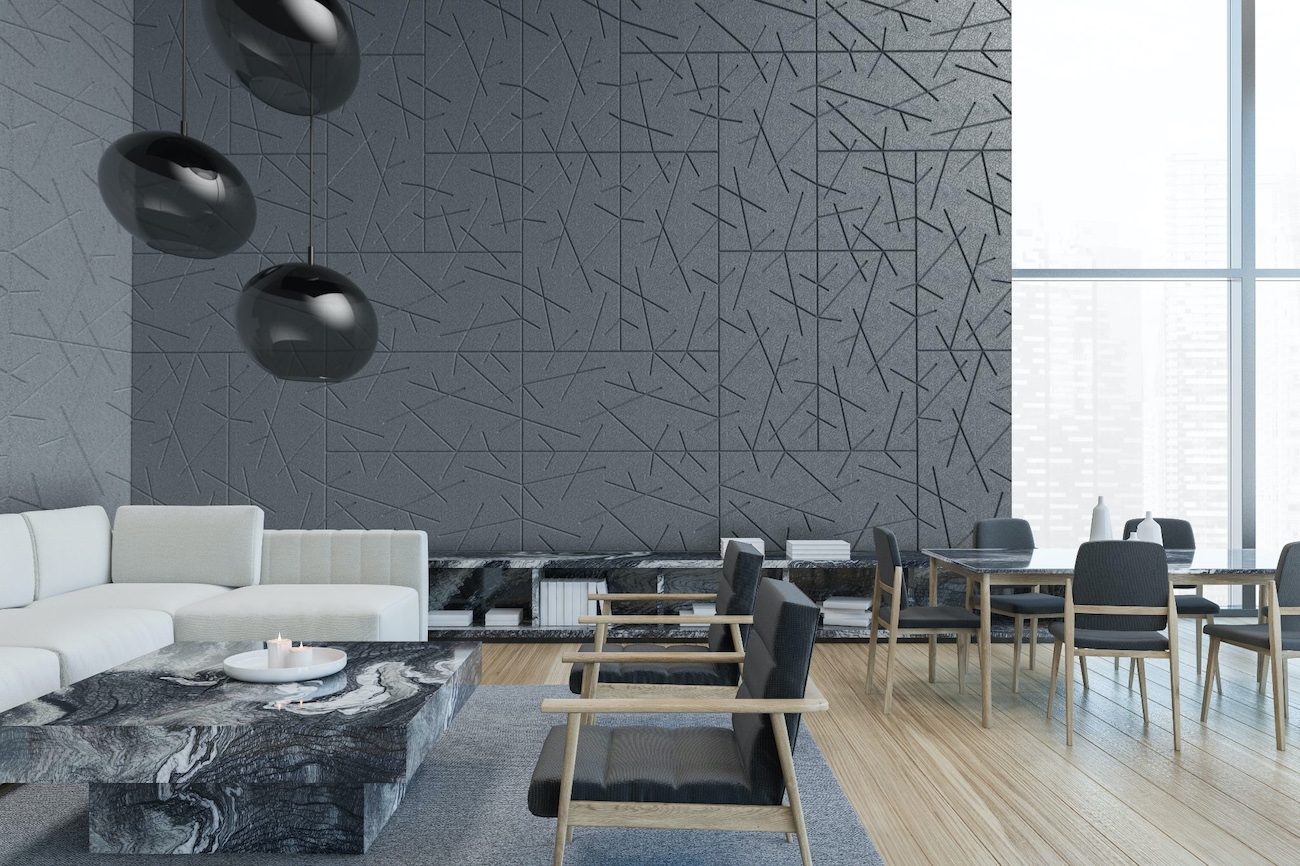

6. StrandTec Routed

  • Panels have different patterns that can be used alone or together to achieve different appearances and designs
  • Routed panel options (below)
undefined
undefined

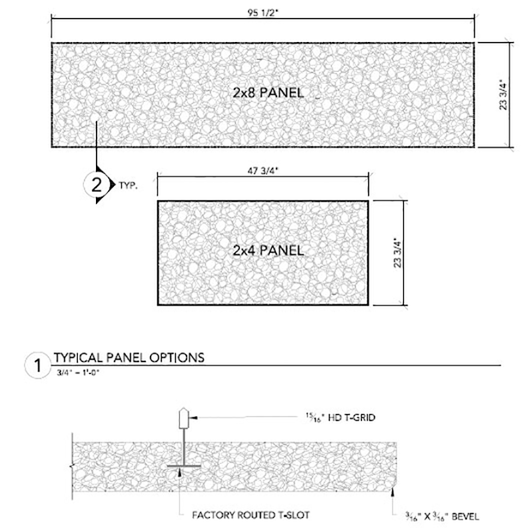

7. StrandTec T-slot

  • Panels accept standard 15/16” HD T-Bar grid for easy installation

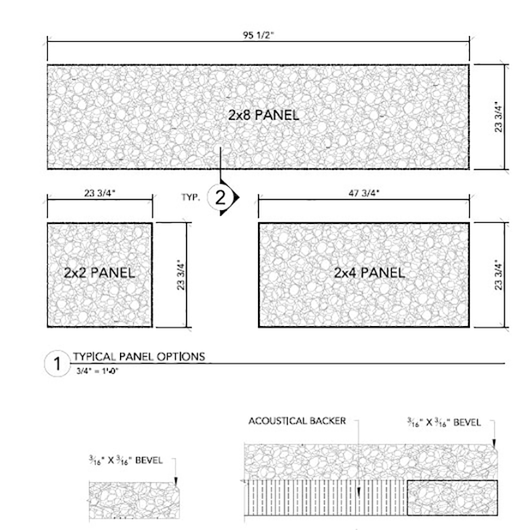

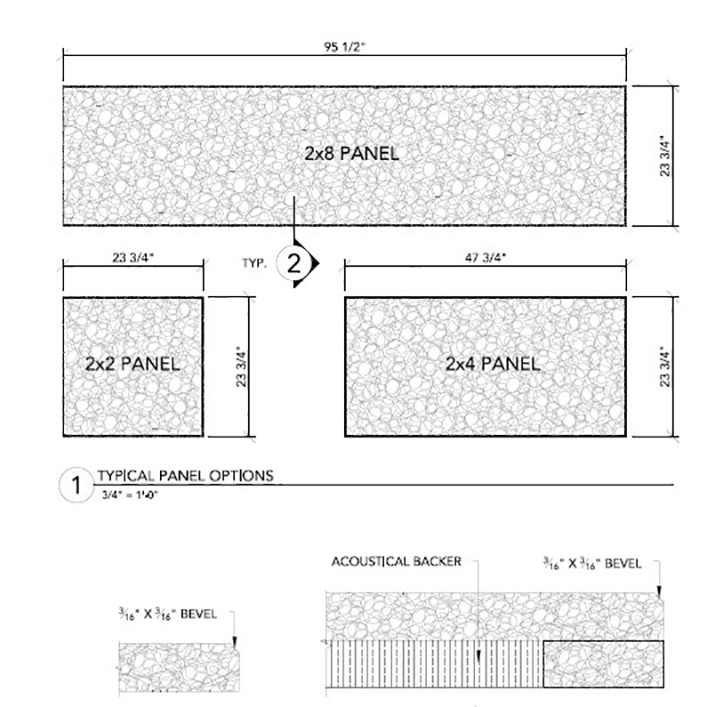

8. StrandTec Wrapped

  • Several face options provide a number of design options

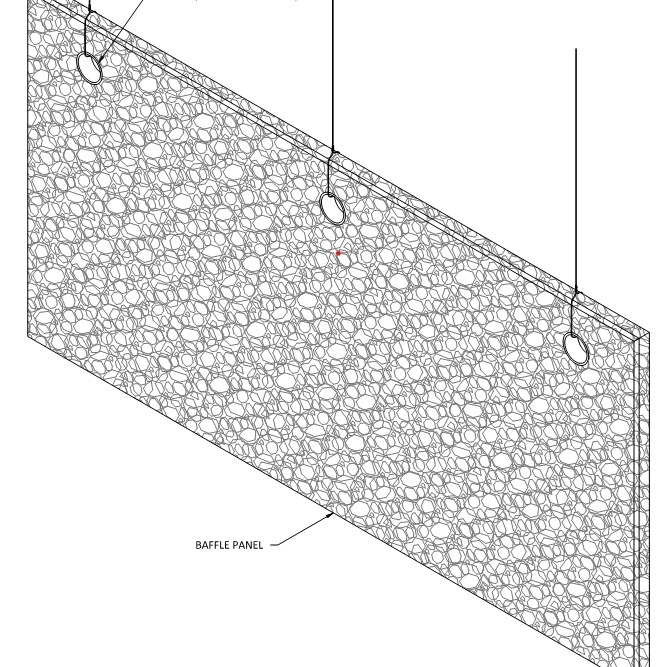

9. StrandTec Baffle

  • Suspended installation through reinforced eye

Mounting

StrandTec Wall Panels are to be mechanically fastened to an approved substrate.
