Use
Decorative interior wall panels -
Applications
Offices, schools, meeting rooms, music rooms, hotels, auditoriums, recording studios, broadcasting studios -
Characteristics
Custom designed, choice of edges -
Format
Stand-alone/combination panels -
Sizes
Custom Up to 4′ × 10′ | THICKNESS: 1″, 1-1/8″, 2″, 2-1/8″ -
Certification
Fire rating: ASTM E84, Class A

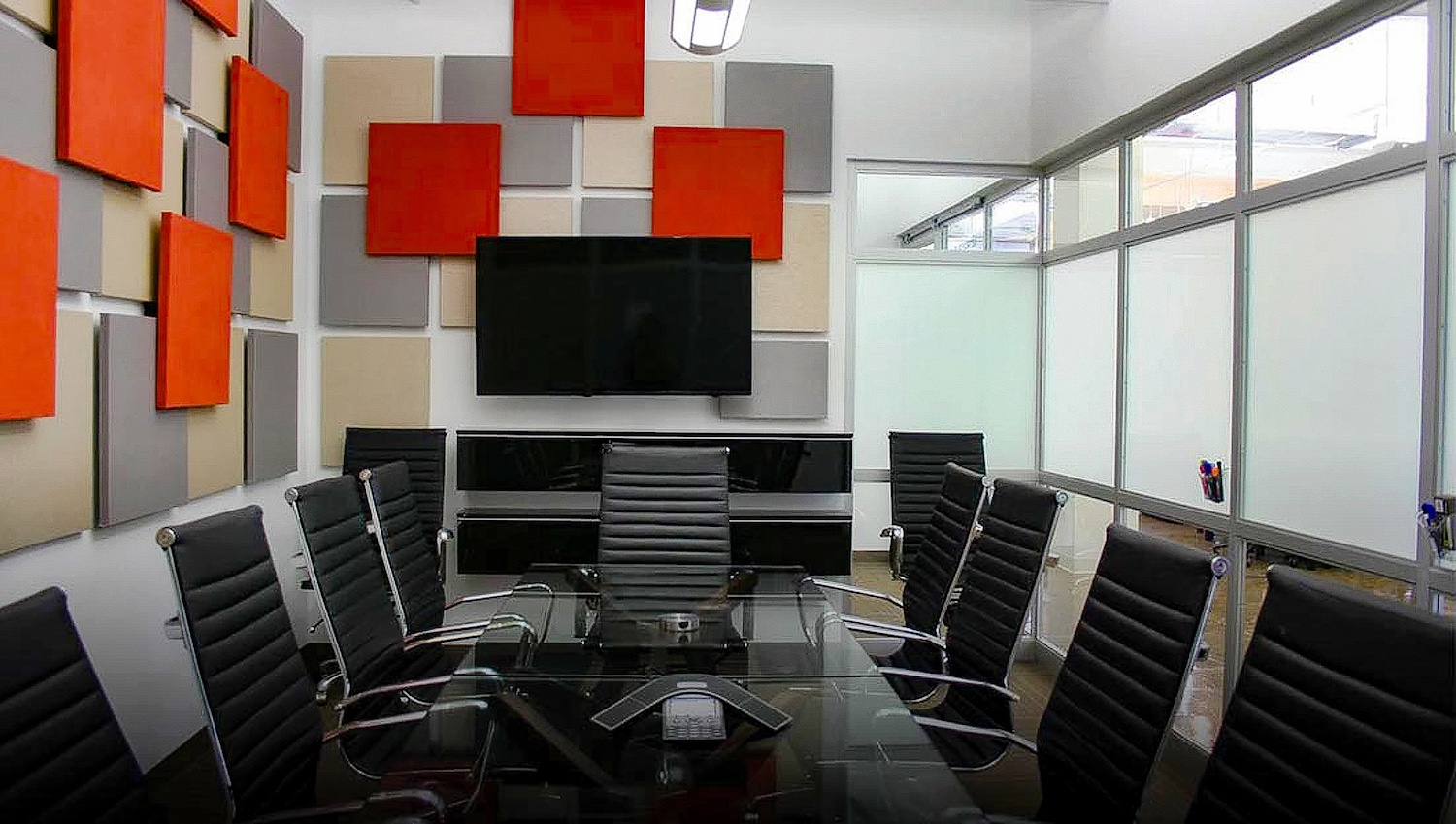

Fabrisorb™ Decorative Fabric Wrapped Custom Acoustical Wall Panels
These sound absorber panels, in both Fiberglass and Envirocoustic™ versions, are an affordable solution to sound control problems. They excel in recording and broadcast studios, music rooms, offices, schools, meeting rooms — any space where better sound is important. They feature an attractive half-beveled edge design (Fiberglass), or a resin-hardened edge (Envirocoustic), with many fabric color options and easy installation.
FEATURES & BENEFITS
- High performance
- Architecturally decorative qualities
- Custom engineered & manufactured
- Noise & reverberation reduction
- 100% custom colors & sizes
- Custom colors and sizes available
- Easy to install – Z-clip wall hangers included
APPLICATIONS
Auditoriums, bars, restaurants, conference and board rooms, open office areas, sports and entertainment venues, retail stores, theaters, schools, audiophile rooms, lobbies, recording studios, gymnasiums, houses of worship, music practice and band rooms, airports, apartments, condos and more.
SPECIFICATIONS
Fiberglass sizes & performance: 1” thick, 2’x2’, NRC=.85; 1” thick, 2’x4’, NRC=.85; 2” thick, 2’x2’, NRC=1.15, 2” thick, 2’x4’, NRC=1.15; Enviro-Coustic sizes: 1.25” thick, 2’x2’ or 2’x4’; available in a wide range of fabric colors and textures.
The Acoustical Surfaces acoustic wall panels are designed for spaces where speech privacy and intelligibility is important.
| Material | 6 lb. density glass fiber with woven fabric and micro-perforated vinyl facings |
| Shape | Flat-faced with square or radiused corners, beveled, radiused\mitered, soft/hard edges |
| Colors | Wide range of standard and custom colors in woven fabrics and perforated vinyl |
| Flammability | Flame Spread: 15; Smoke Developed: 40 |
| Installation | Adhesive, Hook & Loop Fasteners, Mechanical Clips, Impaling Clips, magnetic clips. |
Fabrisorb™ Wall panel – Sound Absorption Coefficients
| 6-7 PCF Glass Fiber | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC |
| 1″ | 0.14 | 0.27 | 0.80 | 1.11 | 1.14 | 1.14 | 0.85 |
| 2″ | 0.22 | 0.81 | 1.24 | 1.30 | 1.21 | 1.16 | 1.15 |

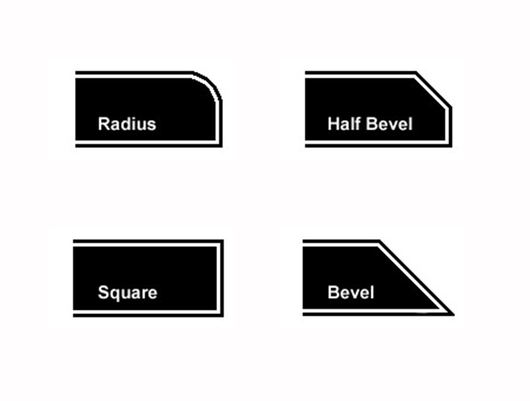

Edge Details
