Advanced micro-perforated Silk Metal™ panels create elegant spaces with acoustic performance.
Acoustical Surfaces' unique Silk Metal™ ceiling & wall panels are state-of-the-art micro-perforated aluminum sound-absorbent panels that reduce echo and sound reflections. The panels have an elegantly smooth appearance, with an excellent NRC rating of 0.80. Resembling smooth silk fabric, Silk Metal™ is available in tegular or flat ceiling tiles that install easily into any standard 15/16″ ceiling grid.

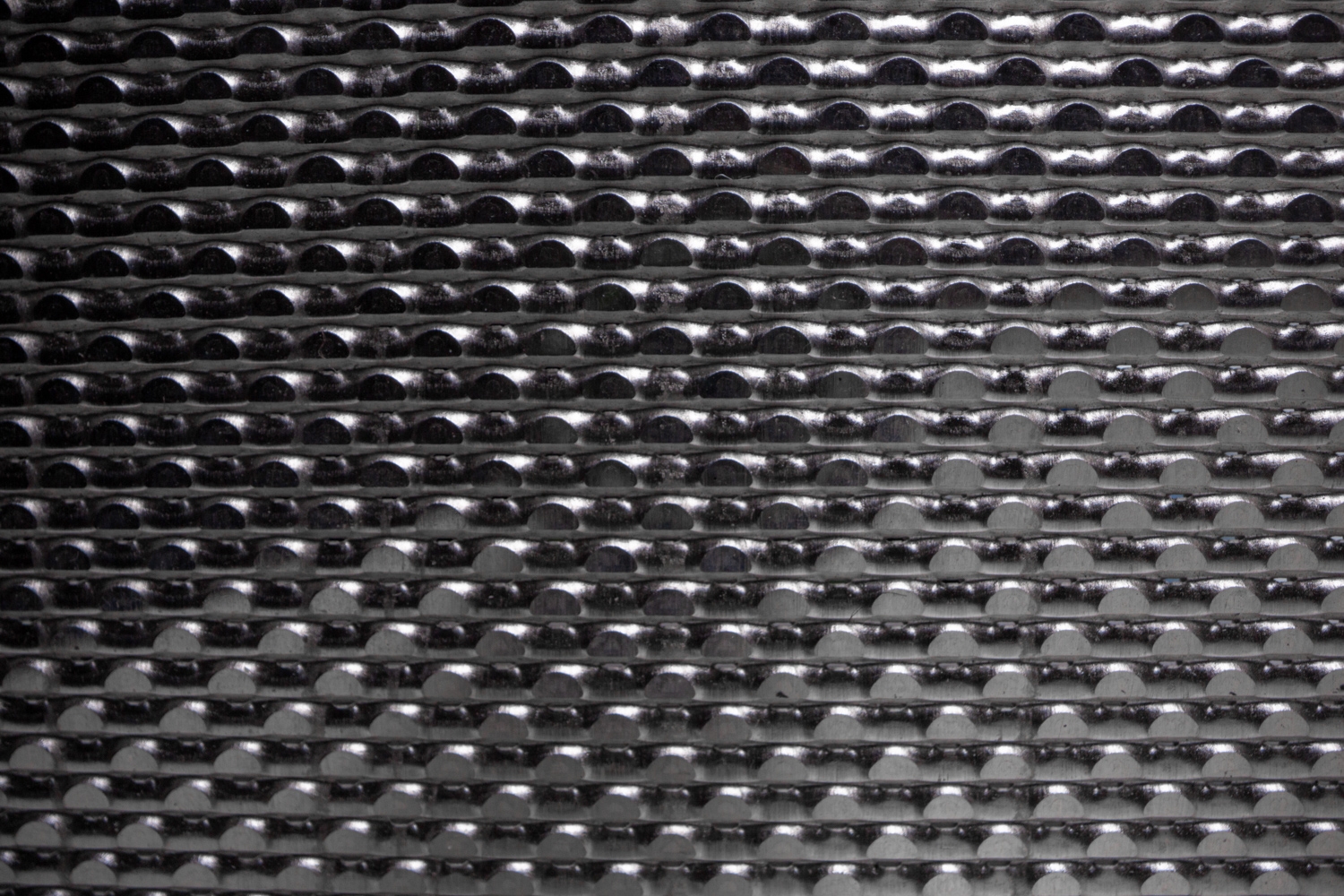

Silk Metal™ uses a patented angled micro-perforation method rather than traditional direct 90° perforation methods. These micro-perforations help achieve the ideal surface to absorb wave energy generated by sound and electromagnetic waves, and for heat mitigation.
Features

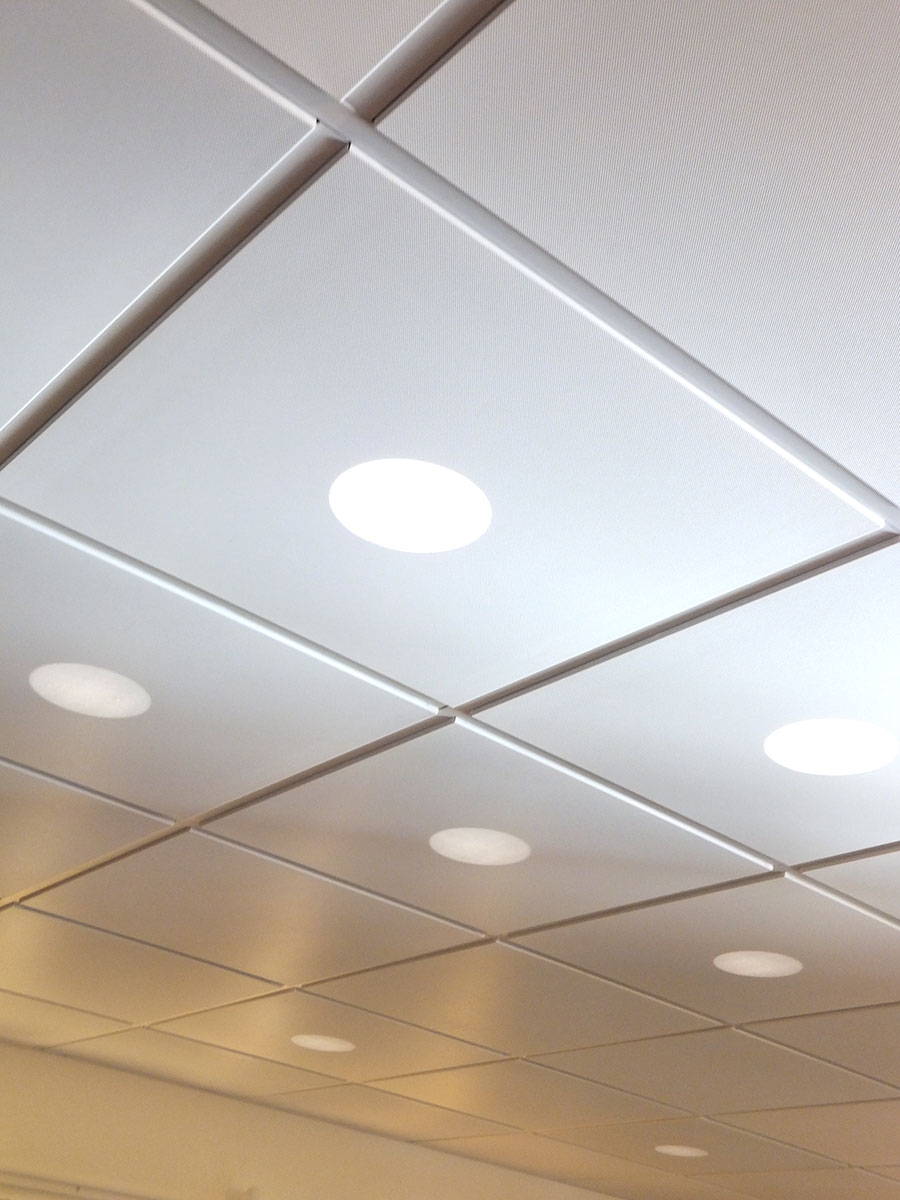

- Tegular or flat lay-in ceilings

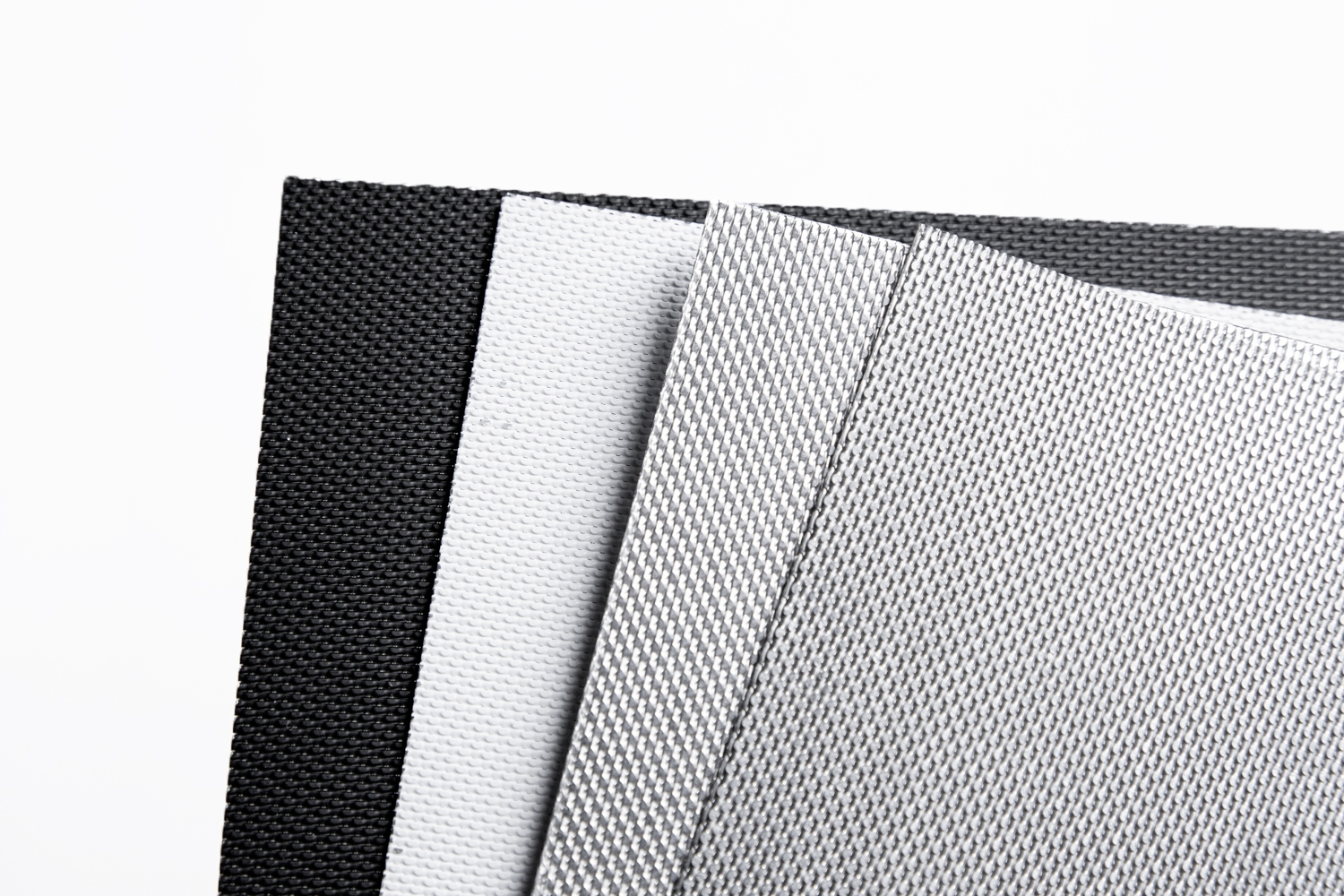

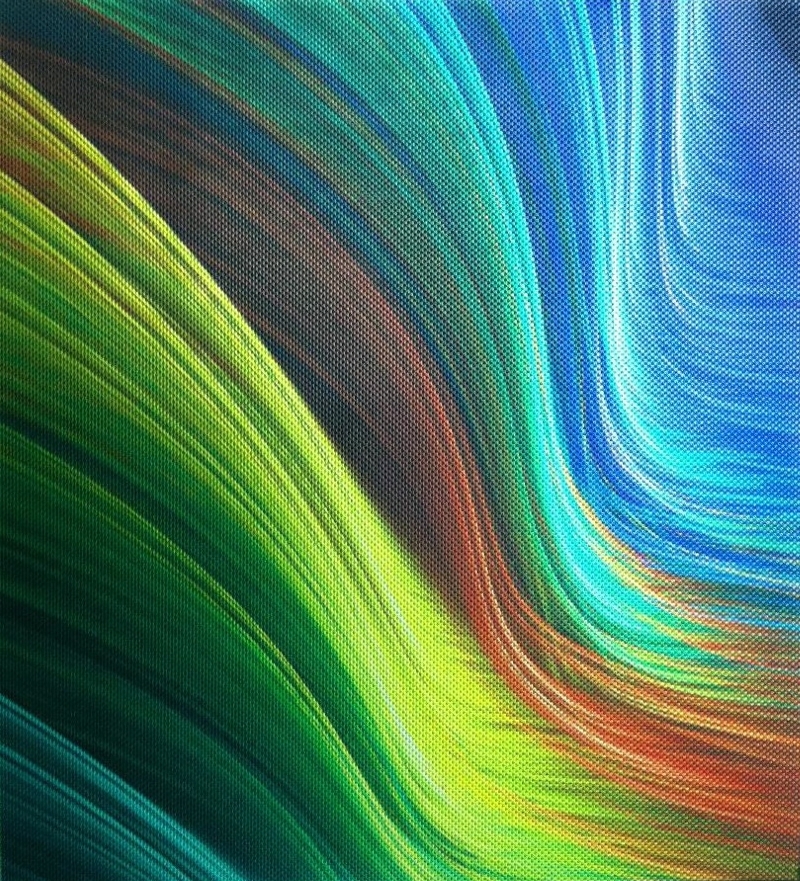

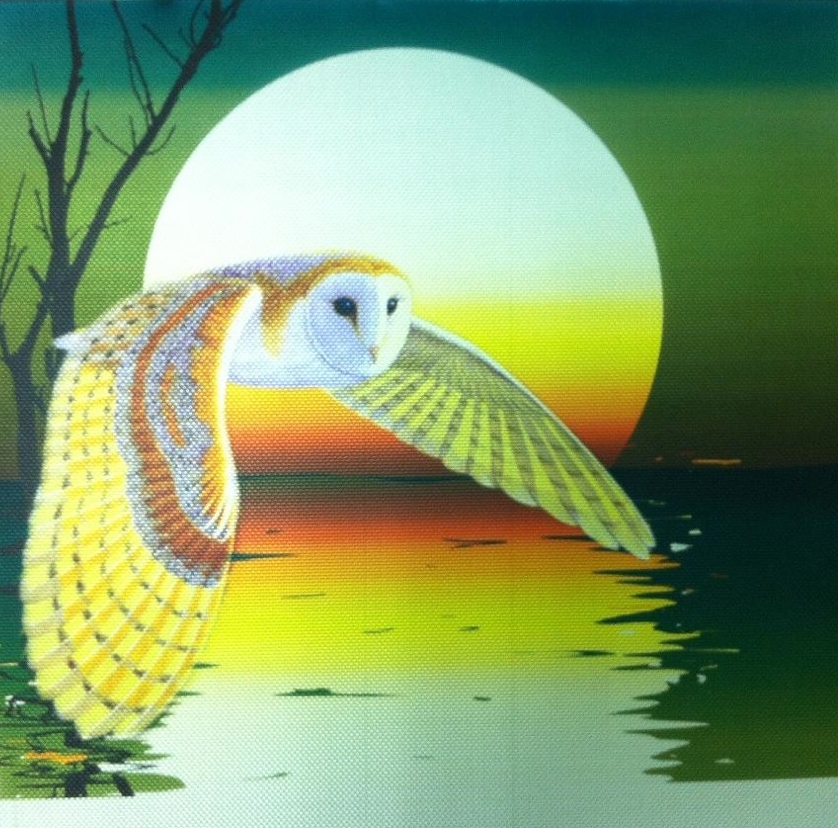

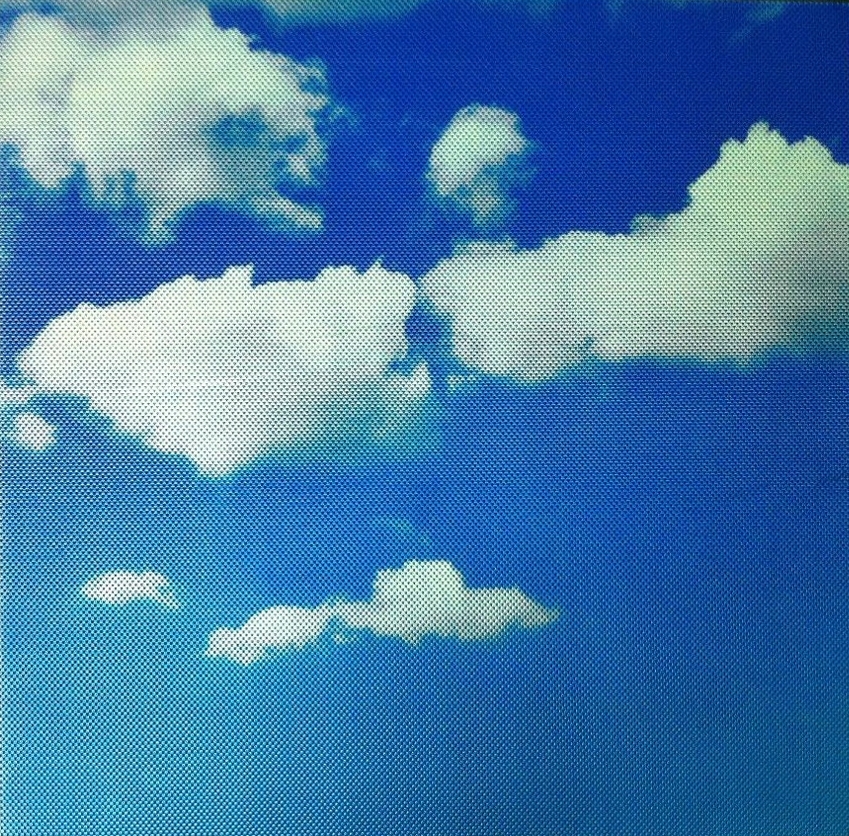

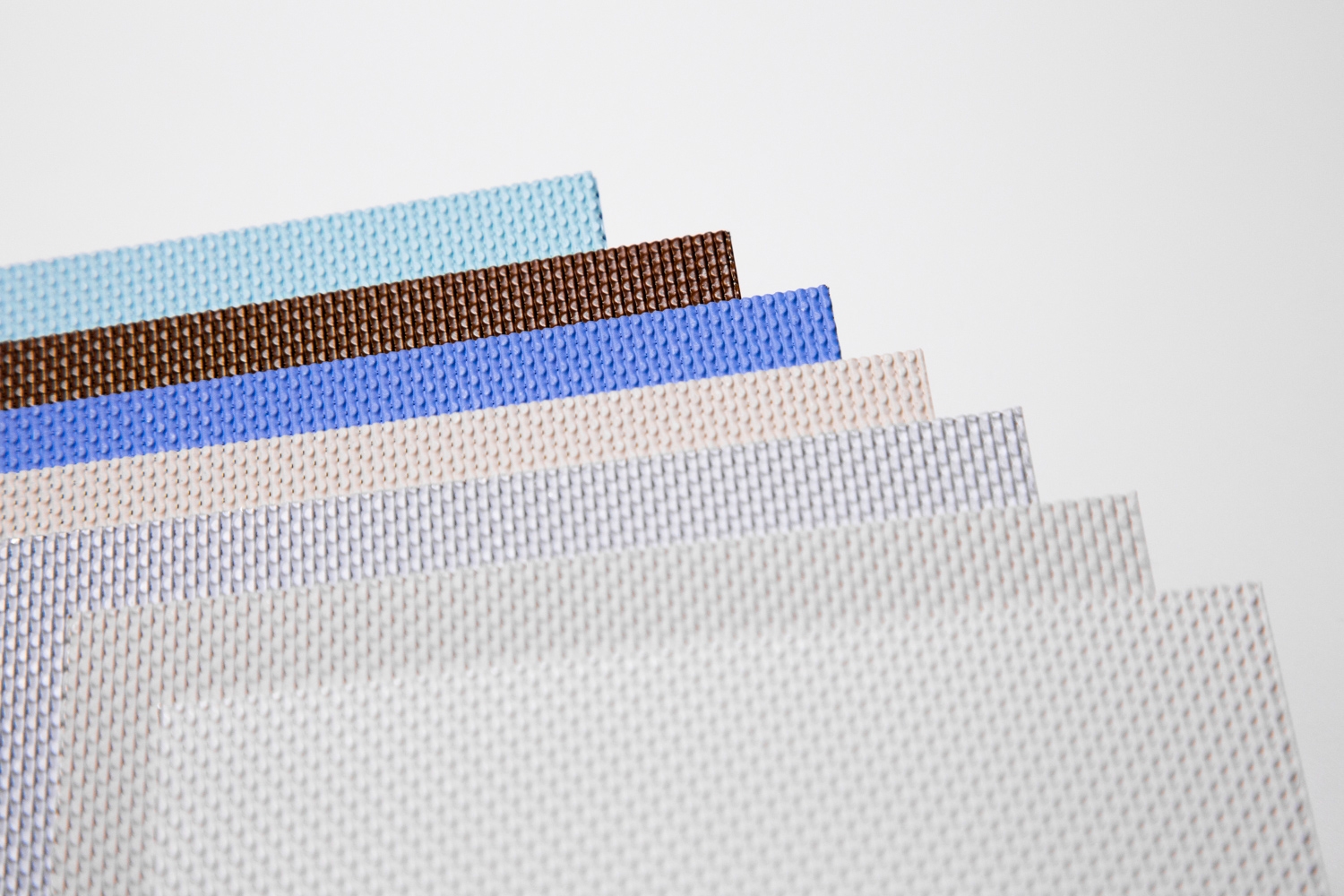

- White, black, anodized & custom printing available
- Cost-effective
- Installs into standard 15/16” grid

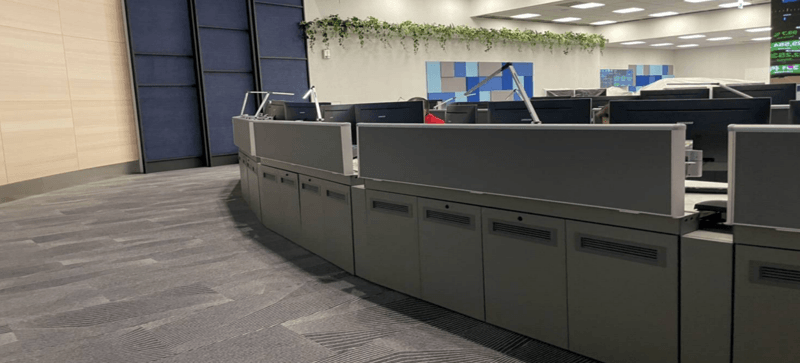

- Available as custom wall panels
- NRC Rating – 0.80 NRC (per ASTM C423) with a 4” airspace, no liner needed
- Resembles smooth fabric surface
- Achieves acoustical value without acoustical liner
- Tested for AEMIC (acoustical & electromagnetic interference control) capabilities
- Easily cleaned and maintained - ideal for hospital applications
Applications

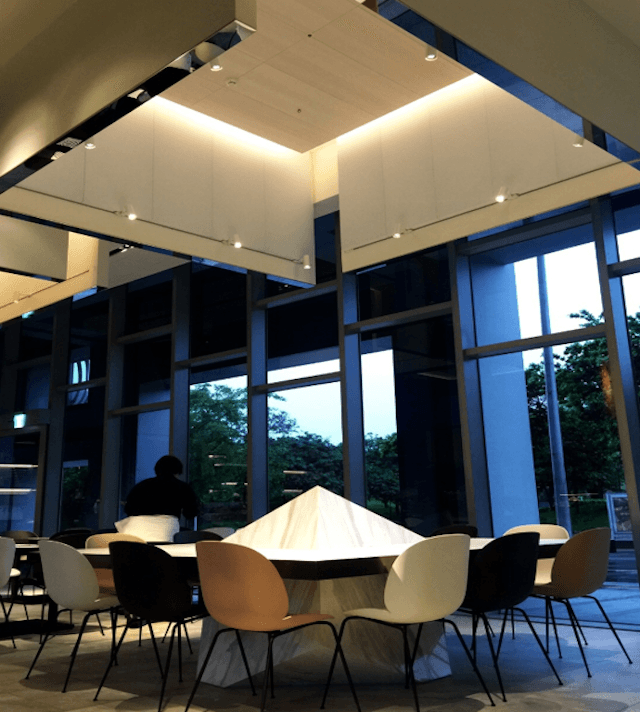

- Restaurants
- Pro Audio/Studios
- Home Theaters
- Public Spaces
- Offices

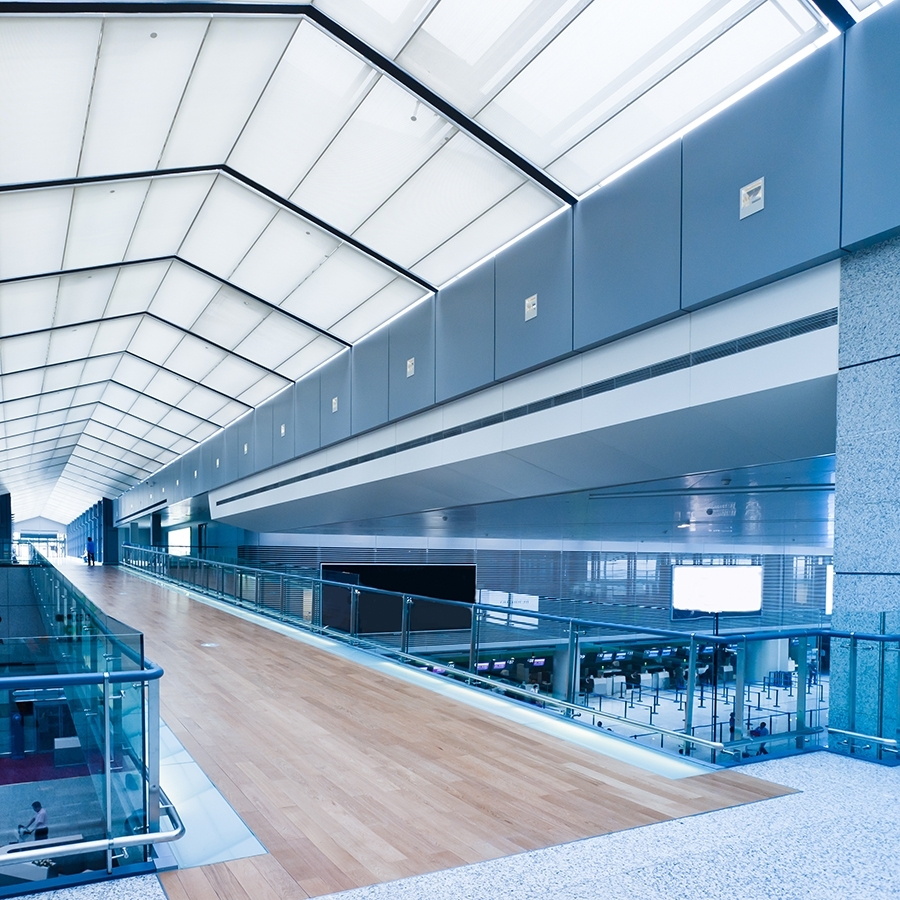

- Airports
- Concert Halls
- Night Clubs
- Practice Rooms

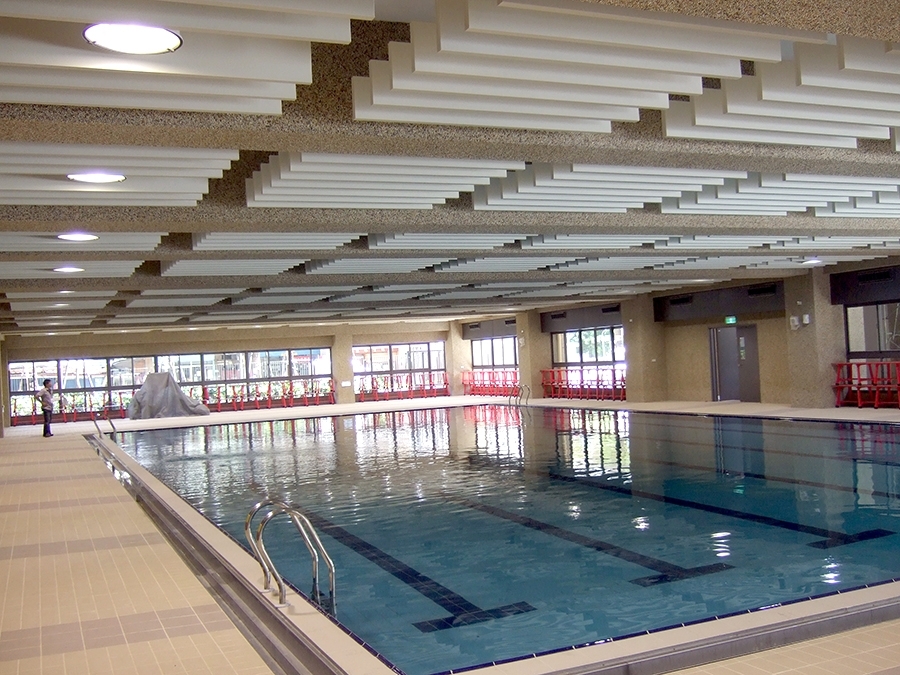

- Swimming Pools
- Cafeterias
- Shopping Malls

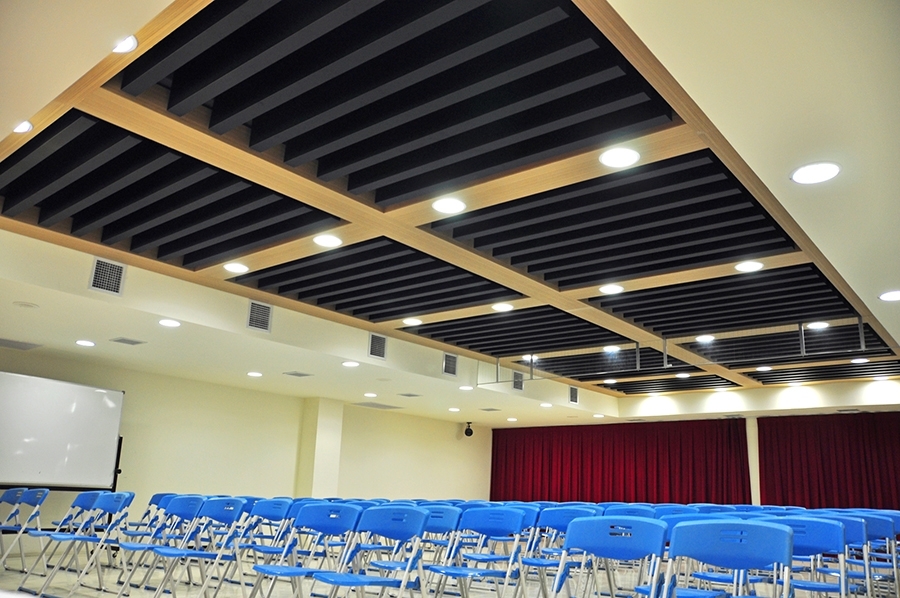

- Conference Rooms
- Classrooms
- Hospitals
- Lobbies
- Department Stores
- Exhibition Spaces
- Train Stations
Appearance | Flat or Tegular |
Stock Colors & Sizes | 23¾″ × 23¾″, White – 3/8″ – Tegular Edge 23¾″ × 23¾″, Black – 5/8″ – Tegular Edge |
Maximum Panel Size | 26¾″ × 78¾″ |
Silk Metal™ Ceiling Tile – Sound Absorption Coefficients
| 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC |
Silk Metal | 0.86 | 0.94 | 0.65 | 0.77 | 0.76 | 0.75 | 0.80 |
