Translucent Building Elements | Rodeca
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Plastics / Fibers
  4. Translucent Building Elements

Translucent Building Elements | Rodeca

Share
  • Use

    Facades, roofs, window and shed glazings, partition walls, rain screens and roof lights
  • Applications

    Sports, Industrial, Educational and Residential
  • Characteristics

    High impact thermoplastic, translucent, ball-impact resistant, light-weight, high temperature resistance, anti-glare daylight, UV protection
  • Certification

    Fire Classification as per DIN EN 13501
  • Guarantee

    Rodeca offers a 10-year warranty

BIM Files

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

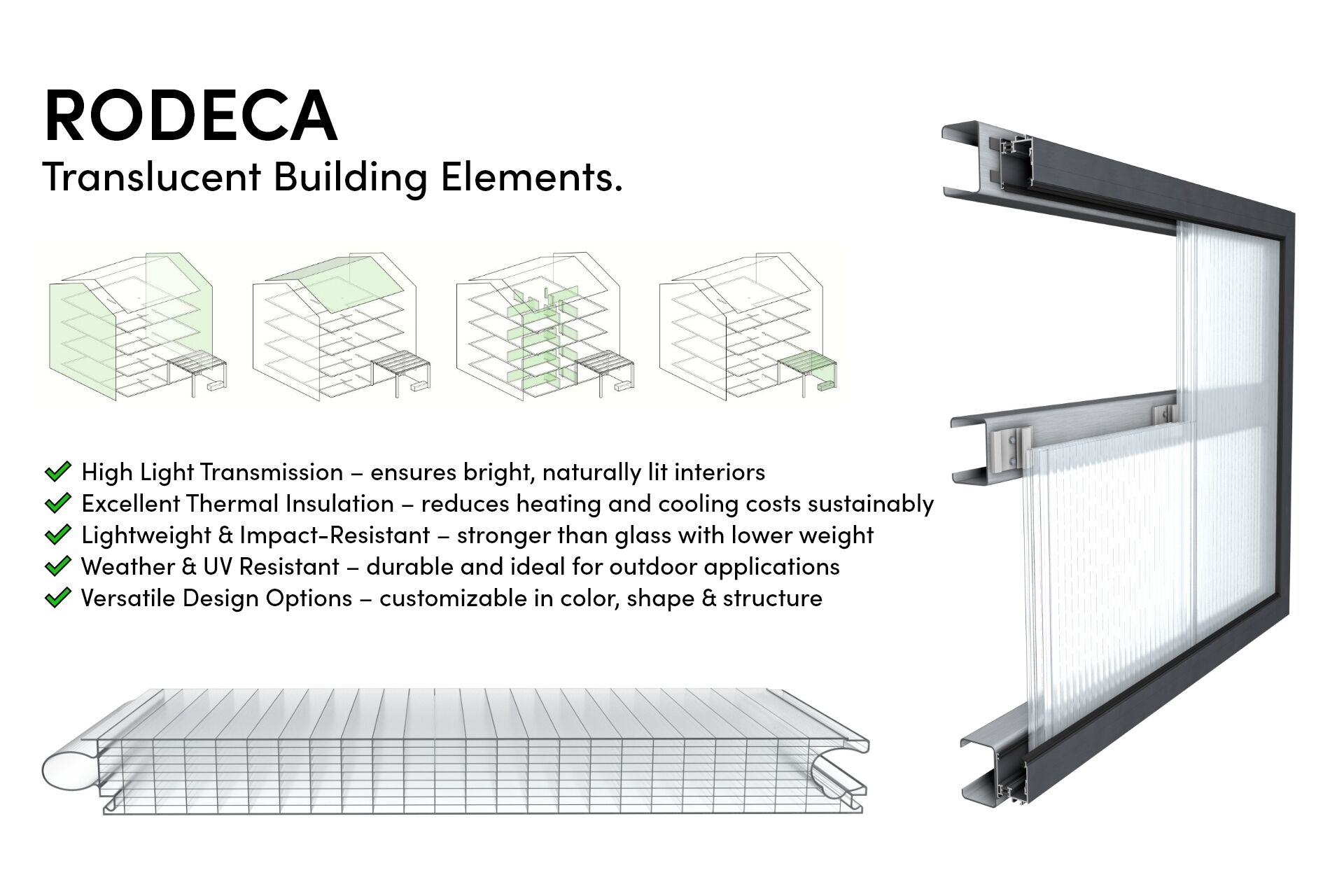

Rodeca translucent building elements for use in facades, pitched roofs and roof lights.

Advantages

  • Polycarbonate is a crystal clear, high impact thermoplastic
  • Temperature restistance from -40 to 115°C, temporarily up to 130°C
  • Impact resistance virtually unchanged within these temperatures (200x more impact resistant than glass)
  • Good long term performance through UV protection
  • 10 years warranty
  • Translucent with excellent thermal properties

Applications

  • Glazings

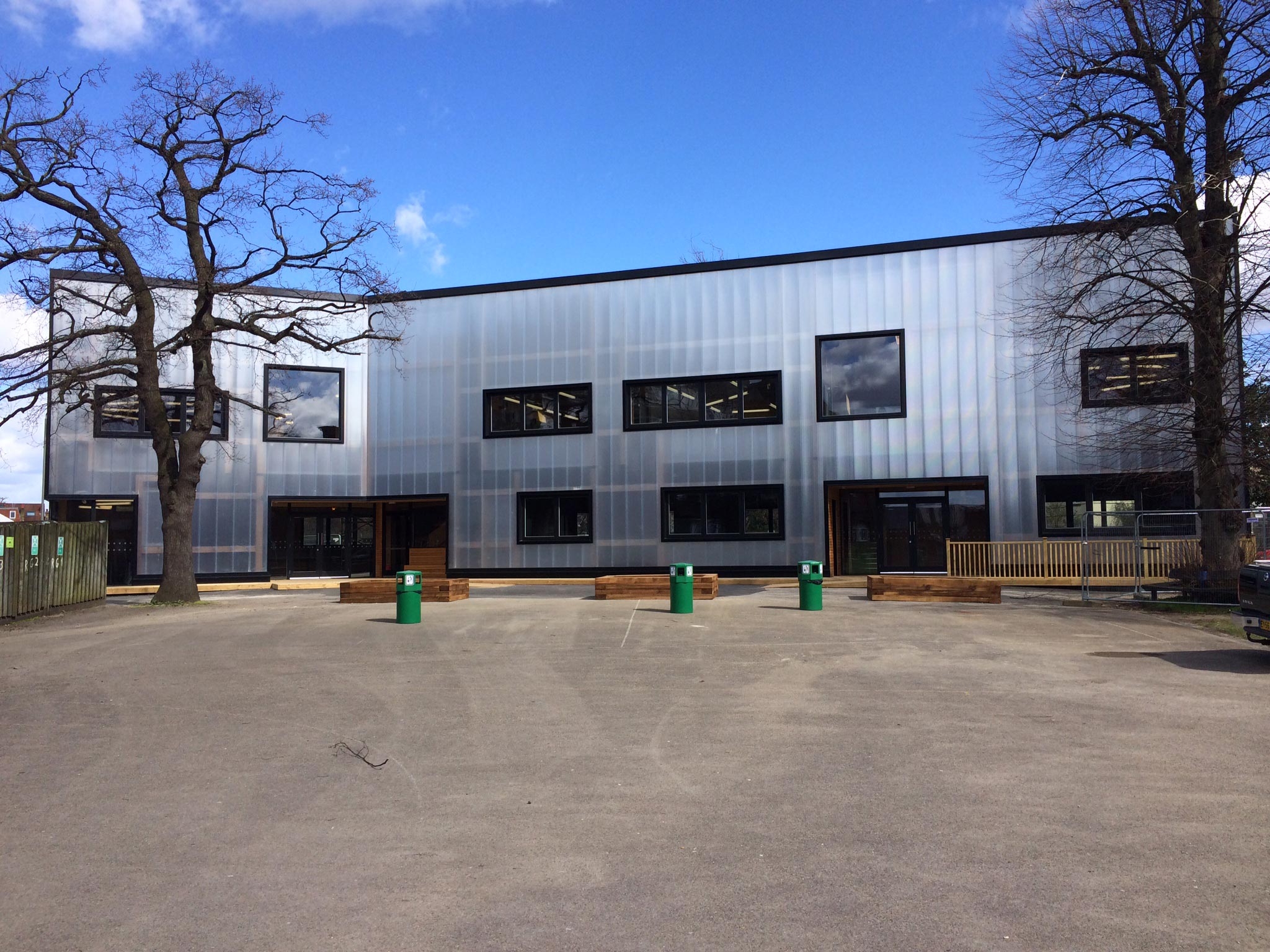

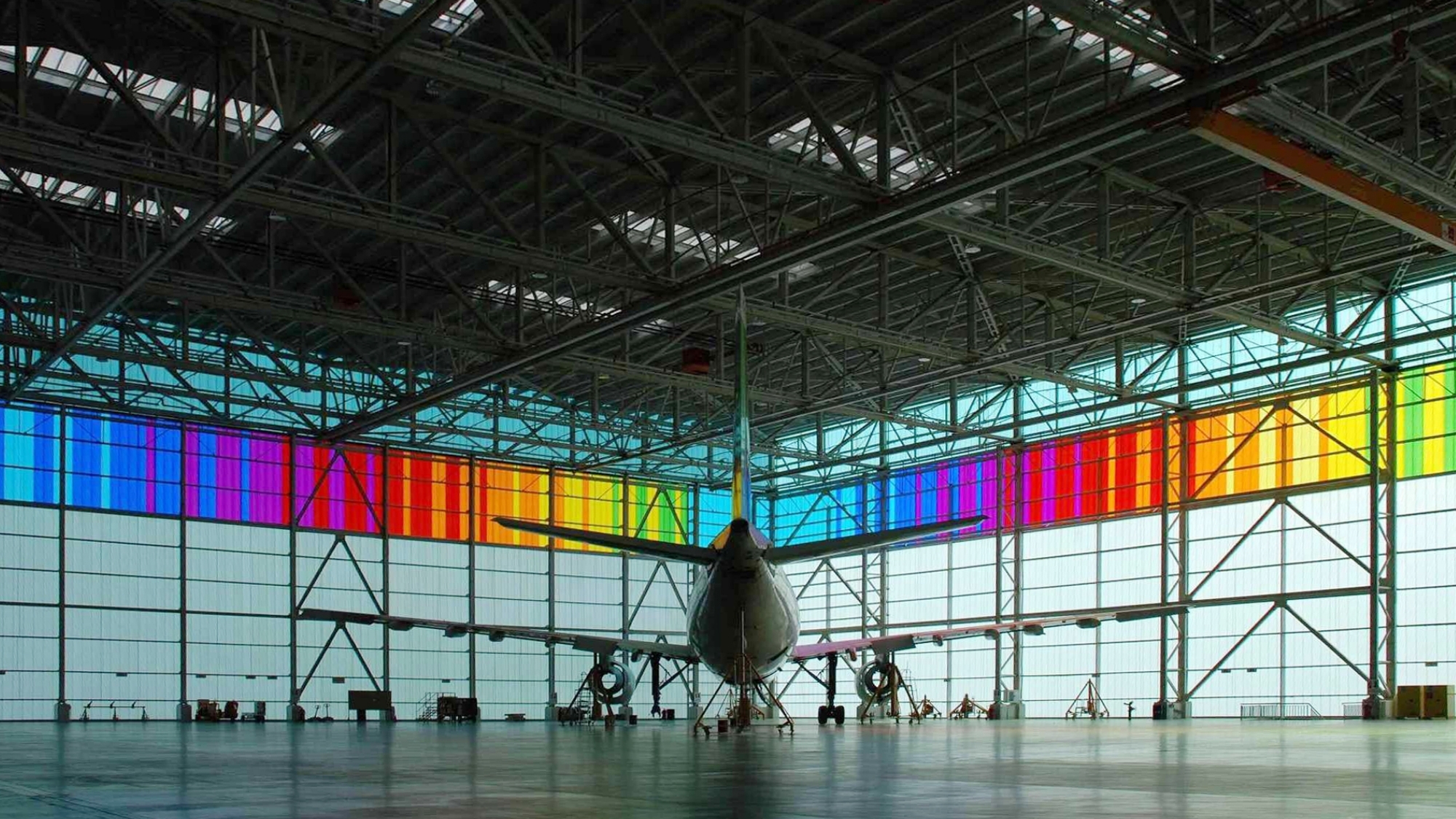

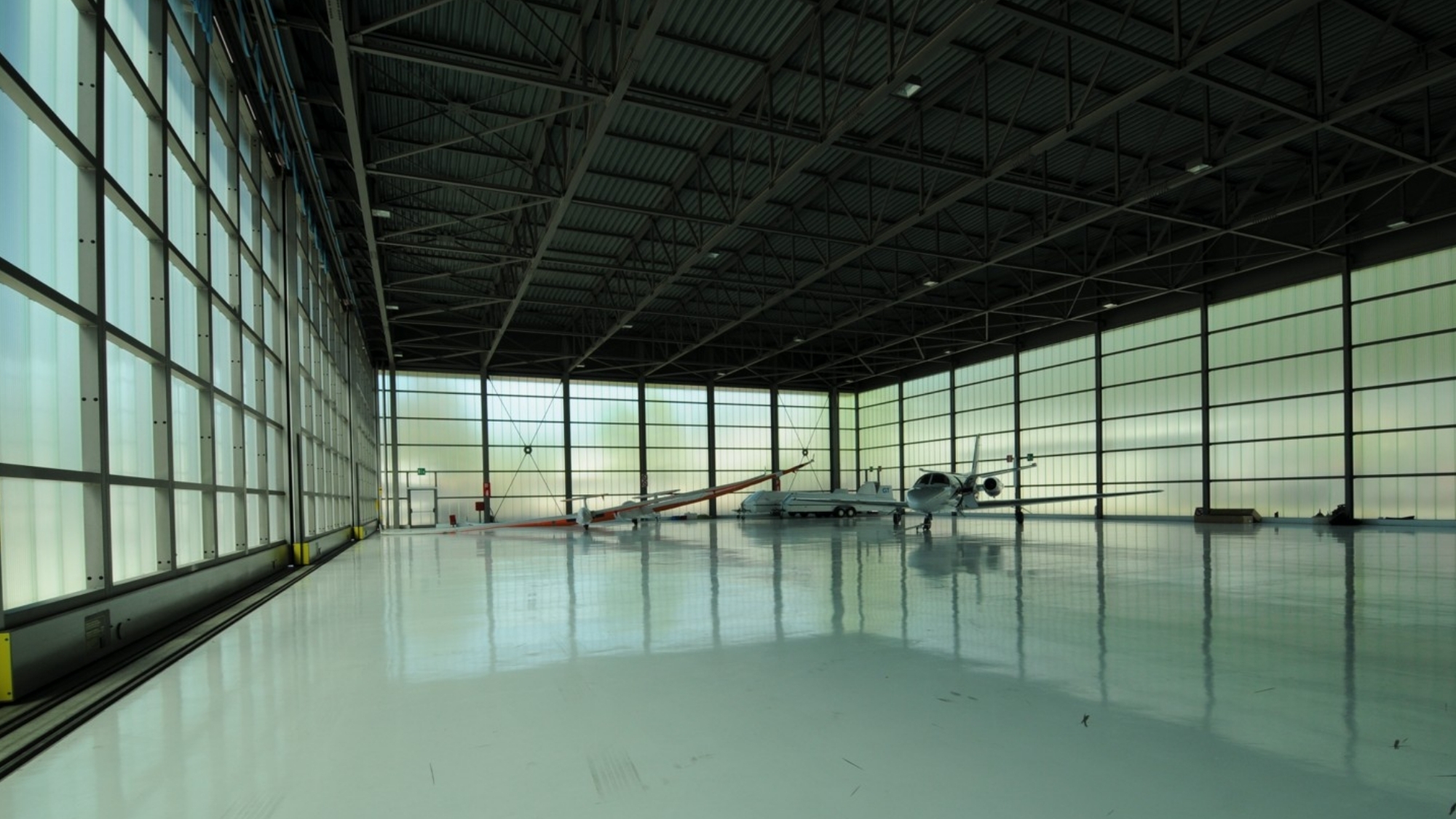

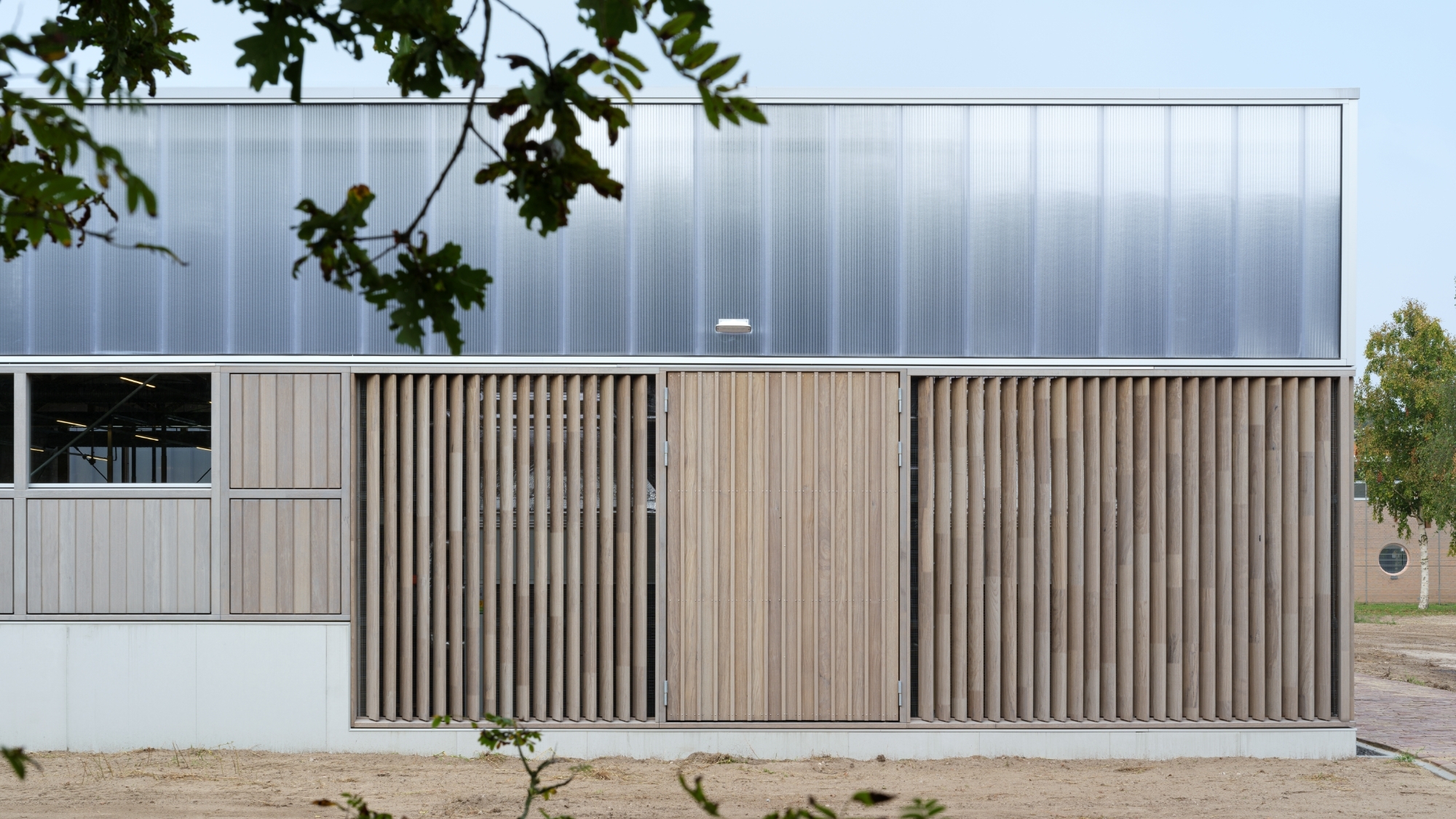

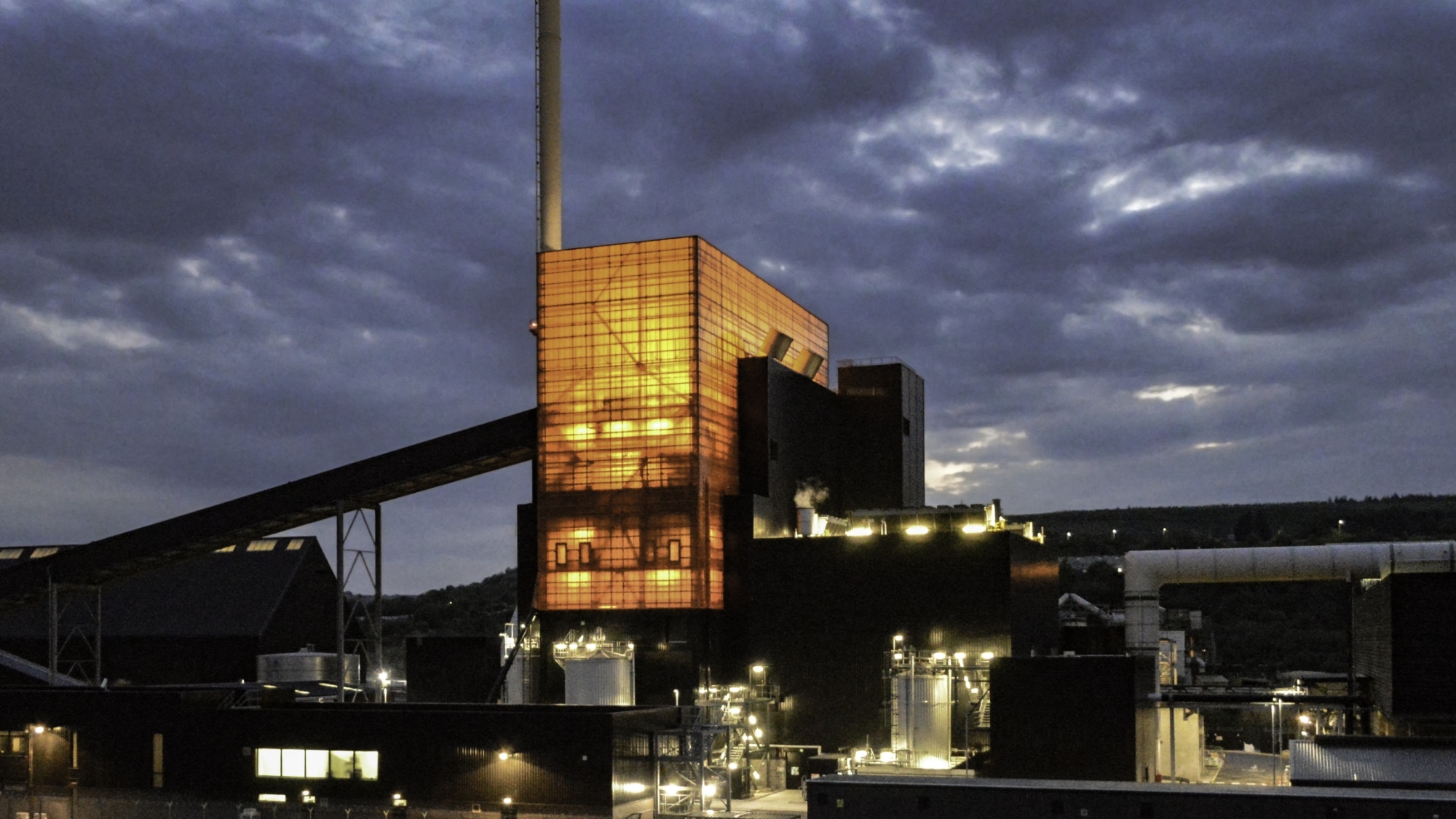

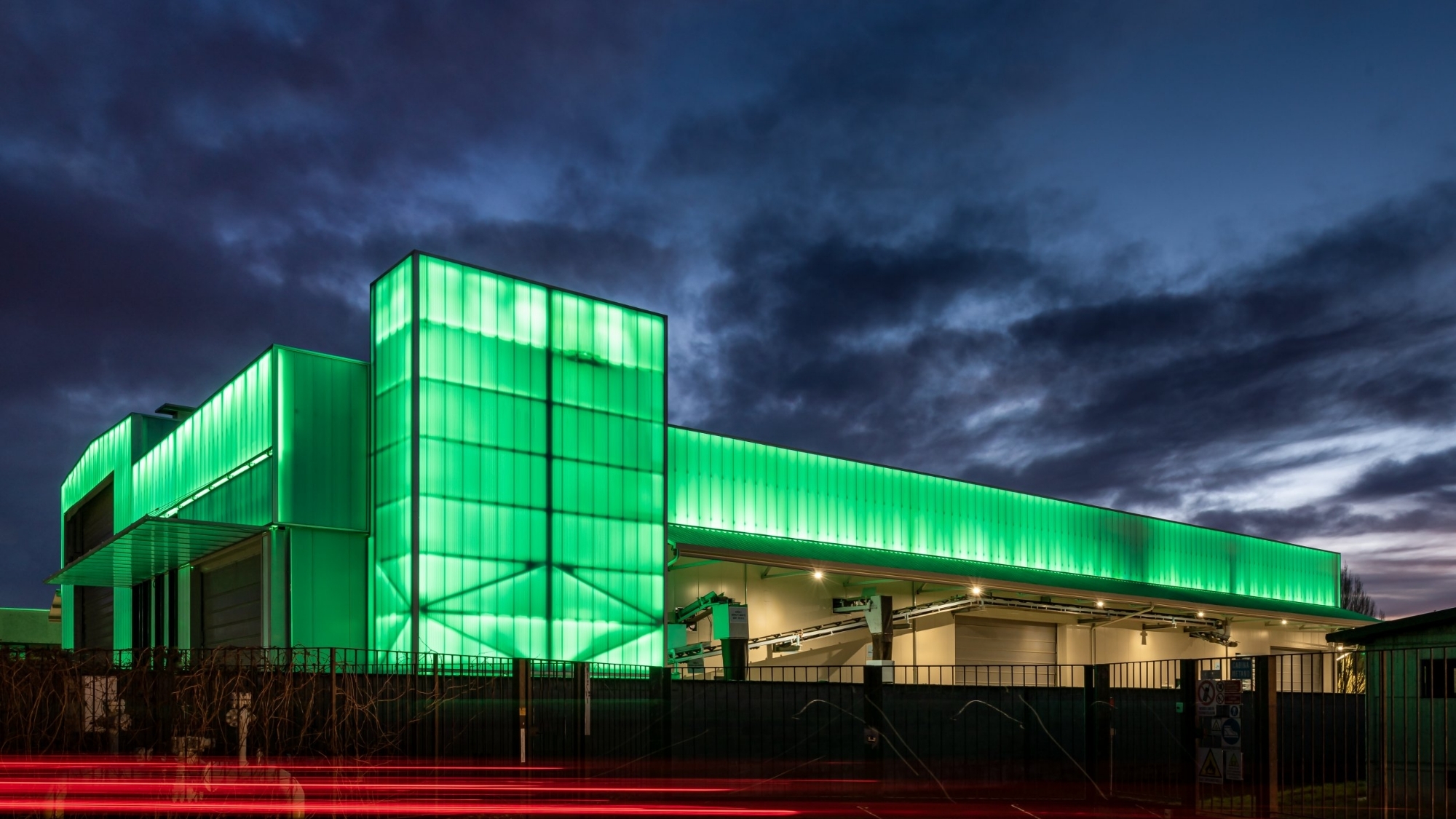

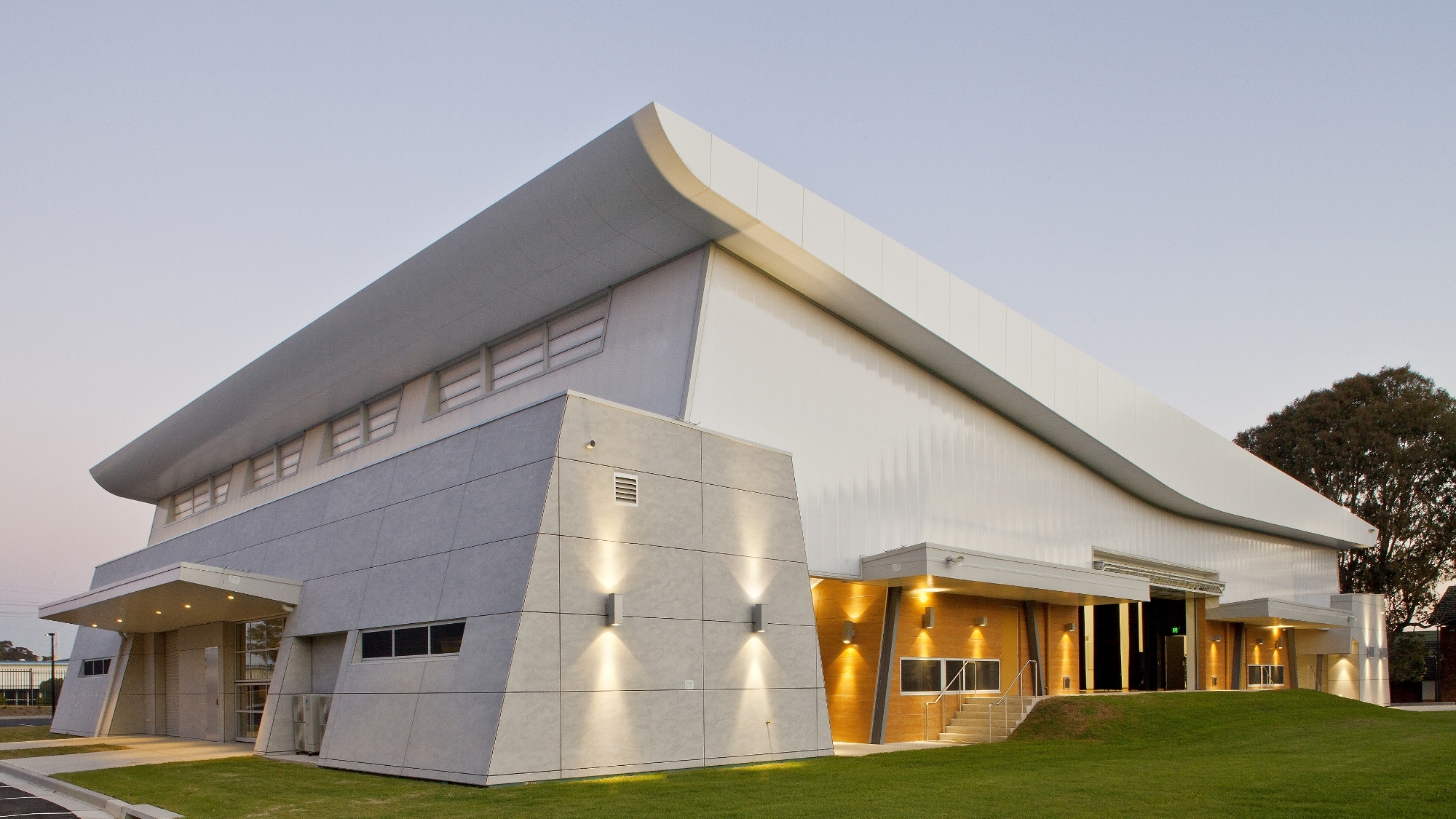

  • Sports and industrial halls
  • Pitched roofing construction
  • Northern light glazings
  • Window glazing

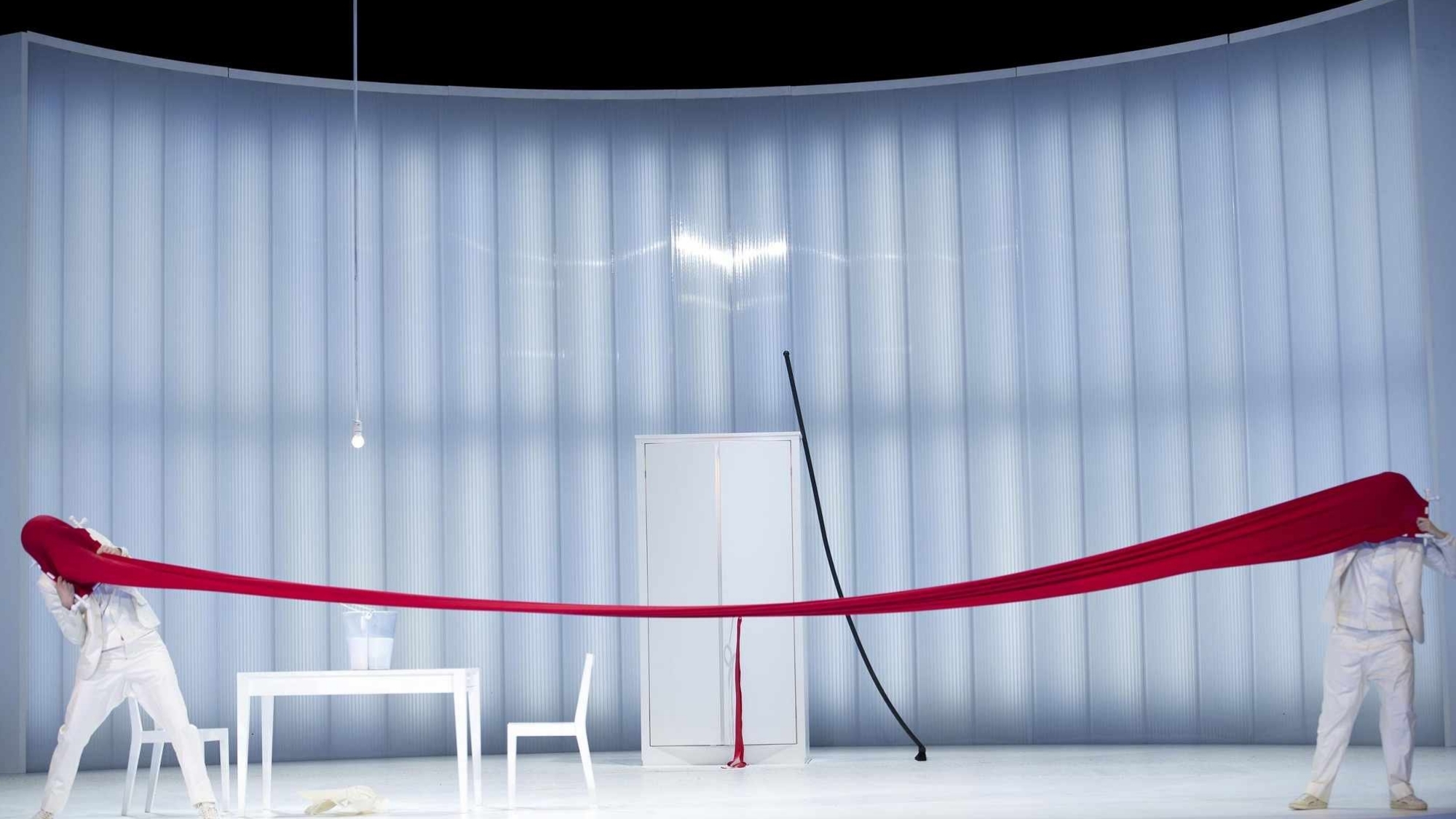

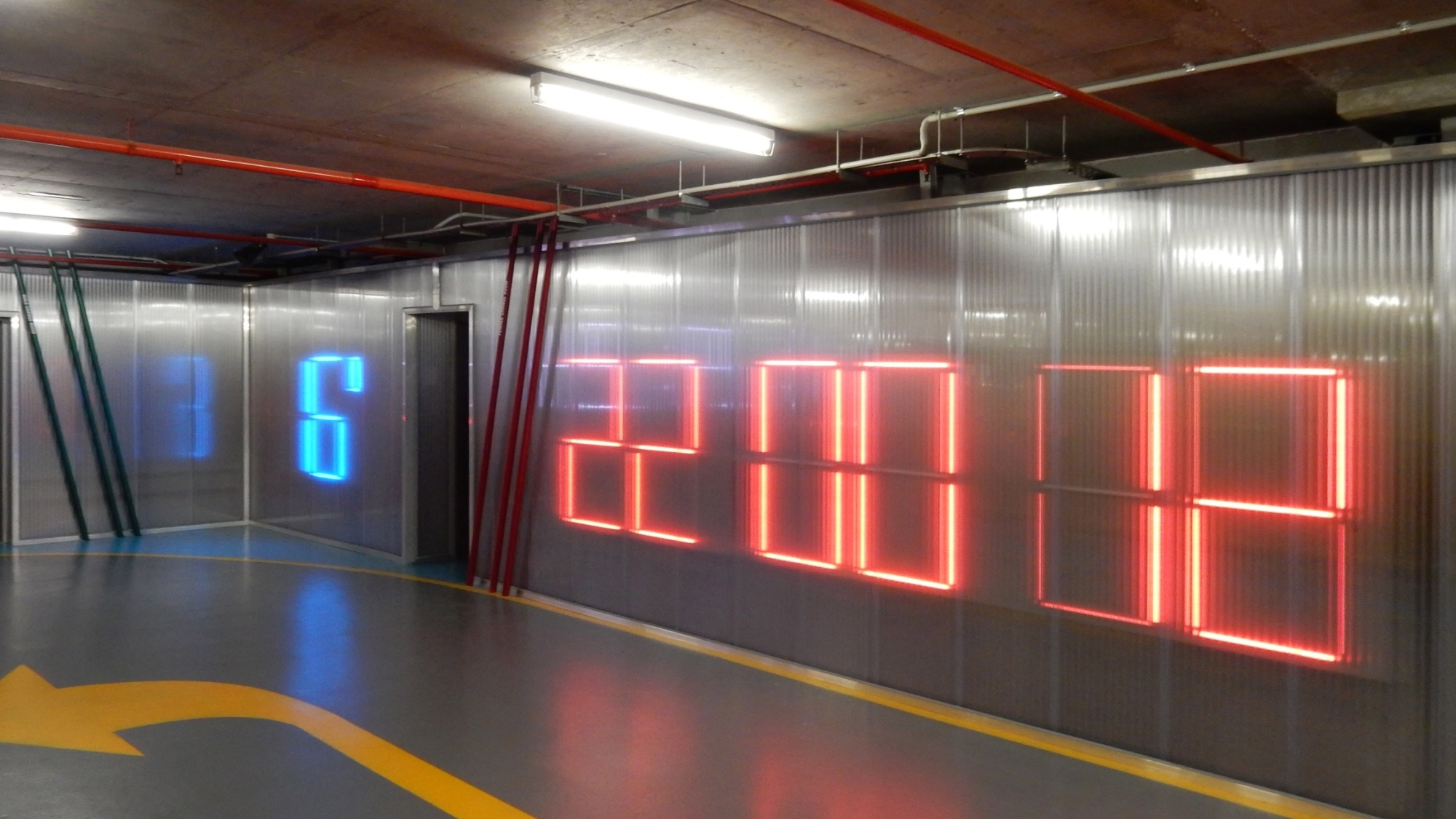

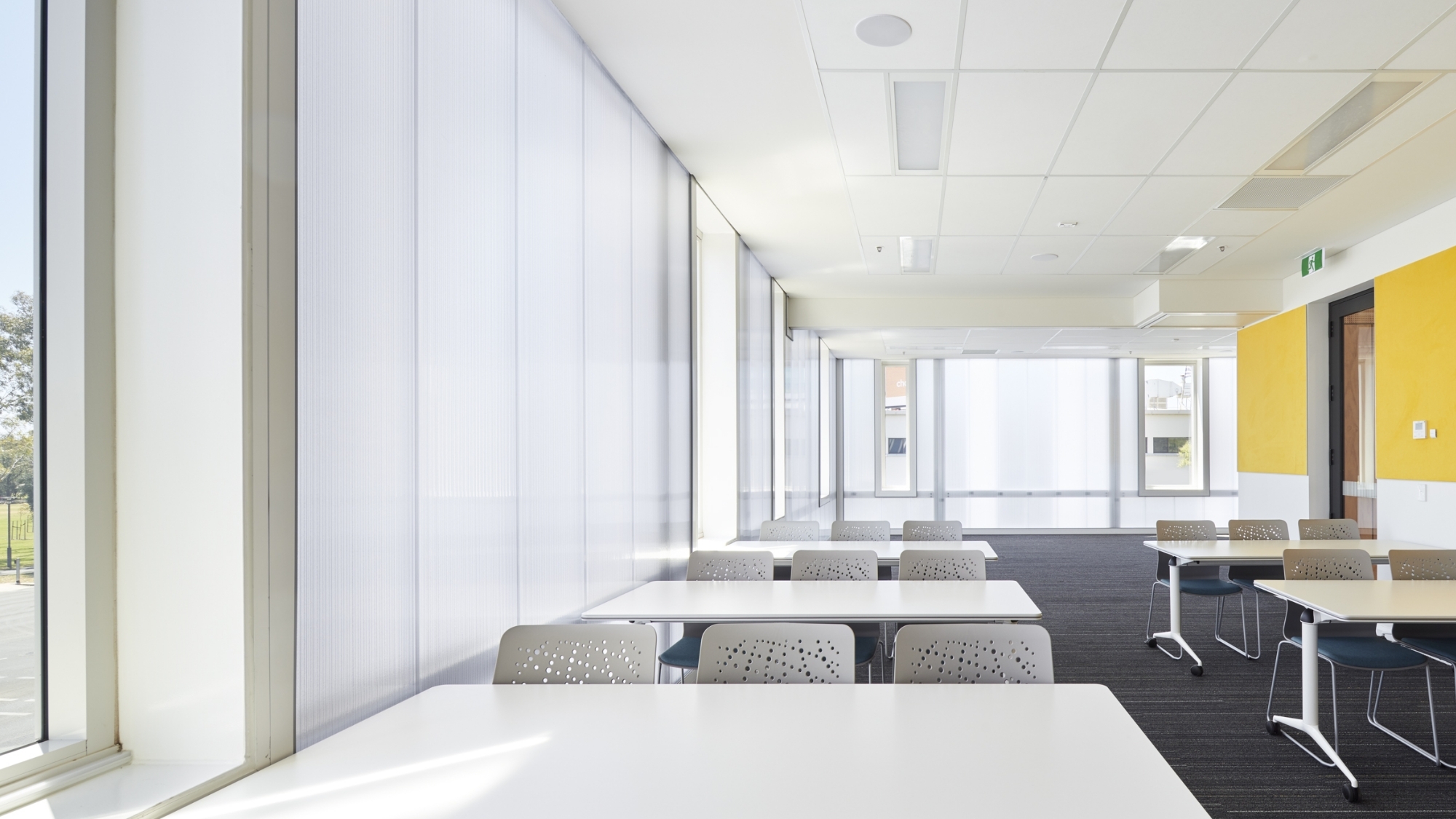

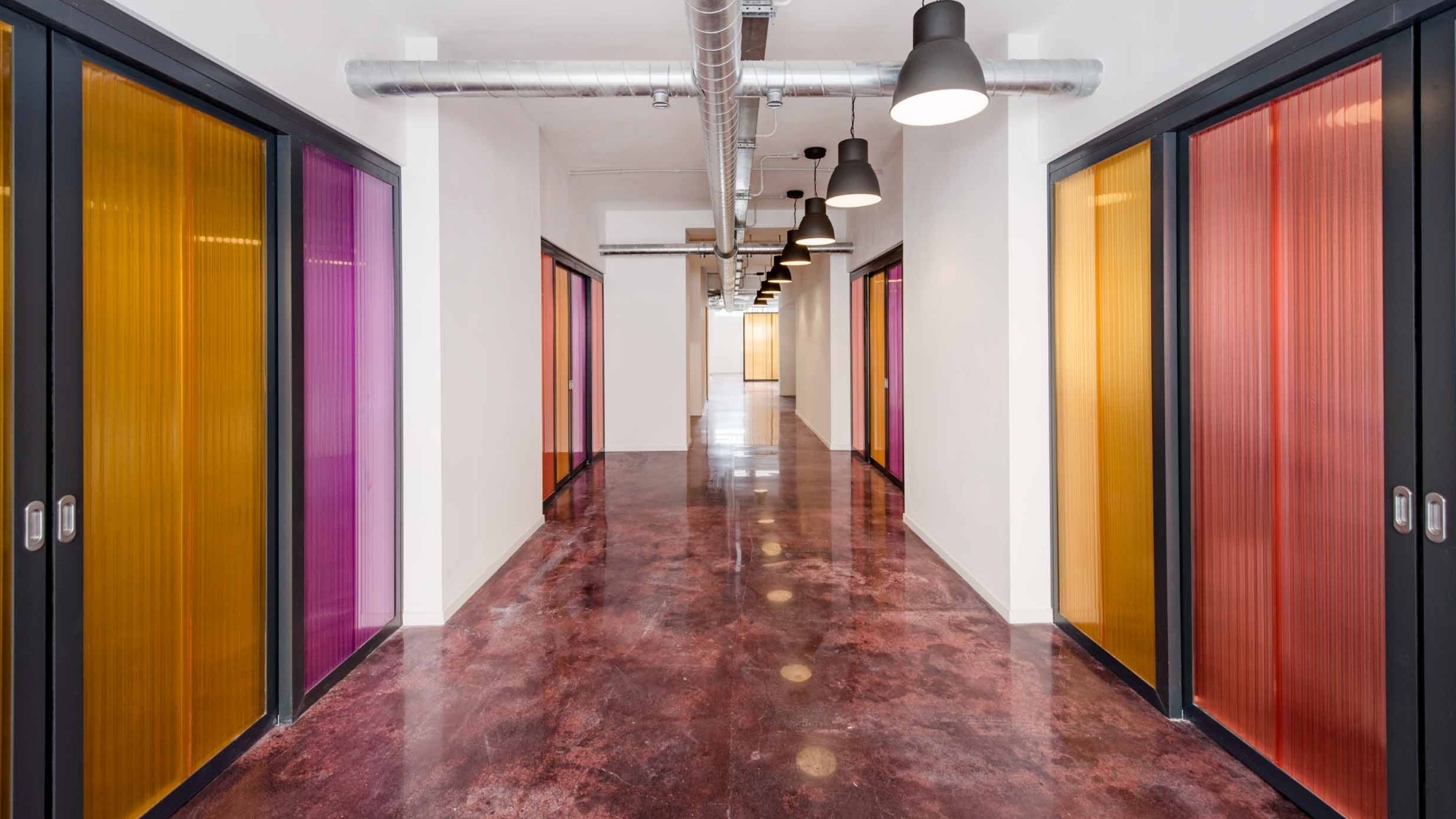

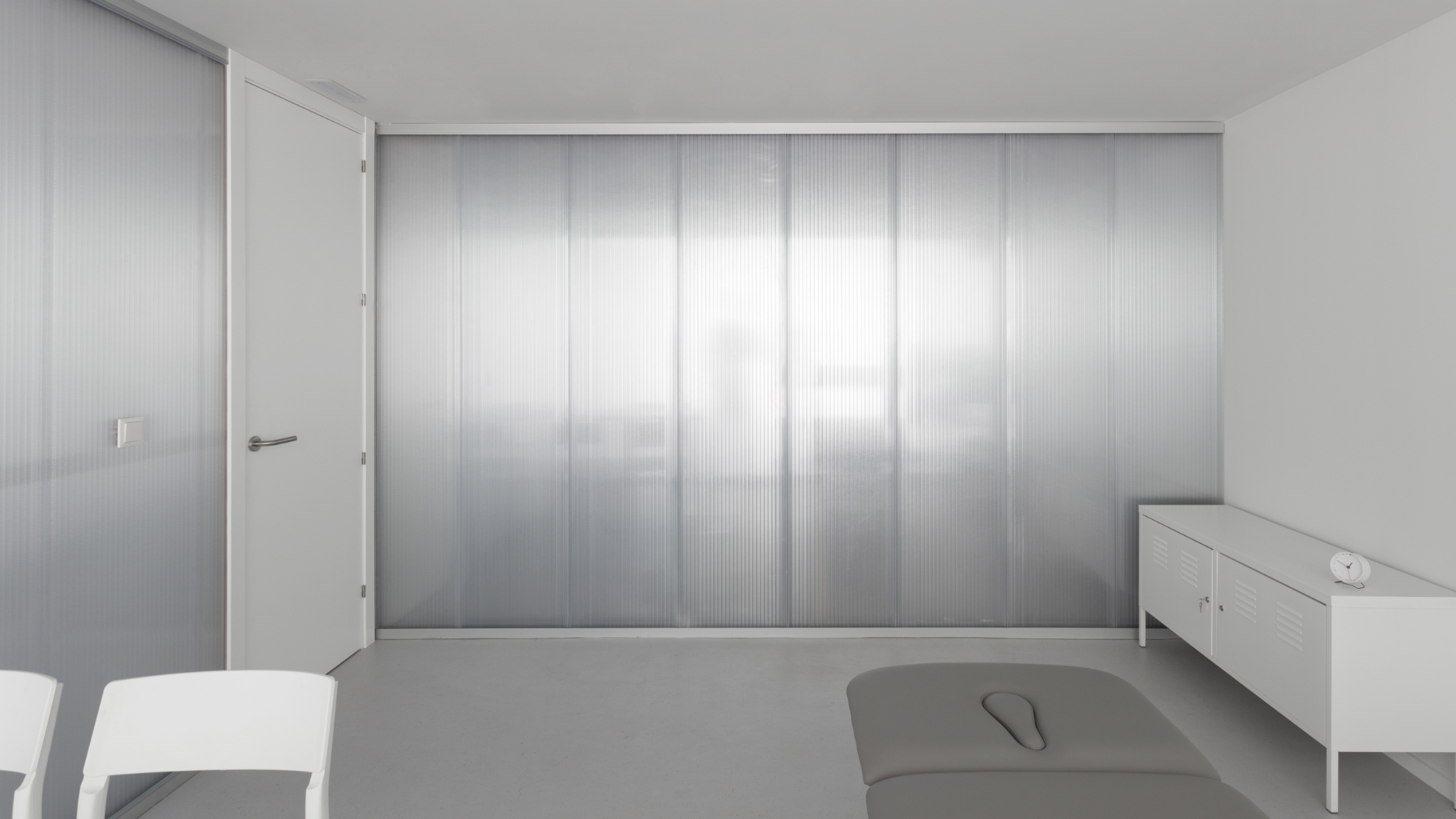

  • Interior applications, e. g. partition walls or exhibition stand constructions
  • Refurbishments for wall and roof
  • Rain screens

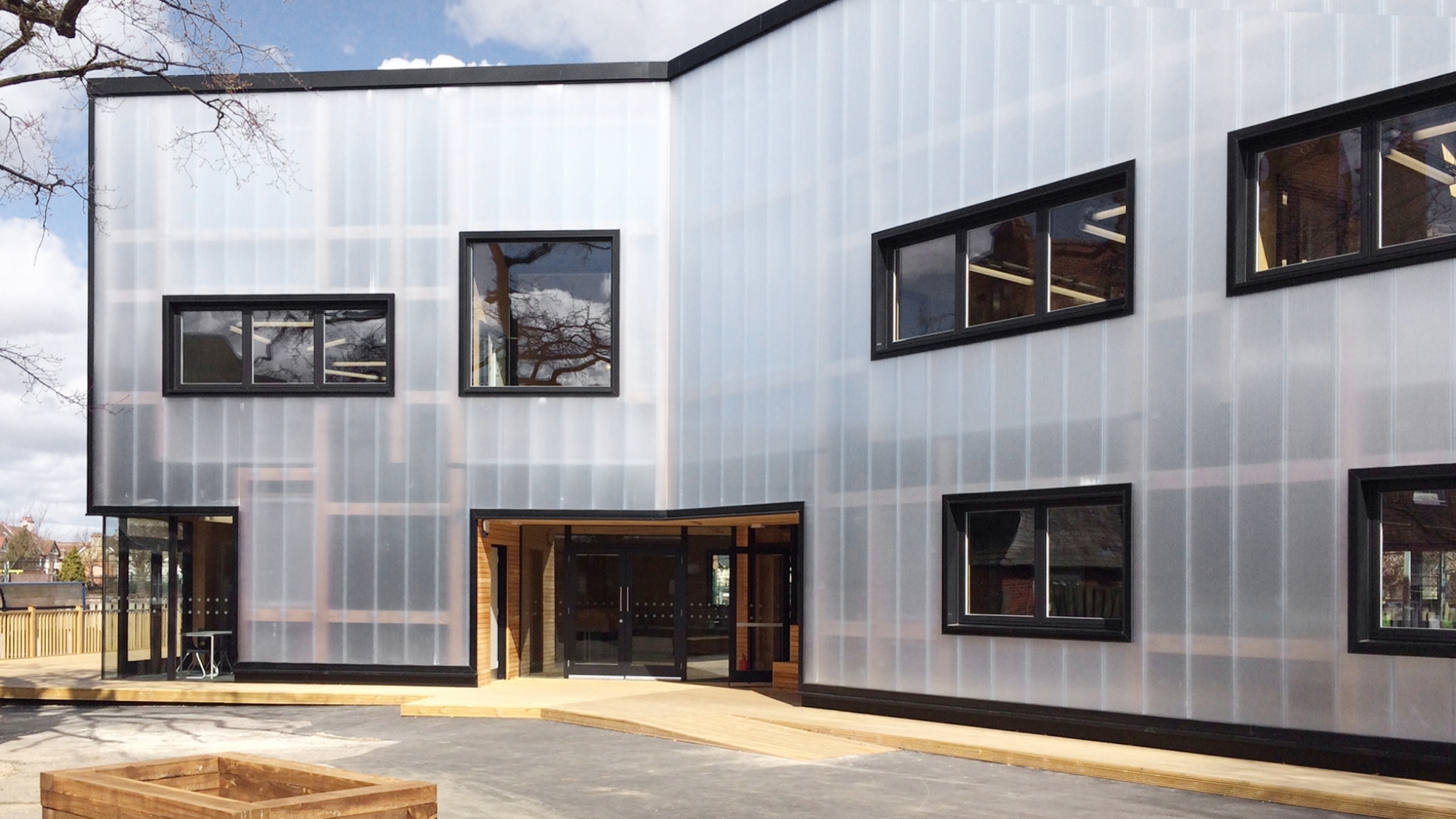

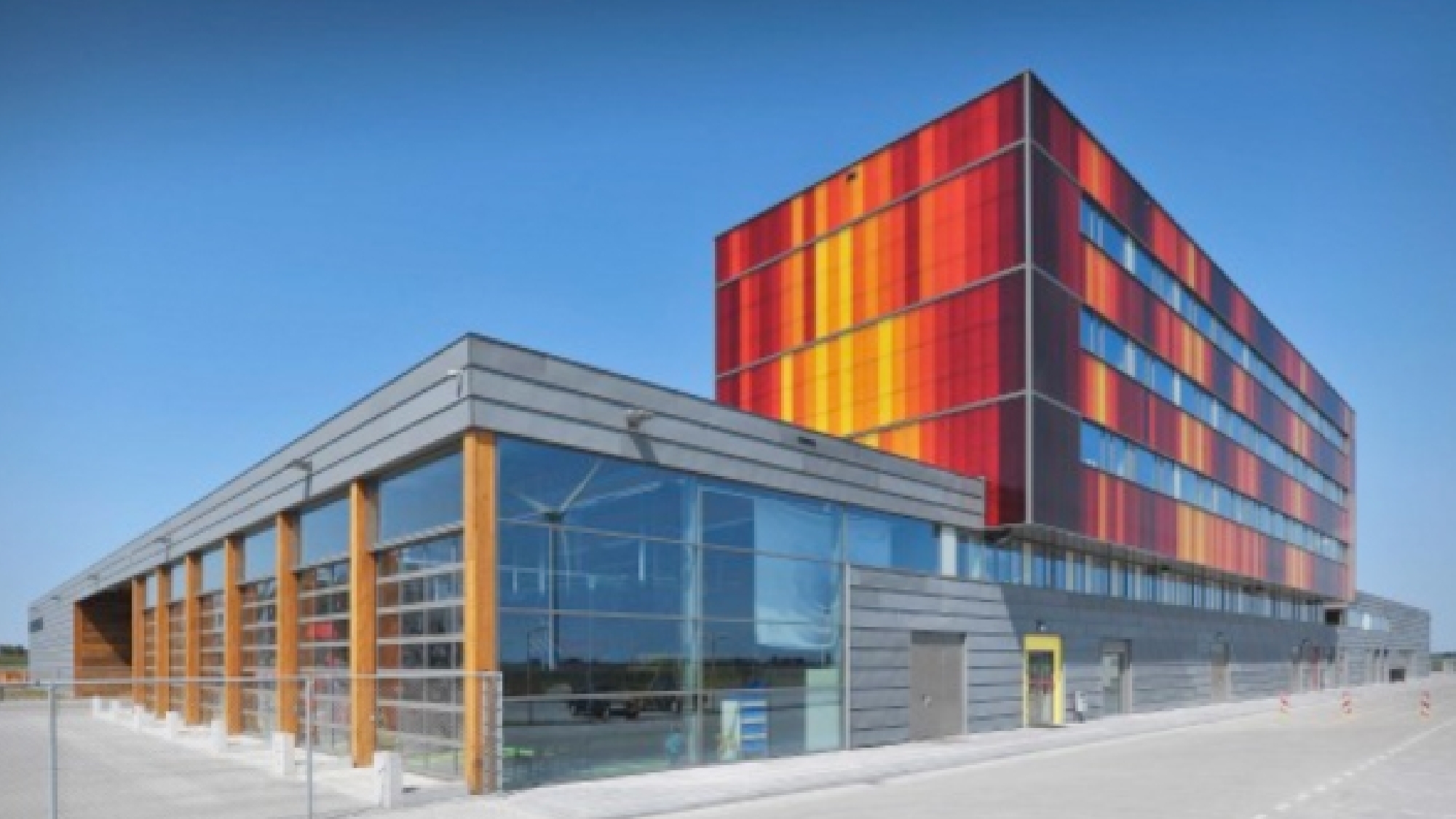

  • Curtain facades

undefined

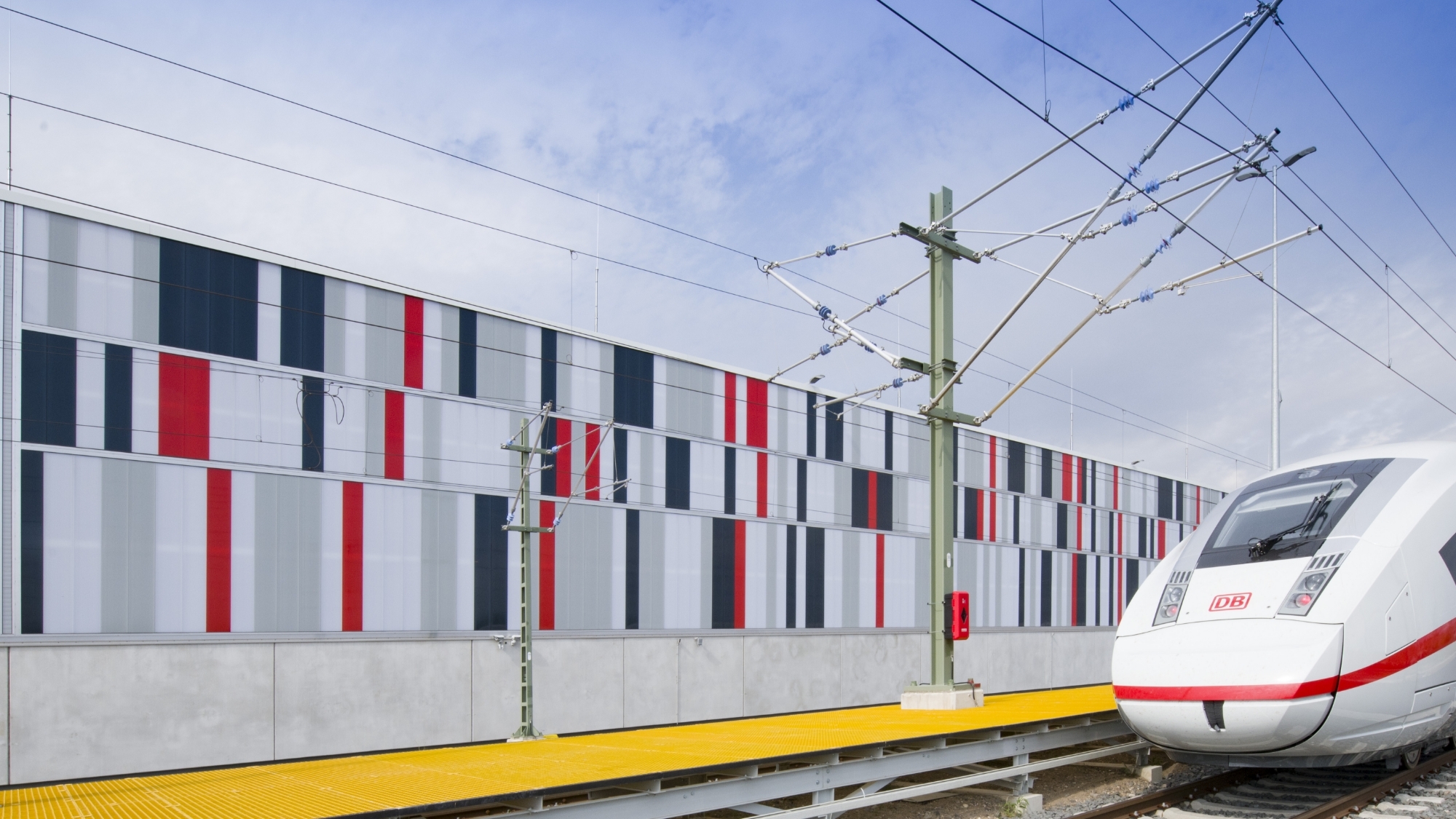

LBE 40

undefined

Rodeca 40mm thick panels with proven groove and tongue connection are 500mm wide. They differ from number of layers which has significant influence onto the U-value of the panel. The perimeter frame profiles are available thermally broken and non-thermally broken. The panels can be easily connected to each other and are ideal for facade constructions as well as an optimal and long lasting solution for roof glazing.

Technical data for PC 2540-7:

Building width 500 mm –2/+6 mm
Flammability classification fire class B-s1, d0 according to EN 13501
Up-Value 1.0–1.2 W/m2K
Transmission crystal approx. 53 %
opal approx. 41 %
Versions Decocolor

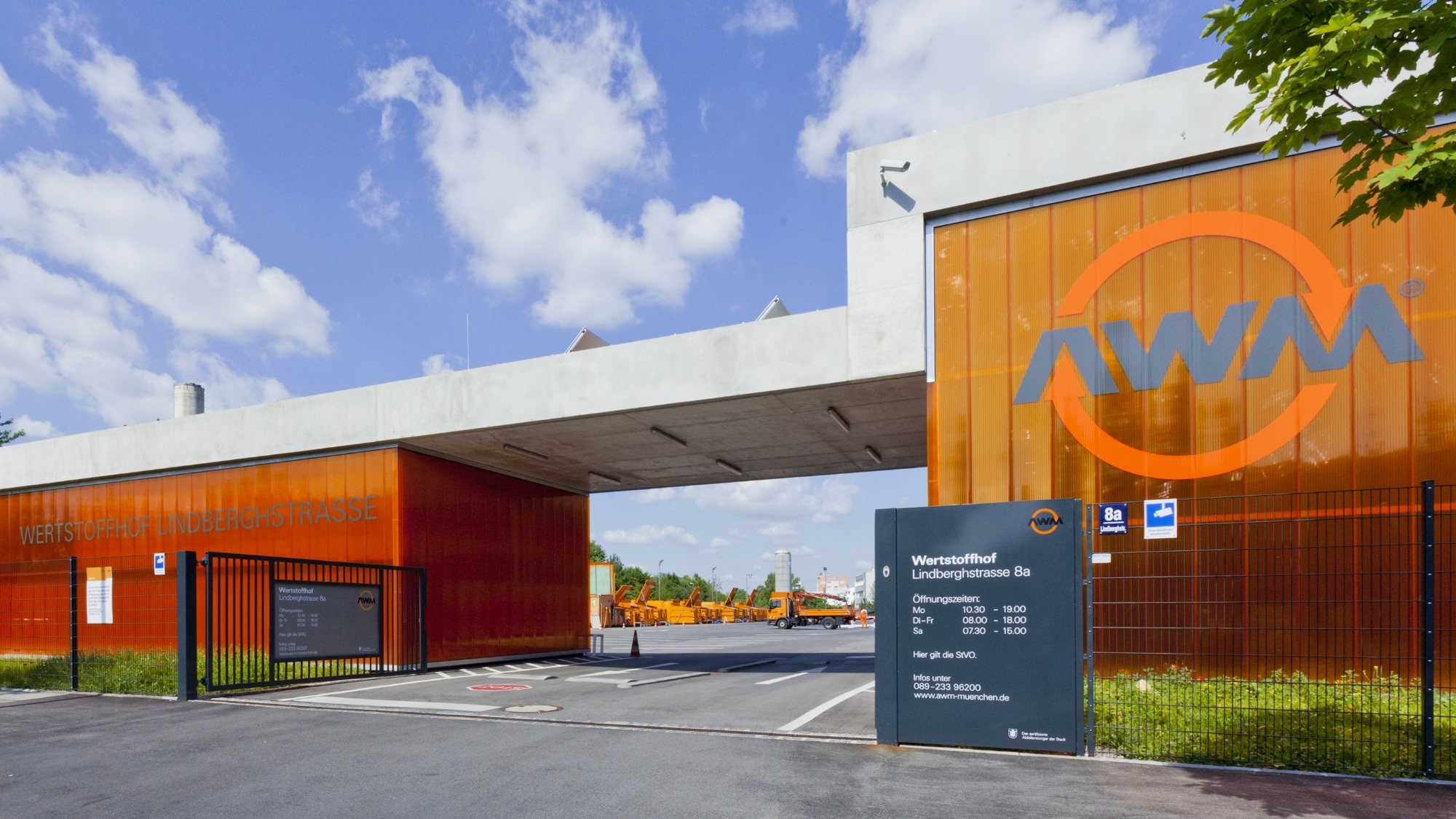

LBE 50

undefined
Rodeca 50mm thick panel with a building width of 495mm has 10 layers and achieves a Ucw-value of approx (depending on the installation situation). 1.0W/m²K (according to DIN EN ISO 10077-2). Worldwide, the system is the first with a German general technical approval including thermally broken perimeter frame profiles. The panel is manufacturable in fully coloured or in the two coloured version “duocolor”.

Building width 495 mm –2/+6 mm
Flammability classification fire class B-s1, do according to according to EN 13501
Up-Value 0.8–0.92 W/m2K
Transmission crystal approx. 44 %
opal approx. 36 %
Versions Standard, Color, Duocolor

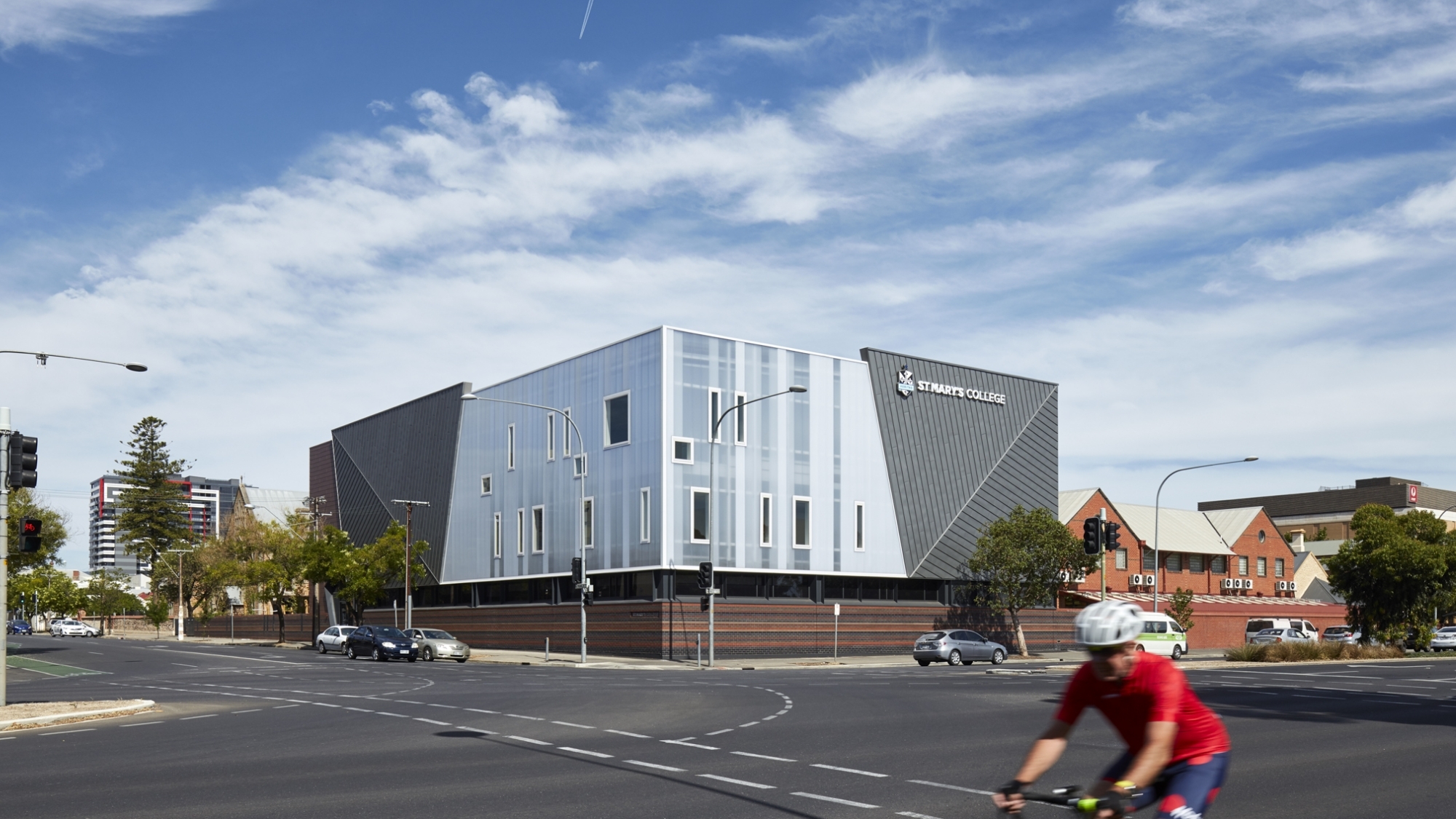

LBE 60

undefined

Rodeca 60mm thick panel with a building width of 500mm has 12 layers and achieves a Ucw-value approx (depending on the installation situation). 0.87W/m²K (according to DIN EN ISO 10077-2). The German general technical approval is available. This panel system is ideal for premium industrial glazings and for roof glazing with appropriate minimum pitch as well as for every application with high demands on heat insulation.

Building width 500 mm –2/+6 mm
Flammability classification fire class B-s1, d0 according to EN 13501
Up-Value 0.71–0.77 W/m2K
Transmission crystal approx. 41 %
opal approx. 30 %
Versions Color

Translucent Building Elements

Colour Range

• CLEAR with structure for panels for higher light transmission & light refraction.

• OPAL for optimized diffused light.

• COLOR Series - transparent or semitransparent colors, similar to RAL from approx. 300 m2 on request.

• BICOLOR Series - two coloured finish, inner wall coloured, similar to RAL from approx. 150 m2 on request.

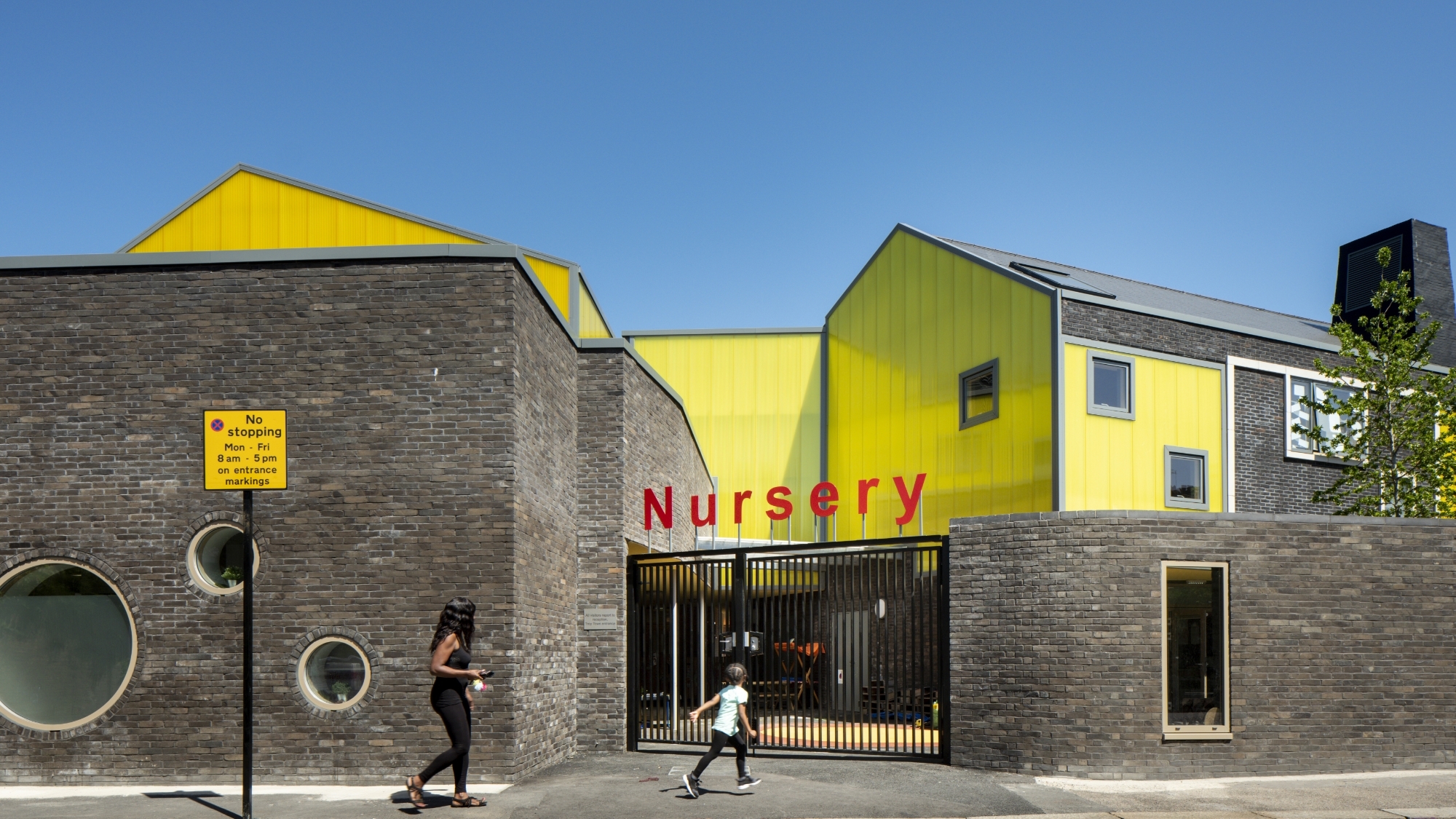

• DUOCOLOR - two coloured finish of translucent building elements custom made in transparent or semitransparent colors similar to RAL from approx. 300 m2 on request.

• DECOCOLOR - two coloured finish, outer wall coloured, similar to RAL from approx. 150 m2 on request.
