Stabilized Aluminum Foam Small Cell Panel - Alusion™ | Alusion

  • Available in

  • Use

    Lightweight panels, exterior/interior cladding, ceilings, cabinets, doors, terrazzo flooring, tabletops, furniture, showroom displays, lighting, fixtures, exhibits, signage etc.
  • Applications

    Retail stores, hotels, private and public buildings.
  • Characteristics

    Produced as continuous flat sheets, contains up to 100% recycled content, 100% recyclable.
  • Colors

    Silver
  • Sizes

    L, 1220 mm W x 2440 mm L, 1220 mm W x 3048 mm L, 1220 mm W x 3660 mm L (4’ x 8’, 4’ x 10’, 4’ x 12') Custom sized & longer panels also available upon demand | Standard thicknesses available in 12.7mm, 25.4 mm and 43.2 mm (1/2”, 1” & 1.7”)

1 Product File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Alusion Logo

Contact manufacturer

Alusion

Alusion Logo

Contact manufacturer

Alusion

More from Alusion

Website Phone

More about this product

Cymat Technologies Ltd, based in Toronto, Canada, is an innovative materials technology company that has the exclusive worldwide rights for producing lightweight aluminum panels using Alusion™ Stabilized Aluminum Foam, through patents and licenses.

Cymat’s Stabilized Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is a versatile and unique material with virtually limitless design and architectural applications. As well as its unique appearance, it has sound-absorbing properties making it ideal for applications requiring both sound absorption and beauty.

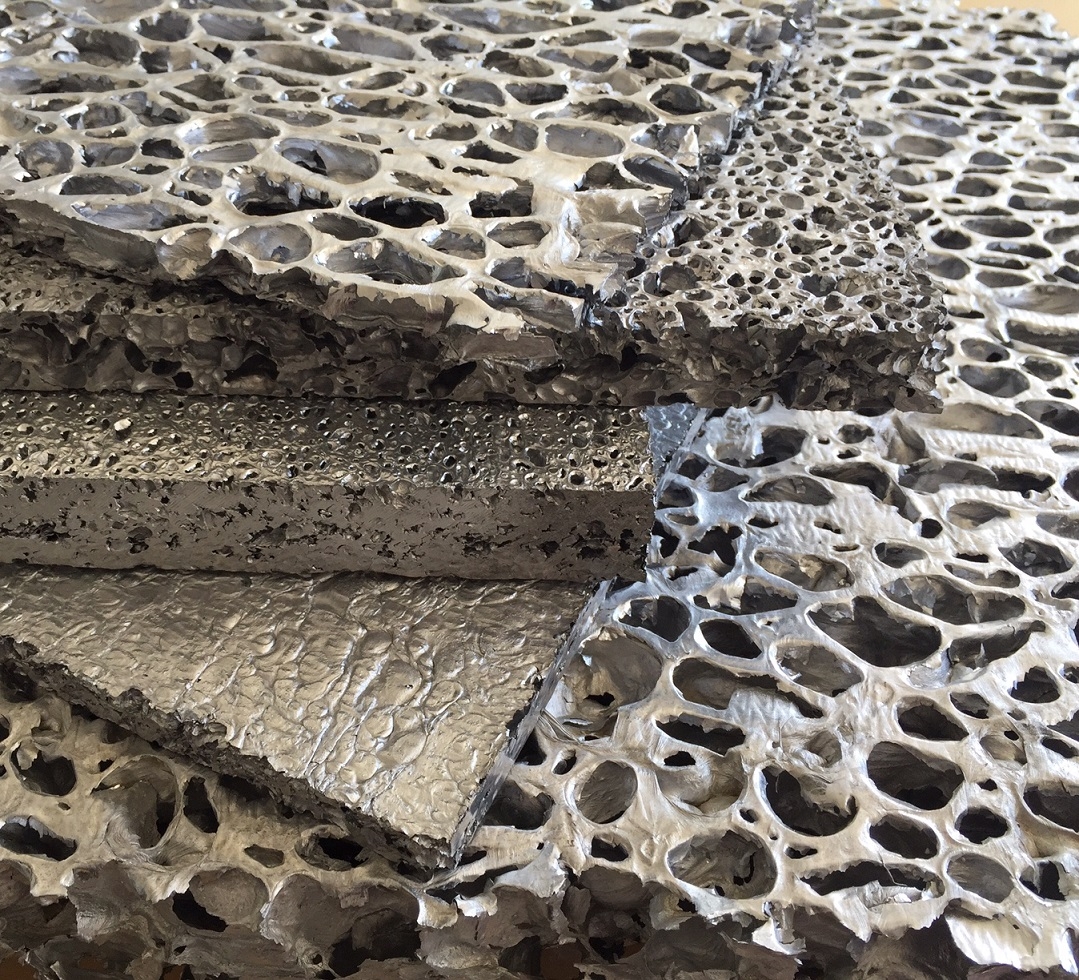

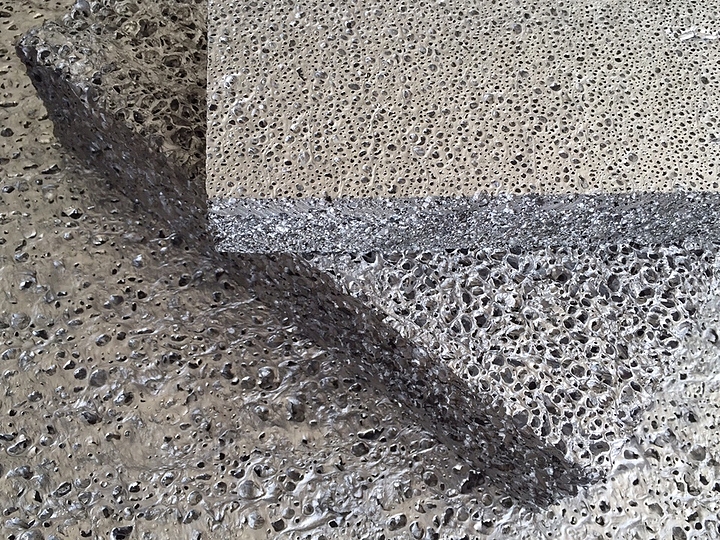

The Alusion™ aluminum foam creates strong yet lightweight panels that are similar in appearance to a metallic sponge. It is visually striking, with a modern dramatic look. For architecture, lightweight aluminum panels are produced in 12.7mm, 25.4mm, and 43.2mm thicknesses (1/2”, 1” & 1.7”) and three densities (Large Cell, Mid Cell & Small Cell, custom also available). Each thickness and density has its own representative stress/strain curve.

Alusion™ Stabilized Aluminum Foam (SAF) is buoyant, flame and corrosion resistant in the same way as aluminum. The surface of the aluminum foam panels is either left in its solid form as produced or undergoes surface preparations that provide many different appearances from a solid surface “shimmering” look to a translucent “water froth” look.

The Alusion™ lightweight aluminum panels are produced with a proprietary continuous panel production process, which gives them many advantages. The product’s competitive edge is that no one can produce aluminum foam in the dimensions and volumes that Cymat Technologies Ltd. can provide, with the overall consistency or even with the random yet uniform look in which it is created, It is lightweight and easy to install, and is 100% recyclable.

  • Modern and dramatic appearance
  • 100% recyclable, and contains up to 100% + recycled content
  • Acoustic Absorption Properties
  • Non-Combustible with a flame spread of zero
  • Highly corrosion resistant
  • The strength, durability, and resilience of aluminum
  • Wind load resistance of up to 356 km per hour (221 mph)
  • Colors available: Luminous Silver color which can also be powder coated in limitless color choices

Other Surface Solutions

The aluminum foam panels can be resin coated, and water jet cut with a specialized WJ process only by Cymat Technologies Ltd. Special powder coats and wet paints can be applied which render the product 100% salt resistant and chemically resistant. Testing is available upon demand.

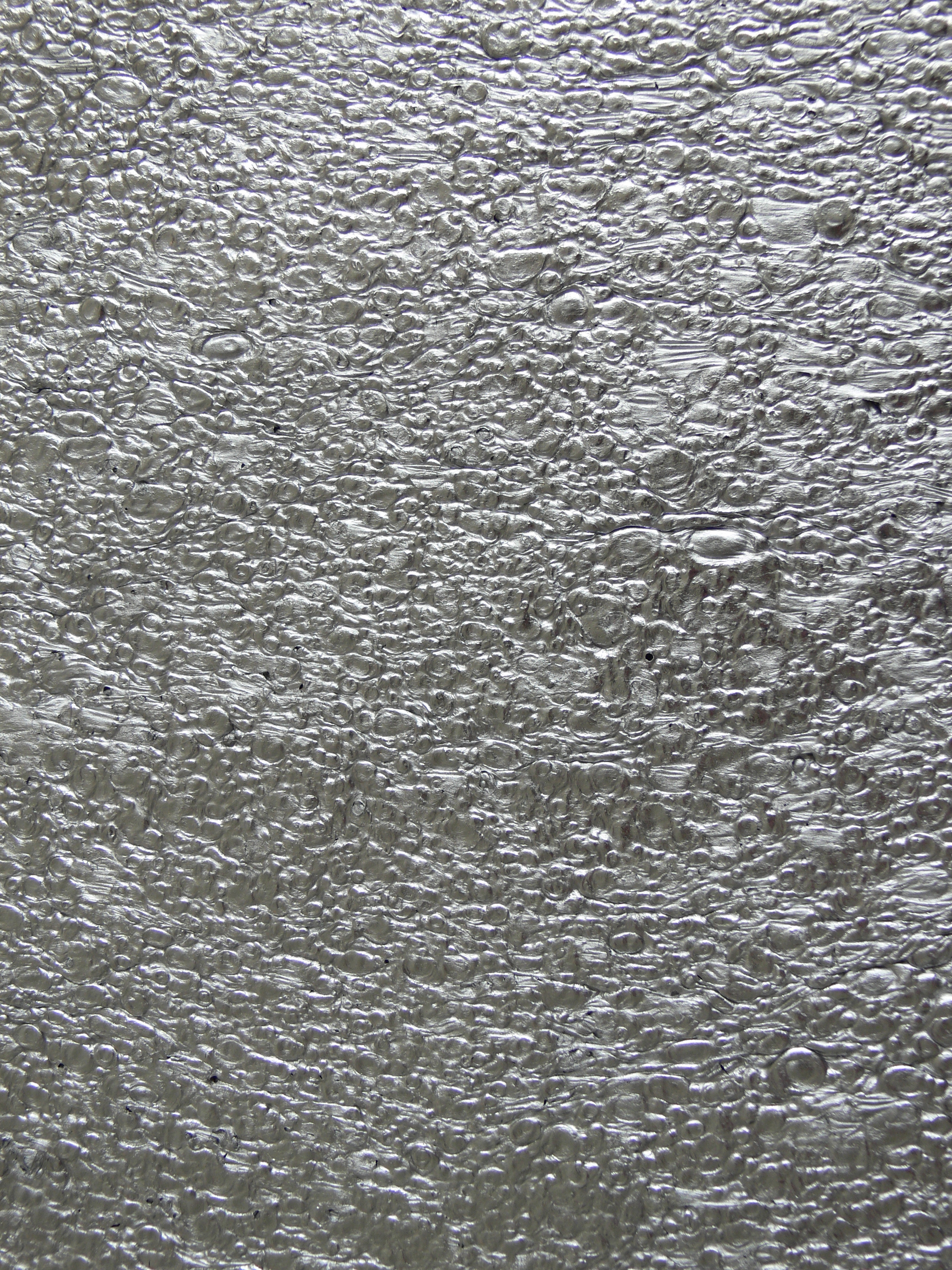

Alusion Natural - Small Cell Natural (available in 12.7mm & 25.4mm)

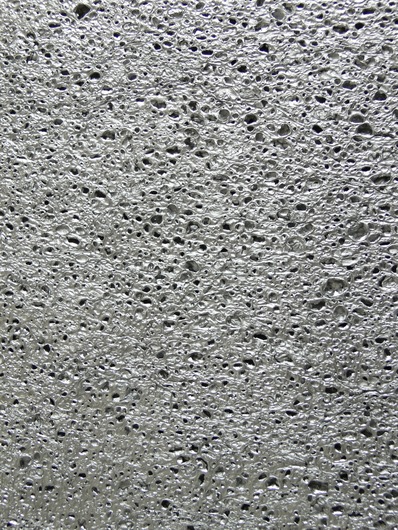

Alusion Open Cell One Side open – Top Side (available in 12.7mm & 25.4mm)

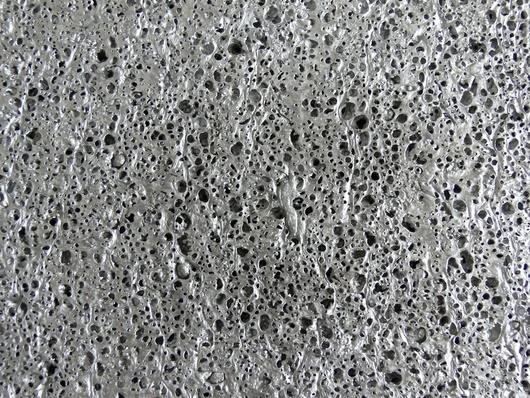

Alusion Open Cell One Side open – Bottom side (available in 12.7mm & 25.4mm)

Applications

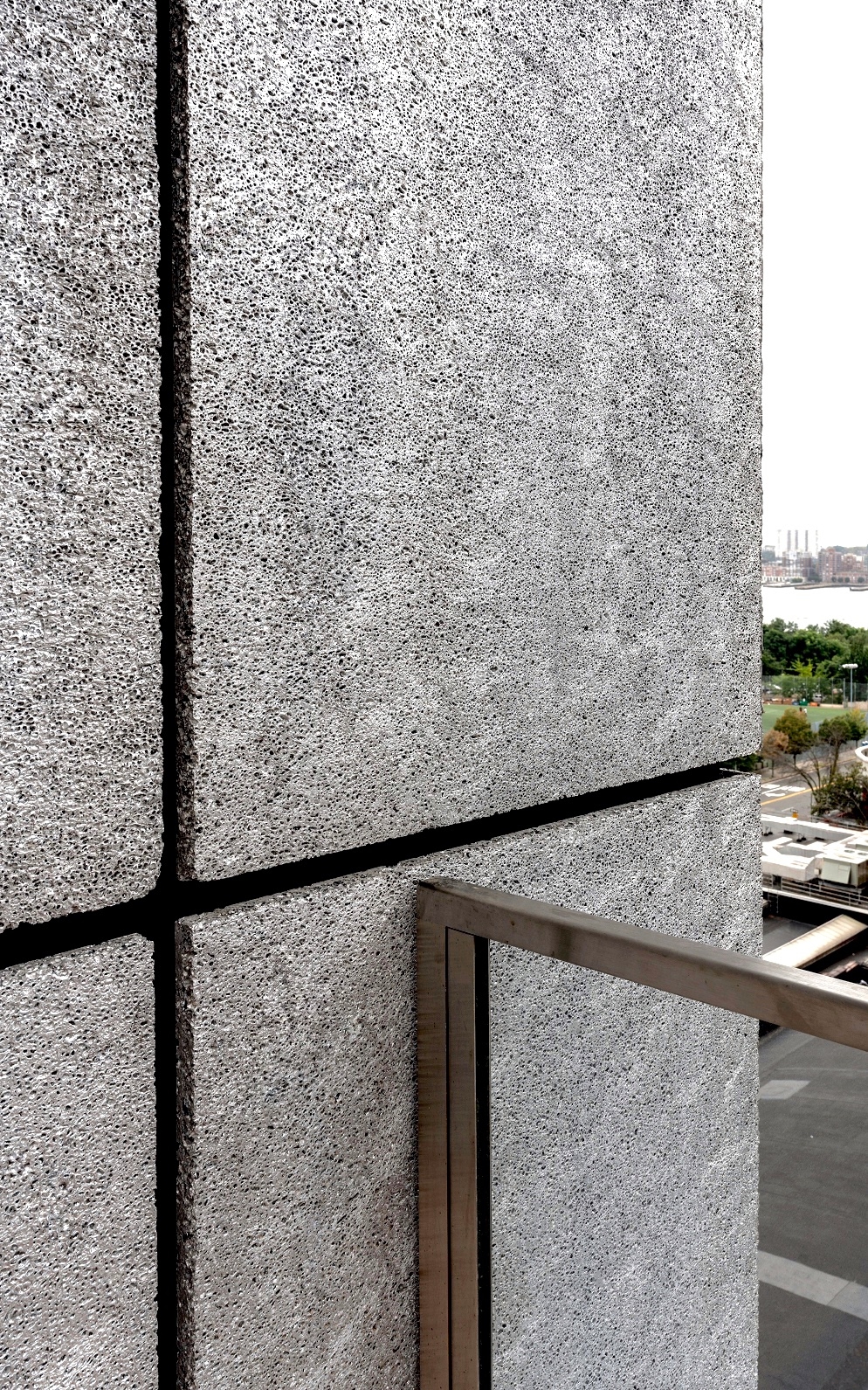

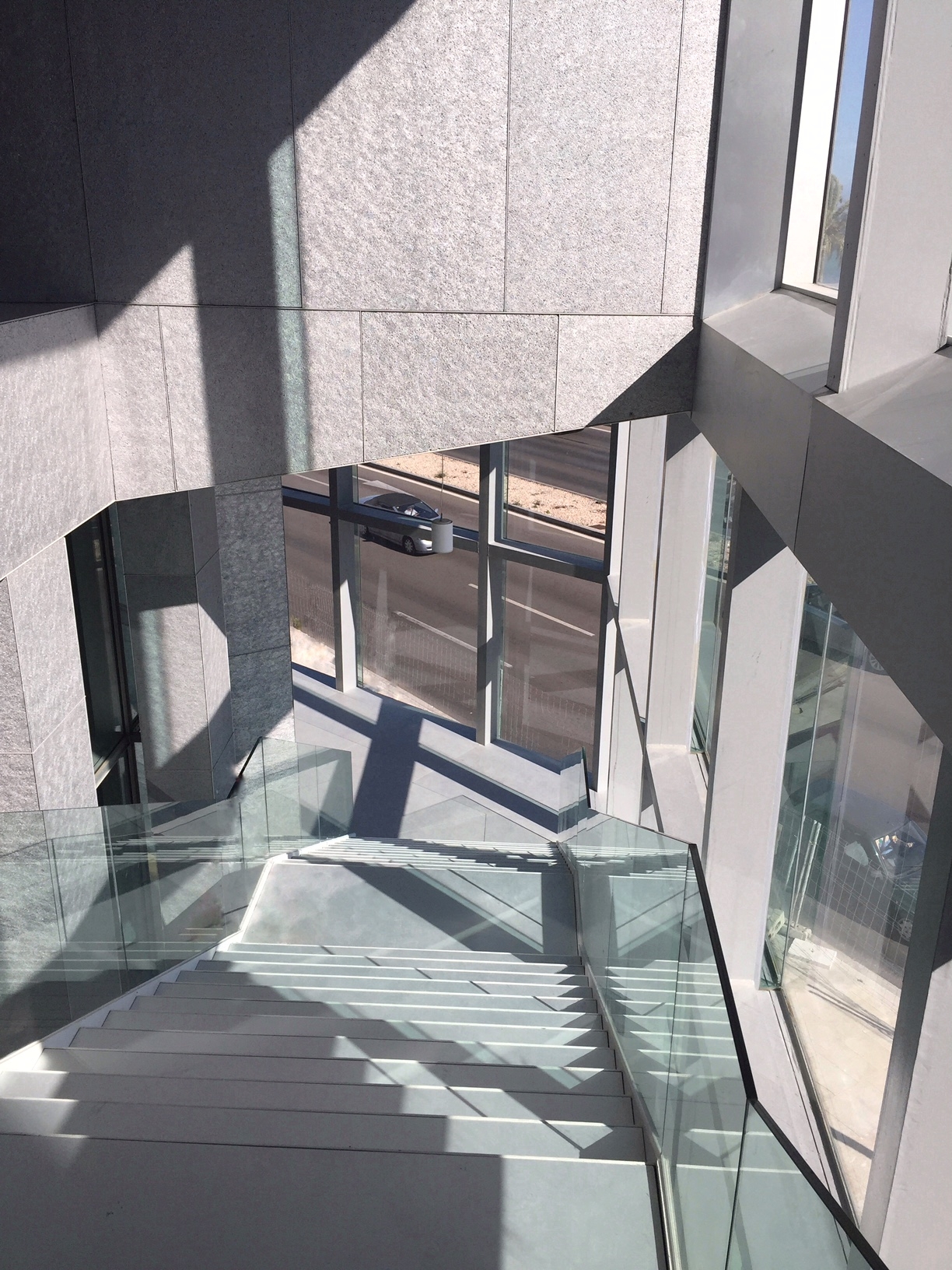

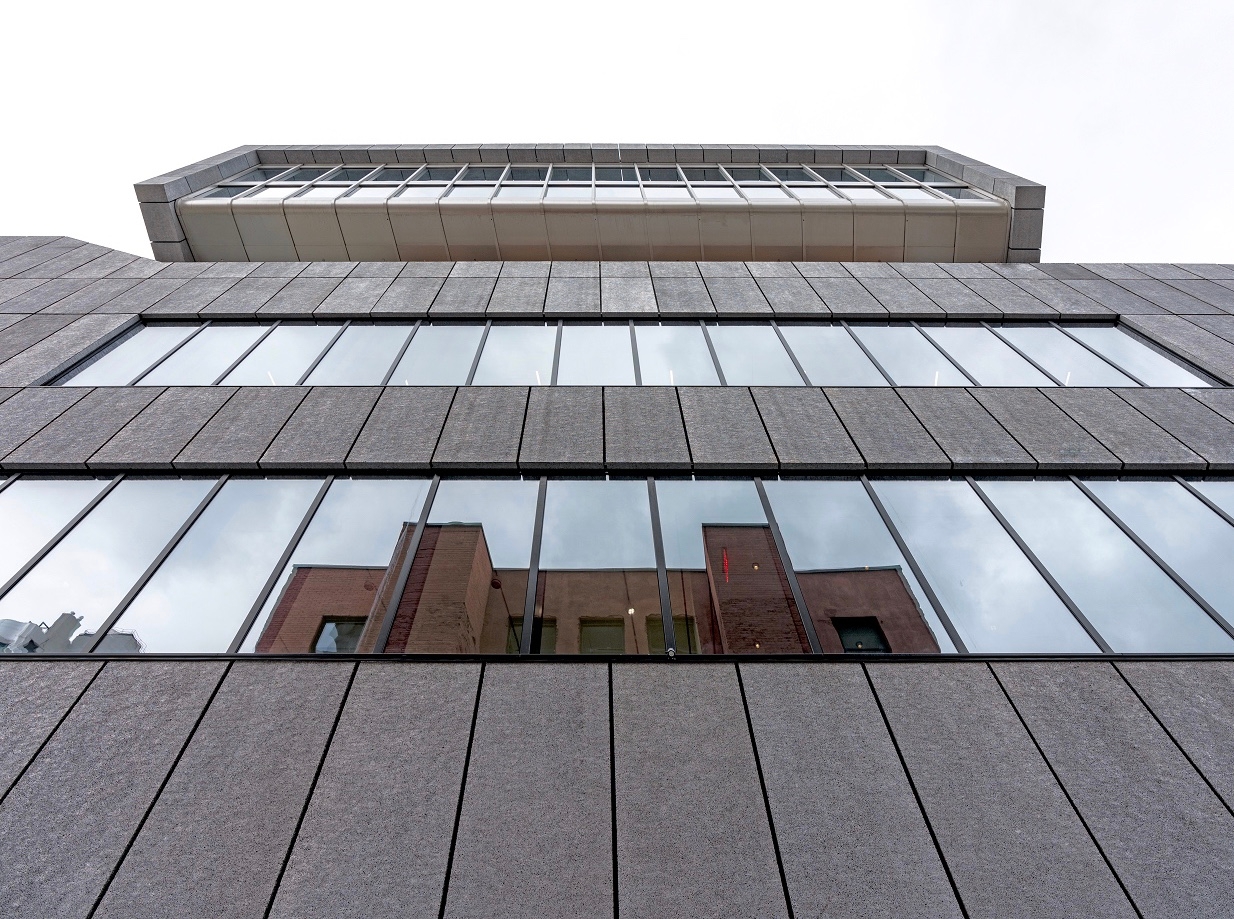

  • Facades & Interior cladding
  • Showroom Displays
  • Restaurants and Bars
  • Offices and Apartment Buildings
  • Ceiling Tiles
  • Specialty glass walls or doors, sandwiched between 2 panes of glass
  • Cabinetry and Furniture
  • Terrazzo Flooring
  • Tabletops
  • Signs
  • Lighting
  • Fixtures and exhibits
  • Skylights & Daylighting

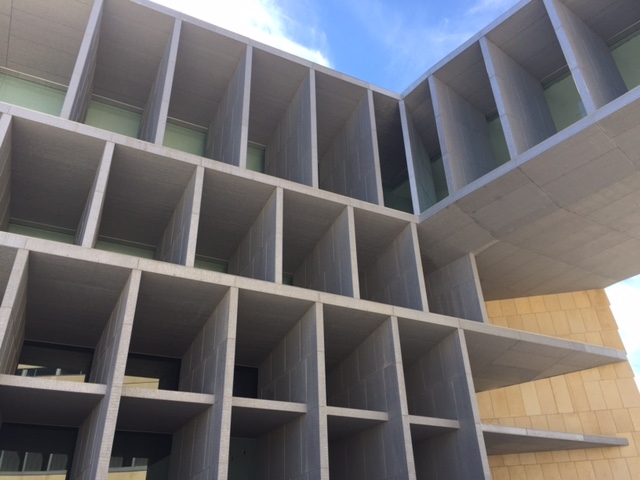

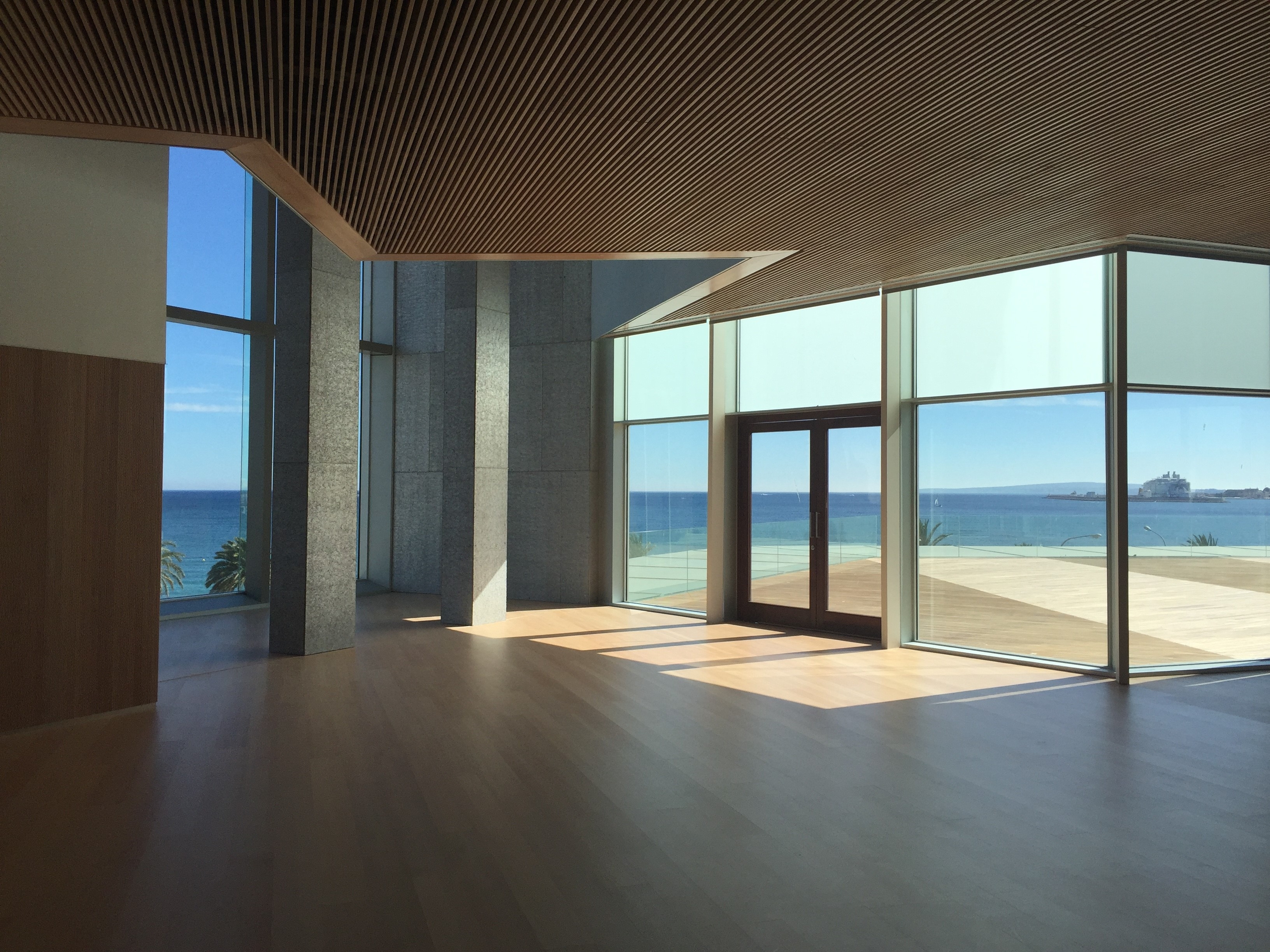

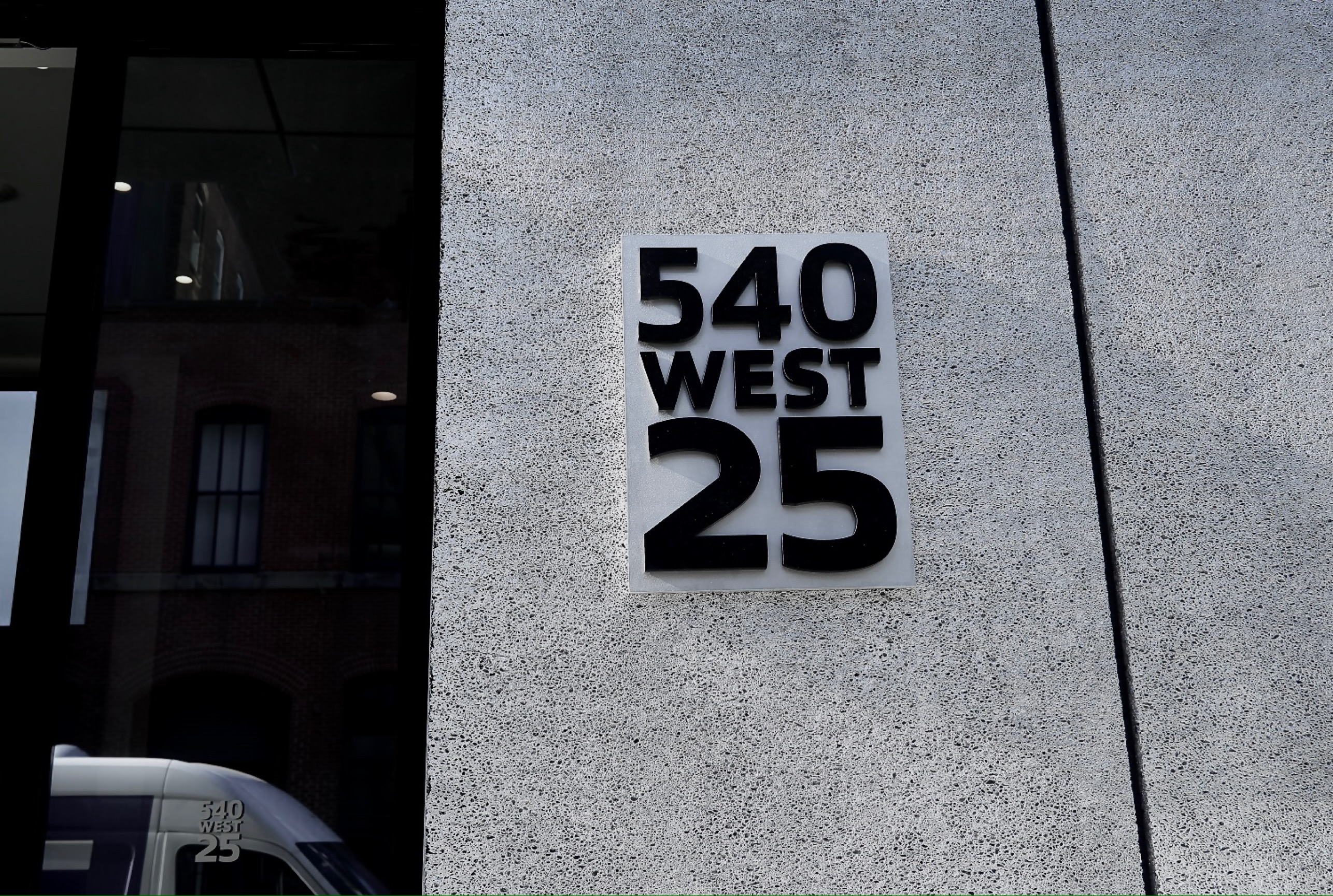

Product gallery
