Aluminum Foam Large Cell Panel | Cymat Technologies Ltd.

Share in Whatsapp
  • Use

    Lightweight panels. Exterior and interior cladding, ceilings, cabinets, doors, Terrazzo flooring, table tops, furniture, showroom displays, lighting, fixtures, exhibits, signage and any application that you dare to imagine.
  • Applications

    Retail stores, hotels, private and public buildings.
  • Characteristics

    ALUSION™ is produced as continuous flat sheets . Contains up to 100% recycled content, and is 100% recyclable.
  • Colors

    Luminous Aluminum Silver colour which can also be powder coated or painted with wet paint in limitless colour choices.
  • Sizes

    Standard panel size 1220mm W x 2440mm L, 1220 W x 3048 L, 1220 x 3660 L (4’ x 8’, 4’ x 10’, 4’ x12’)

More about this product

Cymat Technologies Ltd, based in Toronto, Canada, is an innovative materials technology company that has the exclusive worldwide rights for producing Alusion™ Stabilized Aluminum Foam, through patents and licenses.

Cymat’s Aluminum Foam, marketed under the trade name of Alusion™ for architecture, is a versatile and unique material with virtually limitless design and architectural applications. As well as its unique appearance, it has sound absorbing properties making it ideal for applications requiring both sound absorption and beauty.

undefined

The Alusion™ aluminum foam creates strong yet lightweight panels which are similar in appearance to a metallic sponge. It is visually striking, with a modern dramatic look. For architecture it is produced in 12.7mm, 25.4mm, and 43.2mm thicknesses (1/2”, 1” & 1.7”) and three densities (Large Cell, Mid Cell & Small Cell, custom also available). Each thickness and density has its own representative stress/strain curve.

Alusion™ Stabilized Aluminum Foam (SAF) is buoyant, flame and corrosion resistant in the same way as aluminum.

The surface of the material is either left in its solid form as produced, or undergoes surface preparations that provide many different appearances from a solid surface “shimmering” look to a translucent “water froth” look.

The Alusion™ product is produced with a proprietary continuous panel production process, which allows it to have many advantages. The product’s competitive edge is that no one can produce aluminum foam in the dimensions and volumes that Cymat Technologies Ltd can provide, with the overall consistency or even with the random yet uniform look in which it is created, It is light weight and easy to install, and is 100% recyclable.

  • Modern and dramatic appearance
  • 100% recyclable, and contains up to 100% + recycled content
  • Acoustic Absorption Properties
  • Non Combustible with a flame spread of zero
  • Highly corrosion resistant
  • The strength, durability, and resilience of aluminum
  • Windload testing (164 mile per hour + / 263 km/hr+)
  • Colours available: Luminous Silver colour which can also be powder coated in limitless colour choices
  • Other surface solutions:

The material can be resin coated, and water jet cut with a specialized WJ process only by Cymat Technologies Ltd. Special powder coats and wet paints can be applied which render the product 100% salt resistant and chemically resistant.

Testing is available upon demand.

undefined

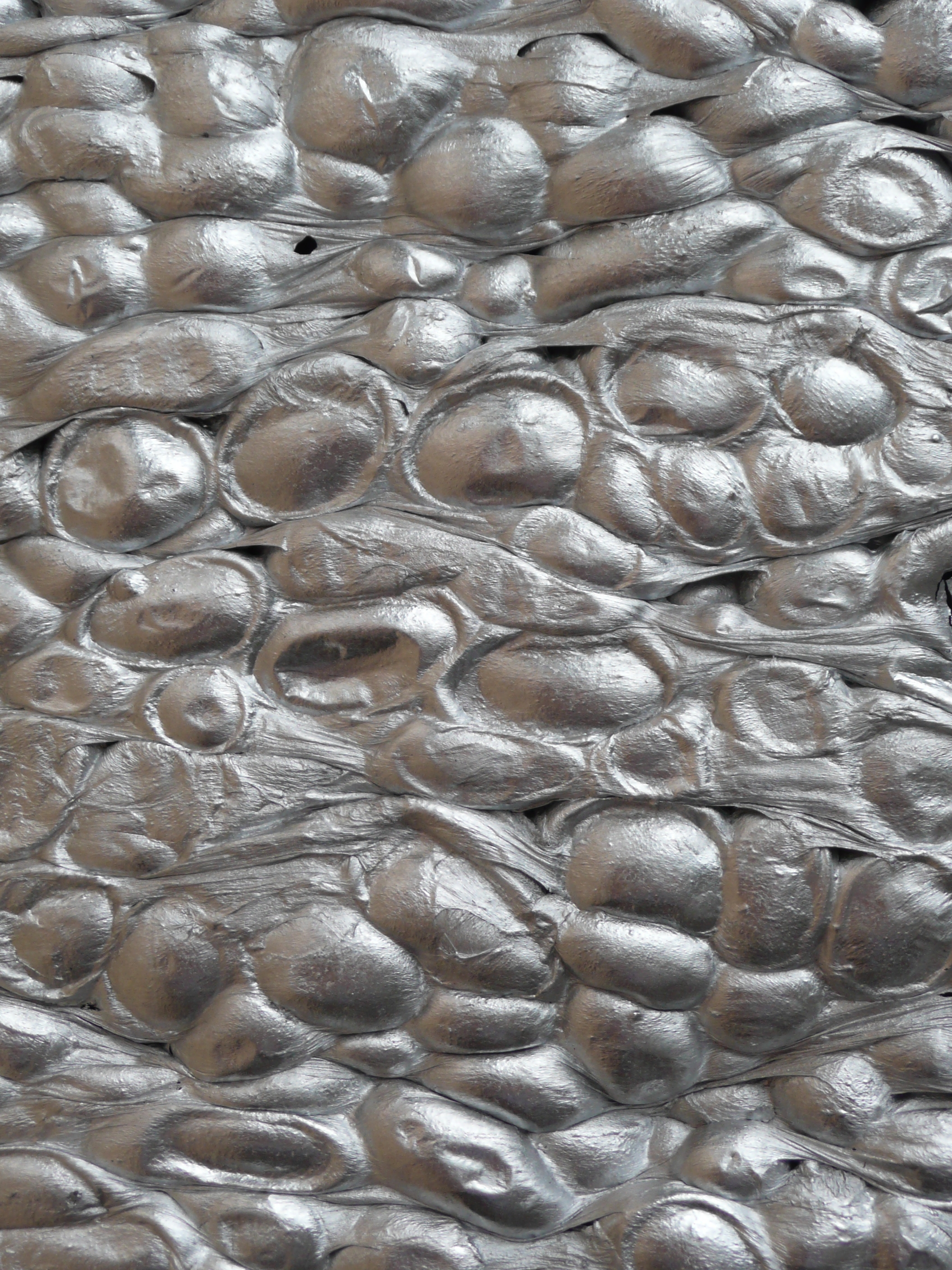

Alusion Large Cell - Natural (available in 12.7mm & 25.4mm & 43.2mm)

undefined

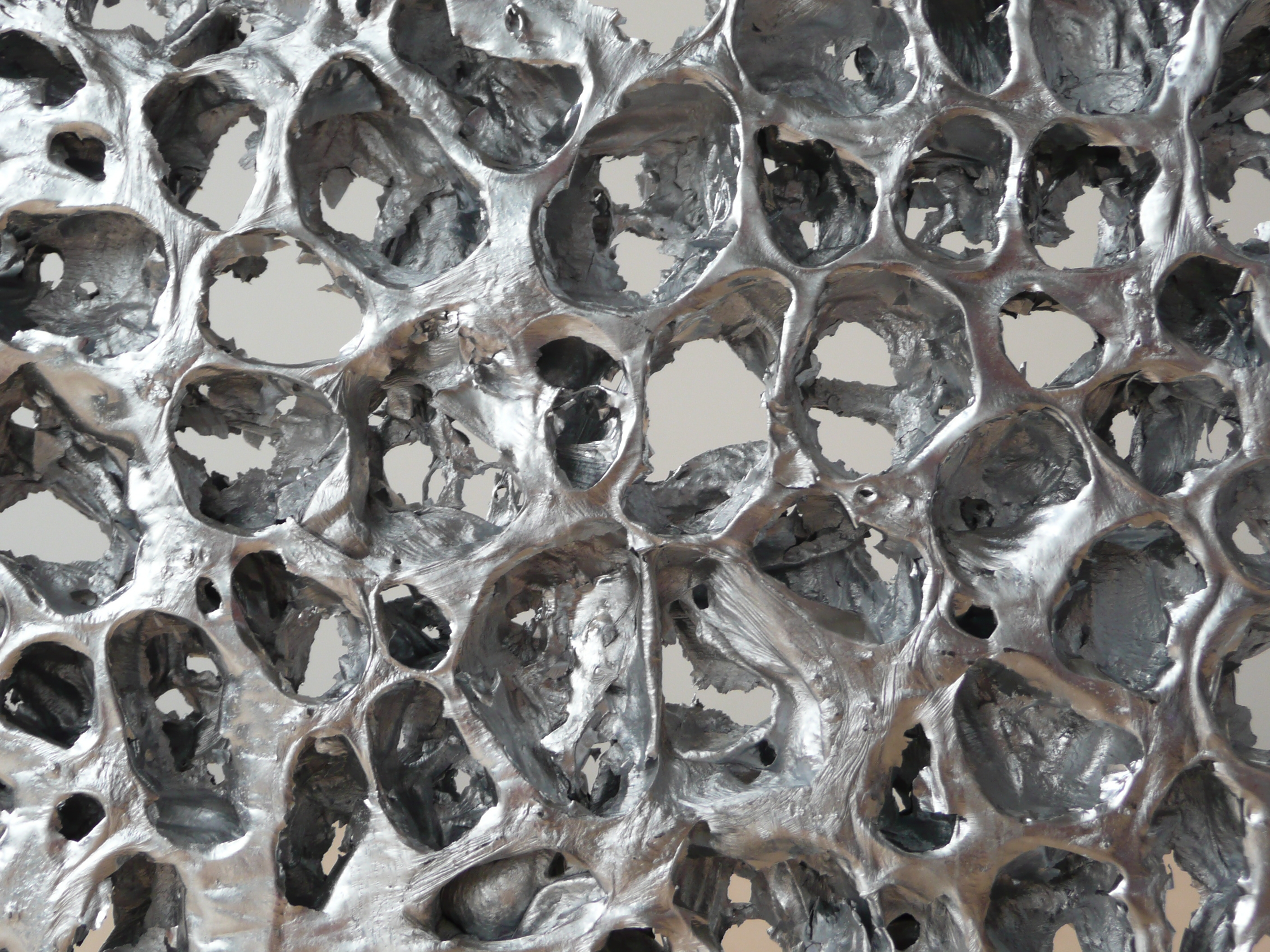

Alusion Large Cell 1 side open - Bottom side (available in 12.7mm & 25.4mm & 43.2mm)

undefined

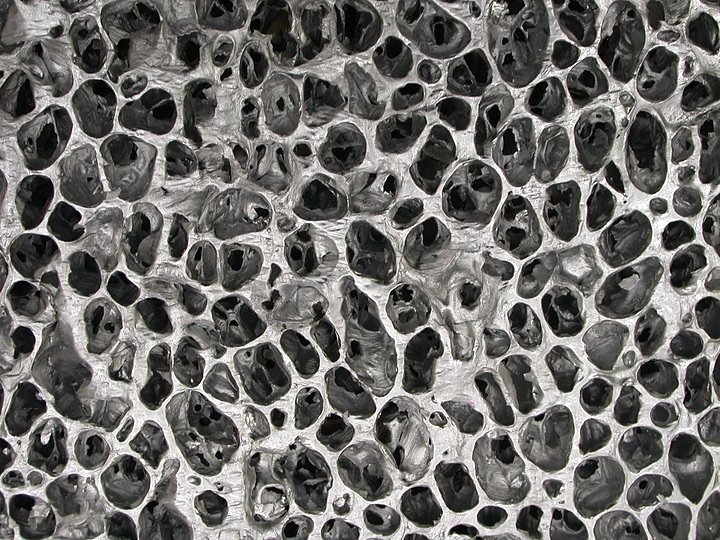

Alusion Large Cell 1 side open - Top side (available in 12.7mm & 25.4mm & 43.2mm)

Examples of applications

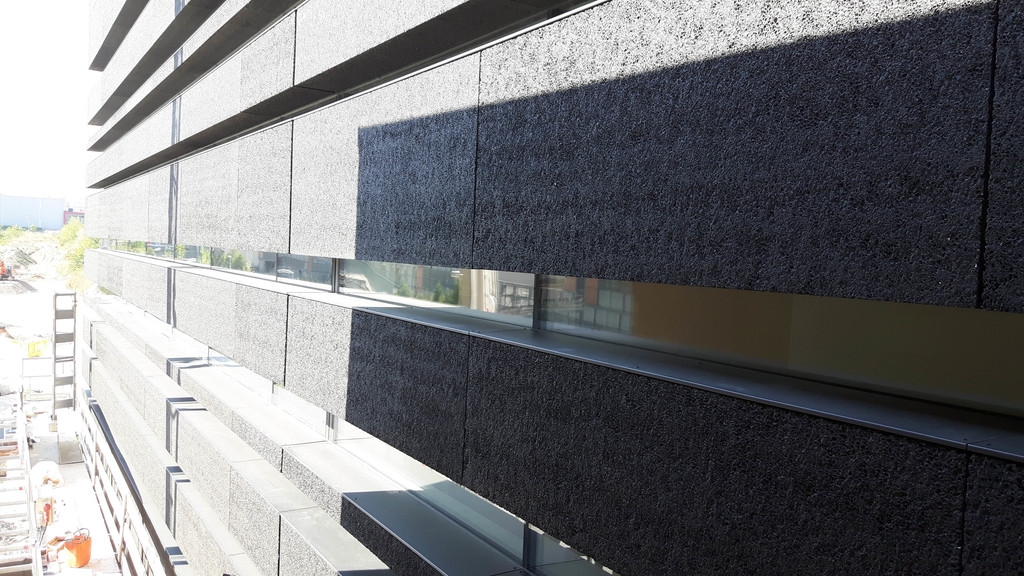

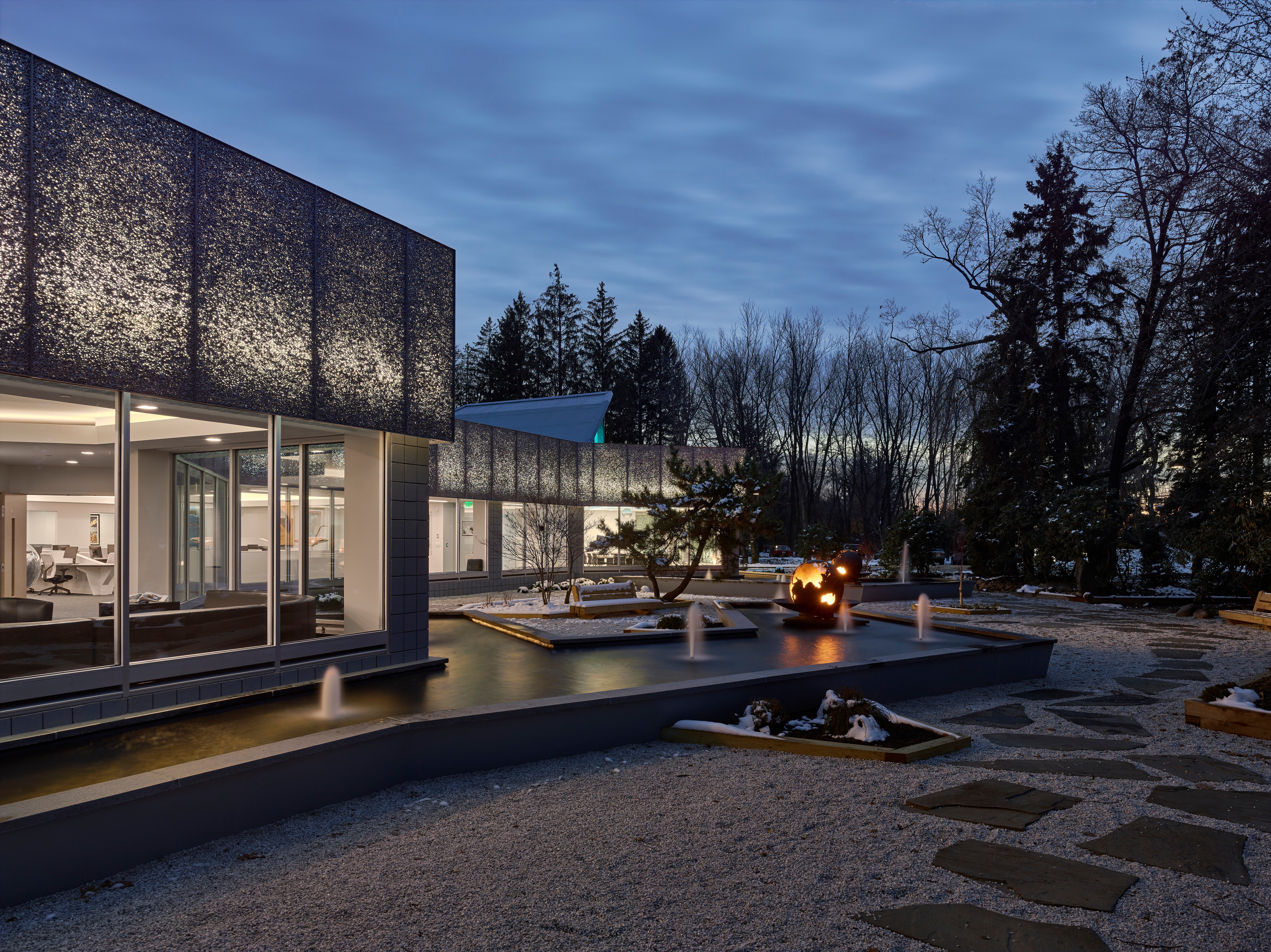

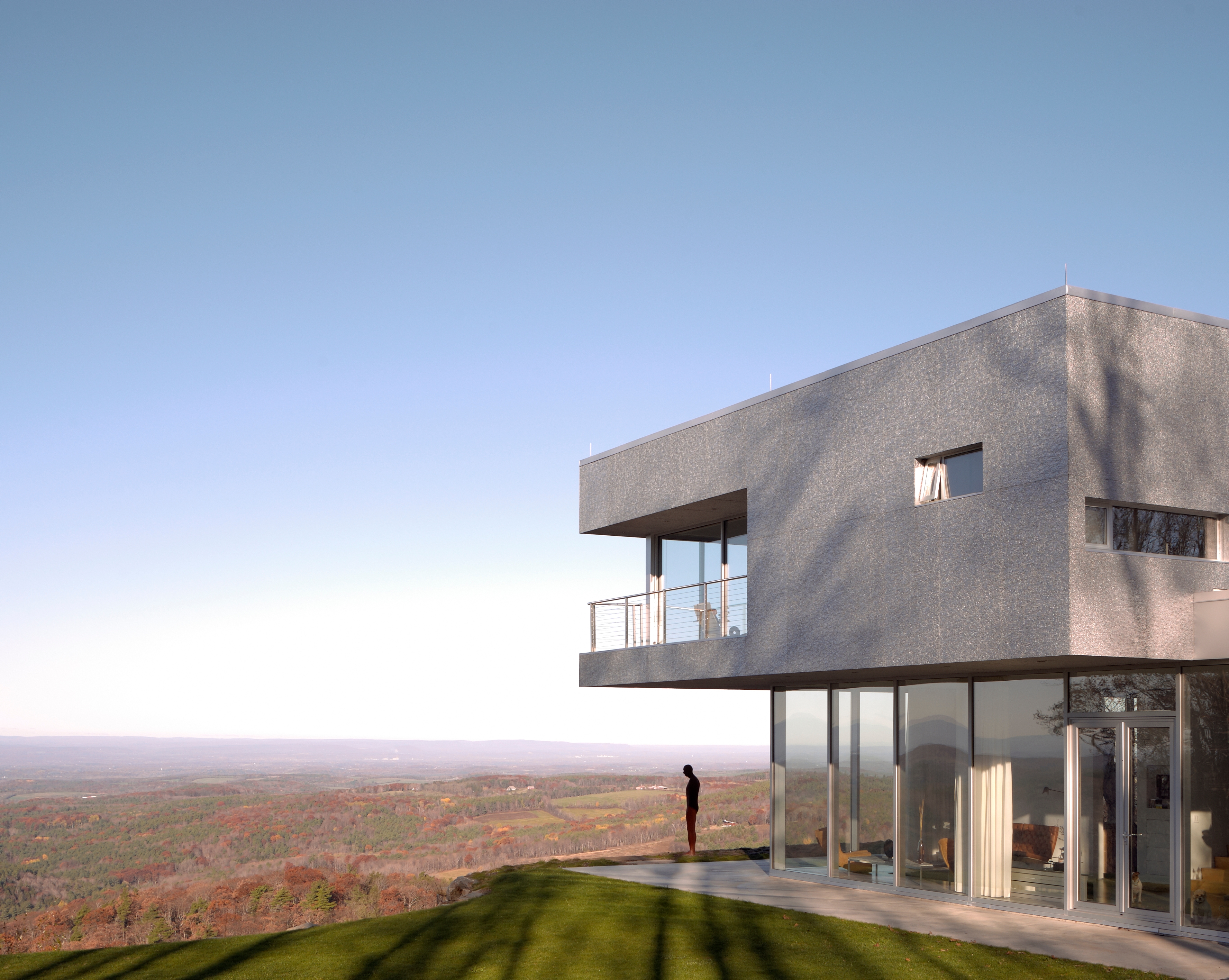

  • Facades & Interior cladding
  • Showroom Displays
  • Restaurants and Bars
  • Offices and Apartment Buildings
  • Ceiling Tiles
  • Specialty glass walls or doors, sandwiched between 2 panes of glass
  • Cabinetry and Furniture
  • Terrazzo Flooring
  • Table tops
  • Signs
  • Lighting
  • Fixtures and exhibits
  • Sky lights & Daylighting

Alusion™ for Architecture & Design:
Please contact through email or by phone
Email: sales@alusion.com
Direct Tel. for Alusion (Canada): +1-905-696-2442
