Use
Indoor lighting -
Applications
Residential, commercial, corporate, retail, hospitals -
Characteristics
Flexible designs, high-quality material, energy-saving -
Guarantee
5-year warranty
iGuzzini's indoor linear lighting systems offer continuous light that can be straight or curved. The lighting effects emphasize the geometrical shape of space. Besides the functional use of light, the light blades can be used to outline volumes, map out paths, or as a decorative element. The lights are made with LED lamps, specifically designed to improve energy efficiency. The light can be either static or dynamic in terms of both color temperatures and RGB tones. iGuzzini has four systems in its indoor range, the Libera System, iN 60, Underscore15, and Underscore18.
Libera System
The Libera system provides design freedom for custom creations, from intricate systems to standalone lights. It combines compact optics with smart tech, refined aesthetics, and selective materials. Libera can craft dynamic graphics that interact with space. Its joint offers full 360° rotation in three planes, ensuring adaptability to any setting. Achieving an efficiency of up to 125 lm/watts.
Features
- Opti Diamond integration offers high-performing miniaturized optical technology, that is only 15 mm
- Optic optionally available with an optic diffuser, including up/down in two colors to perform functional tasks when on, and create an aesthetic when off
- Extruded aluminum body with flush die-cast Zamak end caps
- 272 lumens
- Versions are available in different lengths
Models
Libera System - Ceiling to Floor | Libera System - Wall | Libera System - Pendant |

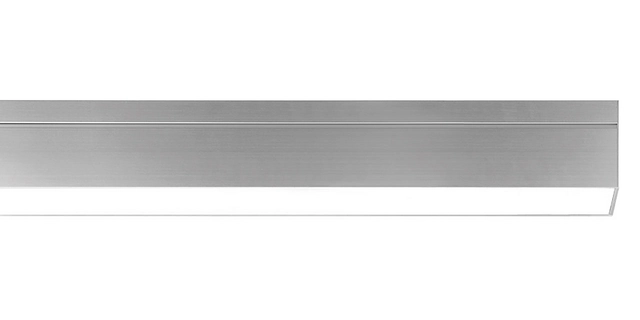

iN60
iN60 is a modular lighting system for continuous lines. It represents a new innovation for the collection with the introduction of two new optics, both with very high efficiencies and visual comfort. The iN60 Space version uses patented Opti Diamond optics, in two finishes, to produce a lighting distribution on both vertical and horizontal planes. With efficiency levels up to 150 lm/W and high fluxes. The iN60 MMO version, with the new modular optic metallic (MMO), creates an efficient and comfortable light effect, with values up to 140 lm/W e UGR <19.
Features
- Modular lighting system for continuous rows
- Possibility of single or combined installation
- High level of light output
- Downlight and up/downlight versions
- Frame versions (support type) - minimal versions (flush with the ceiling)
- Extruded aluminum profile and zamak heads
- Pendant, recessed, surface mounting, and wall-mounted installation
- Electronic wiring and DALI are available
- Suspension versions have cables fitted with a creep adjustment system
Models
iN60 - Opal White | iN60 - Space | iN60 - MPO Micro Prismatic Optic |
iN60 - MMO Metalized Modular Optic | iN60 - Wall Washer | |
Underscore
Underscore is a technological combination of a frontal emission strip with a cover or sheath to protect the LEDs and a slim aluminum profile. The system is designed with two different usage options. Either a Ledstrip or a Ledstrip Tube can be fitted on the aluminum profile. Both types are easy to replace.
The Ledstrip is covered with a layer of polyurethane. The material reduces the risk of the strip being broken and maintains the LEDs by preventing any contact. The Ledstrip Tube is covered with a silicone sheath, which also protects the strips from breakage by reducing the stress that could lead to tears.
Features
- Linear illumination with monochrome LEDs
- Wall/ceiling mount installation
- Can be sectioned at pre-set intervals depending on the version
- Non-sectioned strips (full length) have IP65 protection class; circuit ends are fitted with IP20 end connectors, therefore the installer is responsible for completing connector insulation operations
- The values specifying the color temperature of the white LEDs are indicative and subject to variation
Models
Underscore15 - Recessed | Underscore15 - Surface Mounted | Underscore15 - Perimetral |
Underscore15 - Corner | Underscore18 - Recess Minimal | Underscore18 - Perimetral |
Underscore18 - Surface | ||
