Tribeca Loft / Fearon Hay Architects

Oct 2010

Uploaded by Nico Saieh — Filed under: Interiors ,Refurbishment ,Selected , Fearon Hay Architects, New York, USA

▼

Add this to My Bookmarks:

share by email

share by email

Architect: Fearon Hay Architects
Location: Manhattan, New York, USA
Interior Collaborator: Penny Hay
Project Area: 550 sqm
Project Year: 2009
Photographs: Richard Powers

Located in Tribeca, is a recently completed 550sqm loft conversion – a bespoke and innovative response to the challenges of residing in Manhattan.

The existing 3.6m high space is defined by the exposed reinforced concrete frame and the large multi-paned windows offering panoramic views of the skyline on three sides.

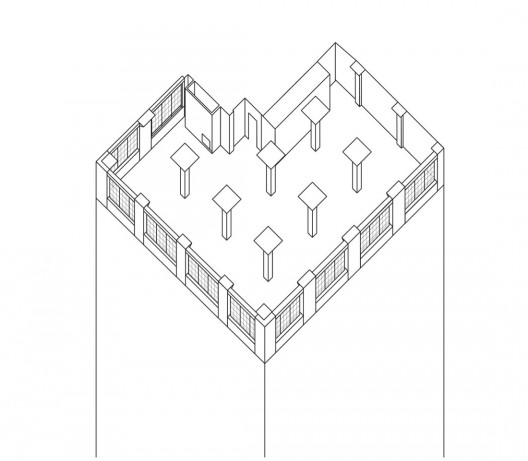

axo 01

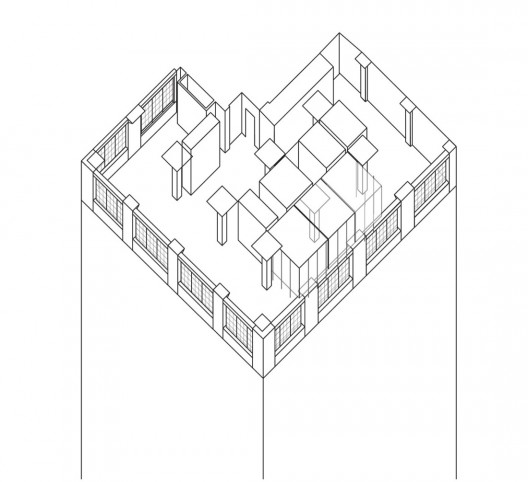

axo 02

The strategy was to provide the required division of space with minimum interference with the existing structure and maximum perception of the overall volume.

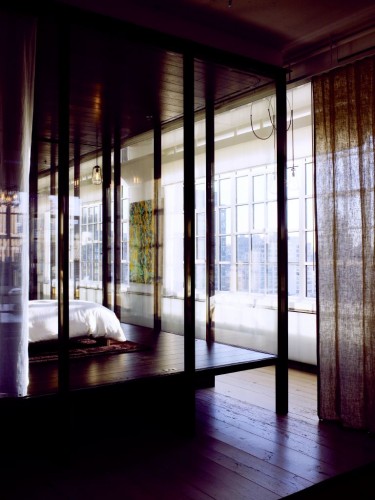

The insertion of steel framed, glazed volumes with raised timber floors provides elevated sleeping platforms within the loft space. The glazed volumes are accompanied by blank, white, volumes containing bathing, service and scullery functions. These service components are arranged in a linear sequence in the centre of the space.

Both of these insertions are carefully placed amongst the existing structural elements of columns, beams and corbels, freeing the structure and the perimeter of the loft from division.

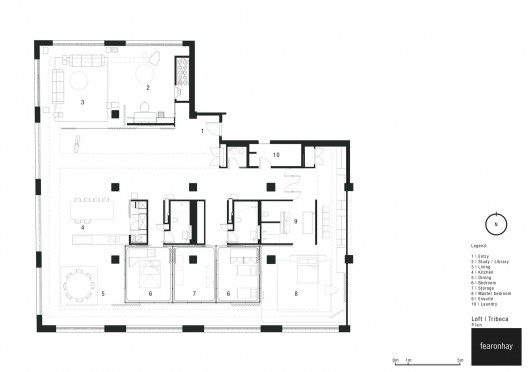

floor plan

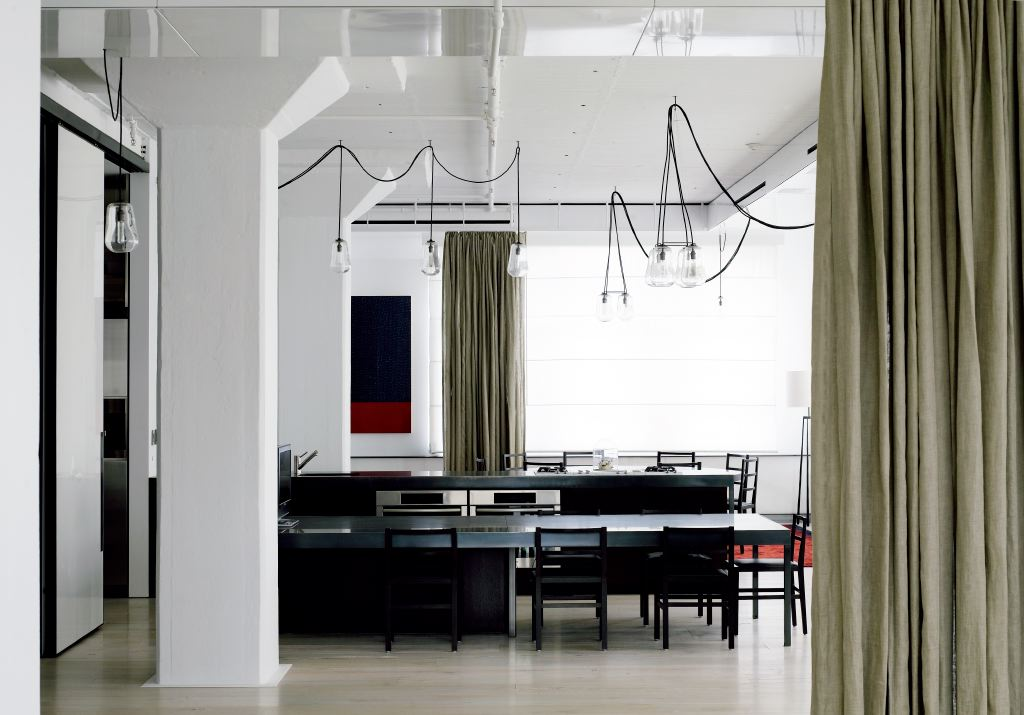

Further layering and configuration of the space is offered by layers of operable fabric screens and sliding panels. The various areas of the residence may be separated from one another or connected to each other as desired.

Collaborating with artisans of both New Zealand and New York has enabled the creation of custom fittings such as blown glass pendant lights, treated steel and freestanding stone washbasins and bath, resulting in a highly crafted and bespoke construction.

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: © Richard Powers

: floor plan

: axo 01

: axo 02

: model 01

: model 02
