Big Black House / FABRE/deMARIEN architectes

Feb 2010

Uploaded by Nico Saieh — Filed under: Houses ,Refurbishment ,Selected , FABRE/deMARIEN architectes, France, Stéphane Chalmeau

▼

Add this to My Bookmarks:

share by email

share by email

Architect: FABRE/deMARIEN architectes
Location: Bordeaux, France
Project Year: 2008
Project Area: 210 sqm
Budget: 300,000 Euros TTC
Photographs: Stéphane Chalmeau

The project consists of converting a garage into a family residence.

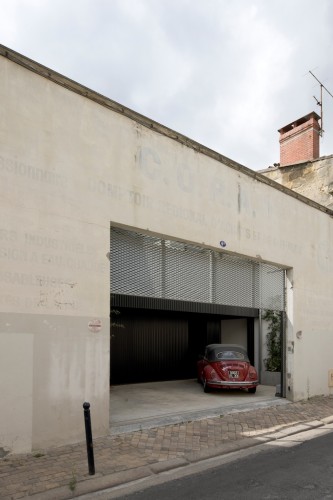

Only the street-side façade of the former garage is retained.

In order to adjust as accurately as possible to the plot limits and to provide maximum space free of structural elements, we have chosen a steel structure for construction.

The house is set back both from the retained façade and from the wall at the other end of the plot, thus leaving enough space to park two cars in front, on the street side and create a courtyard at the back.

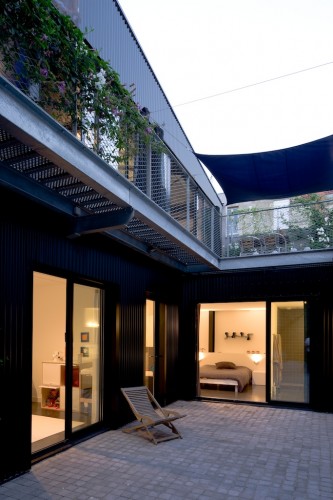

The entrance, bathrooms and bedrooms are on the ground floor, open onto the courtyard and are hidden by the high stone walls of the neighboring buildings.

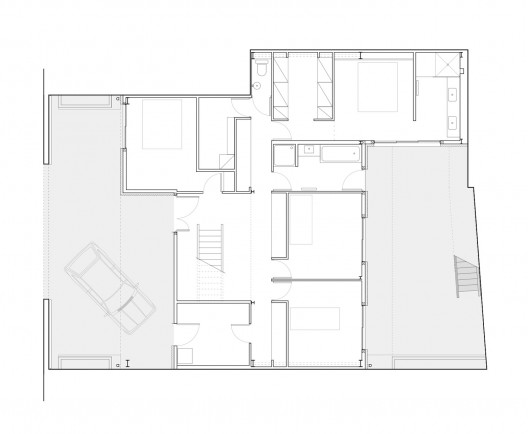

ground floor plan

The living room is on the first floor: 100 m² under a low-sloping roof, clad on the underside with galvanized steel panels.

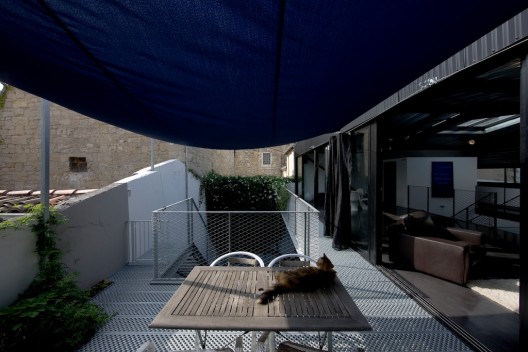

Unobstructed and protected by horticultural shade netting installed facing south on the terrace overlooking the courtyard, the view is framed at the front by a horizontal window running from one end to the other.

The house complies with a sound design that meets requirements for four bedrooms, two bathrooms, a large living room and ample storage space.

The same materials are used both outside and inside: Black enameled corrugated iron and aluminum sheet, black concrete, plain sheet, perforated sheet and galvanized-steel metal products.

The framework and cladding panels are left visible. Structure-assembly procedures remain clearly visible.

The house is invisible from the street because it is hidden by the façade of the former garage.

On entry, its gloomy shell, crushed between the surrounding buildings, seems to give very little away.

The ground floor is a labyrinth of rooms and passages, a cosy, intimate place opening onto the hidden courtyard. The first floor, accessed by a wide staircase illuminated by a skylight, gives the impression of a much bigger house without resorting to gimmicks.

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: © Stéphane Chalmeau

: site plan

: ground floor plan

: second floor plan

: elevation 01

: elevation 02

: elevation 03

: section
