Spannbandbrücke / ANNABAU

  • 01:00 - 19 September, 2013
Spannbandbrücke / ANNABAU
Spannbandbrücke / ANNABAU, © Hanns Joosten
© Hanns Joosten

© Hanns Joosten Courtesy of ANNABAU Courtesy of ANNABAU Courtesy of ANNABAU +10

  • Architects

  • Location

    Tirschenreuth, Germany
  • Structural Engineers

    Schüßler-Plan-Ingenieurgesellschaft, Berlin
  • Dynamics

    Dr.-Ing. Imre Kovacs, Weinstadt
  • Inspection Engineer

    Prof. Dr.-Ing. Ulrike Kuhlmann, Stuttgart
  • Oscillation Measurements

    Ingenieurbüro Dr. Heiland, Bochum
  • Project Year

    2013
  • Photographs

Courtesy of ANNABAU
Courtesy of ANNABAU

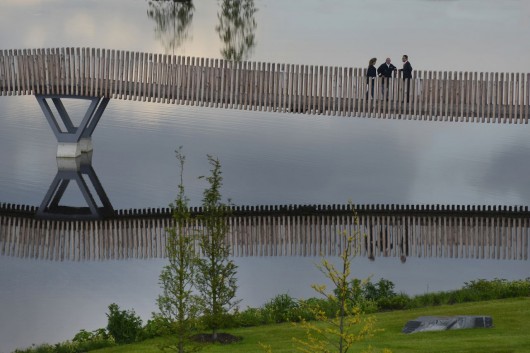

From the architect. The design for the tension band bridge was developed in an cooperation of ANNABAU (architects) and Schüßler-Plan (structural engineers) in the context of a competition for the Landesgartenschau Tirschenreuth 2013 (Garden Festival Upper Palatinate, Bavaria, Germany) and was selected for implementation. The sculptural bridge for pedestrians and cyclists has a total length of 85m and leads over the city pond.

© Hanns Joosten
© Hanns Joosten

The new bridge connects the centre of the old town of Tirschenreuth via the „Schels Areal“ with the former island monastry „Fischhofinsel“, the new quarter “Lohnsitz“ and the adjacent area for leisure and sports.

© Hanns Joosten
© Hanns Joosten

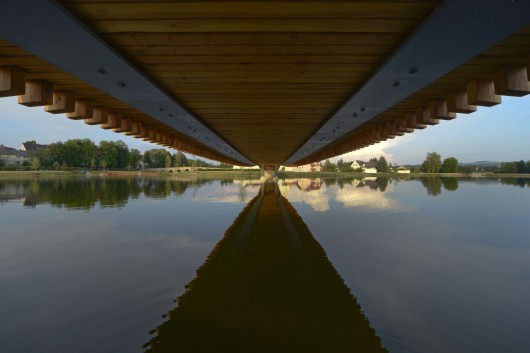

The wooden body of the bridge is closely connected to the historical meaning of wood in the city of Tirschenreuth, which can also be seen in the cities name. In addition the choice of material refers directly to the vernacular architecture, where untreated wood is often found in construction. The supporting structure of tensioned steel bands requires a minimal substructure, thus the sculptural body of the bridge comes to the foreground.

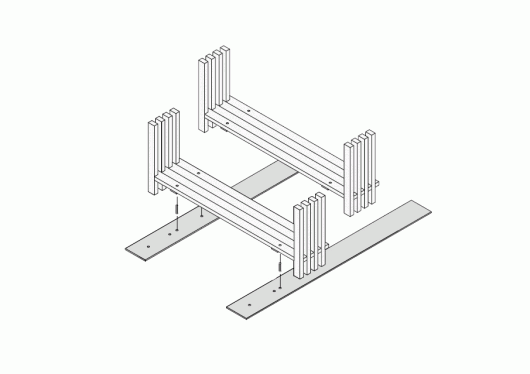

Diagram
Diagram
