Kulturbau / Benthem Crouwel Architects

  • 25 Jun 2013
  • Cultural Selected Works
© Thomas Eicken

Architects: Benthem Crouwel Architects
Location: Casinostraße 21, 56068 Koblenz,
Project Team: Markus Sporer, Marcel Blom, Anna Gerlach, Noortje ter Heege, Tina Kortmann, Sascha Rullkötter, Cornelius Wens, Sander Vijgen, Benedikt Krienen, Anna Böll, Frank Deltrap
Year: 2013
Photographs: Thomas Eicken

Contractor: Züblin GmbH
Structural Engineer: IDN Ingenieure, Duisburg
Mechanical Services: Technic Air, Hamburg

© Thomas Eicken

From the architect. The project started as a won competition for the redevelopment of the “Zentralplatz”. The program included approximately 20.000 m² of retail space, urban functions and a 6.000 m² square.

Plan

The complete program is split into two volumes, separated by the Zentralplatz. This separation of functions allows for two autonomous and highly functional buildings, which can develop long-term and independently. Because of the precise positioning of the buildings and their outline, the pedestrian flows are organized in an effective and logical way.

© Thomas Eicken

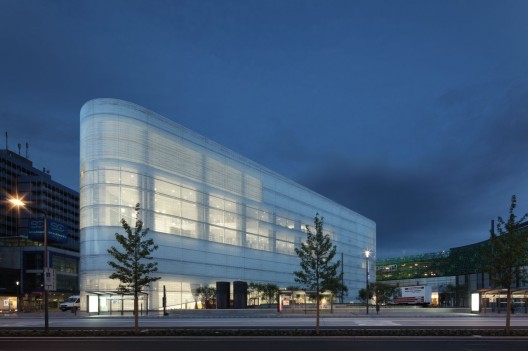

The Kulturbau houses the public library, the Mittelrhein Museum and the tourist information of Koblenz, with their ‘Zentrum der Rheinromantik’. The combination of these different cultural institutions offers the chance to exploit the synergies between the various institutions. The cultural building stands solitary in the new central square and is a landmark due to this solitary character, its facade design and the conscious elevation in the city. The building has splendid accessibility for visitors; the central lobby has entrances from all sides and is therefore a natural part of the urban fabric.

© Thomas Eicken

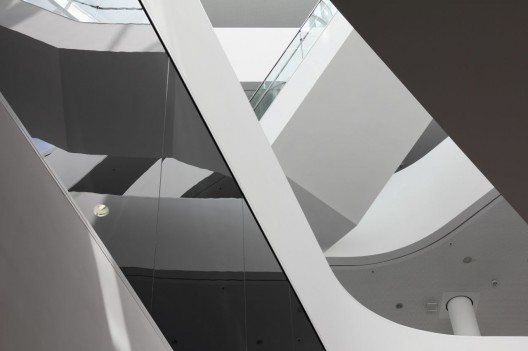

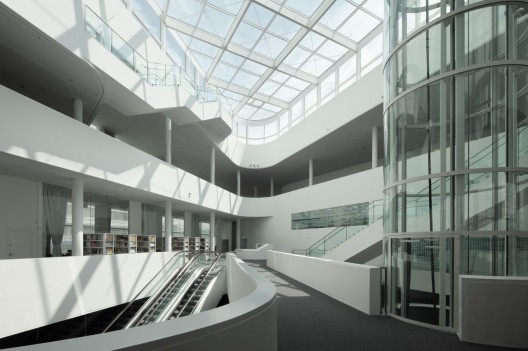

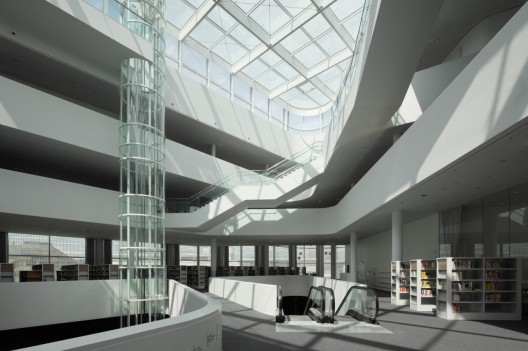

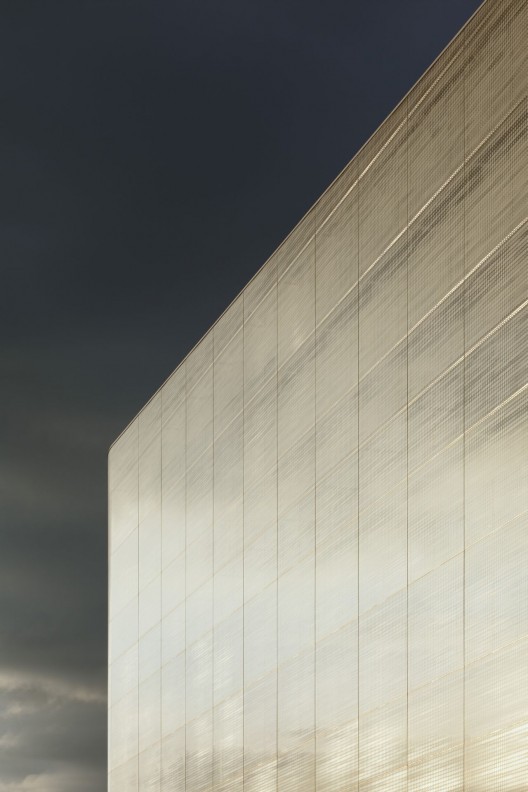

On the open square, the three functions each have their own entrance. Via prominent access elements like the spiral staircases (museum and tourist information) and the escalator (library), the institutions can be reached. Above the common ground floor area, the different functions overlap each other per floor. The permanent exhibition of the Mittelrhein Museum occupies the first floor. The library is located on floor two, four and five, with direct access to the roof terrace. The 30 meters high open space inside connects the institutions vertically, brings day light deep into the building and offers a variety of outlooks. The volume has a double facade with a Structural-Glazing construction of white silk-screened glass, which envelops the building like a second skin and offers a frosted and refined appearance. The motif of the print provides a filtered view from inside to outside, and allows a vaguely transparent view when looking from the outside in. At the different entrances, the outer facade has a spacious cut and therefore offers a direct view of the lobby and entrance areas.

© Thomas Eicken

The mall Forum Mittelrhein presents itself as a flat, horizontally layered structure. Due to this powerful format, the building’s volume is reduced efficiently and a pleasant sense of scale is established. On relevant junctions within the urban fabric, the mall offers spacious entrances. The shopping center is characterized by its trapezoidal layout and smooth outlines. The areas intertwined with escalators offer orientation points, divide the building and provide the interior with natural light. Above the stores are adjoining rooms and a parking lot for about 740 cars. The parking spaces are organized around a central landscaped courtyard.

© Thomas Eicken

Together, the glass facade on the ground and first floor with standing formats, and the expressively shaped click frames, give a strong vertical orientation. The top three floors of the building are dominated by an artificial “Weinlaub facade” (wine leaf facade). The basis of the structure is an abstract image of a vine leaf, which is interpreted freely as a 3D-shape. The entire facade is composed out of only one type of element, that is produced in an industrial thermoforming process. Kulturbau, Koblenz Text about the design Benthem Crouwel

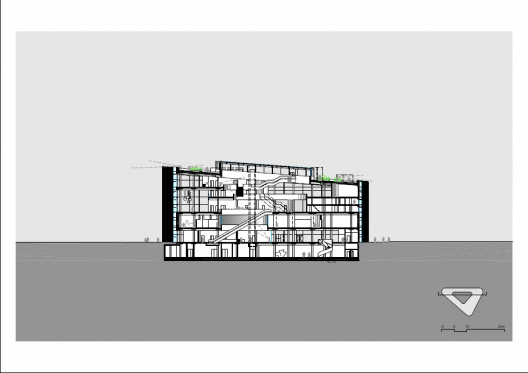

Section
* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Kulturbau / Benthem Crouwel Architects" 25 Jun 2013. ArchDaily. Accessed 23 Oct 2014. <http://www.archdaily.com/?p=391278>
