Architects: atelier alassoeur
Location: Saint Marcel, Indre, France
Architect in Charge: emmanuel alassoeur
Mechanical consultant : Combiosol / sébastien rogala
Area: 273.0 sqm
Project Year: 2011
Photographs: Brice Desrez

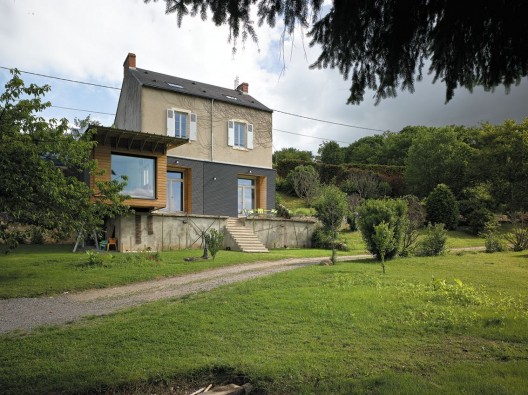

From the architect. Nearby Argenton sur Creuse, the existing house takes roots in the south sloping garden. Entry way is located and kept at street level. That level overviews the garden 20 feets above. This situation offers full sun exposure.
Previous owner mainly lived at street level and attic. By then, garden level was more pratical or for saisonal use. Functionnal link between these two levels needed improvement. The goal was to connect them in order to make better use of space and settle living areas no more towards street but garden.

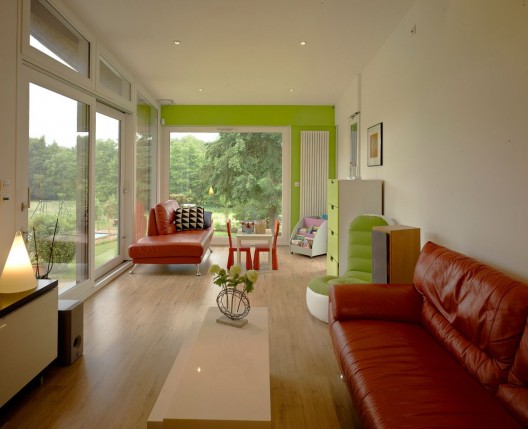

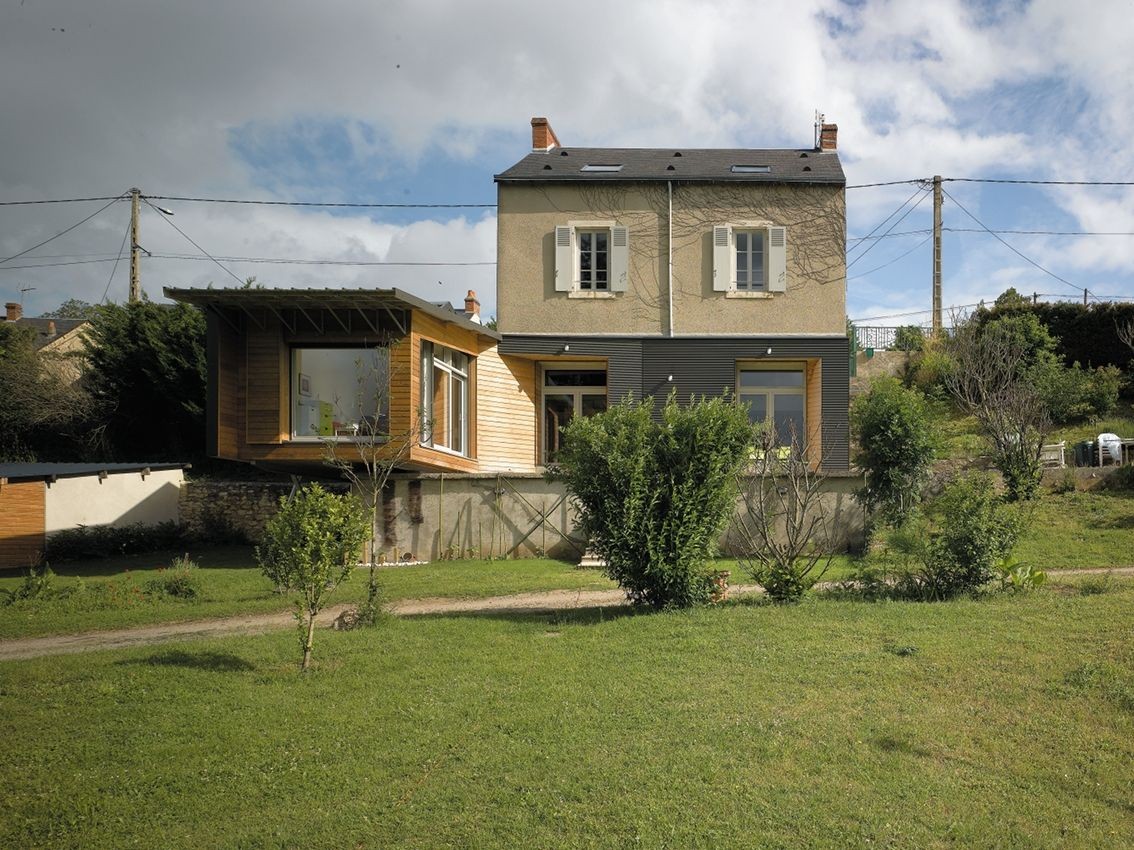

Then, architectural proposition drastically modifies previous space laying, since new living areas are grounded at garden level. Lower south elevation is remodeled with new large windows while an addition overhangs the terrace.

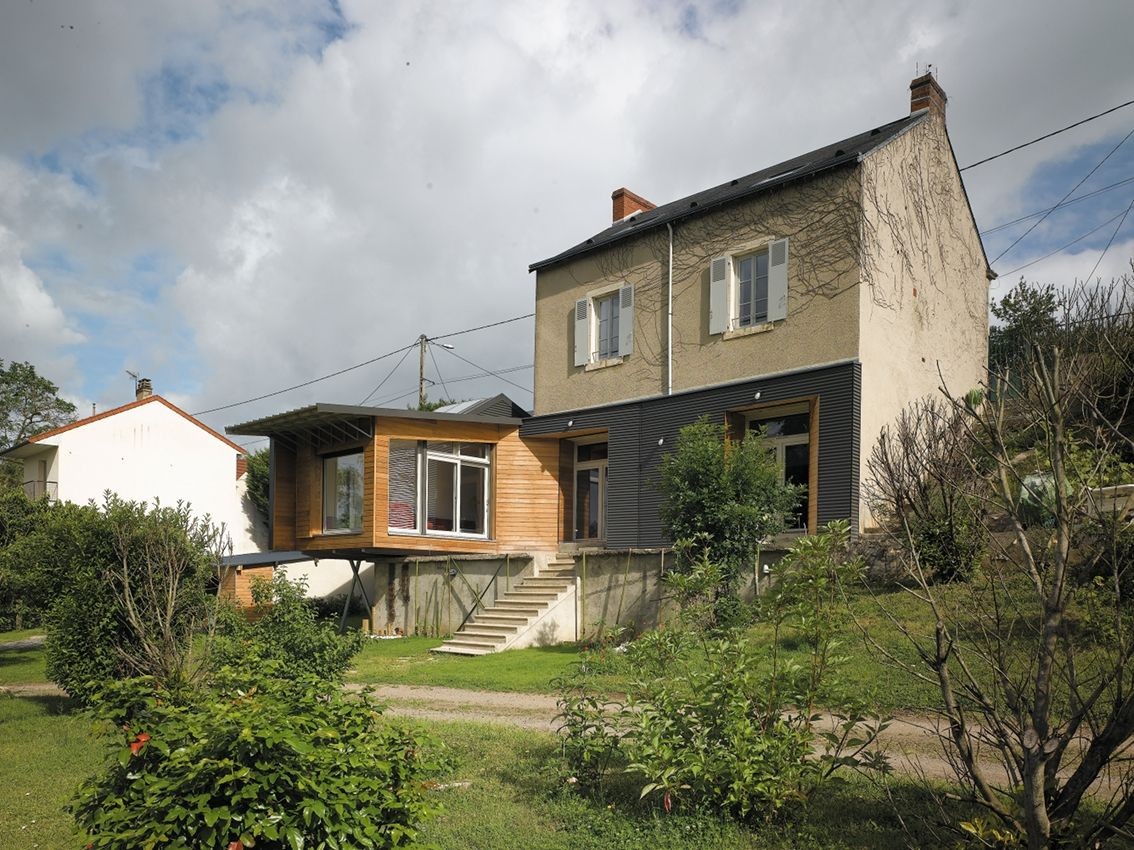

A steel skin, as a ribbon, partly covers the exterior wall and connect the addition to existing building. This wooden frame cabin relates to garden and further valley ; it becomes a remarquable bird overlook, kind of a gaze above.

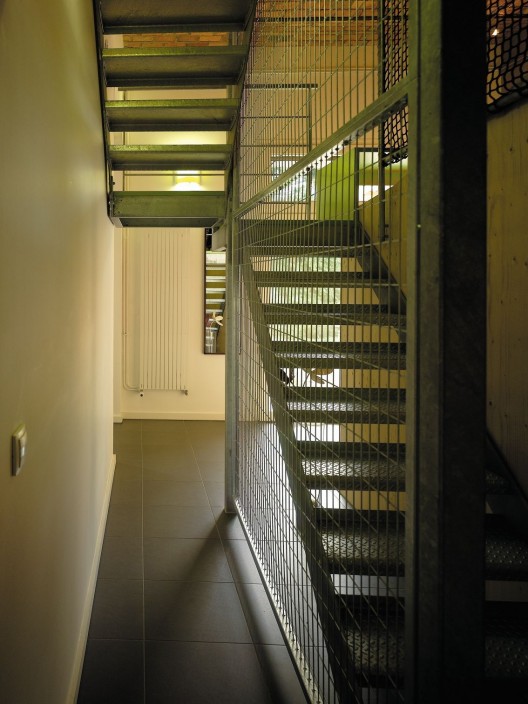

The « solid wave » piece of furniture contains technical support at bottom and main zinc coated steel stair case leads to the office library on box top. Nets protect and extend that space and the desk aligns with half landing.
The existing ceiling made of narrow brick vaults an iron beams adds to room mood. Street level shelters bedrooms and washrooms. Large south opening and thermal inertia stone interior parting walls show use of green design principes.

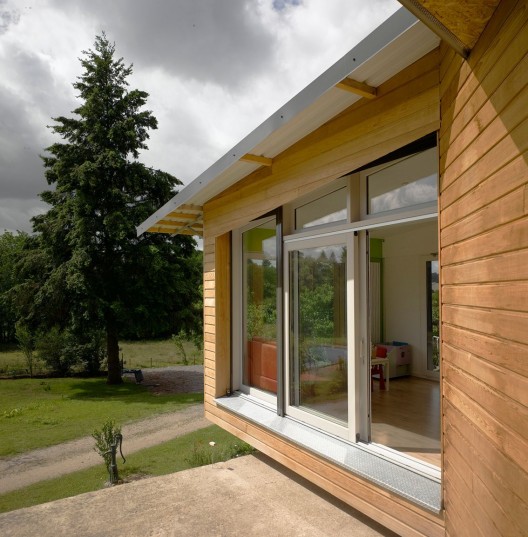

Addition structure is of zinc coated iron while industrial wooden beams make the flooring. Elevation has red cedar siding with corrugated iron sheets. Addition roof has on one hand canopy and on the other a fold for solar warm water units.
