Villa Ladybird / Johan Sundberg

  • 01:00 - 11 June, 2012
Villa Ladybird / Johan Sundberg
Villa Ladybird / Johan Sundberg, © Kasper Dudzik
© Kasper Dudzik

© Kasper Dudzik © Kasper Dudzik © Kasper Dudzik © Kasper Dudzik +16

  • Architects

  • Location

    Nyckelpigevägen, Beddinge Strand, Sweden
  • Structural Endgineering

    Anders Sandgren, Ramböll Malmö
  • Project Year

    2010
  • Photographs

From the architect. In Beddingestrand, between Ystad and Trelleborg, on the south coast of Scania, the cottages are lined next to each other. The area is characterized by the sea, the sand, the grass and the trees. Winters are cold with powerful winds. In summer the water is still cool, but the air is scorching hot.

© Kasper Dudzik
© Kasper Dudzik

The building functions as a seasonal dwelling, and in the future perhaps a permanent house for a small family. The call for simplicity in a summer house is combined with the technical and functional demands of a permanent living space.

© Kasper Dudzik
© Kasper Dudzik

The house is placed on the older elevated shore line that acts as a shelf with a view over the ocean andthe nature. The difference in elevation creates a certain vista and shelters the house from rising water levels. At the same time the building is inferior to the forest that grows along the coast. In winter the contact with the sea and the elements is stronger because of less vegetation.

© Kasper Dudzik
© Kasper Dudzik

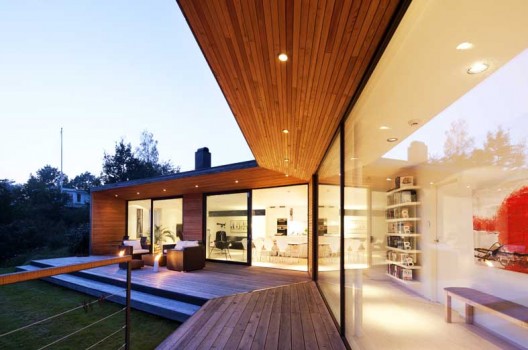

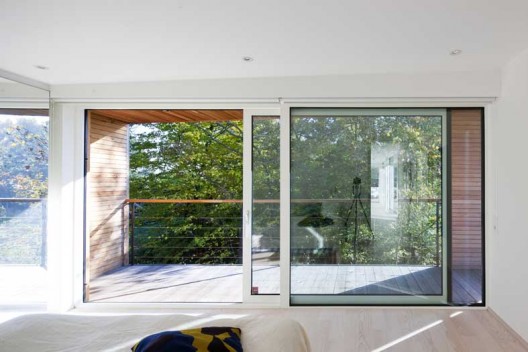

Two narrow wings in an open angle create views and the same time just enough protection from neighbors and winter winds. The inside of the open atrium form of the house is glazed with sliding aluminum doors. These parts of the facade has a protruding roof, tapered for slimmer lines and reduced visibility from the interor.

© Kasper Dudzik
© Kasper Dudzik

The facade is clad with custom profile Siberian larch with metal detailing in anthracite zinc. The foundation is a concrete slab with an outer wall made from light clinker. The structure is based on a wooden frame reinforced by steel over the larger openings. The roof is constructed with trapezoid metal plating covered with insulation boards, eliminating the need for a ventilated construction that would be vulnerable to saltwater air. The aluminum glazing is treated to withstand these corrosive winds, as are the walls which have extra layers of protection beneath the wood.

Johan Sundberg, march 2012

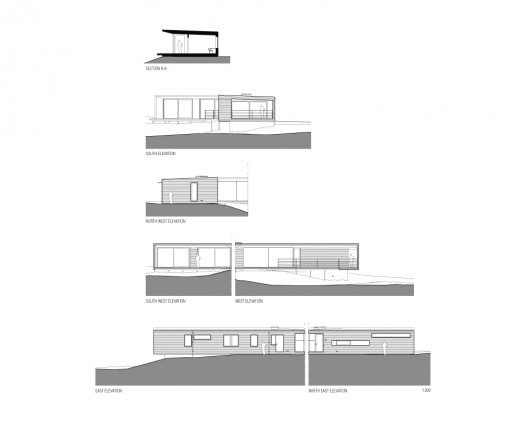

Section
Section
