Villa T-Extension / OFIS

© Tomaz Gregorič

Architects: OFIS
Location: , Slovenia
Project team: Rok Oman, Spela Videcnik, Andrej Gregorič , Tomaz Gregorič, Janez Martincic, Janja Del Linz, Will Gibson, Andrej Kacera, Jan Smejkal
Structural engineering: Projecta d.o.o.
Mechanical engineering: Jelen & Zaveršnik d.n.o.
Electrical engineering: Jelen & Zaveršnik d.n.o.
Completion: 2012
Building: 56,60 sqm
Photographs: Tomaz Gregorič



© Tomaz Gregorič

Villa Dular is a typical modernistic villa originally designed in 1932 by architect Costaperaria; a white cube with an extensive roof terrace and a top volume finished in wooden cladding. It is surrounded by a garden and other similar residences of its time. The villa is currently inhabited by different owners on each floor. The family, who lives on the ground floor, commissioned the redevelopment on the south side of the existing building. The client has a functional disability and is restricted to a wheelchair. He lives with his wife, three children, and a dog.

The task at hand was to design a new extension to the ground floor with a dining area and living space, including a covered parking for a car and a storage space for bicycles. The client requested the roof be used as a terrace for the apartment on the first floor. All floor surfaces were designed with slopes and wheelchair access in mind.

© Tomaz Gregorič

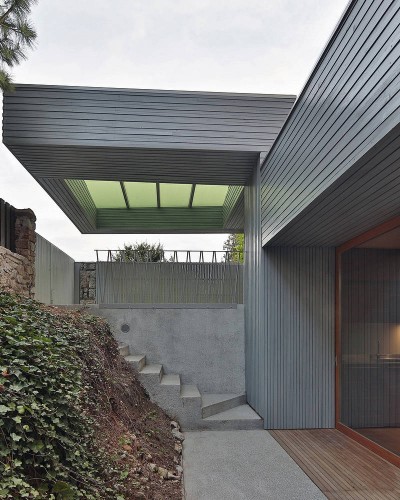

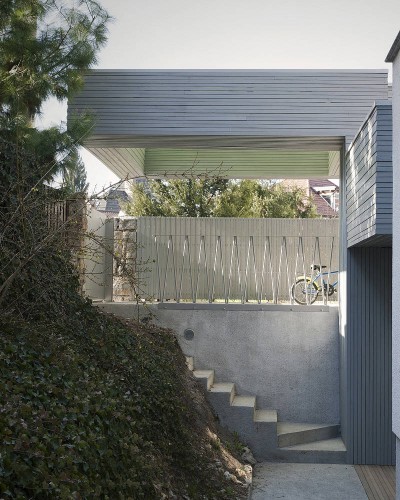

The T shape extension works as an umbrella above the living space: supporting the terrace on one side and creating a parking roof on the other side. The roof over the parking and ramp is a cantilevered pergola covered with Perspex panels in a light green color. The connection between the existing villa and the intervention is a glass volume as part of the living space. The sides that face the garden and the entry courtyard are large panoramic glass walls with a framed sliding window in oiled oak.

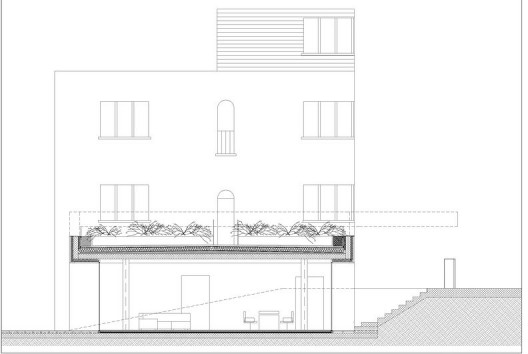

section 01

The cladding of the new extension is an assembly of bleached larch wood verticals in 2×2, 3×3 or 4×4 cm, in a rhythm that creates a pleated texture.

Cite: "Villa T-Extension / OFIS" 07 Jun 2012. ArchDaily. Accessed 29 Aug 2014. <http://www.archdaily.com/?p=241377>
