Arnhem Central Platforms / UNStudio

Courtesy . © Ronald Tilleman

Architects: UNStudio, Ben van Berkel with Arjan Dingsté and Marc Hoppermann, Marc Herschel, Derrick Diporedjo, Kristin Sandner, Rein Werkhoven
Location: Arnhem,
Client: ProRail, utrecht
Engineering: Movares
Contractor: DAM-Dura Vermeer
Gross Roof Area: approximately 8700 m2
Dimensions: 4 platform roofs of approximately 210 metres long, with varying widths from 9-14 metre
Structure and materials: steel, aluminum and cold formed glass roofs
Start of construction: 2009
Planned completion date: 2011

In terms of scale, we typically feature massive projects by UNStudio – such as their Kutaisi Airport, planning scheme for Union Station, and grand performance venues – which all bring the contemporary aesthetic of Ben van Berkel to meet the projects’ respective programmatic and contextual demands.  Recently, van Berkel’s team has crafted a covering for the Netherlands’ central rail line, bringing their elegant touch to a structure blanketing four train platforms measuring 210 meters in length.

More about the platform coverings after the break.

Courtesy UNStudio. © Ronald Tilleman

The number of passengers passing through Arnhem Central continues to grow, as the station converts several regional routes and high speed trains to Germany.  The increase in user flow has placed stress on the existing railway infrastructure which is now being substantially revitalized.

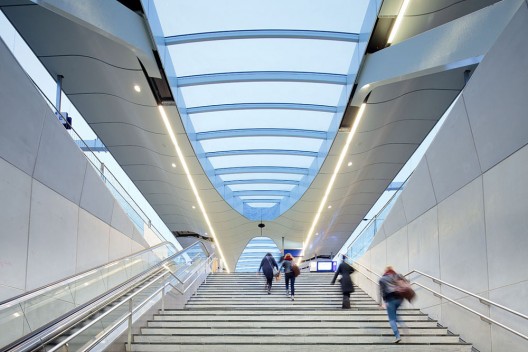

Courtesy UNStudio. © Ronald Tilleman

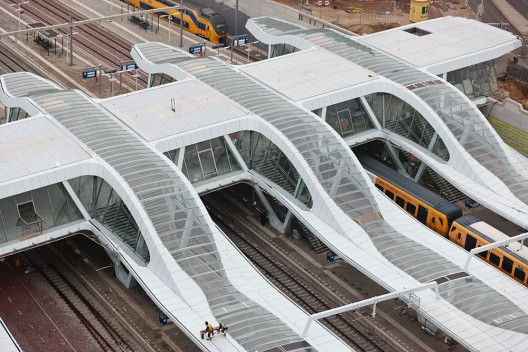

As part of this effort, UNStudio has designed platform roofs to replace the existing coverings, and cover a new added fourth platform.  Working off the idea of providing a sense of light and space, large roof lights, the glossy white materiality and abundance of glass provide an open atmosphere.

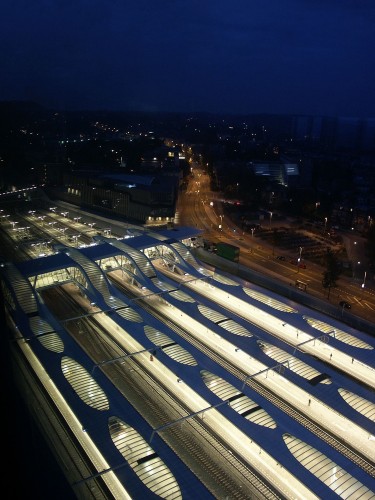

Courtesy UNStudio. © Tim Snoek

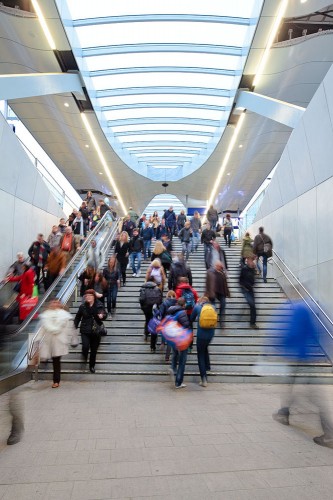

The elevated footbridge is fully integrated with the design, connecting the different platforms to each other and with the north entrance of the train station. The electrified system has also been integrated into the roof structure, giving a uniform appearance across all platforms.

Courtesy UNStudio. © Ronald Tilleman
