House 12k / Dierendonck Blancke Architecten

  • 01:00 - 22 March, 2012
House 12k / Dierendonck Blancke Architecten
House 12k / Dierendonck Blancke Architecten, © Filip Dujardin
© Filip Dujardin

© Filip Dujardin © Filip Dujardin © Filip Dujardin © Filip Dujardin +43

From the architect. Terraced House 12K

The first steps taken by the architect and the client start with the search of a suitable building site. Under the architect’s advice, two neighboring houses were purchased, which exceeded the budget of the client. However, this allowed them to redefine the plot boundary and construct a new house on one of the two plots. During the construction of the house, the client could continue living in the adjoining house before selling it.

© Filip Dujardin
© Filip Dujardin

Program / Site

The programme includes the construction of a small house, for a limited budget in the center of the city of Ghent. The site is a narrow and deep plot, where three floors can be realized.

section 01
section 01

Concept

Given the limited width of the site, the design was developed within the section. By seeing the house as a sequence of three elements/parts with varying heights, different conditions could be realized. The first two parts consist of three floors which are connected by a central staircase. The stairs serve the different levels that vary in floor height. This creates different perspectives and a continuity of space. A skylight over the entire surface of the stairwell allows natural light to penetrate deep into the house.

© Filip Dujardin
© Filip Dujardin

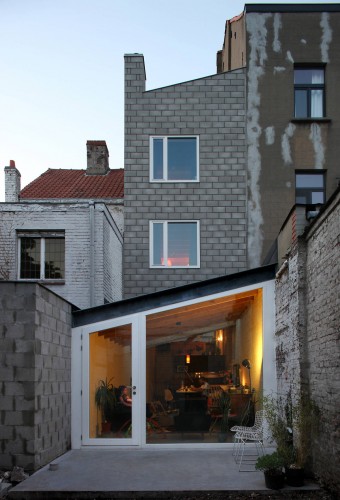

Construction

One enters the house trough an area with a low ceiling, that is primarily used as a vestibule/storage between the street and living space. The dining room and kitchen in the second part of the house have a substantial ceiling height, creating a visual relationship with the office space above the entrance hall. This space is a home office inbetween the street and the living space. In the extended area of the dining room and kitchen, is the living room. Using an identical skylight as in the stairwell, natural light extends into the center of the living room.

© Filip Dujardin
© Filip Dujardin

The split level staircase serves the bathroom above the office space, and two rooms above the dining area . By extending the height of the second part of the house within the allowed urban reglementations, it was possible to realize a mezzanine in the upper bedroom on the second floor, and thus achieving maximum use of the floor space. During the construction of the house, the client decided to add a garden shed to the program. This became the fourth and final element in the back of the building plot.

© Filip Dujardin
© Filip Dujardin

Roof

© Filip Dujardin
© Filip Dujardin

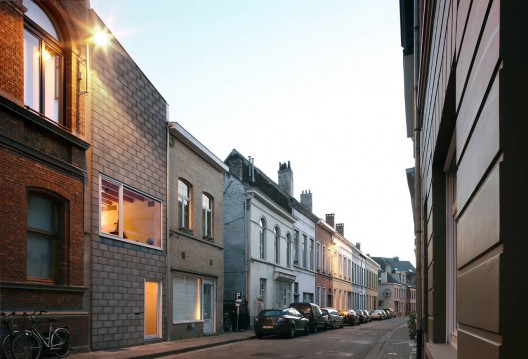

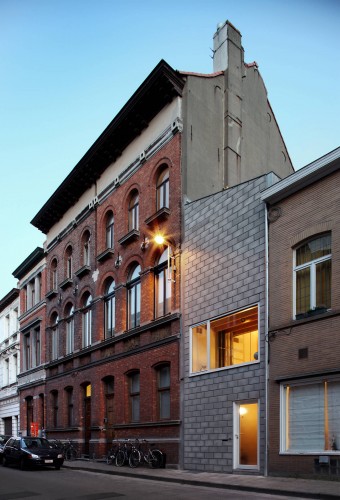

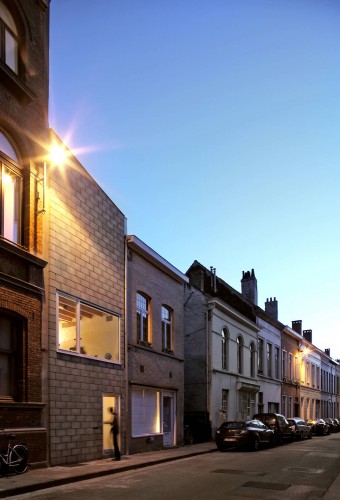

This terraced house is situated in a conservation area of the city and is served with a number of planning rules to answer to. In consultation with the urban design services, there was opted for a sloped roof parallel to the street. This principle was applied to all four elements of the house.

ground floor plan
ground floor plan

Materialization

The concept of the succession of the four parts are drawn in the use of materials and detailing. The bare structure is considered as finishing and expresses the concept. The house consists of two longitudinal walls of painted brick.The rooms are divided by transverse walls erected in concrete blocks. There is no distinction between materials for the exterior and interior shell. The exterior facades and interior walls are in the same concrete block, where the same block window principle is also used.

© Filip Dujardin
© Filip Dujardin
Cite: "House 12k / Dierendonck Blancke Architecten" 22 Mar 2012. ArchDaily. Accessed . <http://www.archdaily.com/216413/house-12k-dierendonck-blancke-architecten/>
Read comments

27 Comments

majchers · November 11, 2014

Very interesting concept. I like it very much. But... mhhmmm... don't you think the front was let go a bit...? There is something there that "does not fit", something unfinished perhaps... It definitely needs more study in my opinion.

Chris · May 07, 2013

I really want to have those bag chairs.

GrigoreStefan · August 23, 2012

House 12k / Dierendonck Blancke Architecten http://t.co/H48RN0cs

Arq. Gerardo Ayala · August 09, 2012

Interesante proyecto!
House 12k / Dierendonck Blancke Architecten | ArchDaily http://t.co/ATTDHO86 vía @archdaily

Tom Peeters · May 02, 2012

@Mies:
I never said a plaster finish would provide aditional insulation, I said it is necessary to have an airtight building.
Please, try to understand the differance in both,...If you think insulation is the only factor when it comes to heating a building then for the love of God I hope you are not an architect!

Olmedo Arquitectura · May 02, 2012

House 12k / Dierendonck Blancke Architecten http://t.co/reACJYWn

Adol Sidoni · March 27, 2012

Hey guys, why dont try to check the house face to face and critic, Its seems Tom Peeters lives in that same house to know everything about it :P

Tom Peeters · March 27, 2012 09:26 PM

me live there, hell no
:D

Tom Peeters · March 25, 2012

I explained wind-tightness in my comment.
Maybe I wasn't very clear (English isn't my native language). To clear things up: google "solitex" and "intello plus". That will make you see the difference between a windbarrier and an airbarrier. Windtight = ALWAYS outside, airtight = ALWAYS inside.
Now, about ventilated cavities: they are useless. I presume u use them to "dry" the outer brick wall, but studies proved that a ventilated cavity don't make them dry out faster. The use of a ventilated cavity is actually a waste of insulation space.
I don't understand why you claim that air-tightness can be created by the insulating material. You might create a WINDbarrier if you use oil-derivate foams and you tape of all the joints, but it is impossible to create an air-tight construction this way, because, the barrier is at the outside of your insulating material!!
PS: a plasterboard isn't air-tight. Gipsum plaster is, if executed wel.
I dont need to see the construction details to know this house isn't air-tight. The pictures tell me it isn't. Understanding the important difference between a windbarrier (what you are talking about) and an airbarrier (what i am talking about) will make you understand why.

Bob · March 25, 2012 09:23 PM

I suggest that we leave this dialog where it is as I am not sure it is achieving anything - and I disagree. My point is simple: we do not know the construction detail therefore it is unfair to criticise this building - there are plenty of other ways!

bob · March 24, 2012

That should of course read 'material'. Apologies. For what it is worth this is not really my cup of tea but felt it was being unfairly treated. I would assume that the cavity is ventilated in some way although this is not clear in the images supplied.

bob · March 24, 2012

My guess is that, like most cavity wall construction, the air tightness is determined by the materials in the cavity, not the facing martial. As we do not know the material build up it is somewhat foolish to criticise.

Tom Peeters · March 25, 2012 11:56 AM

well, the material in the cavity is insulation (I hope).
What you are refering to is wind-tightness: to prevent air circulation throughout the insulation because that would destroy the insulating qualities of the material.
But wind-tightness is something completely different then air-tighntess.
It IS possible to make an airtight construction in the cavity, but only when when one would render the outisde of the inner bricks with a cement-render. Then you would still have to tape all the window, roof and floor connections, because they would all be leaks.
That's why gipsium plaster is used: it's much easier to create an airtight construction.
I'm pretty sure the walls here arent rendered with cement, because it would mean you would first have to construct the inner wall, render it, place insulation and then construct the outer wall. This way of contructing an attached house is virtually impossible.
So you see, the only foolishness here, is the architecture...

Tom Peeters · March 24, 2012

@Galois: ?
Virtually every maconry house is built up out of 2 layers: and outer brick, cavity and inner brick. I don't understand what you try to say here?
A concrete block isn't airtight, so you can put 10 layers of concrete blocks, it wont make your house airtight.
Also: check the connection between the windows and the walls or the connection between the rooflight and the walls,...
I dont understand that in these days, with sustainability being a hot topic, architects even dare to built like this...it truly makes me sad.

Hon · March 23, 2012

House 12k by Dierendonck Blancke Architecten : http://t.co/YfcLSoQV

Ivan Cotado · March 23, 2012

Arquitectura de recursos. Buen ejemplo la House 12k de Dierendonck Blancke Architecten http://t.co/VWJiRgLW

RADcTION · March 23, 2012

RT| House 12k / Dierendonck Blancke Architecten: © Filip Dujardin
Architects: Dierendonck Blancke Arc... http://t.co/zhxVU4v3 @archdaily

designstudios · March 23, 2012

RT| House 12k / Dierendonck Blancke Architecten: © Filip Dujardin
Architects: Dierendonck Blancke Arc... http://t.co/zhxVU4v3 @archdaily

Bob Ed · March 23, 2012

RT| House 12k / Dierendonck Blancke Architecten: © Filip Dujardin
Architects: Dierendonck Blancke Arc... http://t.co/zhxVU4v3 @archdaily

Travel Writer · March 23, 2012

RT| House 12k / Dierendonck Blancke Architecten: © Filip Dujardin
Architects: Dierendonck Blancke Arc... http://t.co/fISVoGMG @archdaily

Nicholas Patten · March 23, 2012
KURT · March 23, 2012

I know it is hard to control and also not the intention to control open blogs, but it saddens me to see too many angry and immature comments on this fantastic website.

Tom Peeters · March 23, 2012 12:03 PM

so comments are only mature when they are positive?
most of these comments are right:this house totally ignores its context. This is a typical "lets do something different so we will stand out" architecture.""Lets use concrete blocks wich totally don't fit in the surroundings and will use some fancy concept words to back it up...that will bring us in the magazines,..."

ArchitectureDemarest · March 23, 2012

RT @lao_y: RT @ArchDaily: House 12k / Dierendonck Blancke Architecten http://t.co/f8n004ZL #architecture

Nick · March 23, 2012

OMG, was the architect so blind? Please, someone explain him the concept of CONTEXT!

Santi Maggio Savasta · March 23, 2012

House 12k / Dierendonck Blancke Architecten http://t.co/Poz1MlET #Architecture #Architettura

Mx · March 23, 2012

House 12k / Dierendonck Blancke Architecten | ArchDaily http://t.co/fmAxMC4X

Xavier Ros Majo · March 22, 2012

House 12k [Dierendonck Blancke Architecten] http://t.co/pI97UHoQ via @archdaily #arquitectura

Arnon Jordan · March 22, 2012

This bleak architecture fits well with the grey and sad cities in Belgium. I find it very meager...

mte · March 22, 2012

why not, with 75% of the surface area touching neighbor houses who are heating - it'll be extraordinary cheap!
seriously, a detached one family housing with 15cm insulation will have approx. the same heatingenergy consumption

Tom Peeters · March 23, 2012 11:55 AM

with the outer walls not being plastered this entire house is one giant air leak,..and its hardly 75%..maybe 30% max.
And if every neighbor thinks the same way, noone is getting it warm...

Tom Peeters · March 22, 2012

i wouldnt wanna pay the heating bill in that house,...

···
