DPR Residence / Method Design Architecture + Urbanism PLLC

© Taylor Deupree

Architect: + Urbanism PLLC
Location: Pound Ridge, New York,
Completion: September 2010
Method DesignTeam: Reese J. Campbell, Demetrios A. Comodromos, Jason Bean, Heath Horn
Consultants: David Kufferman, PE (Structural Engineering)
Builder: Riebe Construction, Magna Steel
Photographs: Taylor Deupree, Reese Campbell – Method Design Architecture & Urbanism PLLC

© Taylor Deupree

In this significant AIA Honor Award winning Addition / Alteration to an existing 1960’s Modern house on a sloped site in Pound Ridge, NY – Method Design was asked to reconsider three major aspects of the current condition – creation of a formal entry, an addition of a master suite, and a sustainable re-cladding of the entire house. Our approach centered on a qualitative response to the inherent characteristics of the site, which included intrusion of large old growth trees into the immediate area of the house, the dramatic coloration of the site’s seasonal foliage, and the daily use of the occupants which prescribed clear articulation of private and public space.

Our response to these challenges entailed floating a new master suite on a forest of columns that reinforce an existing line of trees and create a procession towards the newly organized formal entry suspended underneath. The columns themselves operate as a sophisticated structural system where each tips towards a projected point at the center of gravity, giving an innovative balance, stability and equilibrium to the new addition.

© Reese Campbell

The cladding and window articulation begins to conceptually organize and index both interior program and existing vs addition. Public areas are detailed with a rain screen of warm cedar finishes reflecting the outdoor environment in which they are situated.The larger windswept surfaces of the project are given the more robust cladding of a cement fiber board rain screen, with the darker tone being applied to the original volume of the house, and the lighter tones reserved for the new additions and alterations.

© Reese Campbell

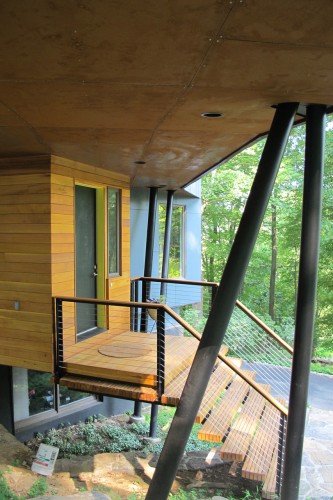

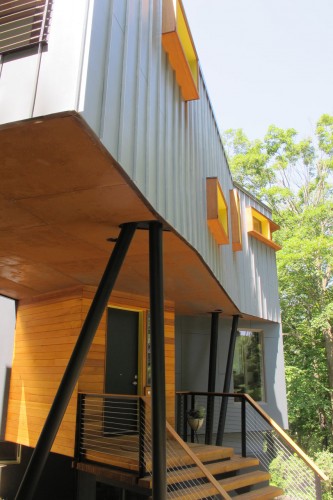

The underside soffit of the new addition which is a gently folded surface is clad with weathered steel. This provides a warm contrast to the lush green sloping site below, which tangibly contains an exterior volume of space that the original house had turned its back to via its siting. The newly found volume of space becomes the public façade and entryway to the reorganized residence. Visitors approach by traversing this measured landscape oblique to the main house and addition, which allows them to experience a greater spatial depth of the project before entering into the axially organized interior of the 1960’s Modern box.

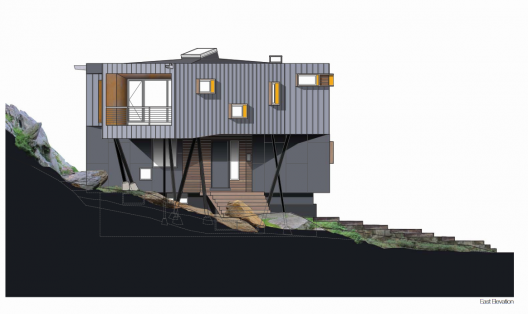

elevation 01

The reorganized interior of the residence was pierced with deeply framed bays and windows that direct views to the exterior. These framed conditions are reflected into millwork, niche walls, and found spaces to create focused views on valued objects, books, and even functional storage.

Cite: "DPR Residence / Method Design Architecture + Urbanism PLLC" 01 Mar 2012. ArchDaily. Accessed 17 Sep 2014. <http://www.archdaily.com/?p=212373>
