Gate / mihadesign

  • 01:00 - 14 October, 2011
Gate / mihadesign

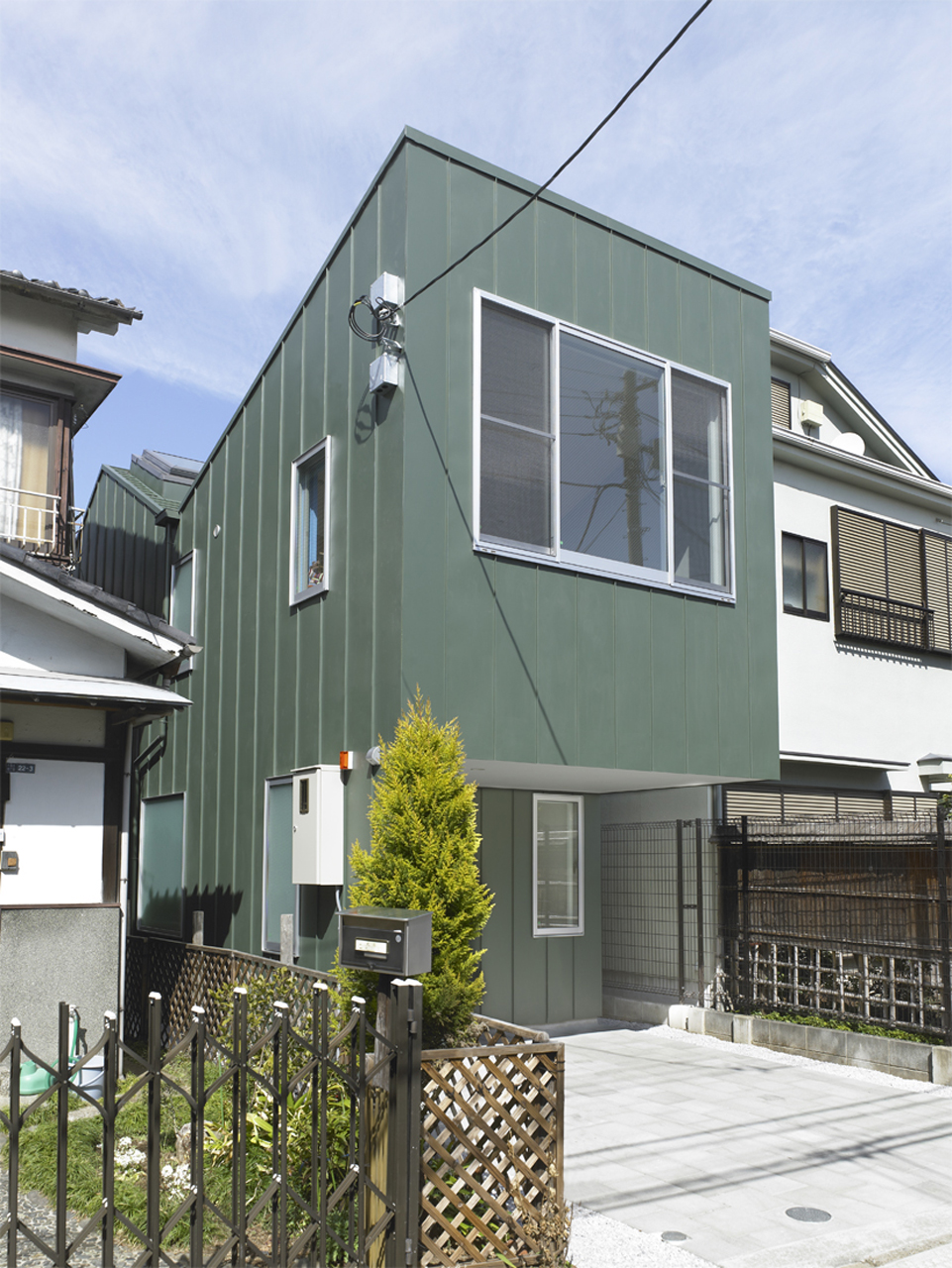

Gate / mihadesign, © Sadao Hotta
© Sadao Hotta

© Sadao Hotta © Sadao Hotta © Sadao Hotta © Sadao Hotta +20

  • Architects

  • Location

    Sinjuku, Tokyo, Japan
  • Structure Engineer

    ejiri structure design office
  • Project Area

    Site Area:84.75 sqm, Building Area: 50.66 m2, Floor Area Ratio: 88.39 m2
  • Project Year

    2011
  • Photographs

From the architect. This house is for a couple and a girl and located at Shinjuku, in Tokyo. The site is a long and thin rectangle shape of 4.5m width and 18m depth from south to north. By the three bearing wall, the long and thin volume of two layers is divided into four in the direction of the short. The bearing walls have some holes which residents, light and wind pass through. In order to take in the sunlight as much as possible, the roof has zigzag form and has top light which delivers the light and wind to the ground floor. Each spaces are lined up from the entrance in an order of the level of privacy: Public spaces such as living and dining and kitchen comes first, and then more private spaces such as restroom and bathrooms will appear deep in the house.

© Sadao Hotta
© Sadao Hotta

You can go to the first floor by going up the stairs at the living room, going through the hole of the wall, and watching the dining room underneath. When you go back to the south via the corridor with closet and study space, you will arrive at the girl's space. When you go to the north, you will be at bedroom. The design of the relationship between well and floor, wall and ceiling, and the shape of open ceiling space and windows had been adjusted so that people will feel inclined to go and see beyond the walls of this deep house.

Text provided by mihadesign.

section
section
Cite: "Gate / mihadesign" 14 Oct 2011. ArchDaily. Accessed . <http://www.archdaily.com/175448/gate-mihadesign/>
