Campamento de Edificios Públicos / Taller de Arquitectura-Mauricio Rocha

Courtesy of Taller de Arquitectura-Mauricio Rocha

One of the guidelines for this project’s design was conditioned by the plot’s shape; a storm drain created a curve against the straight line of the main street. As a result the L-shaped walls appropriated the plot’s geometry while roofs opened northward to provide plenty of indirect lighting.

Architect: Taller de Arquitectura-Mauricio Rocha
Location: San Francisco Tecoxpa, ,
Project Team: Arturo Mera, Victor Limón, Giovanni Ramírez, Gabriela Carrillo, Silvana Jourdan, Abelardo Muzquiz
Scale model: Francisco Ortiz
Collaborator: Juan Santillán
Structural: Sai group
Project Area: 1459 sqm
Project Year: 2004
Photographs: Courtesy of Taller de Arquitectura-Mauricio Rocha

Courtesy of Taller de Arquitectura-Mauricio Rocha

These elements were the starting point to accomodate a program-for repairs to furniture and property belonging to the Milpa Alta district government-divided into three areas: a warehouse, a workshop area and an administrative area, each independent but connected by a path that connects to the main street. The building’s heights correspond to their program, the highest used for the warehouse, with the heights descending until they reach the lowest building, used for administrative purposes. In the central building the height enabled the construction of mezzanine areas which can be closed off.

Courtesy of Taller de Arquitectura-Mauricio Rocha

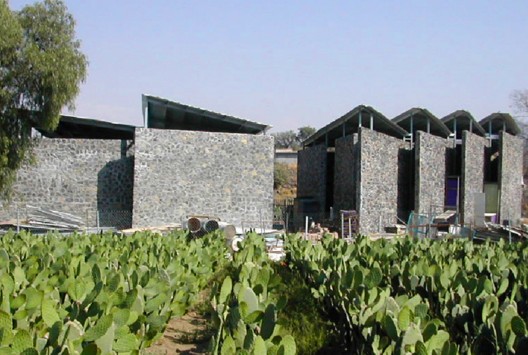

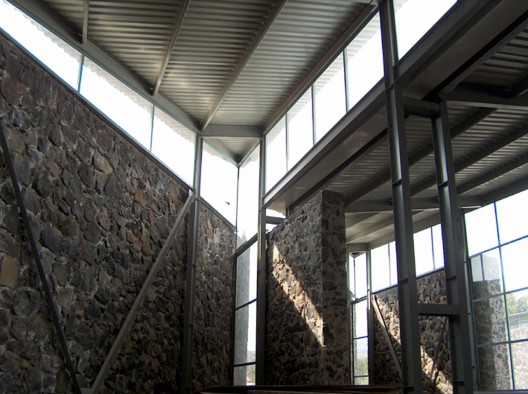

On the skin of the self-supporting walls made of local basalt stone, a light, independent metal structure is raised, with columns and roofs made of C-section steel joists and metal sheeting. The window frames are modular, on the basis of the previous elements, which work independently or as a group. The upper windows stretch to the edge of the building modulated in openings to become vertical windows overlooking a plantation of nopales.

Courtesy of Taller de Arquitectura-Mauricio Rocha

Within its defined shape, evocative of a woodlouse, the building is a container whose spaces can be use for various purposes with workshops for carpentry, cabinetmaking, ironwork, and painting.

Courtesy of Taller de Arquitectura-Mauricio Rocha
Courtesy of Taller de Arquitectura-Mauricio Rocha
