The Ice Cubes / Jun Mitsui & Associates Architects

  • 01:00 - 27 April, 2011
The Ice Cubes / Jun Mitsui & Associates Architects
The Ice Cubes / Jun Mitsui & Associates Architects, © Naoomi Kurozumi
© Naoomi Kurozumi

© Naoomi Kurozumi © Naoomi Kurozumi © Naoomi Kurozumi © Naoomi Kurozumi +17

  • Architects

  • Location

    Tokyo, Japan
  • Architects

    Jun Mitsui & Associates Architects
  • Design Team

    Jun Mitsui, Yukinobu Nakano, Kentaro Hayashi, Jim Lambiasi, Kazumasa Toku, Naoko Morimoto, Shigeki Irie, Ei Ishiyama
  • Area

    3060.0 sqm
  • Project Year

    2008
  • Photographs

From the architect. This project was commissioned by a Hong Kong-based developer for whom we previously designed two high-end retail projects (in Akasaka and Omotesando). The site constraints, including sky-openess factor (tenku-ritsu) and sun/shadow requirements were very restrictive. Careful calculations were done to arrive at the best balance of forms while satisfying the regulations and achieving the maximum FAR. By developing the formal strategy as a series of interlocking cubes, we were able to massage the complicated building envelop shape into a dynamic composition.

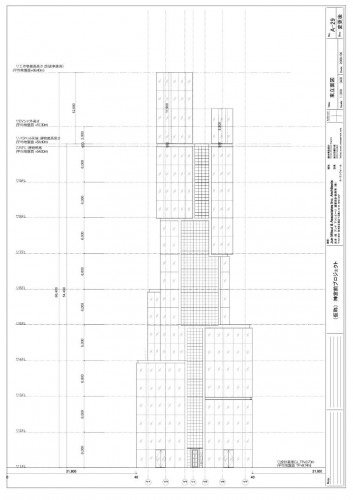

elevation 01
elevation 01

This strategy solved not only the complex building form but also gave the freedom of adjusting the forms according to the additional building programs and structural considerations.

© Naoomi Kurozumi
© Naoomi Kurozumi

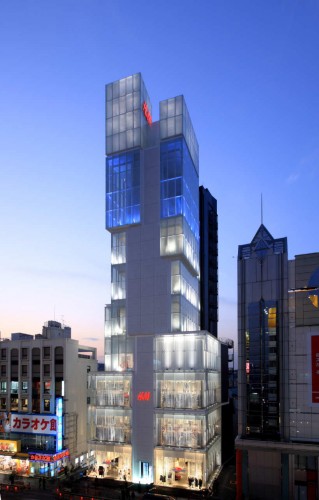

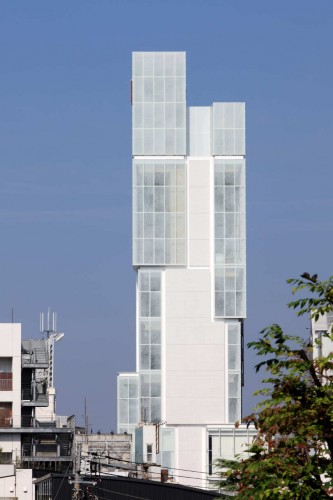

An important design requirement was for the cubes to appear feather light and thin. We performed careful studies to make the structure and insulation look as thin as possible. The cube surfaces are covered with a baked ceramic frit pattern on the outer-most surface of the glazing. By doing so, a pure-white cube expression can be achieved. Had the frit been applied on an inner surface, the color of the cubes would have been greenish due to the green tint of the glass. All necessary technical studies for maintenance and durability of the outer-most surface frit pattern were resolved with the manufacturer who was then able to provide a ten year warranty.

© Naoomi Kurozumi
© Naoomi Kurozumi

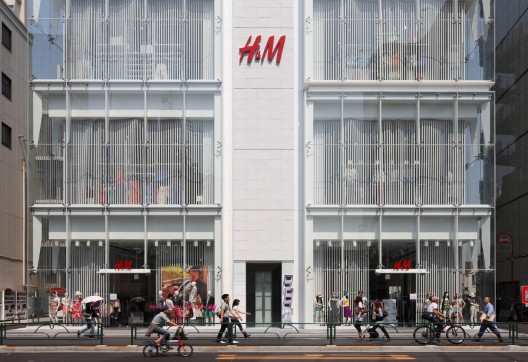

The resulting image is silky and feathery which attracted the main tenant H&M, a Swedish apparel company who values the high-impact design.

Location to be used only as a reference. It could indicate city/country but not exact address. Cite: "The Ice Cubes / Jun Mitsui & Associates Architects" 27 Apr 2011. ArchDaily. Accessed . <http://www.archdaily.com/130781/the-ice-cubes-jun-mitsui-associates-architects/>
