Mirror Screen - Pilkington MirroView™ | Pilkington

  • Use

    Mirror screen
  • Applications

    Bars and restaurants, digital signage, hotel rooms, lobbies, salons, retail, bathrooms, touch screens, smart mirrors
  • Characteristics

    Conceals digital displays and video screens, highly reflective mirror coating, suitable for applications with high or low ambient light, can be handled, cut and tempered
  • Sizes

    Available Thickness: 1/8” (3.2 mm), 1/6” (4.0 mm), 1/4” (6.0 mm)

More about this product

Generation 2 Pilkington MirroView™ is ideal for concealing digital displays and video screens for commercial and residential applications with low ambient light. A highly reflective mirror coating with a clear substrate, it gives digital displays and video screens a high-tech look. Pilkington MirroView™ 50/50 offers the same qualities as the original product, yet it is designed for use in applications with high ambient light.

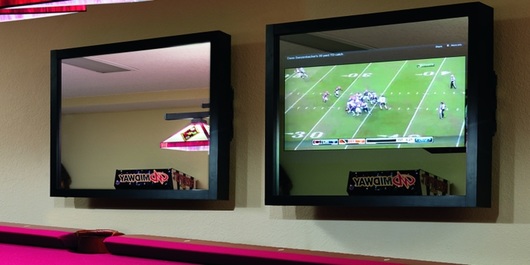

When the screen is turned 'off' Pilkington MirroView™ and Pilkington MirroView™ 50/50 maintain a mirrored appearance while concealing the screen: ideal for hiding video screens when they are not in use. When the screen is turned 'on' the screen image shows through.

Both are available in large stock sizes providing the ability to conceal multiple displays or cut down to a smaller, traditional mirror concealing a smaller screen. They can be easily handled, transported and processed, including tempering and laminating. Due to the durability of the pyrolytic coating, it does not degrade over time, which gives the product a virtually unlimited shelf-life.

Pyrolytic Coating Advantages

- Durable coating
- Easily handled and transported
- No edge deletion required
- Virtually unlimited shelf-life
- Inventoried locally
- Tempered and laminated

Generation 2 Benefits

Generation 2 Pilkington MirroView™ and Pilkington MirroView™ 50/50 have an improved
color reflectance that provides a more natural, mirror-like appearance. They also have the capability
to work with all touch screen technologies, including projected capacitive, while maintaining a smoother surface for a better touch experience.

Performance Data

Product Nominal Glass Thickness (mm) Visible Transmittance (%) Visible Refectance Coated Side (%) Visible Refectance Glass Side (%)
Generation 2 3.2 24 66 58
Pilkington MirroView™ 6.0 22 66 57
Generation 2 Pilkington 3.2 39 50 47
MirroView™ 50/50 6.0 37 50 46
