Indoor Modular Lights - Fil and LED TECH Luminaires | Lamp

More about this product

LAMP's FIL + LED TECH Luminaire is a modular luminaire made of shinny grey or matt white painted extruded aluminium. It is ideal for creating continuous lines of light with no dark areas because the LED modules go from one end of the luminaire to the other.

All models are available in surface-mounted or recessed version, in lengths of 1m or 2m, making it possible to install long continuous lines of light. This luminaire has integrated gear, replaceable high-performance LED module, and passive cooling (50,000 hours of life). There are models with luminous flux of 1,600, 3,200 and 6,400 lm with warm white LED.

With LAMP, LED quality and high technology (5-year warranty) are available to the most demanding professionals.

USES AND APPLICATIONS

Its neutral, minimalist design, stylized proportions, small size and technical performance give FIL + LED TECH great versatility for installation in offices, hotels, shops, restaurants, walkways, etc., enhancing the space they are installed in.

MODELS

- Fil + LED TECH Luminaire with high visual confort optics

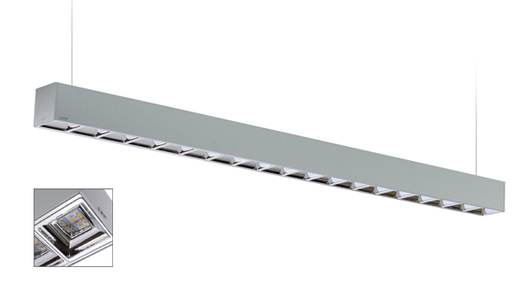

Suspended or mounted surface luminaire model FIL + LED TECH. Made of matt white-lacquered or satin grey-lacquered extruded aluminium, 1m or 2m long. With shiny metallized policarbonate reflector which ensures a high visual comfort optics. Equipped with medium power warm white LED, with powers of 14W, 27W and 54W.


- Recessed FIL + LED TECH luminaire with high visual confort optics

Recessed luminaire model REC. FIL + LED TECH. Made of matt white-lacquered or satin grey-lacquered extruded aluminium, 1m or 2m long. With shiny metallized policarbonate reflector which ensures a high visual comfort optics. Fixing devices for ceiling included. Equipped with medium power warm white LED, with powers of 14W, 27W and 54W.



- FIL + LED Luminaire with opal polycarbonate diffuser

FIL PLUS LED luminaire, for suspension or ceiling mounting of direct radiation, with opal polycarbonate diffuser. Available in gloss grey or matt white finish. Endowed with a medium power replaceable warm white LED module, with 18W and 28W power.It is available in two lengths: 1.162m y 1.743m.



- FIL + LED recessed luminaire with opal polycarbonate diffuser

FIL PLUS LED recessed luminaire, with opal polycarbonate diffuser, available in gloss grey or matt white finish. Endowed with a medium power replaceable warm white LED module, with 18W and 28W power.It is available in two lengths: 1.162m y 1.743m.


LAMP also offers the client personalised lighting studies at no cost to the client (they assess the products to be installed and their correct layout to reach the sutiable level of lightning according to the application), and assessment of LAMP products and their lighting control and management options.

They deliver a complete dossier to the client containing lighting calculations, floor plans with the lighting lay out, and technical report/ estimate.


For more information about LAMP's Fil and LED TECH Luminaires please visit LAMP's Page in Materials or go to www.lamp.es/en.
