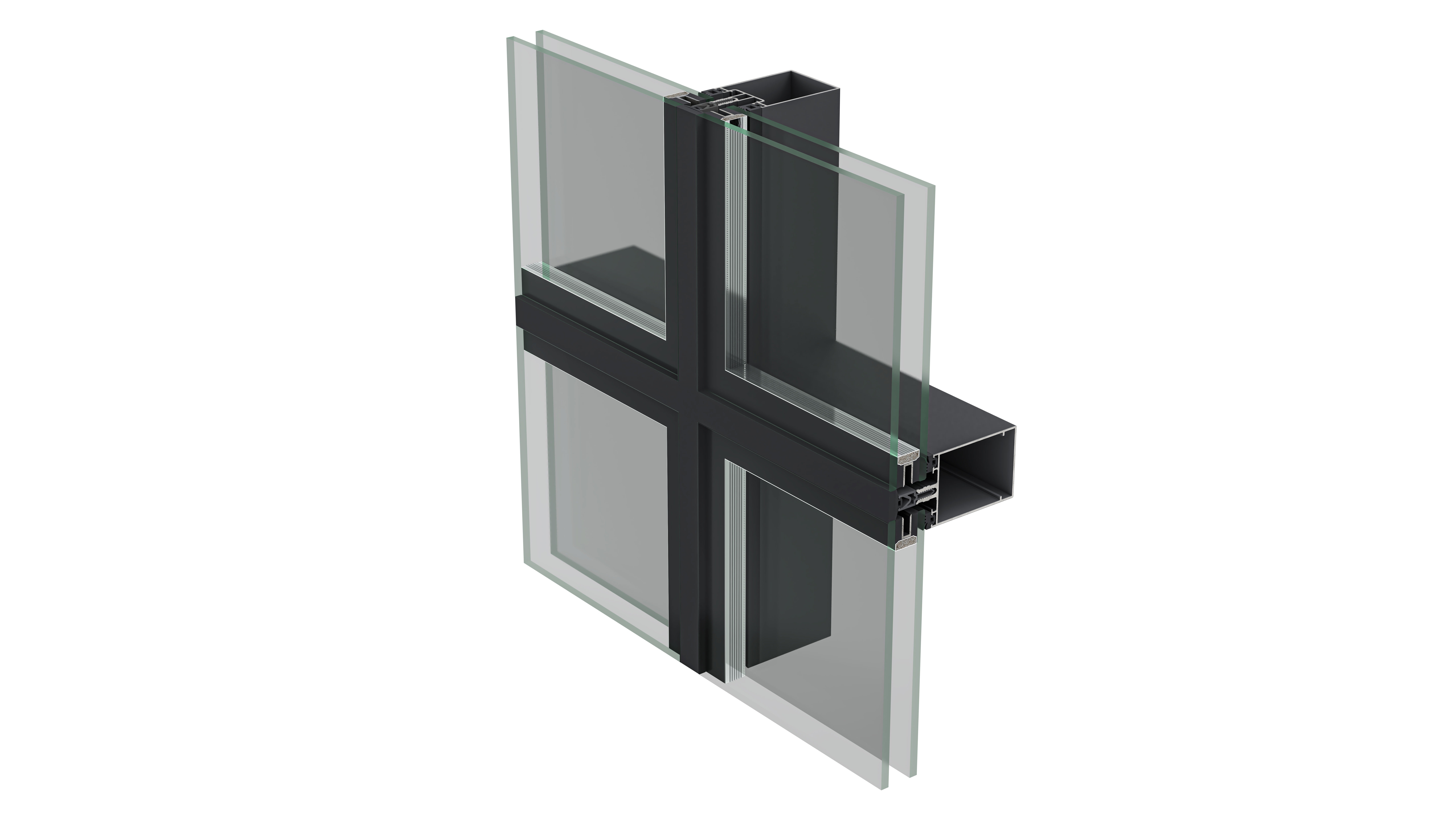

The ECW 50 Hybrid curtain-wall system is a thermally-enhanced façade solution designed for modern building envelopes. By incorporating hybrid insulation and flexible profile dimensions, this system delivers both thermal efficiency and design adaptability for complex glazing installations. It supports multi-angle corners, projected or parallel-projected windows for ventilation, and minimal-frame “hidden sash” aesthetics.

Features

• Hybrid insulation design enabling high thermal performance with U-values as low as approximately 1.1 W/m²K.
• Wide range of profile dimensions (mullion length 14–250 mm, transom 6–205 mm) for high-flexibility architectural layouts.
• Ability to construct interior and exterior multi-angle corners, enabling creative façade geometry.
• Compatibility with tilt/turn, projected, or sliding windows integrated into the curtain wall system.
• Two main versions: standard glazing and structural glazing (for frameless glass exterior appearance).
• Double-extruded EPDM (Expanded EPDM) gaskets for improved thermal insulation and recyclability.
• Certified performances for air permeability, wind-load resistance, water-tightness, sound insulation and burglary protection.

Design & Performance
The ECW 50 Hybrid system is designed to meet modern façade demands where thermal, acoustic and structural performance intersect with architectural aesthetics. With the hybrid insulation technology built into the profiles, the system supports high-performance building envelopes such as low-energy or passive-house projects. The minimal visual sightlines and the ability to integrate large glazed units allow the system to deliver both transparency and high-end finishing.

Applications such as projected window ventilation within the curtain wall improve air circulation without sacrificing the clean façade appearance. The flexibility in mullion depth and transom width means the system can be tailored to structural loads, ceiling-to‐floor heights, and special façade modules.

Materials & Finishes
The system’s profiles are made from aluminium alloy (EN AW 6060 T6 / EN AW 6060 T66) for strength and precision. Surface treatment features a minimum coating thickness of 75 µm, and profile thicknesses range from approximately 1.4 to 6 mm. The hybrid design incorporates high-efficiency insulation materials and recyclable EPDM gaskets, aligning with sustainability goals. A wide palette of powder-coated and anodised finishes ensures the system can match architectural colour schemes and textures.

Applications & Installation
The ECW 50 Hybrid system is suited for commercial, institutional and premium residential building envelopes that demand high glazing performance, thermal efficiency and refined aesthetics. Typical uses include:

• Full-height glass façades, curtain-wall reveals and atrium walls.
• Multi-angle façade geometry and corner configurations for architectural expression.
• Integration of ventilated window units, hidden framed elements or minimal frames.
• Projects targeting low energy, passive-house certification or high acoustic/thermal requirements.

Installation involves sub-framing and anchoring of the curtain-wall modules in accordance with the architectural grid. Profile sizing, mullion/transom spacing, joint design and interface with other building elements (windows, shading, flashings) should be coordinated in early façade engineering.

Technical Notes

• Glazing range: 10–50 mm thickness.
• Mullion length range: 14–250 mm.
• Transom width range: 6–205 mm.
• Thermal insulation performance: U0 values from approx. 1.1 W/m²K and Ψ values approx. 0.048–0.058 W/(mK).
• Certifications: e.g., classes for air permeability, wind resistance, water tightness, sound insulation for the system.
• Profile alloy: EN AW 6060 T6 / T66.
• Coating: Minimum 75 µm.
• Profile thickness: 1.4 mm to 6 mm.
• Design weight limits: depending on configuration for sash/frame sizes.
