Knotwood specialises in crafting premium aluminium products with the natural look of timber, delivering greener, safer, and stronger solutions for the architecture, construction, and design industries. Their range of products combines the warmth of wood with the durability of aluminium, including Panel Battens For Garage Doors.
Knotwood’s Panel Battens system for garage doors are a smart, lightweight solution that merges cladding and batten design into a single, efficient clad and batten system. The Panel Battens deliver full, seamless coverage, significantly reducing installation time with fewer components. Featuring Bal-40 compliance for superior fire safety, multiple shapes and sizes, adjustable spacing, and a three-step quick-install process, Panel Battens offer long-term performance and aesthetic flexibility.
| | |

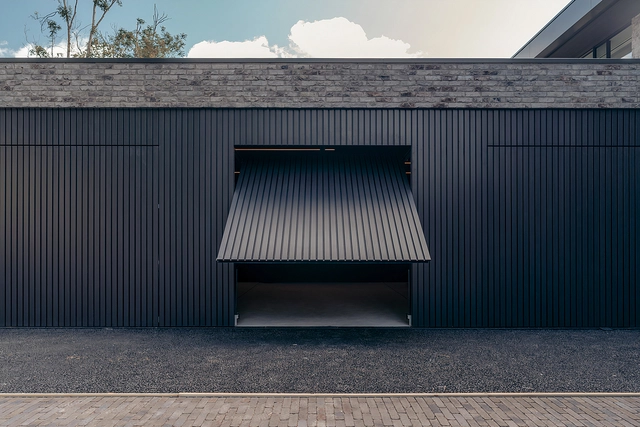

| Panel Battens - Black Cedar / Black Board | Panel Battens - Black Cedar / Black Board |
Further customisation may be achieved through various spacing and sequencing options, producing different visual effects and distinct patterns. Knotwood's Panel Battens are also available in a variety of timber colors, such as Black Cedar, Black-Board, and Mist for a textured finish.
Offering durability, lightweight strength, and corrosion resistance, aluminium battens from Knotwood are an ideal choice for garage doors demonstrating long-lasting performance in all weather conditions. Their modern, low-maintenance finish resists warping, fading, and rust, ensuring a sleek appearance over time.
| Profiles: | |
| Panels | - Batten Panel - 1 Bracket - 25 x 9mm (M), 25 x 25mm (M), 50mm (M)
- Batten Panel - 3 Bracket - 25mm (M)
|
| Angulars | - Trapezoid Batten - 70 x 21mm (F)
- Angle Batten - 50 x 80mm (F)
|
| Wide | - Batten - 32 x 14mm (F)
- Wide Batten - 50 x 25mm (F)
|
| Curves | - Dome Batten - 32 x 14mm (F), 32 x 50mm (F), 32 x 50mm (F)
- Flute Batten - 32 x 14mm (F)
|
| Squares | - Batten - 25 x 25mm (F), 32 x 32mm (F), 40 x 40mm (F), 50 x 50mm (F) V2
|
| Rectangles | - Batten - 25 x 50mm (F), 25 x 75mm (F)
|
| |
| Panel Battens - Black Cedar / Black Board |
| Additional Specifications | |
| Material | 6063 T6 Temper extruded aluminium alloy. |
| Finish | Sublimated timber grain surface with a powder-coated base. |
| Length | 6500mm. |
| Warranty Life | 15 year limited. |
Sustainability: 100% Recyclable Aluminium, Non-Chromate Pre-Treatment, VOC free Powder Coat.
