Ceiling Recessed Troffer Lighting - HSTL | Nightingale Lighting

  • Available in

  • Use

    Lighting systems
  • Applications

    Healthcare facilities, surgical suites, clean rooms, exam, procedure spaces
  • Characteristics

    Available in different colors and two distribution options
  • Sizes

    1x4 inches, 2x2 inches, 2x4 inches
  • Certification

    IP-65 Rated, optional IP-66, IS05, MIL461EG standard, NSF2
  • Guarantee

    5-year limited warranty
Nightingale Lighting Logo

Contact manufacturer

Nightingale Lighting

Nightingale Lighting Logo

Contact manufacturer

Nightingale Lighting

More from Nightingale Lighting

Website Phone

More about this product

Nightingale Lighting is committed to providing better lighting for healthcare spaces for improved patient experiences.

Nightingale's HSTL is a healthcare troffer that uses dual-color channels and optional nLight® wired and wireless controls to deliver powerful illumination and color accuracy for a medical team's visual acuity. It is suitable for ceiling/recessed applications.

Models

1x4 2x2 2x4

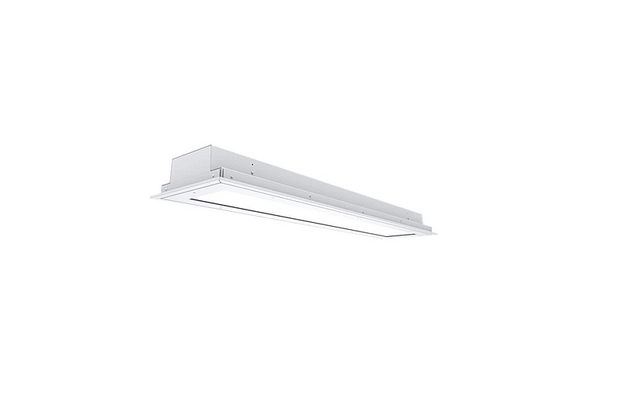

1x4 | HSTL Troffer Light

Features

  • Dual-circuit color configurations, available in static white or dual-circuit configurations with red, green, or amber colors
  • Available with up to 10,000 lumens in the 1x4, 12,000 lumens in the 2x2, and 24,000 lumens in the 2x4
  • Asymmetric or symmetric distribution
  • With surface, grid, and flange mounting options, HSTL is complete with machine-welded housing, frosted acrylic and polycarbonate lens options, and an integrated occupancy sensor option
  • Standard gloss and matte white anti-microbial finishes are available

Specifications

Light Source LED - Static
Lumens 3000 LM, 5000 LM, 7000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Amber Phosphor Corrected, Green, Red
CRI 80, 90, 95
Product Type Troffer
Compliance Listing BAA
Environmental Listing IP65, IP66, ISO-5, MIL-STD-461G, NSF, Wet Location
Regulatory Listing CSA, NOM
Dimming Protocol 0-10V, DALI
Fixture Wattage 100, 22, 229, 23, 230, 24, 25, 26, 27, 28, 29, 30, 31, 32, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 121, 122, 123, 124, 125, 126, 128, 129, 131, 132, 133, 134, 135, 136, 140, 141, 151, 152, 153, 154, 155, 156, 157, 158, 159, 161, 162, 163, 164, 167, 168, 169, 170, 172, 173, 174, 175, 176, 178, 179, 180, 181, 187, 188, 211, 212, 213, 215, 216
Voltage Rating 120, 120-277, 277, 347
Mounting Type Recessed, Surface

Product gallery
