Aluval is a Spanish company, with over five decades of experience designing, manufacturing, and distributing aluminum profiles. Aluval Aluminum Louvers systems offer customizable slat options for versatile ventilation and privacy applications.

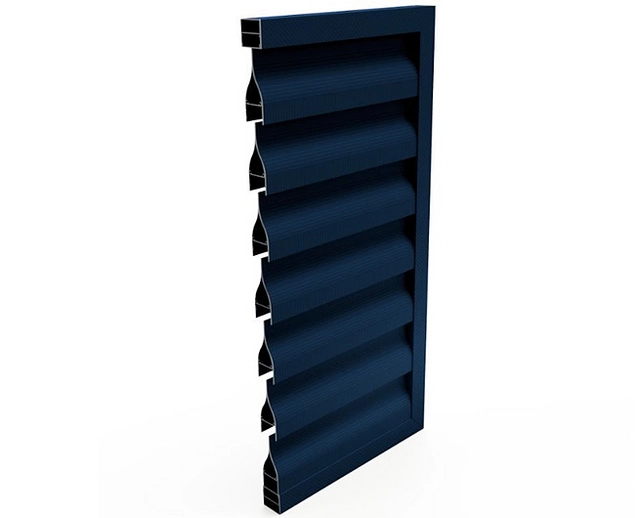

Dividing Y 100
 |
Construction Possibilities
Technical Specifications
| Fixed Slat | Extruded aluminum |
| Number of Slats per Meter | 11 with step reference 8000272 |
| Weight per m² | 8.283 Kg |
| Resistance to Wind Loads | Class 6 |
| Maximum Advisable Width | 200 cm |
| Hardware | European channel fittings and accessories for swing doors. Mechanized staple profile for quick and easy installation. |

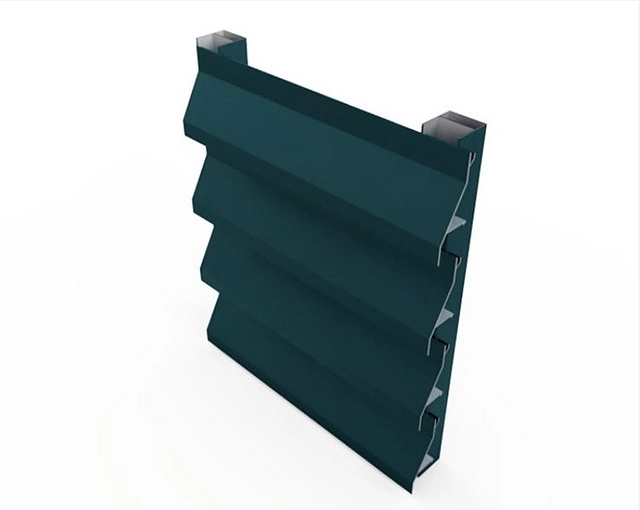

Clipped Fixed Lattices
 |
Technical Specifications
| Lattices | Straight, curved edge, flat |
| Material | Fixed strip in extruded aluminium. |
| Number of slats per metre |
|
| Maximum separation between supports | 1500mm |
| Mounting | Horizontal and vertical |
| Resistance to wind loads | Class 6 |

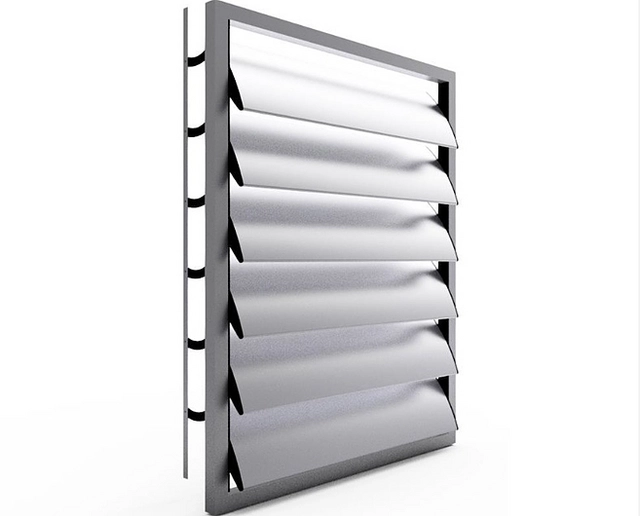

Oval Lattices
 |
Construction Possibilities
| Slats | Adjustable or fixed slats in extruded aluminum |
| Weight | 8.5Kg/m² (120mm plank), 10.5Kg/m² (210mm plank), 12.8Kg/m² (300mm plank) |
| Designs | Elliptical designs: 120x20mm, 210x30mm, 300x40mm |
| Side Plugs | Side metal blind plugs (for fixed version not embedded) and retractable pivot (for mobile version) |
| Wind Load Resistance | Class 6 |
| Maximum Recommended Widths | 1800mm (120mm slat), 3000mm (210mm slat), 3500mm (300mm slat) |
| Slats per Meter | 9 slats (120mm slat), 5 slats (210mm slat), 3.44 slats (300mm slat) |
| Hardware | Manual or mechanical operation for mobile slats. Adjustable clamps for fixed slats. Machined frame for version with embedded slats. |
