Aluval is a Spanish company, with over five decades of experience designing, manufacturing, and distributing aluminum profiles. Aluval's Aluminum Handrail Systems offer a diverse range of solutions designed for security and versatility. With various design styles, these systems provide adaptable configurations for a variety of architectural requirements.

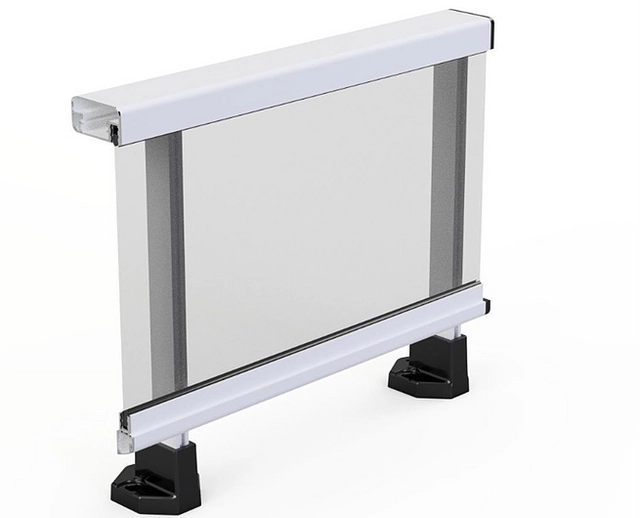

Aluprom 50
 |
The Aluprom 50 system provides a secure and versatile handrail solution with multiple configuration options. Designed for strength and adaptability, it features a U-based handrail with or without glass holders and a specialized U-profile for seamless glass integration.
Technical Specifications
| Handrail Type | U-based, 51x21 mm, with/without glass holders |
| Profile for Glazing | U-shaped |
| Assembly | Straight cut with adjustable parts |
| Reinforced Bar Options | Rectangular 40x20 mm, Oval 35x16 mm, Semi-ovoid 35x25 mm , Round Ø35 mm |
| Handrail Variations | 6 types, 2 with glass holders |
| Hardware | Cast and extruded aluminum base, mounting solutions, gasket for glazing |

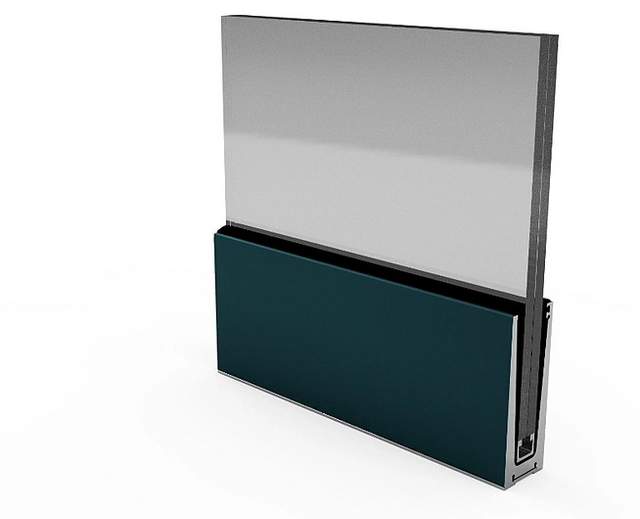

Class Vision
 |
Class Visión is a minimalist handrail system designed to provide an unobstructed view with a refined, modern aesthetic. Featuring a U-profile base in two sizes, it offers a clean assembly system and multiple installation options, including vertical and horizontal mounting.
Technical Specifications
| Base Profile Sizes | 122x46 mm, 122x81 mm |
| Mounting Options | Vertical or horizontal fixing base |
| Supported Glass Thicknesses | 6+6 mm, 8+8 mm, 8+10 mm, 10+10 mm |
| Drainage System | Integrated profile |
| Fastening | Base profile with wing to conceal screws, bolted side covers |
| Additional Features | LED-compatible profile for lighting |

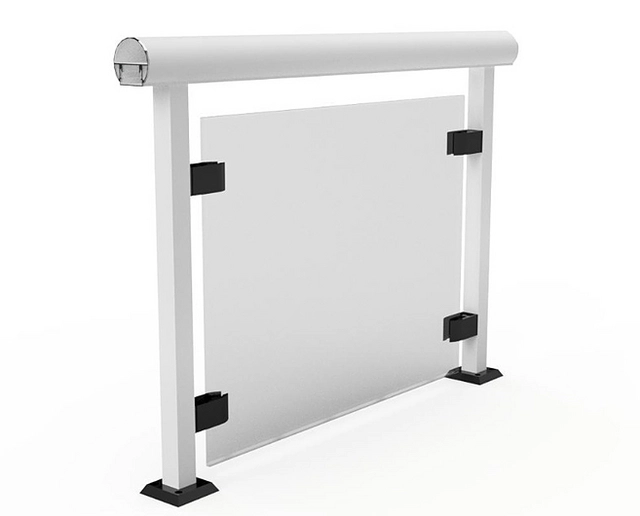

Traditional Handrail
 |
Aluval Traditional Handrail features a straightforward assembly system with adjustable components. Available with a wide selection of handrail options, this system adapts to a variety of architectural styles.
Technical Specifications
| Railing | U-based 40x24 mm |
| Assembly | Straight cut with adjustable parts |
| Bar Options | Rectangular 30x15 mm, Oval 30x16 mm, Square 30x30 mm |
| Handrail Variations | 3 types |
| Hardware | Cast aluminum base, multiple mounting solutions |
