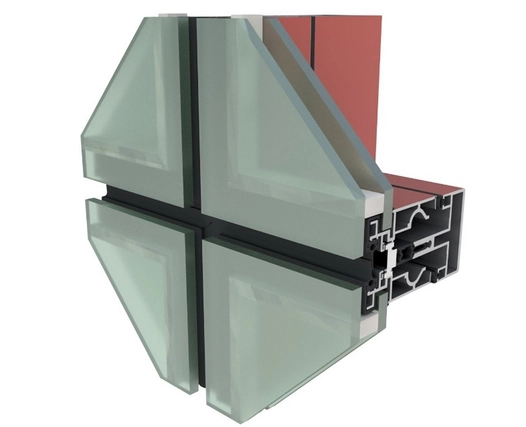

Light Facade System - Aluprom 54 | ALUVAL

Aluval is a Spanish company, with over five decades of experience designing, manufacturing, and distributing aluminum profiles. Aluval's Light Facade System - Aluprom 54 is designed to provide structural efficiency, thermal performance, and flexibility in facade applications. The system allows for straight cut assembly using adjustable parts, ensuring precision and ease of installation.

Features

• Brackets available in sizes from 45mm to 200mm
• 54mm post width for structural stability
• Straight cut assembly with adjustable parts
• Thermal break using 6mm or 11mm EPDM joints
• Glazing secured with EPDM joints, accommodating thicknesses from 6mm to 65mm

Construction Possibilities

• Three flap models for design flexibility
• Glazing using EPDM joints from 6mm to 65mm.

Hardware

• Aluminium joints and EPDM joints.
• European chamber fittings for integrated carpentry.
