Aluval is a Spanish company, with over five decades of experience designing, manufacturing, and distributing aluminum profiles. The RPT Folding Doors - Series C16 Channel by Aluval offers a variety of customizable choices to accommodate different project requirements.

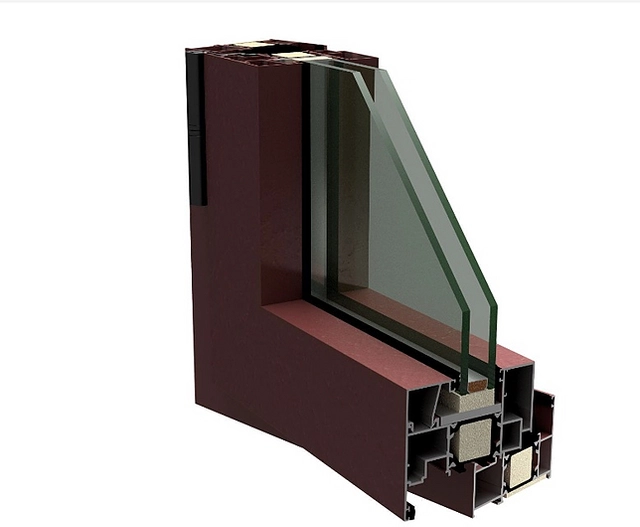

Aluprom 38 C16

Aluprom 38 C16

Construction Possibilities

Flush window and door leaves
Design of the leaves with straight or curved finish
Union with practicable
Adjustable corner up to 90°
Profile of pourers, condensation, and union of frames
Straight or curved beads
Guide to integrate frame 93, 102, 120, 130, 145, 150, 160, 180, and 190mm

Technical Specifications

Series	Abatible series with thermal break and chamber for channel 16 fittings with 13mm axis
Frame Width	58mm
Glazing	Beads from 16.8 to 50.8mm
Frame & Blade Assembly	Miter cut and union using squares
Fittings	Central joint and large capacity drainage chamber Channel 16 fittings with 13mm axis Wide range of locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, parallel tilt opening, swing, projector, folding in 3, 4, 5, 6, or 7 sheets

Aluprom 35 HO C16

Aluprom 35 HO

Construction Possibilities

Possibilities
Union with folding
Crossbar maintaining the geometry of the frame
Gutter profile, condensation
Adjustable
Guide to integrate frame of 120, 130, 140, 145, 150, 160, 170, 180, 190, and 200mm.

Technical Specifications

Series	Hinged series with thermal break and “hidden leaf” design with chamber for 16 channel hardware with 13mm shaft
Frame Width	77mm with projection up to a total width of 84.5mm
Glazing	Variable glazing using EPDM rubbers; holes for 34, 36, 38, 40, 42, and 44mm glazing
Frame & Blade Assembly	Miter cut and union using squares
Fittings	Central joint and large capacity drainage chamber Complementary thermal gasket in expanded EPDM λ=0.060 W/mK 16 channel fittings with 13mm axle Wide range of locks Rigid polyisocyanurate (PIR) foam bars with a value of λ=0.023 W/Mk
Possible Openings	Fixed, practicable, tilt-and-turn opening, swing

Aluprom 25 C16

Aluprom 25 C16

Construction Possibilities

Flush window and door sheets
Design of the leaves with a curved or straight finish
Union with folding
Corner adjustable up to 90°
Profile of pourers, condensation
Straight or curved beads
Guides to integrate frame 93, 120, 145, 150, and 180mm

Technical Specifications

Series	Folding thermal break with chamber for hardware channel 16 with a 13mm shaft
Frame Width	45mm
Glazing	Beads from 9 to 37.8mm
Assembly of Frames and Sheets	Cutting of miter and joint using brackets
Hardware	Central joint and large drainage chamber Channel 16 hardware with 13mm axis Wide range of locks
Possible Openings	Fixed, practicable, practicable for external opening, oscilobatient opening, oscilloscope opening, swing, projector

Aluprom 36 C16

Aluprom 36 C16

Construction Possibilities

Flush window and door leaves
Blade design with straight or curved finish
Adjustable corner
Union with folding
Gutter profile, condensation
Straight or curved beads
Guide to integrate frame of 93, 102, 120, 130, 145, 150, 160, 180, and 190mm.

Technical Specifications

Series	Hinged series with thermal bridge break with chamber for 16 channel hardware with 13mm axis
Frame Width	54mm
Glazing	Hollow beading from 12.8 to 46.8mm
Assembly of Frames and Leaves	Miter cut and union by squares
Hardware	Central joint and large capacity drainage chamber Channel 16 fittings with 13mm axis Wide range of locks Polyethylene foam bands with a value of λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable for external opening, tilt and turn opening, oscilloparallel opening, swing, projector, folding in 3, 4, 5, 6, or 7 sheets

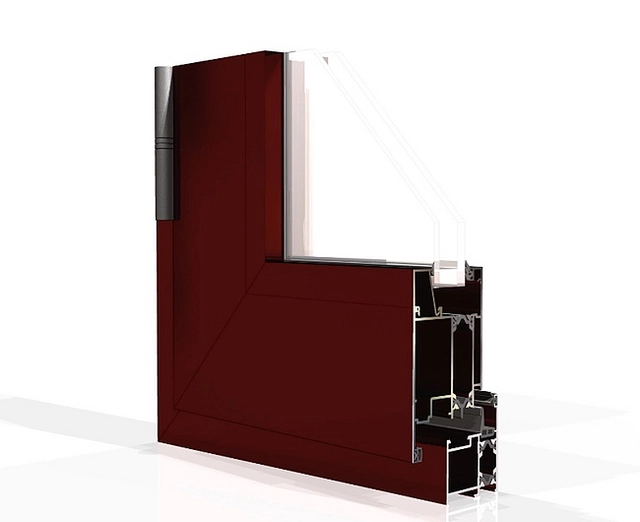

Aluprom 34 HO C16

Aluprom 34 HO C16

Construction Possibilities

Union with folding
Gutter profile, condensation
Crossbar maintaining the geometry of the frame
Adjustable corner
Guide to integrate frame of 93, 102, 120, 130, 145, 150, 160, 180, and 190mm.

Technical Specifications

Series	Hinged series with thermal break with “hidden leaf” design with chamber for 16 channel hardware with 13mm axis
Frame Width	54mm frames with projection up to a total width of 61.3mm
Glazing	Variable glazing using EPDM rubbers; holes for glazing of 16, 18, 20, 22, 24, and 26mm.
Assembly of Frames and Leaves	Miter cut and union by squares
Additional Features	Inverter cover clipped after glazing on site, Polyamide with housing for central gasket
Hardware	Central joint and large capacity drainage chamber European chamber fittings Wide range of locks
Possible Openings	Fixed, practicable, tilt-and-turn opening, swing

Aluprom 44 C16

Aluprom 44 C16

Construction Possibilities

Flush window and door sheets
Design of the leaves with a curved or straight finish
Union with folding
Corner adjustable up to 90°
Profile of pourers, condensation, and union of frames
Straight or curved beads
Guides to integrate frame 93, 102, 120, 130, 140, 145, 150, 160, 170, 180, 190 and 200mm

Technical Specifications

Series	Folding thermal break with chamber for hardware channel 16 with shaft of 13
Frame Width	67mm wide frame
Glazing Beads	From 26 to 60mm
Assembly of Frames and Leaves	Miter cutting and joining using squares
Hardware	Central joint and large drainage chamber Channel 16 hardware with 13 axis Wide range of locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, parallel tilt opening, swing, projector, folding in 3, 4, 5, 6 or 7 sheets

Aluprom 46 C16

Aluprom 46 C16

Construction Possibilities

Flush window and door sheets
Design of the leaves with a curved or straight finish
Union with folding
Corner adjustable up to 90°
Profile of pourers, condensation, and union of frames
Straight or curved beads
Guides to integrate frame 120, 130, 140, 145, 150, 160, 170, 180, 190 and 200mm

Technical Specifications

Series	Folding thermal break with chamber for hardware channel 16 with shaft of 13
Frame Width	77mm wide frame
Glazing Beads	From 36 to 70mm
Assembly of Frames and Leaves	Miter cutting and joining using squares
Hardware	Central joint and large drainage chamber Channel 16 hardware with 13 axis Wide range of locks Polyethylene foam strips with a value λ=0.036 W/Mk
Possible Openings	Fixed, practicable, practicable exterior opening, tilt and turn opening, oscilloparallel opening, swing, projector, folding in 3, 4, 5, 6 or 7 sheets
