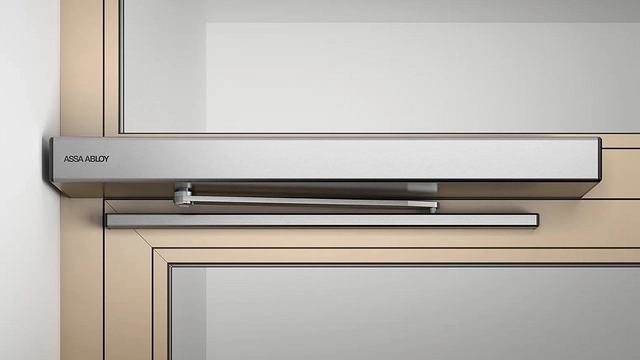

ASSA ABLOY provides a comprehensive range of door-opening products, solutions, and services to enhance entrance automation and security for institutional and commercial projects. The Swing Door Operator - SW300-S is a versatile and eco-friendly solution designed to save time and costs. This all-in-one operator adapts to various modes, door types, and arm configurations. A companion service app simplifies commissioning, troubleshooting, and diagnostics, enhancing overall efficiency.
Key Features
- Energy efficiency: The “ECO-Mode” reduces energy consumption during standby, contributing to lower CO₂ emissions.
- User-friendly commissioning: Installers can quickly commission the SW300-S using a mobile app that offers step-by-step guidance, ensuring an accurate and efficient installation.
- Streamlined troubleshooting: The app provides real-time access to door data, error statistics, and other essential information, allowing technicians to resolve issues promptly.
- Comprehensive Solution: The ASSA ABLOY SW300-S supports standard and inverse operations, accommodates single and double fire doors, and offers various arm options, streamlining installation with one adaptable model.
Technical Specifications
| Operator dimensions (H x W x D) | 70 mm x 840 mm x 148 mm |
| Recommended max. door weight and door width Inertia J | Push: 140 kgm², Pull: 80 kgm² |
| Drive unit weight | 7.6 kg |
| Power consumption |
| ECO (power save) mode | <0.3 W |
| IDLE mode | 5 W |
| ON mode | Max. 40 W |
| Reveal |
| Push arm | 0 – 367 mm |
| Pull arm | 20 – 230 mm |
