Sliding Over Fixed Skylight | Glazing Vision

Share
  • Use

    Skylight, small roof spaces, roof access
  • Applications

    Residential
  • Characteristics

    Durable, thermal insulation, LED control switch, automated, safety design, thermal break framework
  • Certification

    Secured by Design to LPS2081/1, approved by the Loss Prevention Certification Board

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

1 BIM Object

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Glazing Vision

More about this product

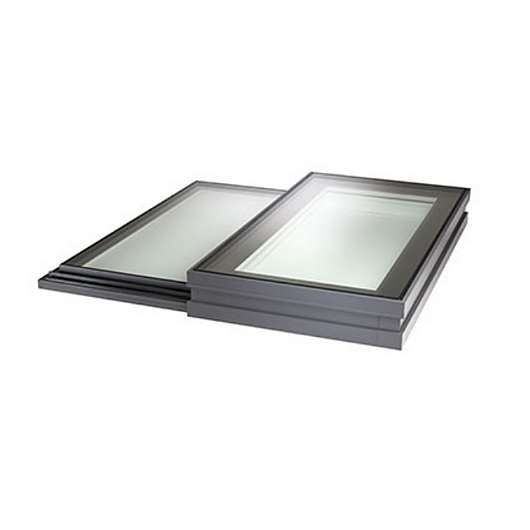

The sliding over fixed skylight from Glazing Vision offers a solution for roofs with more tight spaces. This skylight is generally split into two sections, with one fixed pane and one sliding pane that moves over it. The design of the skylight allows for the maximum amount of light to enter a space while being able to open up 50% of the footprint for natural ventilation.

The skylight requires suitable balustrades installed in order to be used for access.

Operation

The system is operated via a twin drive rack and pinion that transmits power to the wheels designed with a large diameter on hard anodized tracks, ensuring a smooth motion of travel when opening and closing the skylight. The sliding over fixed features a one way solenoid clutch and built in anti lifting mechanism so the sliding section cannot be forcibly back driven.

undefined

Materials

The frame is specified in the standard dual color Qualicoat polyester powder coating with a polyamide thermal break and closed cell PIR insulation. Glazing Vision also offer the option of triple glazing to achieve higher thermal insulation.

Key Features:

  • Approximate 50% clear opening
  • Thermal break framework
  • One touch control
  • Available in bespoke sizes and glass specifications
  • Heat soak tested low e safety glass as standard
  • Available in bespoke sizes and glass specifications
