Circuit Track Lighting System - Yori Evo 48V | Reggiani
  1. ArchDaily
  2. Products
  3. Lights
  4. Circuit Track Lighting System - Yori Evo 48V

Circuit Track Lighting System - Yori Evo 48V | Reggiani

Share
  • Use

    Interior lighting, pendant lighting, linear lighting
  • Applications

    Retail stores, art galleries, offices, display cases, shelves
  • Characteristics

    Low voltage, CRI>80 / 90 / 98, up to 4050 Lumen output, 2700 - 4000 k color temperature, customizable, adjustable angle, performance and precision optics
  • Sizes

    Diameters: ø22 mm, ø35 mm, ø43 mm, ø60 mm, ø75 mm, ø95 mm Lengths: From 286 mm to 1408 mm

4 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Reggiani

More about this product

The Yori Evo 48V system from Reggiani offers a low voltage version of the Yori Evo Ghostrack system. The 48V system ia available in three different families: Yori EVO 48V; Yori Pendant 48V; Yori Linear 48V. The system also includes a range of low voltage tracks in surface and recessed versions, with high profiles and indirect light. It is available in four different sizes in both the standard or extra long arm versions.

Specifications

Power From 2W to 27W (Linear)​
Beams From 7° to 53°​
Color temperatures 2700 K, 3000 K, 4000 K​
CRI >80, >90, >98
Lumen output Up to 4050 lm​
Control systems On/Off, DALI, Dimm 1-10V, Dimmer on board

Yori EVO 48V

undefined

Yori Evo 48V offers an elegant design of accent lights. With a CRI>98 option the colour authenticity and light materiality is elevated. It features Precision and Performance optics and is available in four different sizes: Ø22mm, Ø35mm, Ø43mm and Ø60mm either in the standard or extra long arm version.

The Yori Evo 48V features a selection of filters, lenses and honeycomb accessories. The holder lets you use up to 2 accessories simultaneously. Moreover, the optional solid and hollow decorative cylinders are available in different sizes and guarantee soft, diffused lighting, creative more elegant environments of application. The micro sizes (ø22mm and ø35mm), offer a wide range of lenses and filters.

The Yori EVO 48V is available in two versions:

  • The Yori EVO 48V Zoom version - is a flexible accent lighting solution for restaurants, residential spaces, retail store and galleries. The angle of the beam can be adjusted between 10 and 57 degrees.

  • The Yori EVO 48V Pro version - offers incredible performance and precision optics and was developed specifically for showcases, shelves and display cases. It includes the CRI>98 specification, enhancing colours and materiality, drawing attention to the object on display. It is available in two sizes: Ø35 and Ø43mm

Yori Pendant 48V

undefined

The Yori Pendant 48V is a minimal and elegant family of suspended luminaires, inspired by the streamlined design of the Yori projector system. An endless variety of combinations are possible, thanks to the large selection of finishes and size range.

Yori Linear 48V

undefined

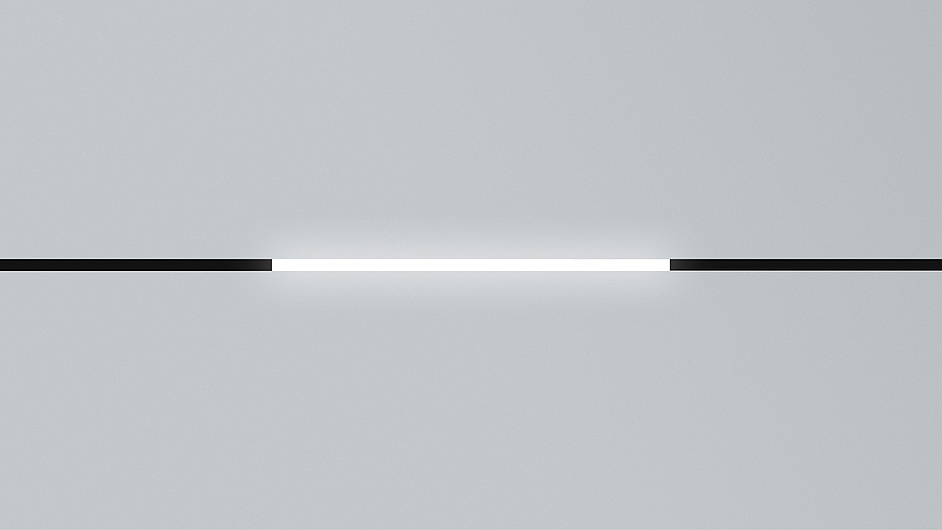

The Yori Linear 48V is the linear version of the 48V system, available in different lengths: 286 mm, 567 mm, 847 mm, 1128 mm and 1408 mm. It comes with three different diffusers: Opal, for soft and diffused lighting; Prismatic, for greater control; UGR, to reduce glare, especially in the workplace. It can be used as a complement to accent lighting or to create lines of light and unusual architectural configurations.
