Wood Fiber Panels - Valchromat 05 | Investwood

Share
  • Use

    Interiors
  • Applications

    Furniture, decorative panels, partition walls, false ceilings, flooring, shopfitting, exhibition stands, restoration, bathrooms, kitchens, doors
  • Characteristics

    Colored throughout, easy to machine, non toxic, load resistant, tool friendly, moisture resistant, fire resistant
  • Format

    Panels
  • Colors

    Light grey, grey, black, chocolate brown, yellow, orange, red, blue, green mint, khaki
  • Certification

    Valchromat Fire Reaction Valchromat 05 panel: B-s2, d0 according to Standard EN 13501

1 BIM Object

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Valchromat 05 from Investwood is a wood-fiber panel. The fibers are colored during the production process with organic colouring agents and chemically bound with a special resin which lends Valchromat 05 unique physicochemical features.

The panel with the lowest formaldehyde emissions produced by Valbopan. It maintains its technical and physical characteristics (even the Moisture resistant capacity) despite having less formaldehyde. The approach to ecology and the preservation of human health, complying with the limits imposed by Chemikalien-Verbotsverordnung and with the limits of BREEAM International.

The production of Valchromat E05 panel is certified and allows the panel to be used in buildings that require BREEAM international certification.

Main Features

  • Moisture resistant
  • Higher density than MDF
  • Higher mechanical strength
  • Allows working in three dimensions – mechanization
  • Lower abrasion of tools

Appearance

Investwood produces Valchromat 05 in different colours, sizes and thicknesses. On the surface small wood fibres that did not absorb the organic dye remain visible giving Valchromat 05 a unique, natural look. Because of the tonal variation in wood, the main raw material in the wood-fiber panels, Valchromat 05 can also show variations in colour.

Features

  • Moisture Resistant
    Valchromat 05 is classified as an MDF.HLS, it is a panel that can be used as a structural element to support loads in humid environments.
  • Density
    It has a higher density than a normal MDF, being more homogeneous throughout the thickness.
  • Mechanical resistance
    Greater resistance to flexion, elasticity modulus and internal cohesion, which allow its use in structural applications such as pavements supported by beams and structural walls.
  • Ease of Mechanizing / Milling
    One of the mechanical characteristics that the panel has is the ease of being mechanized / milled without crumbling its interior.
  • Lower abrasion of tools
    When cut, drilled or mechanized / milled it causes less tool wear.
  • Loose Fibers
    When the panel is varnished or painted, the repulsion that arises after applying the finish is minimal.
  • Working the Material
    Boards can be cut, drilled and machined with power or compressed air tools commonly used in carpentry or mechanical metalwork.

Sizes and Thicknesses

Dimensions (mm) 2440 x 1220, 2440 x 1830, 3660 x 1220, 3660 x 2440 or others upon request
Thicknesses (mm) 8, 12, 16, 19, 30

Projects

Image Project Application Design
undefined Commercial Area, UK Office, exhibition stand, door EJ RYDER

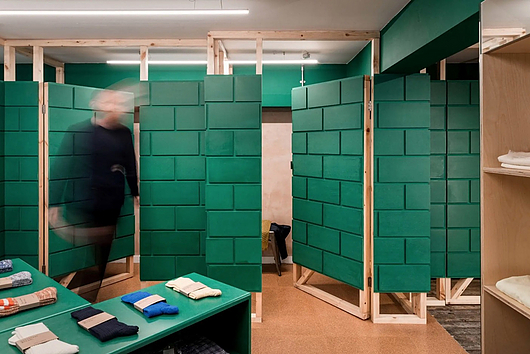

undefined Mutt Universal Works, UK Closet, door Estúdio Mutt

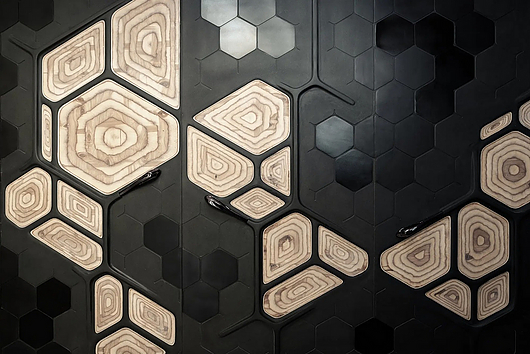

undefined Hexapod Series Custom Interior Design, Taiwan Partition walls Echo Chen, sKY_Associative

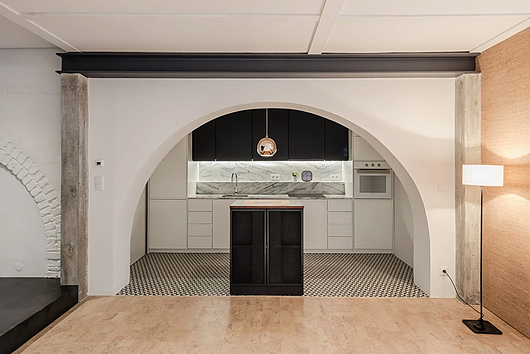

undefined Appartment Rebuild, Portugal Furniture, kitchen Magdalena C, Kema Studio
