Metal Rainscreen - Qbiss Screen H & H+ | Trimo

Share
  • Use

    Datacenter, shopping center, logistics, airports, business office, museums, warehouse, education, military, industrial, showrooms, healthcare
  • Applications

    Qbiss Screen H : ventilated façade, soffit, internal wall, ceiling | Qbiss Screen H+: ventilated façade, internal wall
  • Characteristics

    Prefabricated, easy installation, lightweight, aesthetics, durable, prevention from atmospherics pollutants
  • Format

    Raster length: 530mm - 6500mm ; module width: 600mm - 1200mm; thickness: 65mm; Qbiss Screen H: Vertical/Horizontal/ Vertical Brick; Qbiss Scree H+: Vertical/Horizontal
  • Certification

    CE

More about this product

Qbiss Screen is an innovative metal rainscreen from Trimo.

Qbiss Screen

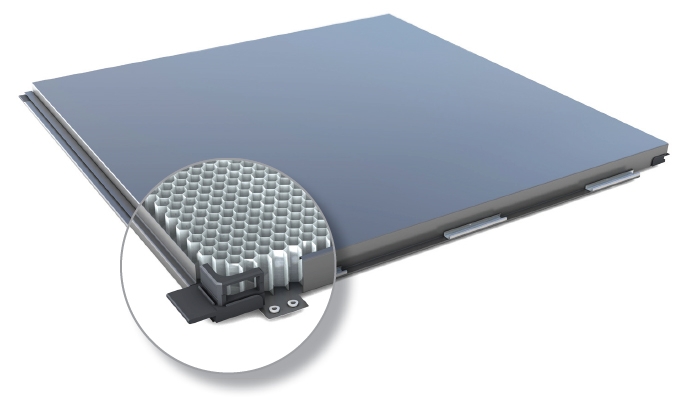

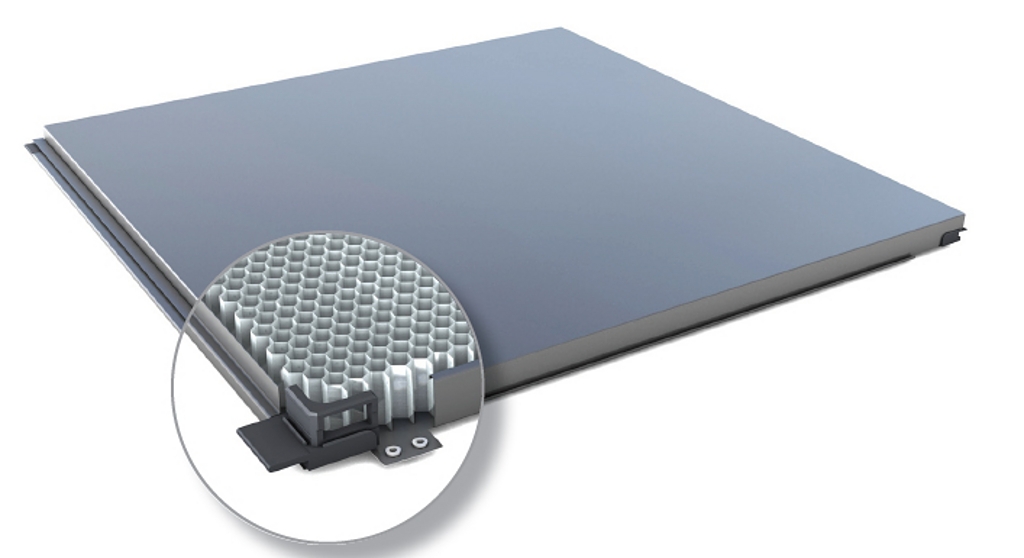

The 50 mm thick element is a composite made of two pre-painted galvanized steel sheets with joints and honey-comb core. The composition of materials gives elements visibility higher level of surface flatness, high load-bearing capacity, minimal thermal expansion, thermal deflection and resistance to humidity.

High Quality Rainscreen

  • Fully prefabricated and self-supporting system
  • Embossed corners without cuts, folds or welds
  • Extreme element flatness

Versatile Design Possibilities

  • Compatible with Qbiss One façade elements
  • Wide range of colours and material finishes
  • Various joint and installation options

Maximum Safety

  • Class A2 limited combustibility classification
  • Quick installation with reduced amount of barring sub-frame system up to 60% compared to other traditional rainscreen systems
  • Lightweight elements for simple on-site handling and installation

Applications

Mainly used for refurbishment purposes but also new buildings (offices, showrooms, public buildings, health care facilities etc.)
