Glass Skylight FE | LAMILUX

Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE Glass Skylight FE
  • Available in

  • Use

    Skylights
  • Applications

    Roofs
  • Characteristics

    Aluminum frame, flat window, Passivhaus efficiency class phC, free of thermal bridges, BIM-ready
  • Certification

    Fall-proof according to DIN EN 18008-6, resistance against wind load in line with DIN EN 12211 = C5, resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5, water tightness under driving rain to DIN EN 1027 = E (1950)

1 General Catalog

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.

2 BIM Objects

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
LAMILUX Logo

Contact manufacturer

LAMILUX

LAMILUX Logo

Contact manufacturer

LAMILUX

More from LAMILUX

Website Phone

More about this product

LAMILUX skylights from the FE Family are flat roof windows with an aluminium frame. To configure BIM-, CAD- and product data for this product according to your individual requirements click here.

Design

  • Award-winning: German Design Award, reddot design award, Plus X Award
  • Uniform appearance
  • Aesthetic, classical and elegant design language
  • Avoidance of dirt on the glass surface

Variety

  • Large range of sizes
  • Customization to the overall concept
  • Various glazing types
  • Various drive options

Quality

  • Passivhaus standard certified skylight in Passivhaus efficiency class phC
  • Overall structure free of thermal bridges
  • Optimized soundproofing and minimized rain noise
  • Long service life
  • Permeability to air in line with DIN EN 1026 = Class 4
  • Skylight FE in accordance to ISO EN 15804

Use

  • BIM-Ready
  • Fully pre-assembled
  • Simple installation
  • Efficient maintenance
  • Versatile adapter frame

Safety

  • Flat roof window with general building inspection approval in "Structural Glazing" construction method – certified by the German Institute for Construction Technology in Berlin (DIBt)
  • Smoke exhaust opening

Design Details

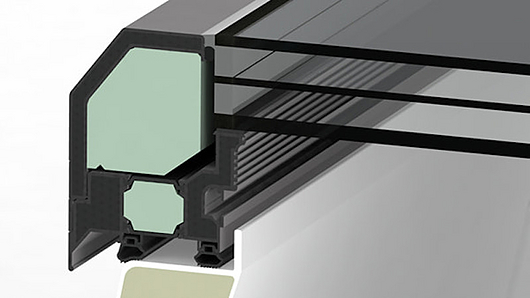

Thermo active design

A patented structural ribbing uses the heat energy of the room air below the base for the glazing. This increases the surface temperature in the aluminum frame. The result is a flawless isothermal line with minimized risk of condensation.

GRP Upstand

The base of the system is a seamlessly manufactured upstand that provides an ideal thermal connection to the building structure. LAMILUX upstands made of glass-fiber reinforced plastic are CFC-free, completely pigmented white and thermally insulated with rigid polyurethane foam. They have a weatherproof seal and are non-flammable with no burning droplets.

To make them very stable and torsion-resistant, LAMILUX upstands have a closed box cross-section. Different metal inserts can directly be laminated into the structure. LAMILUX upstands can be manufactured in an extremely large number of variants with regard to height and inclination angle. They also offer many options for customized roof connections.
