The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

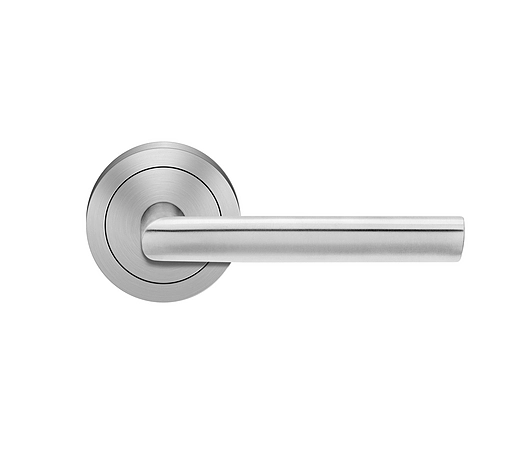

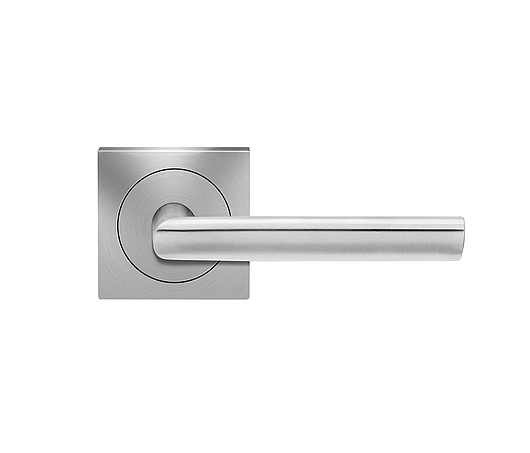

Lever version Cyprus UER29/UER29Q
Lever sets for standard duty for residential interior use and light duty for commercial interior use.
- 3 piece solid fixing rose 2 5/8″ (67mm) which will allow concealed fixing
- Spring-loaded levers minimize droop and provide smooth, fast return action of levers heavy-duty bolt through fixing prevents lock chassis rotations
| | UER29 | UER29Q |
| | | |
| Standard Features | Diameter of handle: 3/4“ (19mm)
Door range: 1 ¼“ (31mm) – 2“ (51mm) standard
Backset: 2 3/8″ - (60 mm) backset latch standard.
Stainless steel T-strike plate with plastic dust cover
Stainless steel latch faceplate | Door range 1 1/4“ (31 mm) - 2“ (51 mm) standard
T- and Lip-Strike with dust box
Stainless steel faceplate
Backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)
Available with UL-Latch
28° latch with attached faceplate
Rate of satin stainless steel 304
Hub 5/16“ (8 mm)
Door prep 2 1/8“ |
| Karcher Article No. | UER29 PAS 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
UER29 PRI 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
UER29 DUM 71 – full dummy
UER29 DUML 71 – half dummy left
UER29 DUMR 71 – half dummy right | UER29 PAS60 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
UER29 PAS70 71 – with passage latch, backset 2 3/4” (/0mm) and T-strike plate
UER29 PRI60 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
UER29 PRI70 71 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate
UER29 DUM 71 – full dummy
UER29 DUML 71 – half dummy left
UER29 DUMR 71 – half dummy right |
Options
- PAS - passage latch, backset 2 3/8” (60mm) and T-strike plate
- PRI – privacy latch backset 2 3/8” (60mm) and T-strike
- DUM – Full Dummy
- DUML – Half Dummy Left
- DUMR- Half Dummy Right
Special Options (to be ordered separately)
- UZ2570 PAS – Passage Latch with backet 2 3/4” (70mm)
- UZ3070 PRI – Privacy Latch with backet 2 3/4” (70mm)
- UZ2500 LS – Full Lip strike
- UZUL P67 – UL-Latch
Finish
Satin stainless steel (finish code 71)
