The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

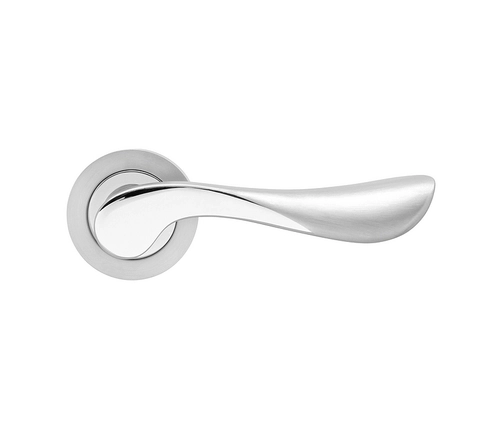

- Lever version ER79 Stockholm
Lever sets for standard doors acc. to DIN EN 1906, category of use 3 - Lever version ER/EN 79 Stockholm
Lever sets for projects acc. to DIN EN 1906, category of use 4
Features
- Solid 3-piece fixing rose and escutcheons squared, 52 x 10 mm, with 7mm lugs and nylon floating bearing
- Sprung loaded inner plate with attached lever
- Heavy-duty bolt through M4 fixings
- 8mm offset drilled spindle,
- Standard door thickness: 39 - 47 mm
- Diameter of handle: 15 x 19 mm in the middle
Options
- OS – without escutcheon
- BB – supplied with lever key escutcheons
- PZ – supplied with euro profile escutcheons
- BAD – supplied with bathroom turn/release set
- EN – supplied according to DIN EN 1906, category of use 4, OS, BB, PZ
- FS – supplied as fire-resisting set
Karcher Article No.
Finish: satin/polished stainless steel (finish code 73)
- ER79 OS 73 – without escutcheon
- ER79 BB0 73 – supplied with lever key escutcheons
- ER79 PZ0 73 – supplied with euro profile escutcheons
- ER79 BAD 73 – supplied with bathroom turn/release set
- ER/EN79 73 – supplied according to DIN EN 1906, category of use 4
- ER/FS79 PZ0 73 – supplied as fire-resisting set
Finish: polished zirconium (finish code 78)
- R79 OS 78 – without escutcheon
- R79 BB0 78 – supplied with lever key escutcheons
- R79 PZ0 78 – supplied with euro profile escutcheons
- R79 BAD 78 – supplied with bathroom turn/release set
