Door Handle Babylon UER32/UER32Q (73)
  • Available in

  • Use

    Door handles
  • Applications

    Residential, commercial
  • Characteristics

    Made of stainless steel, adhere to industry guidelines, designed by Karcher Design with recognized designers, trademark fixing assembly
  • Certification

    In accordance to DIN/EN1906
Karcher Design Logo

Contact manufacturer

Karcher Design

Karcher Design Logo

Contact manufacturer

Karcher Design

More from Karcher Design

Website Phone

More about this product

The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

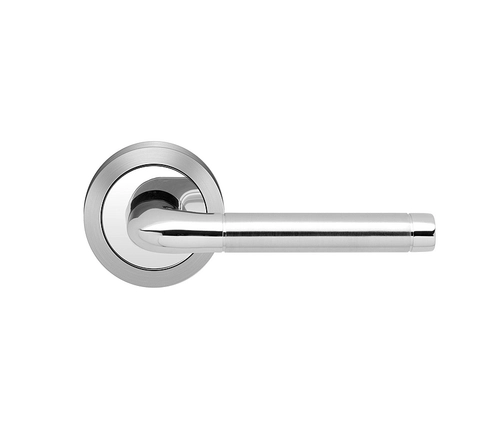

Lever version Babylon UER32

Lever sets for standard duty for residential interior use and light duty for commercial interior use.

Babylon UER32 Babylon UER32Q
Standard Features

3 piece solid fixing rose 2 5/8″ (67mm)

Concealed fixing

Spring-loaded levers

Diameter of handle: 15/16“ (24mm) X 11/16“ (17mm)

Door range: 1 ¼“ (31mm) – 2“ (51mm) standard

Backset: 2 3/8″ - (60 mm) backset latch standard.

Stainless steel T-strike plate with plastic dust cover

Stainless steel latch faceplate

3 piece rose

Concealed bolt-through fixing

Sprung

Door range 1 1/4“ (31 mm) - 2“ (51 mm) standard

T- and Lip-Strike with dust box

Stainless steel faceplate

Backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)

Available with UL-Latch

28° latch with attached face plate

Rate of satin stainless steel 304

Hub 5/16“ (8 mm)

Door prep 2 1/8“

Karcher Article No. UER32 PAS 73 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
UER32 PRI 73 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
UER32 DUM 73 – full dummy
UER32 DUML 73 – half dummy left
UER32 DUMR 73 – half dummy right
UER32 PAS60 73 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
UER32 PAS70 73 – with passage latch, backset 2 3/4” (70mm) and T-strike plate
UER32 PRI60 73 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
UER32 PRI70 73 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate
UER32 DUM 73 – full dummy
UER32 DUML 73 – half dummy left
UER32 DUMR 73 – half dummy right

Options

  • PAS - passage latch, backset 2 3/8” (60mm) and T-strike plate
  • PRI – privacy latch backset 2 3/8” (60mm) and T-strike
  • DUM – Full Dummy
  • DUML – Half Dummy Left
  • DUMR- Half Dummy Right

Special Options (to be ordered separately)

  • UZ2570 PAS – Passage Latch with backet 2 3/4” (70mm)
  • UZ3070 PRI – Privacy Latch with backet 2 3/4” (70mm)
  • UZ2500 LS – Full Lip strike
  • UZUL P67 – UL-Latch

Finish

Satin/ polished stainless steel (finish code 73)
