The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

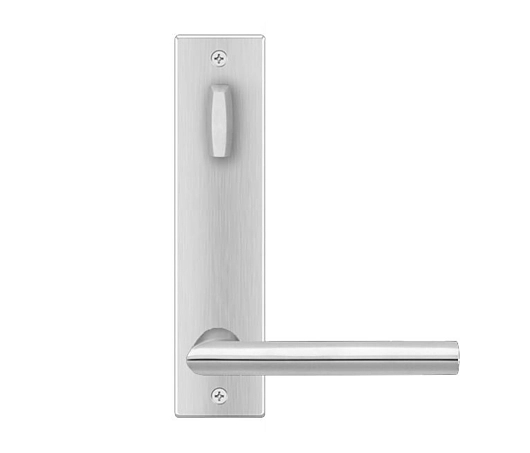

Verona on Plate UEL37 71
- Lever model: ER37 Verona
- Suits on 2 1/8” (54mm) hole and center to center 5 1/2” (140mm)
- Standard door thickness 2 1/8“ (55mm) and 2 9/16“ (65mm)
- Distance ring (UZ D2 71) required for 1 3/8“ (35mm) to 1 ¾“ (45mm)
- Passage latch with standard Backset 2 3/8” (60mm)
- Stainless steel T-strike plate with plastic dust cover
- Stainless steel strike plate with plastic cover
- Stainless steel latch faceplate
- Entrance version and Patio Version:
- Deadbolt latch: adjustable with a backset of 2 3/8″ (60 mm) and 2 3/4″ - (70 mm)
- Entrance version:
Solid Brass Cylinder with 5 pins and C keyway
Functions
Entrance door plate with single cylinder deadbolt and passage lever (LA), passage (PA), Full Dummy (DUM), Pation (PAT)
Special Options
- UEZ D2 71 (Distance Ring): For door thickness 1 3/8″ - 1 3/4″ (35 - 45 mm) a distance ring is required
- UZ2500 LS 71 Full Lip strike
- UZ2570 Passage Latch with 2 3/4” (70mm) backset
Karcher Article No.
| Finish: satin stainless steel (finish code 71) | Finish: polished/satin stainless steel (finish code 73) |
| | |
UEL 37 LA 71: Entrance set with lever Verona
UEL 37 PAS 71: Passage set with lever Verona
UEL 37 DUM 71: Dummy set with lever Verona
UEL 37 PAT 71: Patio set with lever Verona | UEL 37 LA 73: Entrance set with lever Verona
UEL 37 PAS 73: Passage set with lever Verona

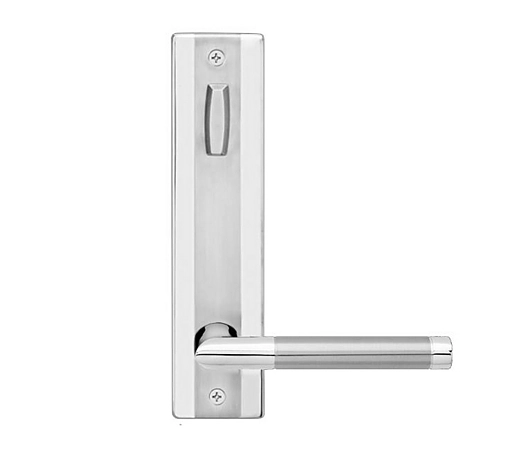

UEL 37 DUM 73: Full Dummy set with lever Verona
UEL 37 PAT 73: Patio set with lever Verona |
