The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.

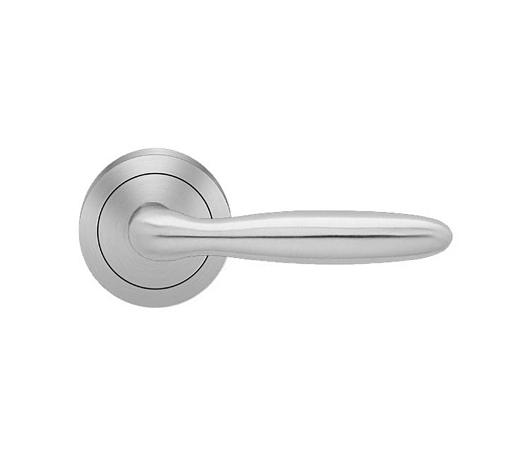

Lever sets for standard duty for residential interior use and light duty for commercial interior use.
Standard Features
- 3 piece rose
- Concealed bolt-through fixing
- Sprung
- Door range 1 1/4“ (31 mm) - 2“ (51 mm) standard
- T- and Lip-Strike with dust box
- Stainless steel faceplate
- Backsets: 2 3/8“ (60 mm) or 2 3/4“ (70 mm)
- Available with UL-Latch
- 28° latch with attached faceplate
- Rate of satin stainless steel 304
- Hub 5/16“ (8 mm)
- Door prep 2 1/8“
Finish
Satin stainless steel (finish code 71)
Options
- PAS - passage latch, backset 2 3/8” (60mm) and T-strike plate
- PRI – privacy latch backset 2 3/8” (60mm) and T-strike
- DUM – Full Dummy
- DUML – Half Dummy Left
- DUMR- Half Dummy Right
Special Options (to be ordered separately)
- UZ2570 PAS – Passage Latch with bracket 2 3/4” (70mm)
- UZ3070 PRI – Privacy Latch with bracket 2 3/4” (70mm)
- UZ2500 LS – Full Lip strike
- UZUL P67 – UL-Latch
Karcher Article No.
- UER24 PAS 60 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
- UER24 PAS 70 71 – with passage latch, backset 2 3/4” (70mm) and T-strike plate
- UER24 PRI 60 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
- UER24 PRI 70 71 – with privacy latch, backset 2 3/4” (70mm) and T-strike plate
- UER24 DUM 71 – full dummy
- UER24 DUML 71 – half dummy left
- UER24 DUMR 71 – half dummy right
