The in-house research and development team at Karcher Design creates stainless steel fittings alongside recognized designers. The designs always carry Karcher Design's trademark fixing assembly.
Lever sets for standard duty for residential interior use and light duty for commercial interior use.
Standard Features
- 3 piece solid fixing rose 2 5/8″ (67mm) which will allow concealed fixing
- Spring-loaded levers minimize droop and provide smooth, fast return action of levers heavy-duty bolt through fixing prevents lock chassis rotations
- Diameter of handle: 3/4“ (19mm)
- Door range: 1 ¼“ (31mm) – 2“ (51mm) standard
- Backset: 2 3/8″ - (60 mm) backset latch standard.
- Stainless steel T-strike plate with plastic dust cover
- Stainless steel latch faceplate
Options
- PAS - passage latch, backset 2 3/8” (60mm) and T-strike plate
- PRI – privacy latch backset 2 3/8” (60mm) and T-strike
- DUM – Full Dummy
- DUML – Half Dummy Left
- DUMR- Half Dummy Right
Special Options (to be ordered separately)
- UZ2570 PAS – Passage Latch with backset 2 3/4” (70mm)
- UZ3070 PRI – Privacy Latch with backset 2 3/4” (70mm)
- UZ2500 LS – Full Lip strike
- UZUL P67 – UL-Latch
Finish
Karcher Article No.

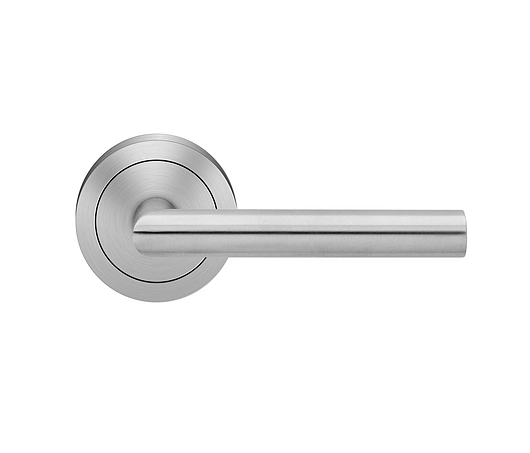

- UER28 PAS 71 – with passage latch, backset 2 3/8” (60mm) and T-strike plate
- UER28 PRI 71 – with privacy latch, backset 2 3/8” (60mm) and T-strike plate
- UER28 DUM 71 – full dummy
- UER28 DUML 71 – half dummy left
- UER28 DUMR 71 – half dummy right
